Adding a battery storage system to your home is a major step toward energy independence. It gives you control over your power, provides backup during outages, and helps you save on electricity bills. But with this powerful technology comes an important question: is it safe? Fire safety is a top priority, and understanding the standards that govern it is crucial. This is where UL 9540 and UL 9540A come in. This guide will clarify what these standards are, how they differ, and why they are so important for the safety of your home and family.
Decoding the Key Safety Standards: UL 9540 vs. UL 9540A
You will often see 'UL 9540' and 'UL 9540A' mentioned when researching home batteries. They sound similar, but they serve very different functions. Knowing the difference helps you ask the right questions and choose a truly safe system.
What is UL 9540? The System-Level Seal of Approval
Think of UL 9540 as a comprehensive safety certification for the entire Energy Storage System (ESS). It is not just for the batteries. This standard evaluates the complete package—the batteries, the inverter, the control software, and the containment unit—as a single, integrated system. The goal is to verify that all components work together safely under normal and fault conditions. A UL 9540 certification signifies that the product has passed a rigorous set of tests for electrical, mechanical, and fire safety.
What is UL 9540A? The Fire Safety Test Method
UL 9540A, on the other hand, is not a certification. It is a test method used to assess a battery system's response to a fire. Specifically, it evaluates thermal runaway, a condition where a battery cell overheats and triggers a chain reaction in neighboring cells. The test determines if a fire can propagate from cell to cell, module to module, and unit to unit. The data from this test is critical for fire departments and building inspectors to understand the fire risk of a particular system.
Why This Distinction Matters for You
A UL 9540 certification gives you confidence that the system you are buying is designed for safety from the ground up. The UL 9540A test results provide the data to ensure it is installed safely. For example, the test data helps determine how close multiple battery units can be installed to each other or to a wall. A system that performs well in UL 9540A testing may allow for more flexible and space-saving installations in places like your garage.
A Homeowner's Look into the UL 9540A Test Process
The UL 9540A test method is a multi-stage process designed to simulate a worst-case scenario. Understanding these stages helps you appreciate the thoroughness of the evaluation and what the results signify.

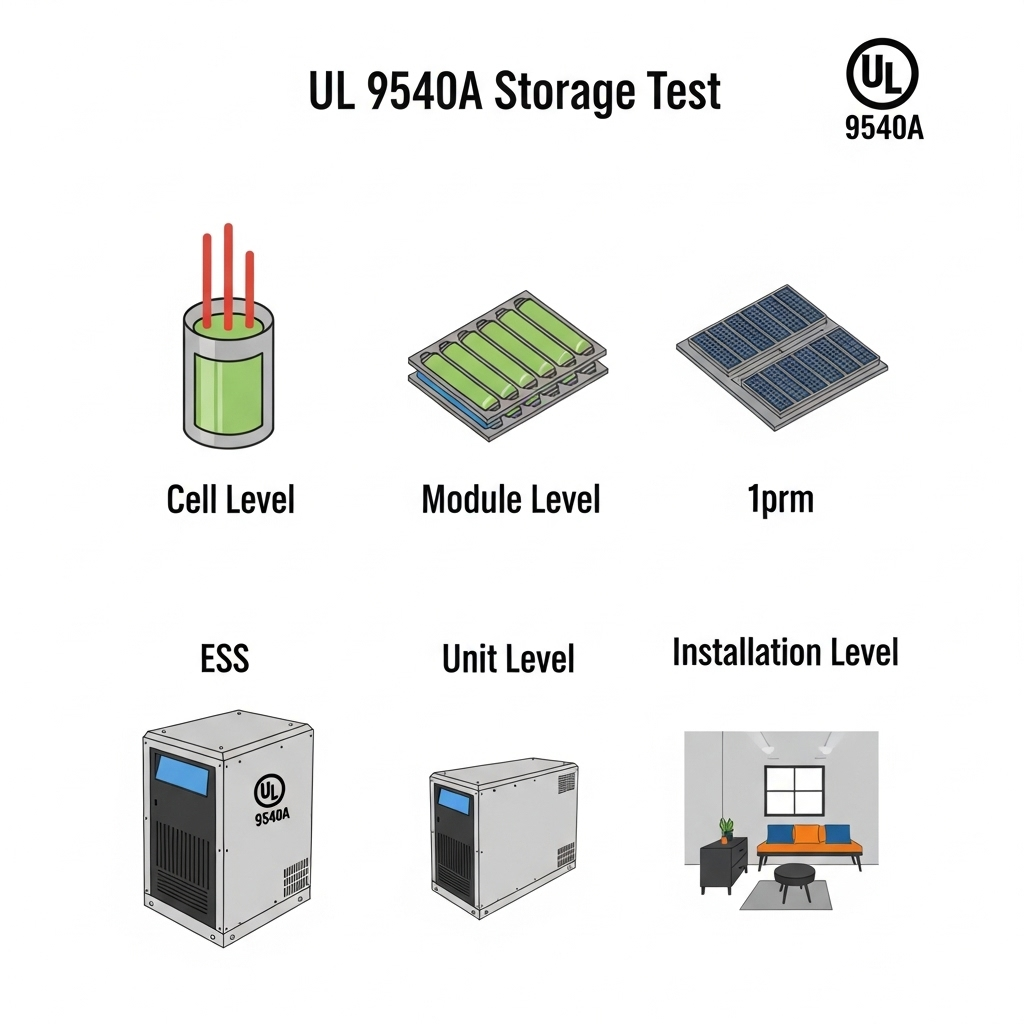

The Four Stages of Testing
The test proceeds through four levels, stopping if the fire fails to propagate at any stage.
- Cell Level: The test begins by forcing a single battery cell into thermal runaway. The objective is to see if the fire is contained within that single cell.
- Module Level: If the fire spreads at the cell level, the test moves to the module (a collection of cells). Here, a cell is again forced into thermal runaway to see if the fire spreads to other cells within the same module.
- Unit Level: If the fire spreads through the module, the test is performed on a complete battery unit. This stage determines if a fire can propagate from one module to another within the same cabinet. Passing this level is a significant indicator of system safety.
- Installation Level: This final stage is performed if the fire spreads at the unit level. It tests how a fire might spread between two separate battery units installed next to each other. The results dictate the required separation distance between units.
Key Data Points from the Tests
During these tests, engineers collect crucial data, including the heat release rate, the volume and composition of gases produced, and the potential for flaming. This information is vital for first responders and for developing installation guidelines. For instance, the gas analysis helps determine ventilation requirements. Different battery chemistries produce different results; as noted in the Ultimate Reference for Solar Storage Performance, chemistries like Lithium Iron Phosphate (LiFePO4) often demonstrate superior thermal stability, which can lead to better outcomes in these tests.
How UL 9540 Compliance Impacts Your Home Installation
Achieving UL 9540 certification and having favorable UL 9540A test data has direct, practical benefits for you as a homeowner. These standards move from the lab to your home, influencing where and how your system can be installed.
Siting and Spacing: The Practical Implications
Local building and fire codes often dictate where an ESS can be installed. These codes, like NFPA 855, rely on UL 9540A test data. A system that shows no fire propagation at the unit level might be installed with minimal clearance (e.g., less than 3 feet) from other objects or even in groups. This gives you more flexibility for placement in tight spaces like a garage or utility room. Without this test data, you would likely be forced to follow conservative default spacing requirements, limiting your installation options.
The Role of Your Local Authority (AHJ)
The Authority Having Jurisdiction (AHJ)—your local building inspector or fire marshal—has the final say on your installation. A UL 9540 certification streamlines this approval process immensely. It shows the AHJ that the system has already met a nationally recognized safety standard. Your installer will present the certification and the UL 9540A test report to the AHJ to demonstrate compliance, making for a smoother and faster permitting process. The International Renewable Energy Agency (IRENA) discusses the importance of soft costs like permitting in its Renewable Power Generation Costs in 2024 report, and using certified equipment is a key strategy to manage them.
Choosing a Compliant System: What to Look For
Now that you understand the standards, how do you use this knowledge to select the right system? Focusing on certified, complete systems and professional installation is the best path forward.
Decoding the Spec Sheet
When comparing battery systems, look for a clear statement of 'UL 9540 Certified'. This should be prominently displayed on the product's specification sheet or technical documentation. Do not hesitate to ask the manufacturer for a copy of the UL 9540A test summary report. A transparent company will gladly provide it. This report gives you and your installer the data needed for a safe installation.
| Feature | UL 9540 Certified System | Non-Certified or DIY System |
|---|---|---|
| Safety Verification | Entire system tested as a unit by a third party. | Individual components may be tested, but the integrated system is not. |
| Code Compliance | Generally meets requirements of NFPA 855 and local codes. | Compliance must be proven, often requiring extra engineering or review. |
| Installation | Clear installation guidelines based on UL 9540A test data. | Installer must follow conservative default spacing rules. |
| Permitting | Streamlined approval process with local AHJs. | May face significant delays and challenges during inspection. |
The Importance of a Complete System
UL 9540 certification applies to a complete, pre-packaged system from a single manufacturer. Attempting to build your own system from individual components—even if the battery and inverter are individually certified—does not result in a UL 9540 certified system. Safety relies on the seamless integration and communication between all parts, which is exactly what the UL 9540 standard verifies. As pointed out in IRENA's Innovation Outlook: Renewable Methanol, comprehensive safety standards are crucial for any energy technology, a principle that holds true for battery storage.
Beyond Certification: Professional Installation
A certified system is only safe if it is installed correctly. A qualified installer understands the nuances of the National Electrical Code (NEC), local fire codes, and the manufacturer's specific installation manual. They will ensure proper wiring, ventilation, and physical placement. As the energy landscape evolves, the IEA's report on China Power System Transformation emphasizes that the integration of new technologies like battery storage depends on reliable and safe implementation, reinforcing the need for expert installation.
Your Blueprint for a Safe Energy Future
Understanding fire safety standards may seem technical, but it boils down to a simple goal: ensuring your peace of mind. UL 9540 provides the assurance of a system-wide safety review, while UL 9540A provides the critical data for a safe installation. By prioritizing systems with these credentials, you are not just buying a battery; you are investing in a reliable and secure energy future for your home. Armed with this knowledge, you can confidently engage with installers, ask informed questions, and choose a home energy storage system that delivers both independence and safety.
Frequently Asked Questions About UL 9540 and Fire Safety
Is a battery system without UL 9540 certification unsafe?
Not necessarily, but a UL 9540 certification provides a high level of assurance that the entire system has been rigorously tested for safety. It simplifies the approval process with local authorities and is often required by building codes. Choosing a non-certified system places the burden of proving safety on the installer and homeowner.
Can I install a UL 9540 certified system myself?
It is strongly discouraged. Most manufacturers' warranties and local regulations require installation by a licensed and certified professional. An improper installation can void the UL 9540 certification and create significant safety hazards. Always use a qualified installer.
My battery has LiFePO4 chemistry. Do I still need to worry about UL 9540?
Yes. While LiFePO4 (Lithium Iron Phosphate) is known for its thermal stability compared to other lithium-ion chemistries, safety is a system-level concern. UL 9540 evaluates the battery, the Battery Management System (BMS), the inverter, and the enclosure as an integrated unit to ensure they all work together to prevent hazards.
What's the difference between UL 1973 and UL 9540?
UL 1973 is a safety standard for the battery modules themselves. UL 9540 is a safety standard for the complete Energy Storage System (ESS), which includes the UL 1973-compliant batteries plus the inverter, controls, and containment. A UL 9540 certification is more comprehensive.
Where can I find if a product is UL 9540 certified?
You can check the product's specification sheet, the manufacturer's website, or search the UL Product iQ database, which is a publicly accessible directory of certified products. Always verify the certification yourself or ask your installer to provide documentation.
