Energy Storage Systems (ESS) are fundamental to modern energy independence. As they become more common in homes and businesses, ensuring their safety is a top priority. A critical aspect of this is understanding and mitigating the risk of thermal runaway. The UL 9540A test method provides the essential data to do just that. This is not just about passing a test; it's about gaining deep insights into how a system behaves under failure conditions to prevent a battery energy storage system fire.
The Chain Reaction: A Closer Look at Thermal Runaway
Thermal runaway is an uncontrolled positive feedback loop within a battery cell. Once it starts, it can be difficult to stop. Understanding this process is the first step toward preventing it.
From a Single Cell to System Failure
The process often begins silently in a single battery cell. A tiny internal defect, physical damage, or electrical stress like overcharging can cause the cell's temperature to rise. As it heats up, it triggers further chemical reactions that produce even more heat. This creates a cascading failure. The intense heat can rupture the cell, releasing flammable electrolyte and gases. If this heat and material spreads to adjacent cells, they too can enter thermal runaway, leading to a fire or, in a worst-case scenario, an explosion.
Key Triggers of Thermal Events
Several factors can initiate a thermal event. Internal triggers are often microscopic manufacturing flaws that create a short circuit inside the cell. External triggers are more varied and can include:
- Physical Damage: Puncturing or crushing the battery can cause an immediate internal short circuit.
- Electrical Abuse: Overcharging, excessive discharging, or drawing too much current can stress the battery's chemistry, leading to overheating.
- External Heat: Storing or operating the system in an environment with excessively high ambient temperatures can push a cell toward its thermal limit.
A well-designed Battery Management System (BMS) is the first line of defense, constantly monitoring for and protecting against these conditions.
Deconstructing the UL 9540A Test: A Four-Stage Investigation
UL 9540A is not a certification or a simple pass/fail standard. It is a test methodology designed to evaluate the fire safety risk of an ESS by determining if thermal runaway can propagate from cell to cell, module to module, and unit to unit. The data collected is crucial for engineers, installers, and fire safety officials.

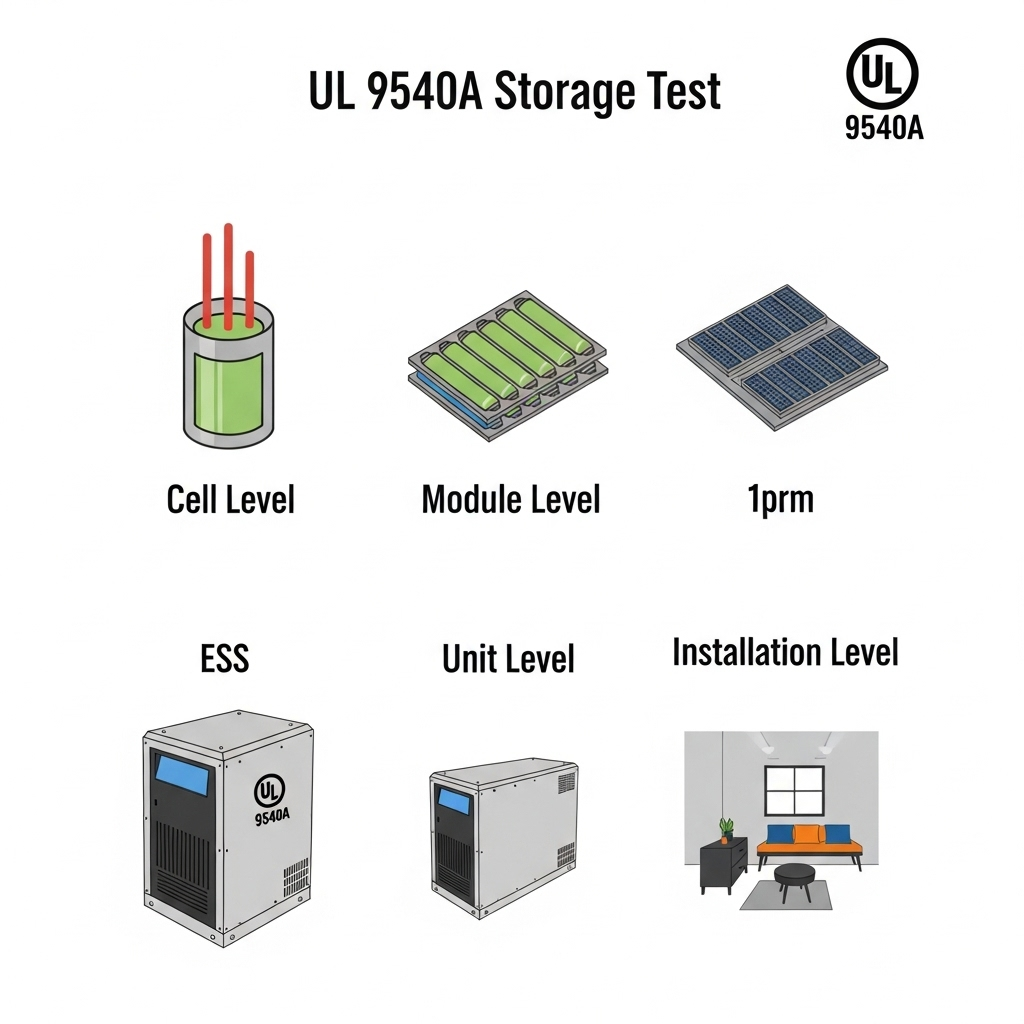

Stage 1: Cell-Level Analysis
The investigation starts at the smallest component: the battery cell. A single cell is forced into thermal runaway, typically through controlled heating. Researchers observe the results closely. Does the cell simply vent hot gas, or does it ignite? How much energy is released? This initial stage establishes a baseline for the cell's inherent safety characteristics and its potential to ignite surrounding materials.
Stage 2: Module-Level Propagation
Next, the test moves to the module level, where multiple cells are housed together. One cell within the module is triggered into thermal runaway. The key question here is whether the failure is contained or if it propagates to neighboring cells. A well-designed module will have internal barriers or spacing to prevent this chain reaction. If propagation occurs, the test quantifies how quickly it spreads and the total energy released.
Stage 3 & 4: Unit and Installation-Level Assessment
If a fire propagates at the module level, the test proceeds to the full ESS unit. The goal is to see if the system's enclosure can contain the fire. The test measures heat release, gas composition, and whether flames escape the unit. The final stage assesses the risk of propagation to adjacent ESS units or building materials. This data directly informs the installation requirements found in codes like NFPA 855, such as the required separation distance between units and the need for fire suppression systems.
From Lab Data to Safer Installations
The true value of UL 9540A is in how its data is used to create safer real-world installations. The findings go far beyond a simple report, influencing system design, installation practices, and emergency response protocols.
Gas Generation and Explosion Risk
During thermal runaway, batteries can release a significant volume of flammable gases. The UL 9540A test measures the rate and composition of this gas release. This information is vital for calculating the ventilation needed in a battery room to prevent the concentration of these gases from reaching an explosive level. As noted by fire safety experts, gases like hydrogen are highly flammable and require careful management.
Heat Release and Fire Spread Potential
The test provides precise data on the heat release rate of a failing ESS. Fire protection engineers use this data to design appropriate fire suppression systems. For example, a system with a high heat release rate might require a more robust sprinkler system or a specialized clean agent suppression system compared to one that demonstrates better containment. This data-driven approach ensures that safety measures are correctly matched to the specific risk profile of the equipment. The International Energy Agency's Net Zero by 2050 report underscores the expanding role of battery storage, making such rigorous safety evaluations more important than ever.
Comparing Chemistries: What the Data Suggests
Different lithium-ion chemistries behave differently under stress. Lithium Iron Phosphate (LiFePO4) batteries are known for their superior thermal stability compared to other chemistries like Nickel Manganese Cobalt (NMC). This stability often translates to better performance in UL 9540A testing, with a lower likelihood of propagation. The strong chemical bonds in LiFePO4 make it less prone to releasing oxygen during a failure, a key ingredient for fire.
| Feature | Lithium Iron Phosphate (LiFePO4) | Nickel Manganese Cobalt (NMC) |
|---|---|---|
| Thermal Runaway Temperature | Around 270°C (518°F) | Around 210°C (410°F) |
| Oxygen Release During Failure | No, due to stable phosphate structure | Yes, at high temperatures |
| Cell-to-Cell Propagation Risk | Lower | Higher |
| Overall Chemical Stability | High | Moderate |
Designing Systems to Contain, Not Just Resist
Modern ESS design has shifted from merely resisting failure to actively containing it. This philosophy is evident in both the physical construction and the electronic controls of advanced systems.
The Role of Enclosure and Module Design
Insights from UL 9540A testing directly influence mechanical design. Manufacturers now incorporate features like internal firewalls between modules, heat-absorbing phase-change materials, and strategic venting paths to direct hot gases away from sensitive components. The enclosure itself is a critical containment vessel, engineered to withstand the temperatures and pressures of an internal failure without compromising its integrity.
Integrating Active and Passive Safety Features
A holistic approach combines passive and active safety measures. Passive features include fire-retardant materials and robust physical construction. Active features rely on the BMS to monitor cell voltage, temperature, and current, disconnecting the battery if any parameter goes outside a safe range. This integration of safety and smart technology is crucial. As the International Renewable Energy Agency (IRENA) points out in its Renewable Power Generation Costs in 2024 report, the falling cost of renewables and storage is accelerating adoption, making integrated safety design a non-negotiable standard. A system's safety is directly tied to its long-term reliability; for more on this, the ultimate reference for solar storage performance provides a detailed look at evaluating system metrics that contribute to both safety and efficiency.
A Forward-Looking Approach to ESS Safety
UL 9540A provides a clear, data-backed pathway to safer energy storage. It moves the industry beyond speculation and provides a standardized method for quantifying fire risk. By understanding the detailed insights from this test—from cell chemistry behavior to full-system containment capabilities—manufacturers can build inherently safer products. For installers and owners, it provides confidence that the systems being deployed have been rigorously evaluated for worst-case scenarios. As we rely more on stored energy, a deep understanding of thermal runaway and the tools used to analyze it, like UL 9540A, is fundamental to a secure and resilient energy future. The IEA's analysis in The Power of Transformation confirms that expanding our portfolio of storage technologies is essential, and doing so safely is the only path forward.
Disclaimer: This article provides general information and is not a substitute for professional engineering advice, code compliance expertise, or consultation with local Authorities Having Jurisdiction (AHJ). Always consult with qualified professionals for system design and installation.
Frequently Asked Questions
Is UL 9540A a certification?
No. UL 9540A is a test method, not a certification. It generates data on how a battery system behaves during a fire. This data is then used by manufacturers, code authorities, and engineers to evaluate the safety of a system and determine proper installation requirements. The certification for the complete system is UL 9540.
Does passing the UL 9540A cell test guarantee system safety?
Not on its own. A successful cell-level test is a positive indicator of the battery's chemical stability, but it is only the first step. Safety depends on how those cells are integrated into modules and the overall system design. The module and unit-level tests are critical for understanding the complete system's ability to prevent fire propagation.
How does UL 9540A relate to UL 9540?
UL 9540 is the safety standard for Energy Storage Systems and Equipment. It is the certification for the entire product. UL 9540A is a test method that provides fire propagation data. This data can be used to demonstrate compliance with UL 9540 and with installation codes like NFPA 855, especially for determining safe spacing and fire protection measures.
Can a system with LiFePO4 batteries still have a thermal runaway event?
Yes. While LiFePO4 chemistry is significantly more thermally stable and resistant to thermal runaway than other lithium-ion types, no battery is completely immune to failure. Severe physical damage or extreme electrical abuse can still potentially trigger a thermal event. However, the result is often far less energetic, and the risk of propagation is much lower, which is what UL 9540A testing helps to prove.
