The Ultimate Guide to Anti-Islanding: Codes, Inverters, and Safety

Grid‑tied solar is designed to shut off during power outages. This is not a flaw. It is a safety feature called anti‑islanding. It protects utility workers, neighbors’ equipment, and the grid itself. You will see why this matters, how inverters do it, and what codes require. You will also learn how batteries and hybrid inverters provide safe backup without risking the grid.

Why grid‑tied PV turns off in blackouts

What islanding is

Islanding happens when a local generator, like a rooftop PV system, keeps energizing a part of the distribution network after the grid supply has failed. This creates a live island that looks “normal” from the PV’s perspective but is unsafe for workers and equipment. Anti‑islanding protection detects that condition and stops exporting power quickly.

Safety and grid stability

Grid codes exist to keep people safe and the system stable as solar and wind grow. They define how inverters must behave under abnormal conditions, including islanding. As noted in Grid Codes for Renewable Powered Systems, codes often leave facility protection to owners, but anti‑islanding is a clear exception. It aims to prevent unwanted generator operation after separation from the distribution grid. Many codes now use RoCoF (rate of change of frequency) and other methods to enforce this.

Frequency limits can also create system risks if set poorly. Germany’s early inverter rule to disconnect at 50.2 Hz led to concerns about large simultaneous trips as PV scaled. Policy then adjusted settings and required retrofits to maintain security, as described by the IEA Technology Roadmap – Solar Photovoltaic Energy.

How anti‑islanding works inside an inverter

Detection methods at a glance

Inverters use a mix of passive, active, and communications‑based methods to catch islanding fast and with low nuisance trips:

• Passive: monitor voltage, frequency, phase, and RoCoF. Abnormal values indicate the grid is gone.
• Active: inject small perturbations and watch for “stiff” grid response. No response suggests an island.
• Communications/transfer trip: the utility or protection relay sends a signal to stop energizing.

Standards testing (for example, IEC 62116) aims to reduce the non‑detection zone. This is the narrow range of load match where islanding is hardest to spot. Stricter tests and smarter controls shrink that gap.

Anti‑islanding vs ride‑through

Modern codes expect inverters to support the grid during minor events. That is fault ride‑through (FRT) and voltage/frequency ride‑through. At the same time, inverters must cease to energize quickly if an actual island forms. As IRENA explains, well‑designed requirements balance safety and stability. Poorly set thresholds can either trip devices too easily or keep them online too long.

Codes and standards that shape inverter safety

Key frameworks you will encounter

• IEEE 1547 (and local adoptions): defines interconnection, performance, and testing for distributed energy resources, including anti‑islanding and ride‑through expectations.
• UL 1741 (and Supplement A or national variants): certifies inverters for grid support and anti‑islanding behavior aligned with IEEE 1547.
• IEC 62116: provides test procedures for anti‑islanding for utility‑interconnected PV inverters.
• National or regional grid codes: set frequency/voltage ranges, RoCoF limits, and protection coordination with the grid operator. Many require a protection coordination study before connection, as noted by IRENA.

Grid integration experience shows why settings matter. The IEA’s Getting Wind and Solar onto the Grid highlights the need to manage weak grid spots and operational limits as variable renewables scale. In Europe, the fixed 50.2 Hz disconnection rule was revised to avoid mass trips and improve system stability, as referenced by the IEA Solar PV Roadmap.

Islands and quasi‑islands operate differently from large interconnected systems. Requirements for anti‑islanding and ride‑through may diverge accordingly, as summarized in the IEA report Integrating Solar and Wind.

Method comparison

Anti‑islanding method	How it works	Strengths	Limitations	Typical use
Passive (UV/OV, UF/OF)	Trips on voltage or frequency outside limits	Simple, fast, low cost	Can miss close load match; may nuisance trip on weak grids	All grid‑tied inverters
RoCoF	Measures rapid frequency change after grid loss	Catches islands quickly; complements UF/OF	Sensitive to noise; settings need coordination	Utility and DER protection schemes
Active perturbation	Injects signals; checks grid stiffness response	Reduces non‑detection zone	Must avoid grid disturbance; tuning required	Modern PV and hybrid inverters
Transfer trip / comms	External signal commands disconnect	Deterministic; utility‑controlled	Needs comms and coordination	Larger C&I, microgrids, protection schemes

Why your solar shuts off during an outage, and how to keep backup power

Grid‑tied PV alone will not power your home

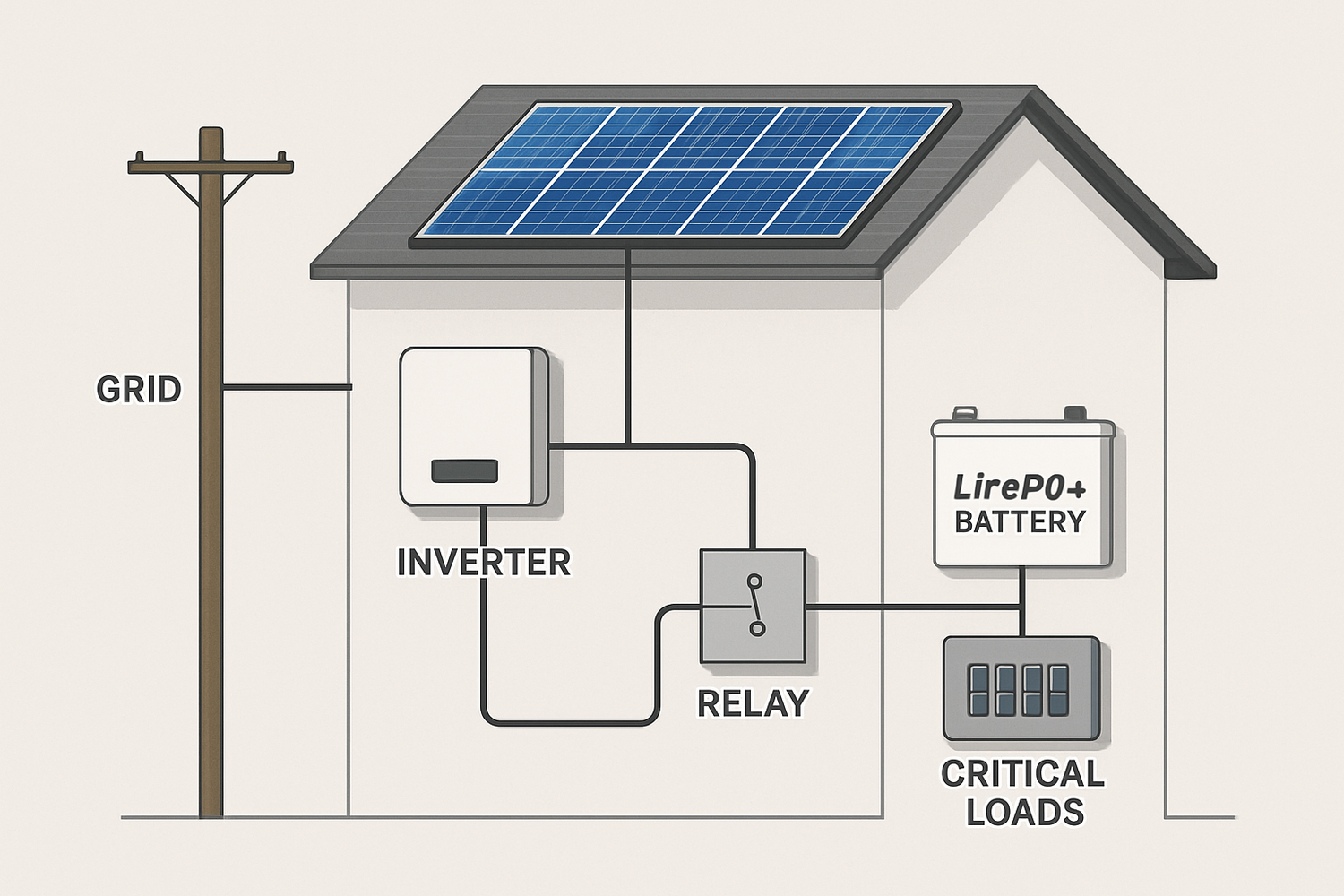

Pure grid‑tied inverters are grid‑following. They need an external voltage and frequency reference to operate. During an outage, their relay opens and they stop energizing. This is required anti‑islanding protection, not a fault.

Hybrid inverters, LiFePO4 batteries, and safe islanding

To keep lights on, pair PV with an energy storage system. A hybrid inverter can form an island on a critical loads panel during an outage. It opens the grid relay, establishes a stable AC waveform, and manages PV, battery, and loads. LiFePO4 batteries offer strong cycle life and a stable chemistry, which supports daily cycling and backup use.

• Home ESS: integrates a hybrid inverter, LiFePO4 battery, and PV. It can charge from solar and power essentials during outages.
• Off‑grid solar: for remote homes, farms, and cabins. It runs independently with proper protections and load management.
• Standalone solar inverters: convert DC to AC and, in hybrid models, provide grid‑forming backup while meeting anti‑islanding codes.

As grids evolve, microgrids and orchestrators coordinate islands safely. A U.S. project funded by the Department of Energy developed software to manage power among multiple microgrids and is testing it in Adjuntas, Puerto Rico. Community microgrids kept critical services running during recent storms, as described in DOE’s success story on microgrid orchestration.

System designers should align anti‑islanding, transfer switching, and ride‑through behavior with local codes and utility requirements. This ensures backup for the site while keeping feeders safe.

Design tips for reliable backup

• Create a critical loads subpanel. Include refrigeration, communications, lighting, and selected outlets.
• Size the inverter for starting currents. Motor loads need headroom.
• Right‑size the LiFePO4 battery. Base it on hours of autonomy and PV yield in poor weather.
• Use an automatic transfer mechanism. Keep transfer times short and clean to protect electronics.
• Coordinate protections. Set overcurrent, ground‑fault, and anti‑islanding in line with utility and code.

Standards in practice: what to verify on your project

Compliance checklist

• Anti‑islanding certification such as IEC 62116 and applicable UL/IEEE listings.
• Ride‑through category and settings aligned with the local grid code.
• RoCoF/UF/OF thresholds approved by the grid operator. Many areas require coordination studies, per IRENA.
• Remote curtailment or grid support functions if required. Germany mandated remote curtailment for most new PV plants to handle local “hot spots,” as noted by the IEA.
• Firmware updates and event logging for audit and maintenance.

Grid‑tied, hybrid ESS, and off‑grid: outage behavior

System type	Outage behavior	Anti‑islanding role	Best fit
Grid‑tied PV	Shuts off; no backup power	Opens relay to protect feeders and workers	Sites without backup needs
Hybrid ESS (PV + LiFePO4 + hybrid inverter)	Forms a safe island for critical loads	Separates from grid; maintains local voltage/frequency	Homes and businesses seeking resilience
Off‑grid solar	Operates independently year‑round	No grid connection; internal protections manage the system	Remote sites, cabins, farms

Real‑world lessons from grid integration

Experience from high‑PV regions shows why nuanced settings matter. The early 50.2 Hz shut‑off rule in Germany protected the grid but risked large drop‑offs as capacity grew. Policy updated disconnection thresholds and required retrofits to stabilize operations, per the IEA Solar PV Roadmap. Grid codes continue to evolve to balance anti‑islanding with ride‑through, as summarized by IRENA. Systems on islands or weak grids may use tighter RoCoF and coordinated controls, as described in the IEA’s Integrating Solar and Wind. These measures reduce outages and support higher solar shares without sacrificing safety.

Practical Q&A

Can I force my grid‑tied system to run during an outage?

No. That would be unsafe and non‑compliant. Use a certified hybrid inverter and battery that can form an island while isolating from the grid.

How fast do inverters stop energizing an island?

Fast. Standards require quick cessation (on the order of cycles to seconds) once islanding is detected. Exact times depend on the code category and test standard.

Do anti‑islanding and ride‑through conflict?

They are complementary. Ride‑through supports the grid during small disturbances. Anti‑islanding prevents back‑feeding unsafe islands. Smart controls meet both goals under different conditions, as emphasized by IRENA.

Key takeaways

Anti‑islanding is why grid‑tied PV shuts off in blackouts. It protects people and the grid. Modern codes ask more from inverters: support the grid during minor events and disconnect quickly when a true island forms. If you need backup, pair PV with a hybrid inverter and a LiFePO4 battery in a compliant ESS. Coordinate settings with your utility, follow recognized standards, and design a clean critical loads panel. These steps deliver safety and resilience together.
