How to Add a Battery to Legacy Solar: Wiring, Codes, Grid

Adding battery storage to an existing solar panel system transforms how you use and manage your energy. You gain greater energy independence, resilience against power outages, and the ability to optimize your electricity consumption. This upgrade allows you to store excess solar energy generated during the day for use at night or during peak demand periods, providing significant economic and practical advantages.

Assessing Your Existing Solar System for Battery Integration

Before adding a battery, carefully evaluate your current solar setup. This initial assessment ensures compatibility and helps you select the right components for a seamless upgrade.

System Compatibility and Inverter Types

Your existing solar inverter plays a crucial role in battery integration. Solar PV systems convert direct current (DC) from panels into alternating current (AC) for household use and grid injection. According to IEA's Solar Energy Perspectives, PV systems require an inverter to transform DC power into AC power. Different inverter types affect how you connect a battery:

• String Inverters: These convert DC from a string of panels to AC. Adding a battery typically requires an AC-coupled solution with a separate battery inverter or a hybrid inverter.
• Microinverters: Each panel has its own microinverter, converting DC to AC at the panel level. Battery integration usually involves an AC-coupled approach.
• Hybrid Inverters: If your current system already includes a hybrid inverter, it is designed to manage both solar production and battery charging/discharging. This simplifies the retrofit process considerably.

Energy Audit and Sizing Your Battery Storage Needs

Accurately sizing your battery system prevents overspending or insufficient storage. Conduct an energy audit to understand your daily electricity consumption, particularly during non-solar hours and peak demand. Consider your goals: do you want backup power for critical loads, full home backup, or energy arbitrage to reduce utility bills? For instance, batteries add value to renewable energy systems by shifting electricity from times of high generation to periods of high demand or market value, enhancing grid reliability and enabling functions like energy arbitrage. IRENA's Renewable Power Generation Costs in 2024 highlights this benefit.

Review your electricity bills for historical usage data. This data helps determine the battery capacity (measured in kilowatt-hours, kWh) needed to meet your specific requirements.

Essential Components for a Retrofit Battery System

A successful battery retrofit relies on selecting the right components that work together efficiently.

Battery Technology Choices

Lithium iron phosphate (LiFePO4) batteries offer high performance, safety, and reliability, making them a popular choice for home energy storage. They provide a long cycle life and stable operation. Our company specializes in LiFePO4 batteries and integrated ESS solutions, ensuring you receive a robust and dependable storage system. Lithium-ion batteries are increasingly incorporated into system designs for their efficiency and capacity.

Hybrid Inverters and Charge Controllers

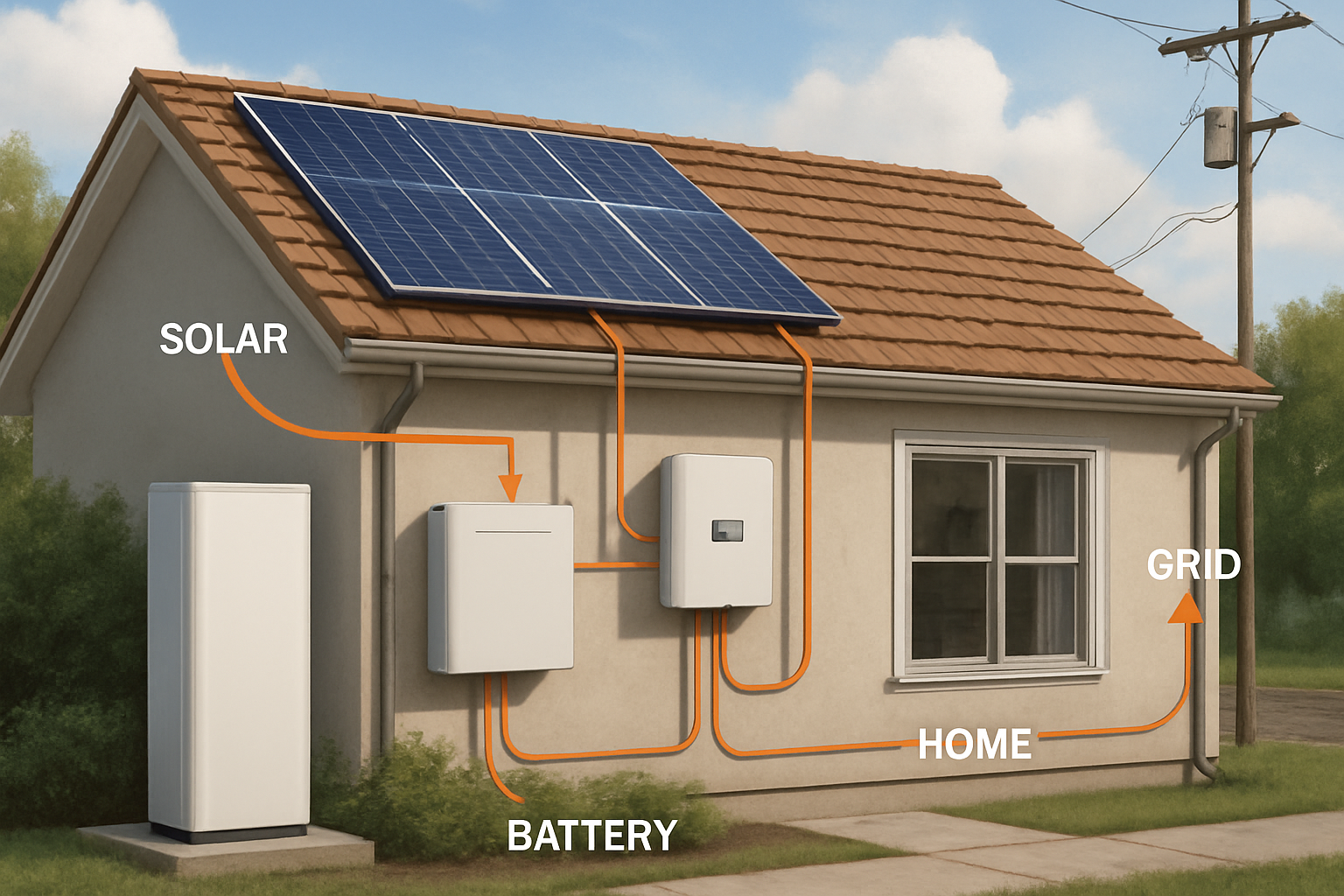

A hybrid inverter is often the central component for a retrofit. It manages power flow from solar panels, batteries, and the grid. It converts DC power from the panels and battery into AC power for your home. If you opt for an AC-coupled system, a dedicated battery inverter or a hybrid inverter with AC coupling capabilities will be necessary. For DC-coupled systems, a charge controller manages the flow of DC power from the solar panels to the battery, protecting it from overcharging.

Balance of System (BOS) Components

Beyond the main components, you will need various balance of system (BOS) elements. These include wiring, circuit breakers, disconnects, and monitoring equipment. These components ensure the safe and efficient operation of your entire solar-plus-storage system. Proper wiring and protection devices are critical for system longevity and safety.

Wiring and Installation Considerations

Understanding the wiring methods is key to a safe and effective battery retrofit.

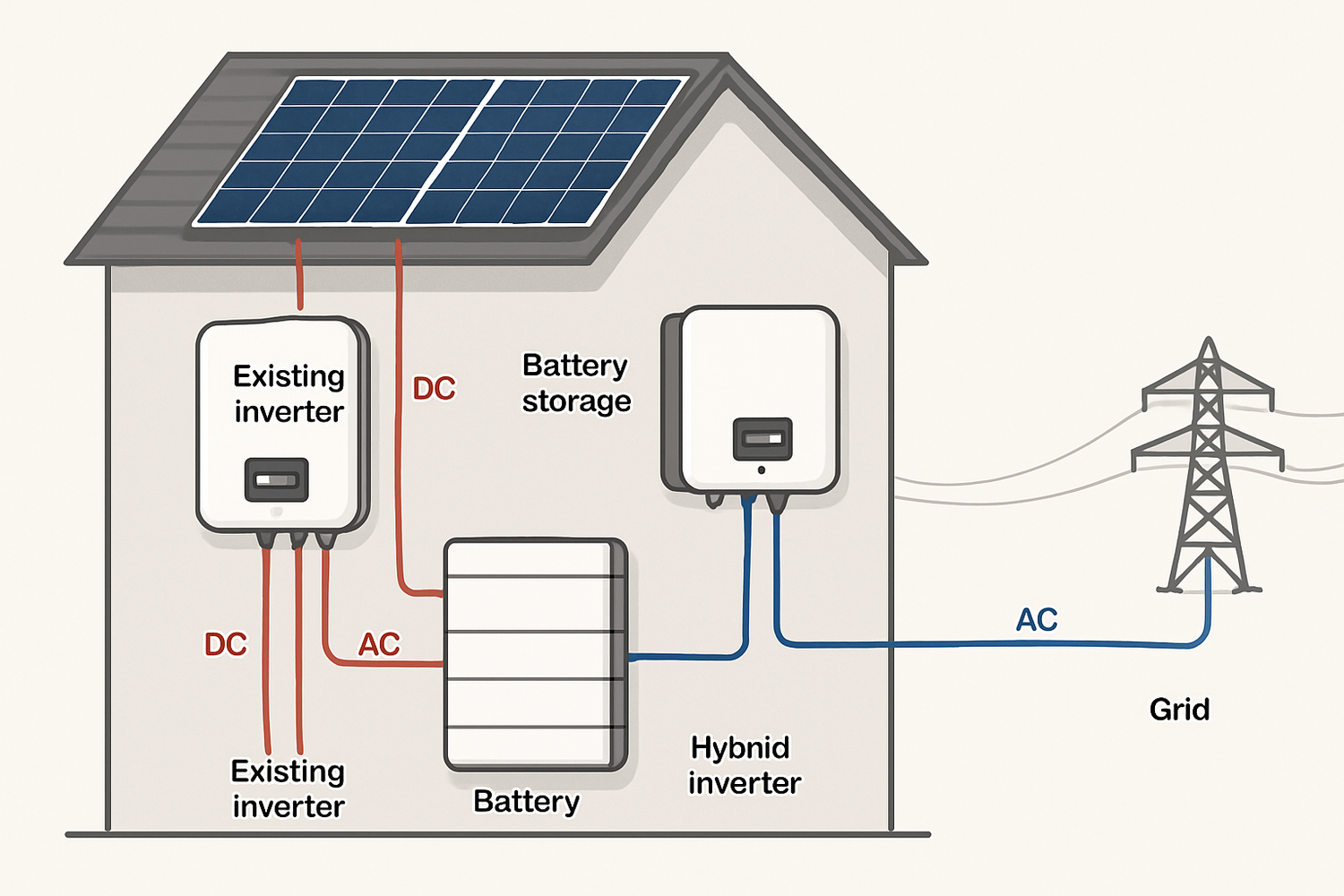

DC-Coupled vs. AC-Coupled Systems

You generally have two main approaches for integrating a battery:

• DC-Coupled: This method connects the battery directly to the DC side of your solar array, often through a charge controller or a hybrid inverter designed for DC input. It is typically more efficient as it reduces the number of DC-to-AC conversions.
• AC-Coupled: This involves adding a battery system with its own inverter to the AC side of your existing electrical panel. It is often simpler for legacy systems with string or microinverters, as it does not require significant changes to the existing solar array wiring.

The choice depends on your existing inverter type, system size, and efficiency goals. For instance, solar PV is increasingly being used with battery storage to address shifts in peak demand and resource variability. The IEA's Status of Power System Transformation 2018 highlights this trend.

Safety Protocols and Best Practices

Safety is paramount during installation. Always work with certified electricians and solar installers. Ensure all wiring meets electrical code standards. Proper grounding, overcurrent protection, and disconnect switches are essential. Batteries store significant energy, so incorrect installation can pose serious risks.

Navigating Codes, Regulations, and Grid Interconnection

Integrating a battery into a grid-tied solar system involves navigating local regulations and utility requirements.

Local Electrical Codes and Permitting

All electrical work, including solar and battery installations, must comply with local building and electrical codes. This usually requires obtaining permits from your local authority. These codes ensure the safety and reliability of your system. Always consult with a qualified professional to ensure compliance.

Utility Interconnection Agreements

If your system remains connected to the grid, you will need an interconnection agreement with your utility company. This agreement outlines the terms for connecting your battery-equipped solar system to the grid, including safety protocols and metering arrangements. The process to get approval for connecting these resources to the grid can be challenging, but organizations like the Interstate Renewable Energy Council (IREC) have worked to address solar-plus-storage interconnection challenges on the distribution grid. A success story from Energy.gov details these efforts.

Understanding Grid Services and Incentives

Battery storage can offer additional value by participating in grid services, such as demand response programs or frequency regulation, depending on your local market. Furthermore, policies like the US Inflation Reduction Act offer investment tax credits for battery storage, providing financial support for these upgrades. The IEA's World Energy Investment 2023 report details these and other key low-emission power policies.

Empowering Your Energy Future

Adding a battery to your existing solar system is a strategic investment in your energy future. It boosts your energy independence, provides reliable backup power, and allows for greater control over your electricity costs. With careful planning, the right components, and adherence to safety and regulatory standards, you can successfully upgrade your legacy solar system into a modern, resilient energy solution. Our company is committed to providing reliable and scalable energy solutions, helping you achieve true energy independence with advanced lithium battery and integrated ESS technologies.

Frequently Asked Questions

Can I add a battery to any existing solar system?

Most existing solar systems can be retrofitted with a battery. The method depends on your current inverter type. Systems with string or microinverters typically use an AC-coupled battery system, while some systems might allow for DC-coupling with a compatible hybrid inverter. An initial assessment by a professional is always recommended.

How long does a solar battery last?

The lifespan of a solar battery varies by technology and usage. LiFePO4 batteries, for example, are known for their long cycle life, often lasting 10-15 years or more under typical operating conditions. Factors like depth of discharge, temperature, and charging cycles influence battery longevity.

Will adding a battery take my home off-grid?

Not necessarily. Adding a battery to a grid-tied solar system creates a hybrid system. This setup allows you to store excess solar energy and use it when needed, reducing reliance on the grid, but you remain connected for backup or when your battery is depleted. True off-grid operation requires careful sizing and often additional components to ensure complete energy independence.

What is the cost of retrofitting a solar battery?

The cost varies significantly based on battery capacity, technology, inverter type, and installation complexity. While initial investment exists, long-term savings from reduced electricity bills, potential incentives, and increased energy resilience often justify the expense. Investment in renewables and storage continues to see robust plans, reflecting the value proposition.

Do I need permits to add a battery to my solar system?

Yes, almost all battery installations require permits from local authorities and an interconnection agreement with your utility company if you remain grid-tied. These requirements ensure safety and compliance with electrical codes. Always consult with qualified professionals to manage the permitting process.
