Introduction: Enhancing Your Solar System with Battery Storage
Adding battery storage to an existing solar system offers significant advantages. You gain greater energy independence, reduce reliance on the grid, and ensure power availability during outages. This process, known as a solar system retrofit, involves integrating new components with your current setup. A critical decision in this upgrade involves selecting the right inverter: should it be grid-forming or grid-following? This choice impacts your system's performance, resilience, and overall functionality.
Understanding Inverter Roles: Grid-Following vs. Grid-Forming

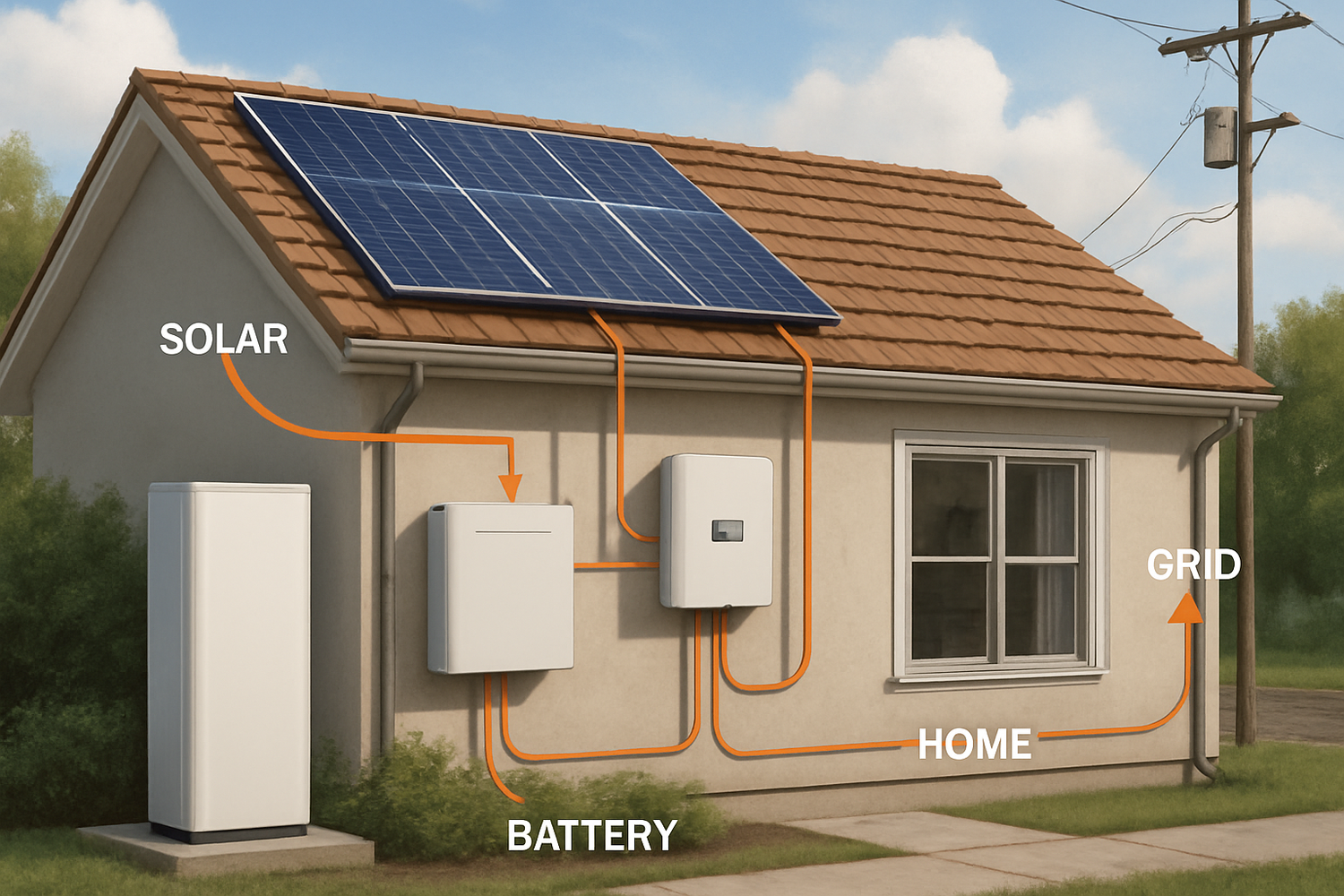

Inverters are the brain of your solar energy system, converting the direct current (DC) produced by solar panels into alternating current (AC) usable by your home and the grid. For battery retrofits, their role extends to managing energy flow between the solar panels, batteries, home, and grid. The fundamental difference lies in how they interact with the electrical grid.
Grid-Following Inverters: The Traditional Approach
Most existing solar systems use grid-following inverters. These devices operate by synchronizing with the grid's voltage and frequency. They essentially 'follow' the grid's lead, injecting power when the grid is stable and present. If the grid experiences an outage, a standard grid-following inverter will typically shut down to protect utility workers and prevent islanding (an isolated power system feeding a portion of the grid). This design makes them reliable for grid-tied power delivery but limits their ability to provide backup power independently.
Grid-Forming Inverters: Powering the Future Grid
Grid-forming inverters represent a more advanced technology. Unlike their grid-following counterparts, these inverters can create their own stable voltage and frequency reference. This capability allows them to operate autonomously, even when the main grid is down. They can essentially 'form' a microgrid, providing power to your home directly from your solar panels and battery storage during an outage. This functionality is particularly valuable for enhancing resilience and achieving true energy independence.
The emergence of grid-forming inverter technologies, often linked to battery systems, enables the power system to completely switch off any form of conventional, so-called synchronous, generation and provide all the necessary services to the power system. While this is still a matter of research in large continental grids, at mini-grid level (from a few watts to tens of megawatts) this is proven technology, with over a decade-long track record of reliable operations in some of the most remote and environmentally demanding conditions. It is important to note that retrofitting existing grid-following inverters to grid-forming is usually not possible for wind and solar applications.
Grid-forming units implicitly require a limited amount of energy storage, which can increase their cost. They may also need a higher power rating to absorb fast load spikes and support short-circuit current during faults, potentially making the system more expensive. Despite these considerations, the ability to create a stable grid and support critical loads during disturbances makes grid-forming inverters a compelling choice for many homeowners seeking enhanced reliability.
Why Inverter Choice Matters for Retrofits
The inverter you select for your battery retrofit directly influences how your upgraded solar system behaves. This choice affects everything from your ability to use stored energy during a blackout to the overall efficiency and scalability of your setup.
Compatibility with Existing Solar Installations

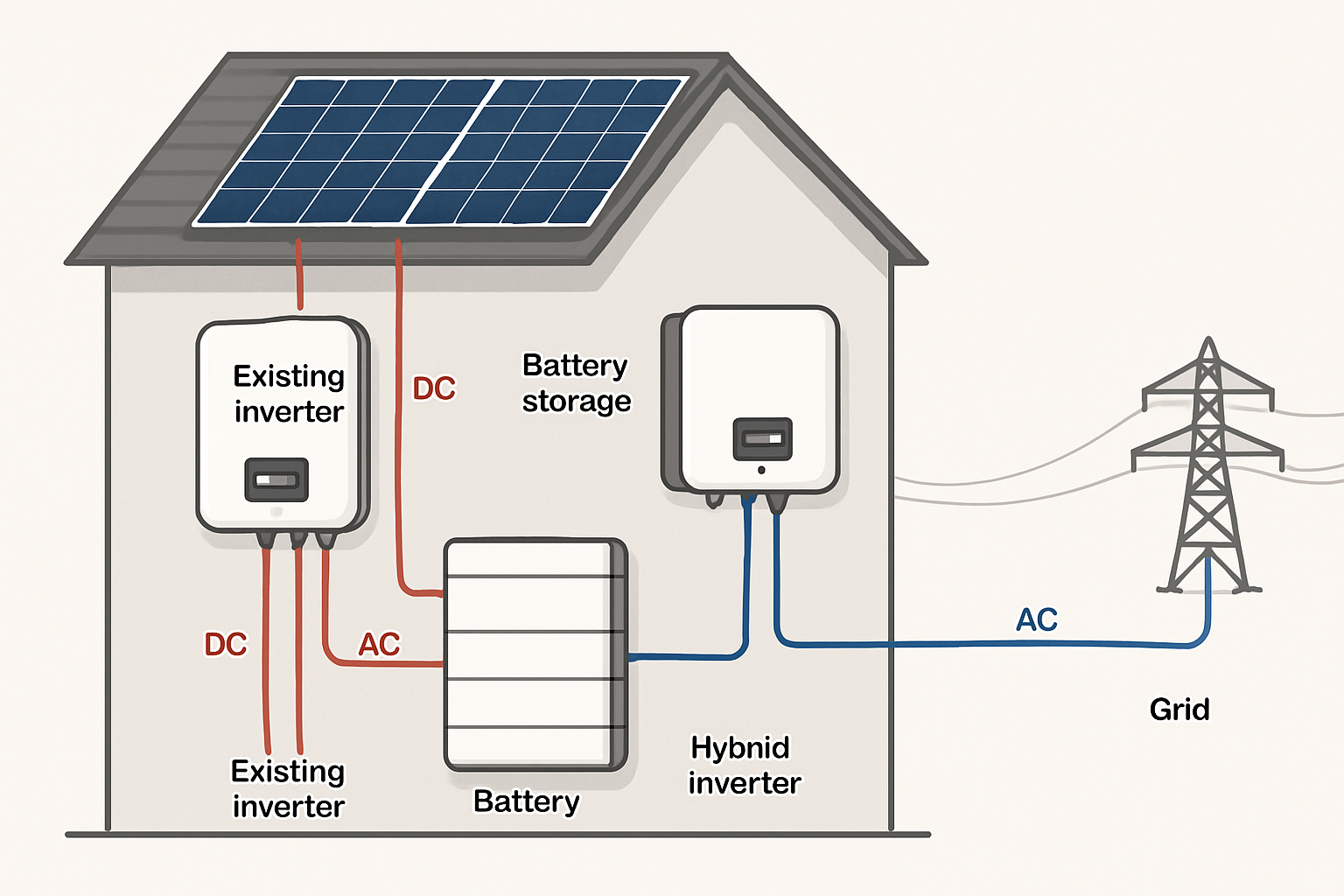

When adding a battery to an existing solar system, compatibility is paramount. Many homeowners choose to integrate a new inverter specifically for the battery, working alongside their existing solar inverter. This setup, often called an AC-coupled system, can be simpler to install as it doesn't require replacing the original solar inverter. However, the new inverter's capabilities will determine the system's overall functionality, especially during grid outages.
Reliability and Energy Independence
For many, the primary motivation for a battery retrofit is increased reliability and energy independence. A grid-forming inverter excels in these areas. It allows your home to disconnect from the grid and operate independently, drawing power from your solar panels and battery storage. This capability ensures your essential appliances remain powered during grid disruptions, providing peace of mind. In contrast, a grid-following inverter, even with a battery, might not offer seamless backup power without additional components or a specific hybrid design.
Key Considerations for Your Retrofit Project
Making an informed decision requires evaluating several factors specific to your home and energy goals.
Assessing Your Energy Needs and Goals
Before selecting an inverter, consider what you want to achieve with your battery retrofit. Are you primarily aiming for backup power during outages, maximizing self-consumption of your solar energy, or reducing your electricity bill through time-of-use optimization? Your goals will guide whether the advanced capabilities of a grid-forming inverter are necessary or if a simpler grid-following solution meets your needs. For instance, if off-grid operation is a priority, a grid-forming inverter is often the preferred option.
System Sizing and Battery Technology
The size of your battery bank and the type of battery technology also play a role. For high-performance, safety, and reliability, many homeowners opt for lithium iron phosphate (LiFePO4) batteries. These batteries offer excellent cycle life and efficiency, making them a robust choice for energy storage systems. The inverter must be appropriately sized to handle the power output of your solar array and the charging/discharging rates of your chosen battery system. An undersized inverter can limit your system's potential, while an oversized one might be an unnecessary expense.
Installation Complexity and Cost Implications
Grid-forming inverters can sometimes involve more complex installation due to their advanced functionalities and the need to manage a standalone microgrid. This complexity can translate into higher initial costs. However, the long-term benefits of enhanced resilience and greater control over your energy supply often outweigh the upfront investment. A thorough cost-benefit analysis, considering your specific energy usage patterns and local electricity rates, helps determine the most economical choice.
Making the Right Decision for Your Home
The choice between grid-forming and grid-following inverters for your solar battery retrofit depends on a balance of your budget, desired functionality, and long-term energy goals. Here is a comparison to help clarify the options:
| Feature | Grid-Following Inverter | Grid-Forming Inverter |
|---|---|---|
| Primary Function | Synchronizes with and injects power into the existing grid. | Creates and maintains its own stable grid (voltage/frequency). |
| Backup Power During Outage | Typically shuts down without grid reference (unless hybrid). | Can operate autonomously, providing power to critical loads. |
| Energy Independence | Limited, relies on grid stability. | High, enables true off-grid or microgrid operation. |
| Complexity/Cost | Generally less complex and lower initial cost. | More complex, potentially higher initial cost. |
| Application | Standard grid-tied solar systems, basic self-consumption. | Backup power, off-grid systems, enhanced resilience, microgrids. |
| Retrofit Compatibility | Can be integrated with existing solar via AC coupling. | Offers advanced capabilities for new or existing systems. |
Empowering Your Energy Future
Upgrading your solar system with battery storage is a strategic step towards greater energy control. The decision between a grid-forming and grid-following inverter is central to realizing the full potential of this investment. By carefully considering your specific needs, the technical capabilities of each inverter type, and your long-term vision for energy independence, you can select a solution that provides reliable, scalable energy for years to come. Consulting with experienced solar and storage professionals can offer tailored advice, ensuring your retrofit project meets your expectations and delivers lasting value.
Frequently Asked Questions
What is the primary difference between grid-forming and grid-following inverters?
Grid-following inverters synchronize with and rely on the external grid's voltage and frequency. They cannot operate independently during a grid outage. Grid-forming inverters, conversely, can create and maintain their own stable voltage and frequency, allowing them to power a home or microgrid even when disconnected from the main grid.
Can I retrofit a battery with my existing grid-following inverter?
Yes, it is often possible to retrofit a battery to a system with an existing grid-following solar inverter. This typically involves adding a separate, often hybrid or grid-forming, inverter specifically for the battery storage, creating an AC-coupled system. However, the new inverter's capabilities will dictate the system's backup power functionality.
What are the benefits of a grid-forming inverter for a home solar system?
The main benefits include enhanced resilience, the ability to provide backup power during grid outages (black start capability), and greater energy independence. Grid-forming inverters can create a stable microgrid for your home, ensuring continuous power supply from your solar panels and battery storage.
How do LiFePO4 batteries fit into a retrofit project?
LiFePO4 batteries are an excellent choice for retrofit projects due to their high performance, safety, and reliability. They offer a long cycle life and efficient energy storage, making them a durable and effective component for any home energy storage system, whether paired with a grid-forming or grid-following inverter setup.
