Commissioning Checklist: Tools from PV Strings to Inverter

The final step in a solar installation, commissioning, is where precision and safety converge. It is the formal process of verifying that every component of your new power system is installed correctly and functions as designed. Skipping this stage or using the wrong equipment can lead to underperformance, safety hazards, or even catastrophic failure. A well-defined commissioning checklist, backed by the right solar installation tools, is your final quality assurance gate before flipping the switch on energy independence.

This checklist covers the essential PV string tools and inverter testers required to methodically validate your system from the rooftop array to the point of grid connection.

Foundational Safety and Mechanical Inspection Tools

Before any electrical testing begins, you must confirm the physical integrity and safety of the installation. This phase ensures the system is mechanically sound and that you are protected while working on it.

Personal Protective Equipment (PPE) and Site Safety

Safety is not optional. The foundation of any commissioning process starts with protecting yourself. This includes wearing properly rated insulated gloves, safety glasses, and sturdy footwear. For any work involving live circuits, a lockout/tagout (LOTO) kit is indispensable for ensuring circuits are properly de-energized and cannot be accidentally activated.

Mechanical Verification Tools

A reliable torque wrench is one of the most critical tools in your kit. Every electrical connection, from the module clamps on the racking system to the terminals in the inverter and combiner box, has a specific torque value. Over-tightening can damage equipment, while under-tightening can lead to loose connections, creating electrical arcs and fire risks. A quality socket set, wrenches, a level, and a tape measure are also necessary to confirm that the physical installation aligns perfectly with the design plans.

Essential Electrical Testers for the DC Side

The DC portion of your solar system, which includes the panels and wiring, generates high-voltage electricity. Specialized tools are required to verify its safety and performance before connecting it to the inverter.

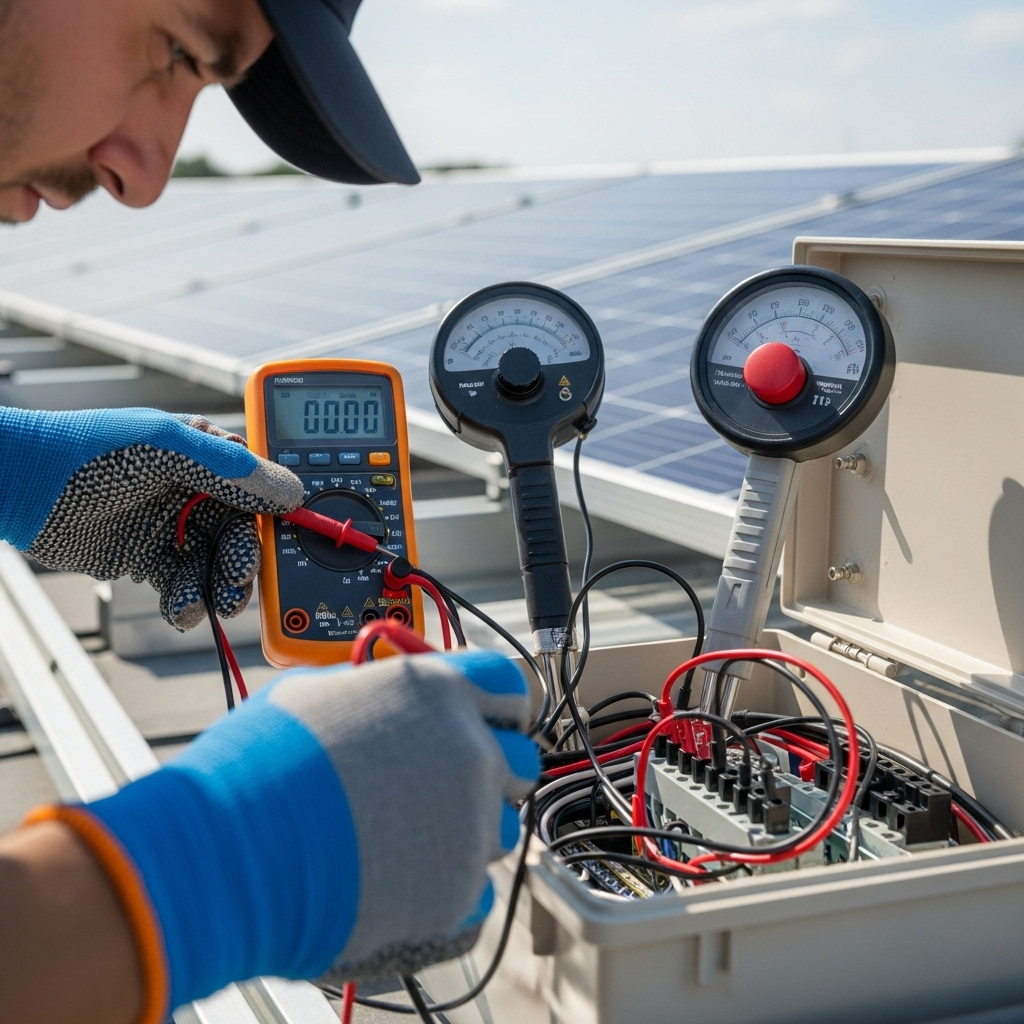

Verifying PV Strings with a Multimeter

A digital multimeter is your first-line diagnostic tool for the PV array. Its primary functions during commissioning are to measure Open-Circuit Voltage (Voc) and test polarity. You should measure the Voc of each string and compare it to the sum of the individual panel Voc ratings from the manufacturer’s datasheet. This reading will vary with temperature, so be sure to account for environmental conditions. A polarity test is equally crucial; connecting a string with reversed polarity can instantly destroy an inverter.

Insulation Resistance Tester (Megohmmeter)

An insulation resistance tester, or megohmmeter, is a vital safety tool that identifies potential ground faults. It applies a high voltage to the conductors to measure the resistance of the insulation. You should test between the positive conductor and ground, and then the negative conductor and ground. A very high resistance reading (in the megaohms) indicates that the wiring is properly isolated and there are no nicks or faults that could lead to current leakage, power loss, or a fire hazard.

IV Curve Tracer: The Advanced Diagnostic Tool

For professional installers or DIYers seeking maximum performance, an IV curve tracer offers a comprehensive health check of a PV string. It plots the current (I) versus voltage (V) curve for a string and compares it to the expected performance. This powerful diagnostic tool can immediately identify problems such as module mismatch, shading effects, or premature degradation that simpler tools might miss.

Commissioning the AC Side and Inverter

Once the DC side is confirmed to be safe and performing correctly, the focus shifts to the inverter and its connection to your property’s electrical system or the grid.

AC/DC Clamp Meter

A clamp meter allows you to measure current flow without disconnecting any wires. This is essential for verifying the inverter’s AC output once the system is operational. You can also use it to check the DC current from the array to ensure it aligns with expected values based on sunlight conditions. For larger systems, a clamp meter helps confirm that electrical loads are balanced across different phases.

Inverter-Specific Software and Communication Tools

Modern inverters are complex devices that require configuration via software. You will need a laptop or mobile device with the manufacturer’s commissioning application. This software is used to set critical parameters, such as grid voltage and frequency limits, battery charging profiles, and export limitations. A stable connection via USB, Wi-Fi, or an Ethernet cable is necessary to complete this digital commissioning step.

Grid and Connection Verification

Before the final connection, you must use your multimeter to verify that the grid voltage and frequency are within the inverter’s operational range. All AC wiring, breakers, and disconnects must be checked for proper installation and continuity. According to the IEA's report, Getting Wind and Solar onto the Grid, appropriate technical grid connection rules are critical to ensure that renewable energy plants do not have a negative impact on the local quality and reliability of electricity supply.

Integrating Energy Storage: Battery System Checks

For systems that include energy storage, the battery bank requires its own commissioning process to ensure safety and longevity.

Battery Voltage and Connection Tools

Use a multimeter to check the voltage of each battery and the total voltage of the assembled bank to ensure they are within the specified range. Just as with other electrical connections, a torque wrench is mandatory for tightening battery terminals. Loose battery connections create high resistance, leading to heat buildup and significant performance loss. For a deeper understanding of how these metrics impact your system, the ultimate reference on solar storage performance provides detailed data on efficiency and degradation.

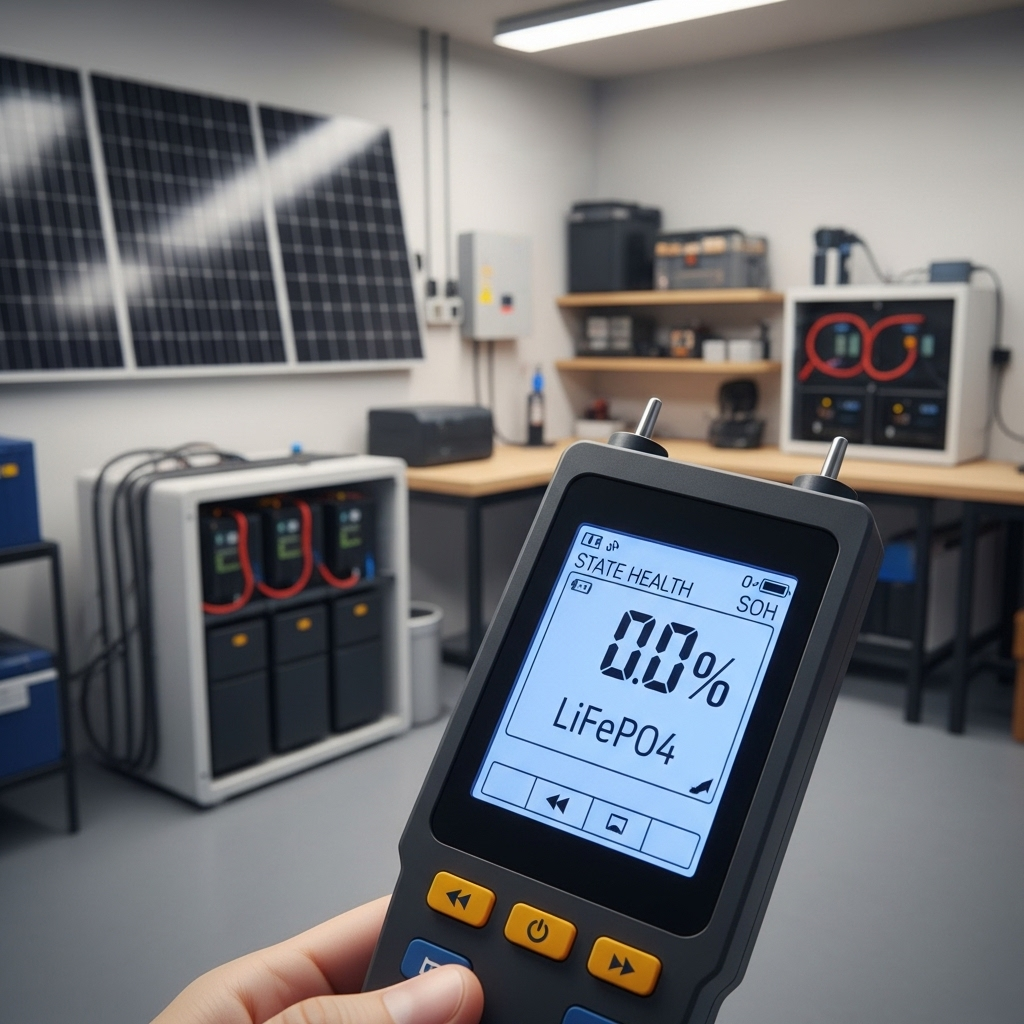

Battery Management System (BMS) Interface

The BMS is the brain of your battery bank. Interfacing with it via a laptop or app is a critical step. This allows you to verify that all cells are balanced, check temperature readings, and confirm the initial state of charge (SOC). This step is especially important for LiFePO4 batteries, as a properly configured BMS is key to a long and safe operational life.

Final System Verification and Documentation

The last phase involves a final operational check and, most importantly, documenting every result for future reference.

Performance and Monitoring Setup

With the system running, the final step is to verify that the monitoring system is functioning correctly. Check that data from irradiation and temperature sensors are being recorded and that the production data accurately reflects the system's output. This monitoring platform will be your primary tool for tracking performance over the life of the system.

Creating a Commissioning Report

Thorough documentation is the hallmark of a professional installation. Record all your measurements—Voc, Isc, insulation resistance values, torque settings, and inverter configuration details—in a commissioning report. This document provides a snapshot of the system's health at day one and becomes an invaluable baseline for any future maintenance or troubleshooting. As noted in a report from IRENA, Renewable Power Generation Costs in 2024, the process of verifying compliance should extend from the initial commissioning throughout the project's entire operating life.

Disclaimer: This checklist provides general guidance. Always adhere to local electrical codes, manufacturer instructions, and safety regulations. This content does not constitute professional engineering or legal advice.

A Final Look at Your Toolkit

A successful solar commissioning process relies on a methodical approach and the right set of specialized tools. From foundational safety gear and mechanical implements to precise DC and AC electrical testers, each item on this checklist plays a role. By rigorously testing and documenting every aspect of the installation, from the PV strings to the inverter, you ensure your system is safe, reliable, and optimized to deliver clean energy for decades to come.

Frequently Asked Questions

Can I use a standard multimeter for all solar commissioning tests?

A standard multimeter is essential for voltage and polarity checks, but it cannot perform all necessary tests. You will need a dedicated insulation resistance tester (megohmmeter) for safety checks and a clamp meter to measure current without disconnecting wires. For in-depth diagnostics, an IV curve tracer is recommended.

What is the most overlooked tool in a DIY solar commissioning checklist?

The torque wrench is frequently overlooked. Improperly tightened connections—both mechanical on the racking and electrical at terminals—are a leading cause of system failures, hotspots, and fire risks. Using a torque wrench to meet manufacturer specifications is critical for long-term safety and reliability.

Why is documenting my commissioning results so important?

Documenting your initial performance data (voltages, currents, insulation readings) creates a vital baseline. This report is invaluable for future troubleshooting. If your system's output declines, you can compare current readings to your commissioning report to quickly identify issues like panel degradation, faulty wiring, or other problems.
