A home battery storage system is a sophisticated assembly of components working in unison to provide reliable power. As interest in energy independence and off-grid solar systems grows, understanding the function of each part becomes crucial. This knowledge empowers you to make informed decisions for your home, farm, or cabin, ensuring a resilient and efficient energy solution.
1. The Battery: The Core of Your Energy Reserve
The battery is the heart of any home battery storage system, storing the electrical energy generated by your solar panels. The capacity, chemistry, and lifespan of your battery determine the system's overall performance and value.
Battery Chemistry: The Rise of LiFePO4
While various battery technologies exist, Lithium Iron Phosphate (LiFePO4) has become a leading choice for solar energy storage. Its popularity stems from a superior safety profile, long lifespan, and thermal stability. LiFePO4 batteries have a much higher thermal runaway point (around 270°C) compared to other lithium-ion chemistries, significantly reducing the risk of overheating. This inherent stability is a critical advantage for any system installed inside a home. Furthermore, they are made from non-toxic materials and do not contain cobalt, making them a more environmentally friendly option.
| Feature | Lithium Iron Phosphate (LiFePO4) | Lead-Acid | Lithium Nickel Manganese Cobalt (NMC) |
|---|---|---|---|
| Average Lifespan (Cycles) | 6,000 - 8,000+ | 500 - 1,600 | 2,000 - 3,000 |
| Depth of Discharge (DoD) | 80-100% | 50% | 80-90% |
| Safety | Excellent (Very Stable) | Fair (Risk of gas emission) | Good (Requires complex BMS) |
| Efficiency (Round-trip) | ~95% | ~80-85% | ~95% |
Capacity and Power Ratings
Battery capacity, measured in kilowatt-hours (kWh), indicates how much energy the battery can store. Power rating, measured in kilowatts (kW), tells you how much electricity the battery can deliver at one time. A high-capacity battery can power your home for longer, while a high-power battery can run more appliances simultaneously.
2. The Inverter: The Power Translator
Solar panels and batteries operate on direct current (DC) electricity, but most home appliances use alternating current (AC). The inverter's job is to convert DC power from your batteries into usable AC power for your home.
Converting and Managing Power Flow
In an off-grid solar system, a hybrid inverter (or inverter/charger) is often used. This device can manage power from multiple sources—solar panels, the battery bank, and a backup generator—and direct it where it's needed, whether that's to your appliances or to charge the batteries.
3. The Battery Management System (BMS): The Unseen Guardian
The Battery Management System (BMS) is the brain of the battery pack, a crucial component that ensures safety, efficiency, and longevity. It is an electronic system that monitors and manages all the individual cells within the battery.
Core Functions for Health and Safety
A BMS performs several critical functions. It protects against overcharging, over-discharging, and overheating, which can damage the battery and create safety hazards. It also performs cell balancing, ensuring all cells are charged and discharged evenly, which maximizes the battery's usable capacity and extends its life. As noted in the ultimate reference for solar storage performance, a sophisticated BMS is key to maintaining high round-trip efficiency and ensuring the battery delivers consistent power over thousands of cycles.
4. The Charge Controller: The Solar Energy Regulator
In a solar energy storage system, the charge controller regulates the voltage and current coming from the solar panels to the batteries. Its primary role is to prevent the batteries from being overcharged, which is essential for battery health.
MPPT vs. PWM Technology
There are two main types of charge controllers: Pulse Width Modulation (PWM) and Maximum Power Point Tracking (MPPT). MPPT controllers are more advanced and efficient. They can convert excess voltage from the panels into extra current, increasing the energy harvest by up to 30% compared to PWM controllers, especially in cooler weather. This efficiency makes MPPT controllers the preferred choice for most off-grid solar systems seeking to maximize their power generation.
5. System Monitoring: The Information Hub
Modern home battery storage systems come with monitoring software or displays that provide real-time information about your system's performance. This allows you to track your energy production, consumption, and battery state of charge. This data is invaluable for managing your energy usage effectively and identifying any potential issues with the system.
6. Racking and Enclosures: The Protective Shell
The physical housing for your battery system is more than just a box. Racking and enclosures provide structural support and protect the sensitive electronic components from dust, moisture, and accidental damage. Proper enclosures also ensure adequate ventilation to help manage the temperature of the batteries and inverter, which is crucial for optimal performance and longevity.
7. Cabling and Safety Components: The Vital Connections
High-quality wiring, fuses, and disconnects are essential for the safety and efficiency of your home battery storage system. DC disconnects are safety switches that allow you to isolate the batteries and solar panels from the inverter for maintenance. Fuses and circuit breakers protect your system from overcurrent situations that could cause damage or fire. Using correctly sized cables minimizes energy loss and ensures the system operates safely.
Achieving True Energy Independence

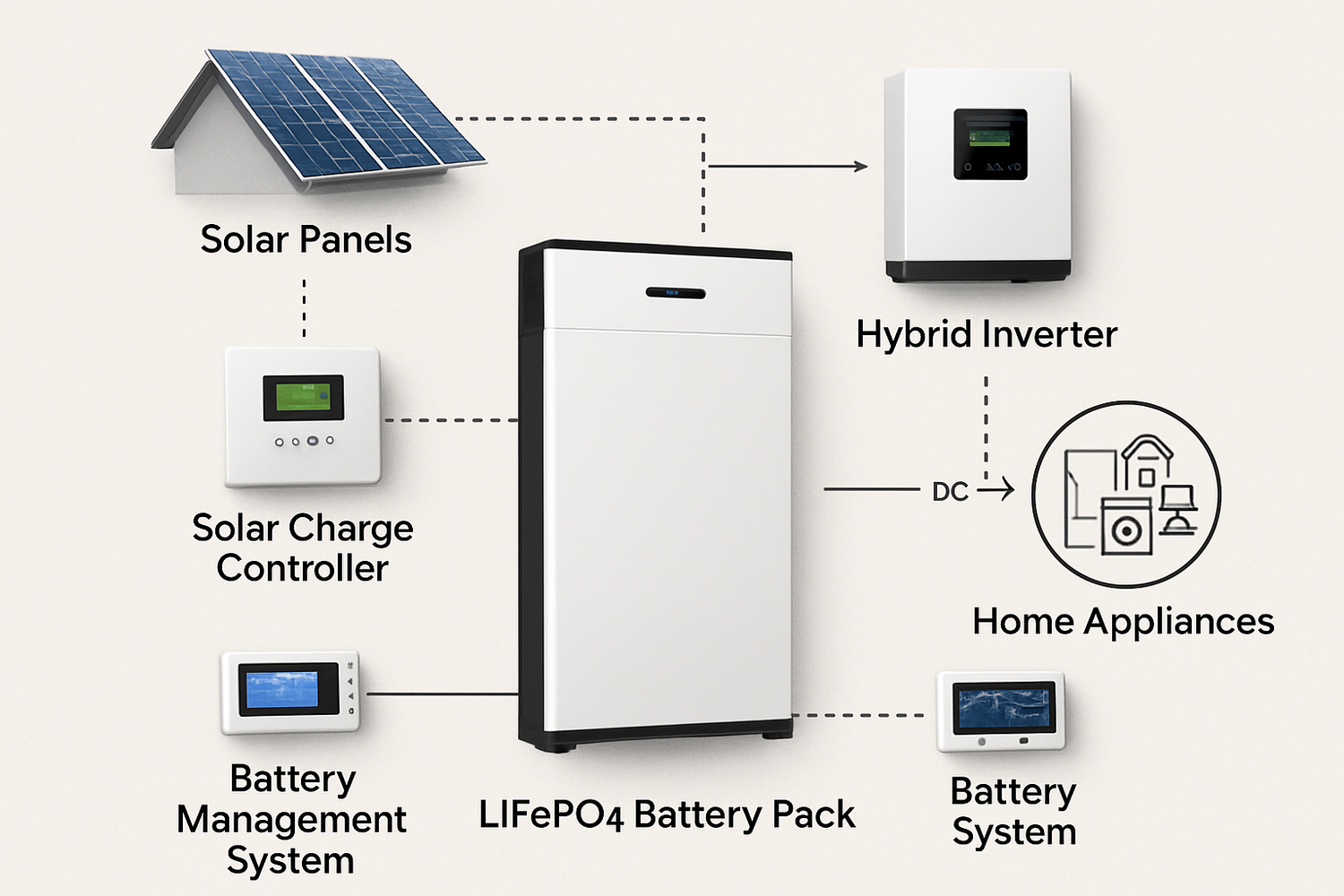

Each of these seven components plays a vital role in the function of a home battery storage system. From the high-performance LiFePO4 battery at its core to the safety fuses that protect it, every part contributes to a reliable and scalable energy solution. A well-designed system not only provides backup power during outages but also offers a pathway to greater energy independence, empowering you to control your own power in an off-grid setting.
Disclaimer: This article is for informational purposes only and does not constitute financial or legal advice. Please consult with a qualified professional before making any investment decisions or system installations.
Frequently Asked Questions
How long does a home battery last?
The lifespan of a home battery typically ranges from 5 to 15 years. The longevity depends on the battery chemistry, the number of charge/discharge cycles, depth of discharge, and operating temperatures. LiFePO4 batteries generally offer a longer lifespan, often exceeding 6,000 cycles.
Can I add a battery to my existing solar panel system?
Yes, in most cases, you can add a battery storage system to an existing solar panel installation. This process is often called AC-coupling. It involves adding a battery and a dedicated battery inverter to your system. It's best to consult with a professional installer to ensure compatibility with your current setup.
What size battery do I need for my home?
The right battery size depends on your daily energy consumption, the appliances you want to back up, and how long you need backup power. To start, calculate your average daily electricity usage in kWh by looking at your utility bills. Then, decide if you want to back up essential loads for a few hours or power your entire home for multiple days. It's common to size a battery to cover at least one full day of your average energy needs.
