How to Correctly Size Your Boat's Deep Cycle Battery Bank

A reliable power supply is fundamental to safety and enjoyment on the water. An improperly sized deep cycle battery bank can leave you without power for navigation, communication, or basic comforts. Over-sizing, on the other hand, means unnecessary expense and added weight. This process outlines how to perform a marine battery bank calculation to ensure your vessel has the right amount of power for your needs.

Step 1: Conduct a Thorough Onboard Energy Audit

The first and most critical step in boat deep cycle battery sizing is to understand your power consumption. An energy audit involves cataloging every DC electrical device on your boat and estimating its daily energy use. This detailed accounting forms the foundation of your entire calculation.

Listing Your Appliances and Their Power Consumption

Begin by creating a comprehensive list of all DC-powered equipment. This includes navigation instruments, lights, pumps, refrigeration, stereos, and charging ports for personal devices. The power consumption for each appliance, measured in Amps (A), is usually found on a label on the device itself or in its manual. If it's listed in Watts (W), you can convert it to Amps by dividing the Watts by your system's voltage (typically 12V).

Estimating Daily Usage in Amp-Hours (Ah)

Once you have the amp draw for each device, estimate how many hours it runs in a typical 24-hour period. Multiply the amp draw by the hours of use to find the daily consumption in Amp-hours (Ah). For example, a cabin light that draws 1.25 Amps and runs for 4 hours a day consumes 5 Ah daily (1.25 A x 4 hrs = 5 Ah).

Here is a sample energy audit table:

Step 2: Understanding Battery Chemistry and Its Impact on Sizing

The type of battery you choose significantly affects your sizing calculation. The two primary chemistries for marine applications are traditional lead-acid (including AGM and Gel) and modern Lithium Iron Phosphate (LiFePO4).

Depth of Discharge (DoD) Explained

Depth of Discharge (DoD) refers to the percentage of a battery's capacity that has been used. This is a crucial factor because different chemistries have different recommended DoD limits to ensure a long service life.

• Lead-Acid Batteries: To avoid damage and premature failure, it's recommended to only discharge lead-acid batteries to 50% of their rated capacity. This means a 100Ah lead-acid battery provides only 50Ah of usable energy.
• LiFePO4 Batteries: Lithium batteries can be safely discharged to 80-95% of their capacity without significant degradation. A 100Ah LiFePO4 battery provides 80-95Ah of usable energy, offering far greater energy density.

Performance and Efficiency

Beyond usable capacity, LiFePO4 batteries maintain a higher, more stable voltage throughout their discharge cycle. This ensures your electronics and appliances operate more efficiently without the performance dip often seen with lead-acid batteries as they drain. The efficiency of your storage is a key component of a resilient power system, a principle that applies to large-scale grids and standalone systems alike, as noted in the Electricity Storage Valuation Framework by IRENA. For a more detailed analysis of how different battery chemistries perform under load, the Ultimate Reference for Solar Storage Performance provides valuable data on discharge curves and overall efficiency.

Step 3: Calculating Your Total Battery Bank Capacity

With your daily energy consumption and an understanding of battery chemistry, you can now calculate the required size of your deep cycle battery bank for your boat.

The Core Sizing Formula

The basic formula to determine your required battery bank capacity is:

Total Daily Ah / Usable DoD % = Required Battery Bank Capacity (Ah)

Using our 69.95 Ah daily total from the audit:

• For a Lead-Acid Bank (50% DoD): 69.95 Ah / 0.50 = 139.9 Ah
• For a LiFePO4 Bank (80% DoD): 69.95 Ah / 0.80 = 87.4 Ah

This calculation clearly shows that due to the higher usable capacity, you would need a significantly smaller rated LiFePO4 battery bank to get the same performance as a larger lead-acid bank.

Factoring in a Safety Margin

It is wise to add a safety margin of 20-25% to your calculation. This buffer accounts for system inefficiencies, declining battery performance over time, and potential future additions of new equipment. The updated formula becomes:

(Total Daily Ah x 1.25) / Usable DoD % = Final Battery Bank Capacity (Ah)

• For a Lead-Acid Bank: (69.95 Ah x 1.25) / 0.50 = 174.9 Ah
• For a LiFePO4 Bank: (69.95 Ah x 1.25) / 0.80 = 109.3 Ah

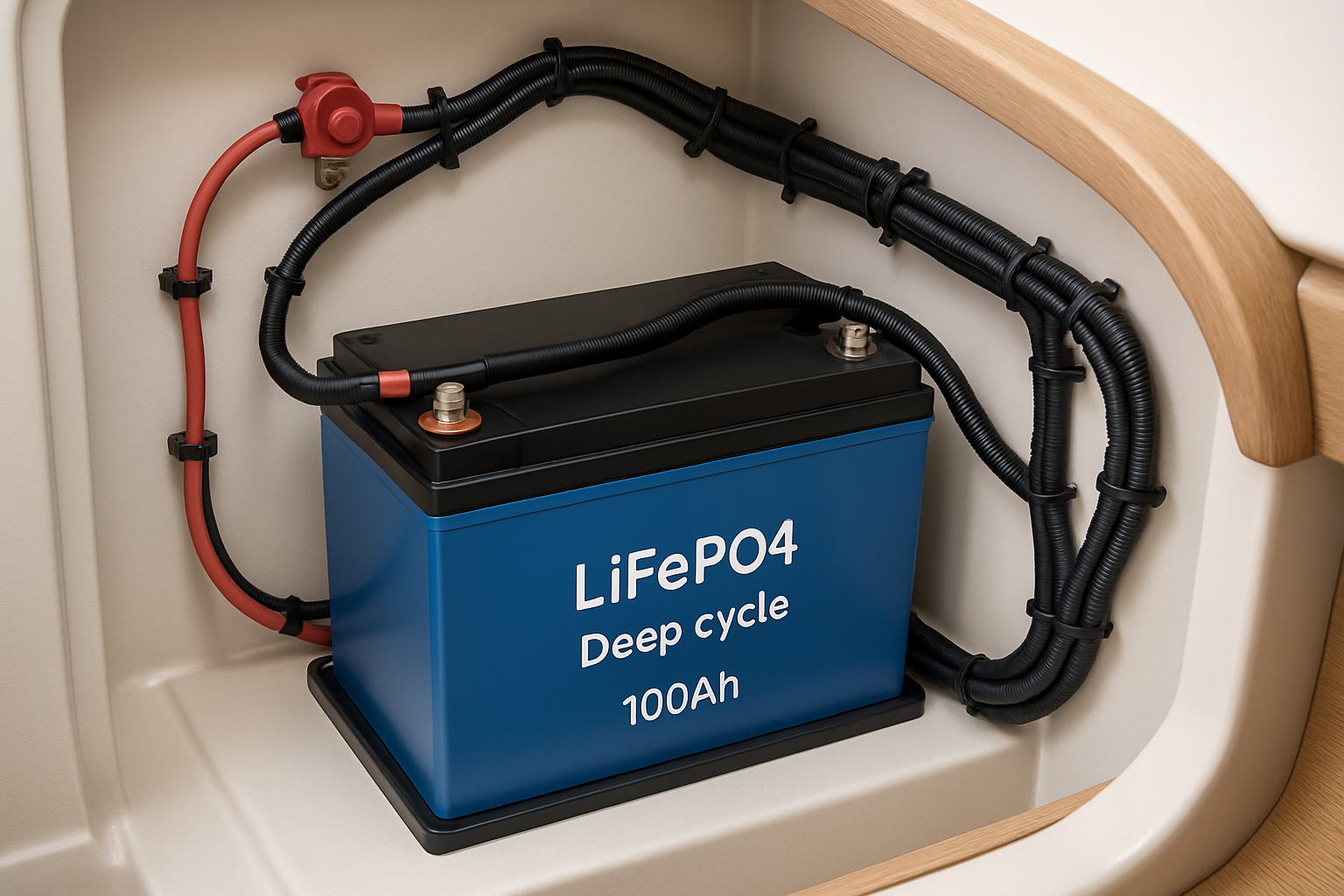

Based on these results, a 200Ah lead-acid bank or a 12V 100Ah LiFePO4 battery (rounding down slightly) would be appropriate choices.

System Integration and Charging Considerations

Sizing your battery bank is only one part of the equation. You must also ensure your charging system—be it an engine alternator, solar panels, or a shore power charger—is capable of replenishing your daily energy usage effectively.

Matching Your Charging System

Your charging sources should be sized to restore the energy you consume. LiFePO4 batteries have an advantage here, as they can typically accept charge at a much higher rate than lead-acid batteries, significantly reducing engine or generator run time. The rapid advancement in battery technologies is a key enabler for the global transition to cleaner energy, a trend highlighted in the IEA's Energy Technology Perspectives 2024 report.

Series vs. Parallel Connections

If you use multiple batteries to create your bank, it's important to wire them correctly.

• Parallel Connection: Connecting batteries positive-to-positive and negative-to-negative increases the total Amp-hour capacity while keeping the voltage the same. Two 12V 100Ah batteries in parallel create a 12V 200Ah bank.
• Series Connection: Connecting batteries positive-to-negative increases the voltage while keeping the Amp-hour capacity the same. Two 12V 100Ah batteries in series create a 24V 100Ah bank.

A Final Look at Your Power System

Correctly sizing your boat's deep cycle battery bank is a methodical process that pays dividends in reliability and peace of mind. By starting with a detailed energy audit, selecting the right battery chemistry for your needs, and performing an accurate calculation with a built-in safety margin, you create a robust foundation for your vessel's electrical system. This careful planning, supported by insights from organizations like the IEA on the growing importance of battery storage, ensures you have dependable power for every voyage. Investing the time in this calculation helps you achieve energy independence on the water.

Frequently Asked Questions

How many days of autonomy should I plan for?

For most recreational boaters, planning for 1-2 days of autonomy is a good starting point. If you have robust charging sources like a large solar array and spend most of your time in sunny climates, a single day's capacity plus a safety margin may be sufficient. For extended cruising in remote areas, 3 or more days might be preferable.

Can I mix old and new batteries in my bank?

It is highly discouraged to mix batteries of different ages, capacities, or chemistries within the same bank. The weaker battery will degrade the performance and shorten the lifespan of the entire bank, as it will cause imbalances during charging and discharging cycles.

Does temperature affect my battery bank size calculation?

Yes, temperature impacts battery performance. Extreme cold can significantly reduce the available capacity of lead-acid batteries, while high heat can shorten their lifespan. LiFePO4 batteries generally perform better across a wider temperature range but may have built-in protections that prevent charging in below-freezing conditions unless they are equipped with internal heating elements.
