Myth vs Reality: Large Inverters and Off-Grid Trip Rates

You have invested in a powerful off-grid solar system, complete with a large inverter, to achieve energy independence. Yet, you find yourself dealing with frustrating, intermittent power cuts. The inverter trips, everything shuts down, and you are left wondering if your high-capacity inverter is simply too sensitive. This is a common assumption, but the reality is often more nuanced. Inverter tripping is usually a symptom of a larger issue, not a flaw in the inverter itself.

Understanding why your inverter trips is the first step toward building a truly resilient and reliable off-grid power system. It is rarely about the inverter being 'too big' or 'too sensitive.' Instead, it is about the dynamic relationship between your power supply, your inverter's capabilities, and the demands of your appliances.

Why the 'Large Inverter' Myth Exists

The belief that large inverters are prone to tripping often stems from a misunderstanding of their design and function. These powerful devices are the heart of your system, and their protective mechanisms are there for a reason.

The Perception of Sensitivity

Larger inverters are engineered to manage significant electrical loads, and with that power comes sophisticated, fast-acting protection circuits. These circuits are designed to protect the inverter and your entire system from damaging electrical events like overloads and short circuits. When they trip, they are not being overly 'sensitive'; they are responding to a genuine threat. Think of it as an advanced safety system in a high-performance vehicle—it reacts instantly to real danger to prevent a catastrophic failure. This protective function is a feature, not a bug.

Misunderstanding Inrush Current

One of the most common triggers for inverter trips is inrush current. Many appliances, especially those with motors or compressors like refrigerators, well pumps, and air conditioners, draw a massive, momentary surge of power when they first start. This surge can be 3 to 7 times their normal running wattage. A large inverter is often connected to more of these high-draw appliances. If several start at or near the same time, their combined inrush current can easily exceed the inverter's peak power rating, causing a protective shutdown. The issue is not the inverter's size but the simultaneous power demand from the loads connected to it.

The Real Culprits Behind Inverter Tripping

Instead of blaming the inverter, it is more productive to investigate the common underlying causes of these shutdowns. Most trips can be traced back to predictable and manageable factors within your electrical ecosystem.

Overload Conditions: Peak vs. Continuous Power

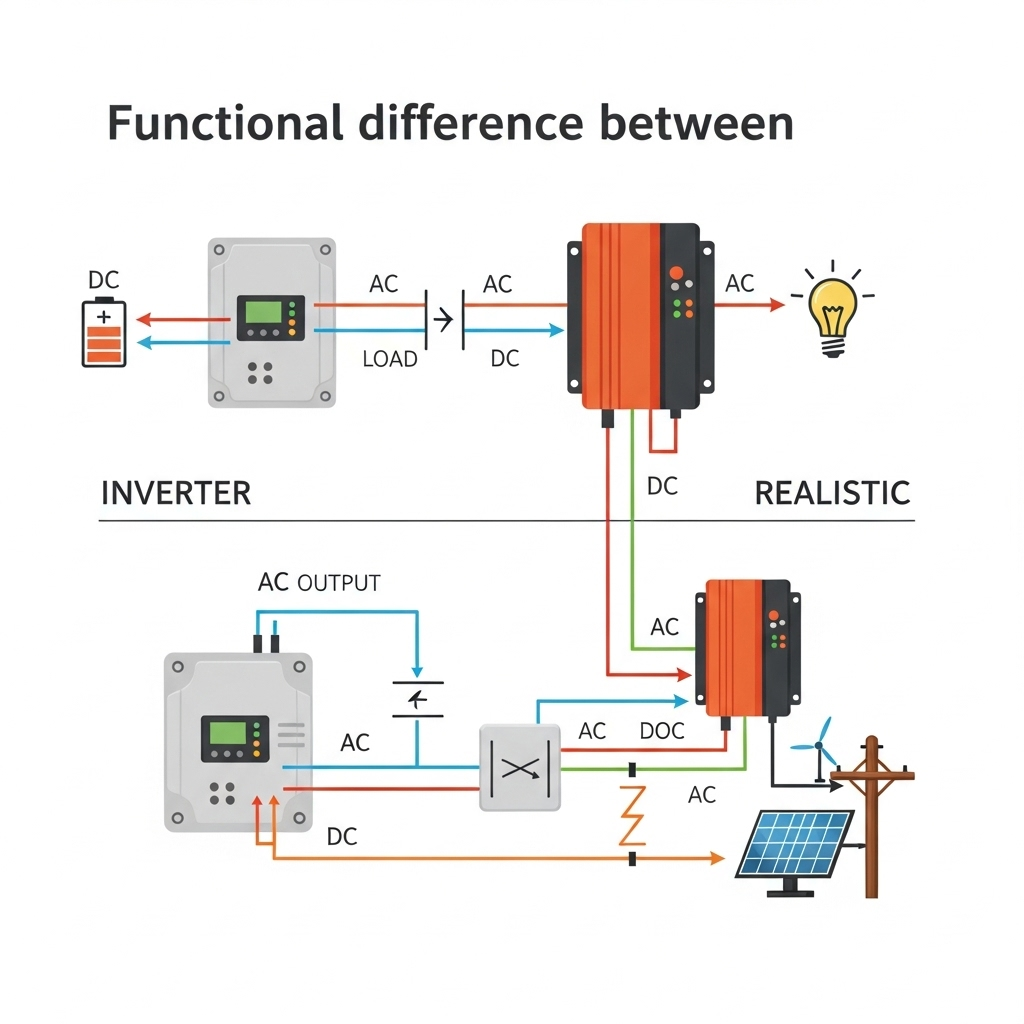

Every inverter has two key power ratings: continuous and peak (or surge). A 5000W inverter, for example, can supply 5000 watts of power indefinitely. However, it also has a peak rating—perhaps 10,000 watts—that it can supply for only a few seconds to handle inrush currents. An overload trip occurs when the demand exceeds either of these ratings. Running multiple appliances whose combined continuous wattage is over 5000W will cause a trip. Likewise, starting a large motor while other appliances are running can push the demand past the 10,000W peak limit, also resulting in a trip.

Improper System Sizing and Configuration

A powerful inverter is only one part of a balanced system. It needs a battery bank and solar array that can support its demands. If a large inverter tries to draw 400 amps from a battery bank that can only safely deliver 200 amps, the battery voltage will plummet. This voltage sag will trigger the inverter's low-voltage disconnect feature to protect the batteries from damage. Furthermore, using undersized DC cables between the batteries and the inverter creates high resistance, causing a significant voltage drop under load and leading to the same type of trip. As detailed in a comprehensive guide on solar storage performance, the health and capacity of your battery bank directly dictate the power you can reliably draw.

Faulty Appliances and Wiring

Sometimes, the problem lies outside the core solar components. A faulty appliance with an internal short circuit or damaged wiring in your home can cause a ground fault. When this happens, the inverter's safety mechanisms will trip instantly to cut power and prevent a potential fire or electric shock. In this scenario, the inverter is performing its most critical safety duty. Troubleshooting should include isolating and testing individual appliances and circuits to find the source of the fault.

Grid-Forming Inverters and System Stability

Modern inverter technology is continuously advancing to improve stability and performance. The emergence of grid-forming inverters, particularly in microgrids and off-grid applications, is a testament to this progress. According to a report from the International Renewable Energy Agency (IRENA), these advanced inverters can create a stable, independent grid. They can even perform a 'black start,' which means restoring power to a system after a complete shutdown without any external energy source. This capability demonstrates that high-capacity inverters are designed for robustness and are central to creating self-sufficient, reliable power systems.

A Practical Approach to Preventing Trips

You can move from reacting to trips to proactively managing your system. By understanding and controlling your energy usage, you can ensure your large inverter operates smoothly.

Conduct a Load Analysis

The first step is to know what you are powering. Make a list of all your major appliances and find their continuous running wattage and their starting/surge wattage. This information is often in the user manual or on the manufacturer's website. Organizing it in a table can provide a clear picture of your energy demands.

This table shows that while the total running load is manageable, starting the well pump and microwave at the same time would create a surge of 4500W, on top of any other running loads. This could easily trip an inverter if not managed.

Stagger Appliance Start-up

With a clear load analysis, the solution becomes simple: avoid starting multiple high-draw appliances simultaneously. Develop a household routine where you wait for the refrigerator's compressor to finish its cycle before using the microwave, or ensure the well pump is not running when you start a power tool. This simple behavioral change can eliminate the vast majority of overload trips.

Verify Your System's Foundation

Periodically inspect the core of your system. Ensure your battery bank is fully charged and healthy. Check that all DC cable connections between the batteries, bus bars, and inverter are tight and free of corrosion. Confirm that the cable gauge is thick enough for the amperage your inverter can draw. A weak foundation will undermine even the most powerful inverter. A high-quality LiFePO4 battery with an integrated Battery Management System (BMS) is often recommended for these applications, as it can sustain higher discharge rates and maintain stable voltage under load.

Moving Beyond the Myth

Ultimately, a large inverter is not the cause of frequent trips; it is a powerful tool that reveals weaknesses in your system or energy management habits. Instead of a liability, it is an asset that enables a modern lifestyle off the grid. The key is to shift your perspective from fixing a 'faulty' inverter to managing a complete energy system.

The International Energy Agency (IEA) has highlighted the growing importance of stable PV system integration. In an off-grid setting, your inverter and batteries are the grid. As research from IRENA on electricity storage valuation confirms, the combination of storage and advanced inverters is proven technology for transitioning to 100% renewable energy in remote areas. By embracing a proactive management approach, you can harness the full potential of your large inverter and enjoy the reliable, independent power you set out to achieve.

Frequently Asked Questions

Is a bigger inverter always better for an off-grid system?

Not necessarily. The best inverter is one that is correctly sized for your specific load requirements and is part of a balanced system (solar array, battery bank). An oversized inverter can have slightly higher idle power consumption, which draws down your batteries faster and reduces overall efficiency if your loads are consistently small.

How can I find out the surge wattage of my appliances?

The surge wattage is often not listed on the appliance's label. You can check the user manual, the manufacturer's website, or use a clamp meter to measure the amperage draw upon startup. You can then calculate the wattage (Watts = Volts x Amps). For many motor-driven appliances, a general rule of thumb is to multiply the running watts by 3 to 5.

Can an inverter be damaged by frequent tripping?

Occasional tripping due to overloads is generally not harmful, as the internal protections are designed for this purpose. However, frequent trips caused by short circuits or other serious electrical faults could indicate an underlying issue that, if left unaddressed, might lead to damage to the inverter or other system components. It is important to diagnose and fix the root cause.

What is a 'soft start' feature on an inverter?

Some modern inverters include a 'soft start' feature. This technology gradually increases the voltage supplied to an appliance upon startup, which helps reduce the initial inrush current from large motors. This can prevent trips when starting devices like pumps or air conditioners, making the system more resilient to large loads.
