How to Size Your Off-Grid Lithium Ion Solar Battery Bank

Properly sizing your lithium-ion battery bank is the most critical step in designing a reliable off-grid solar system. An undersized bank leads to power shortages, while an oversized one results in unnecessary expense. This guide provides a clear, step-by-step process for an accurate off-grid solar battery bank calculation, ensuring your system meets your energy needs efficiently and dependably.

Step 1: Calculate Your Daily Energy Consumption

The foundation of any battery bank sizing is a thorough understanding of your daily energy use. This process, often called a load assessment, involves cataloging every electrical device you intend to power.

Create an Appliance Inventory

Begin by listing every AC and DC appliance. Include everything from lights and refrigerators to laptops and water pumps. Accuracy here is key, so be as comprehensive as possible. Forgetting even small devices can lead to an undersized system.

Determine Wattage and Daily Usage

Next, find the power consumption (in Watts) for each item. This information is usually on the appliance's label or in its user manual. Then, estimate the number of hours you will use each appliance per day. It is helpful to be slightly conservative and overestimate usage to build a buffer into your calculations.

Calculate Total Daily Watt-Hours (Wh)

With your list, you can calculate the daily energy consumption for each device using a simple formula: Appliance Wattage (W) × Hours of Use Per Day = Daily Watt-Hours (Wh). Sum the Watt-hours for all appliances to find your total daily energy requirement. This number is the baseline for your battery bank sizing.

Step 2: Factor in Critical System Variables

Your total daily Watt-hours figure is just the starting point. To size your battery bank correctly, you must account for variables that affect the storage and delivery of that energy.

Understanding Depth of Discharge (DoD)

Depth of Discharge refers to the percentage of a battery's capacity that has been used. Lithium iron phosphate (LiFePO4) batteries have a significant advantage here, as they can be safely discharged to 80-100% without causing damage. In contrast, traditional lead-acid batteries should only be discharged to about 50% to preserve their lifespan. This high DoD means that for a given capacity, a LiFePO4 battery provides more usable energy, making it a more efficient choice for off-grid power system sizing.

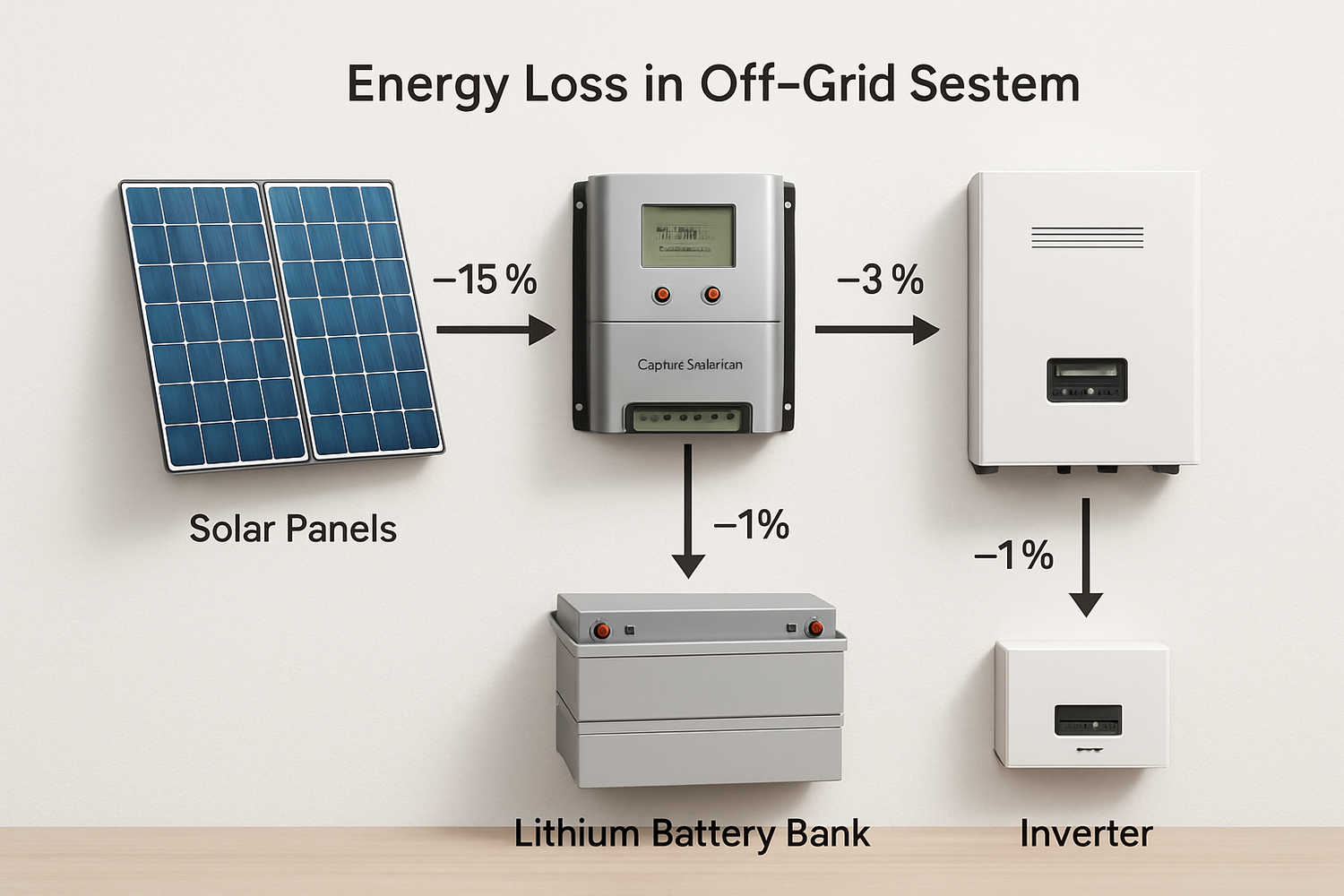

Accounting for System Inefficiencies

Energy is lost as it moves through your system. The process of converting DC power from your batteries to AC power for your appliances is not 100% efficient. According to the U.S. Department of Energy, inverters can have efficiency ratings between 90-95% for high-quality models. Additional minor losses occur in the wiring and charge controller. A conservative approach is to factor in a total system inefficiency of 15-20%. This ensures your battery bank is large enough to deliver your required daily energy after these losses are accounted for.

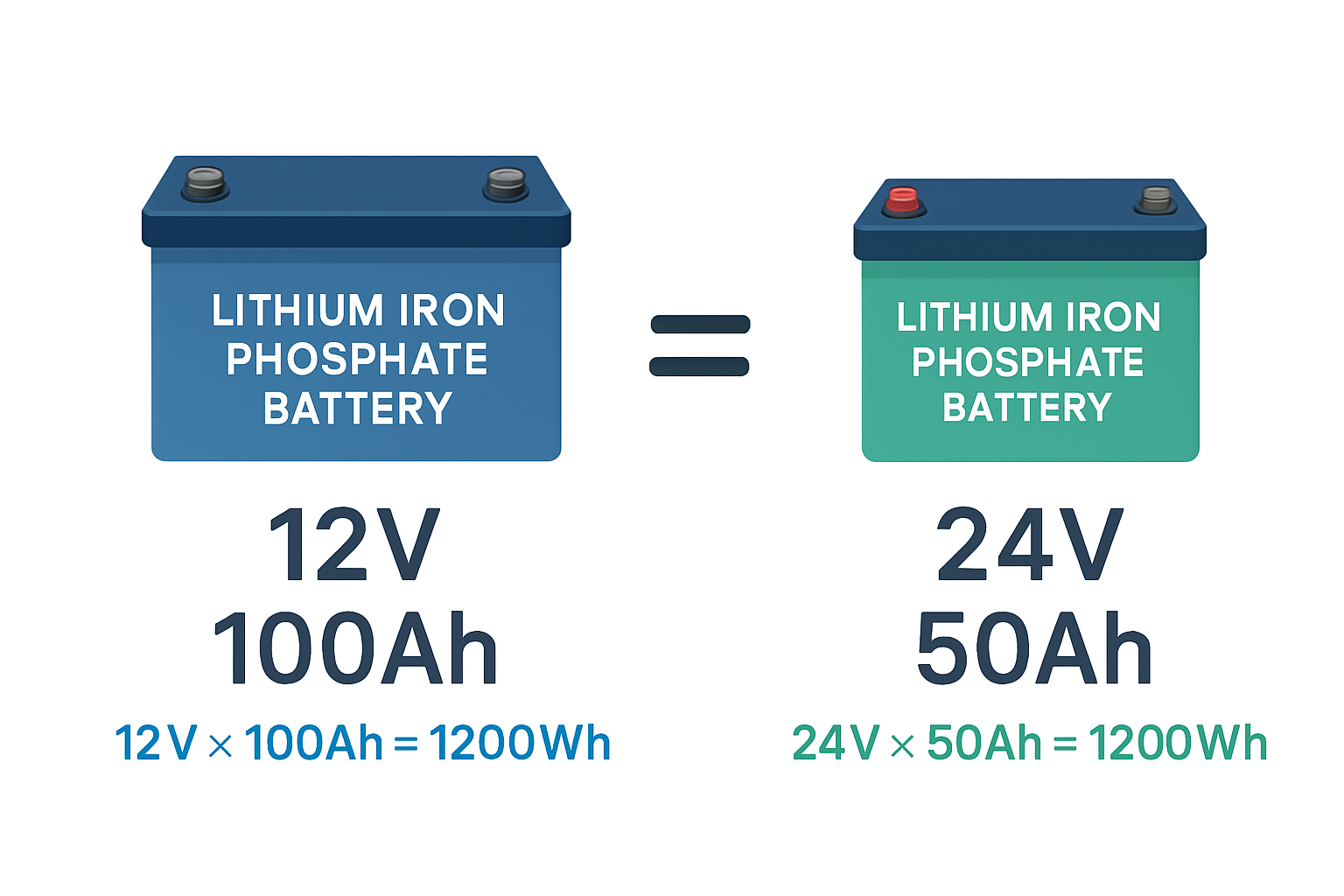

The Role of System Voltage

Off-grid systems are typically configured at 12V, 24V, or 48V. For larger systems, such as a full-time residence, a 48V system is often more efficient. Higher voltage results in lower current for the same amount of power, which reduces energy loss in wiring and allows for smaller, less expensive cables. The choice of system voltage is a key part of solar battery bank capacity planning.

Step 3: Sizing the Battery Bank Capacity (Ah)

Now you can bring all the pieces together to determine the final size of your lithium-ion battery bank. This calculation will convert your energy needs into a specific battery capacity in Amp-hours (Ah).

Plan for Days of Autonomy

Days of autonomy refer to the number of consecutive days your battery bank can power your home without any charging from your solar panels. This is your safety net for cloudy weather. For most residential off-grid applications, 1 to 3 days of autonomy is a practical target. Choosing the right number of autonomy days is a balance between energy security and cost. As noted by the International Renewable Energy Agency (IRENA), sufficient autonomy is crucial for system reliability, especially in off-grid applications.

The Final Calculation Formula

Follow these calculations to determine your required battery bank size:

• Adjusted Daily Energy Need (Wh): Total Daily Wh / (1 - Inefficiency Factor). For a 15% inefficiency, you would divide by 0.85.
• Total Storage Required (Wh): Adjusted Daily Energy Need × Days of Autonomy.
• Required Battery Capacity (Ah): Total Storage Required / System Voltage.
• Final Capacity Adjusted for DoD (Ah): Required Battery Capacity / DoD. For a LiFePO4 battery with a 90% DoD, you would divide by 0.90.

Putting It All Together: A Practical Example

Let's apply this to a hypothetical off-grid cabin with a 48V solar energy storage system. We'll plan for 2 days of autonomy and assume a 15% system inefficiency and a 90% DoD for our LiFePO4 battery bank.

Appliance Load Calculation

Battery Bank Sizing Calculation

1. Adjusted Daily Energy Need: 2780 Wh / 0.85 = 3270.6 Wh
2. Total Storage Required: 3270.6 Wh × 2 Days of Autonomy = 6541.2 Wh
3. Required Battery Capacity (Ah): 6541.2 Wh / 48V = 136.3 Ah
4. Final Capacity Adjusted for DoD: 136.3 Ah / 0.90 = 151.4 Ah

Based on this calculation, a 48V lithium-ion battery bank with a capacity of around 150-200Ah would be a suitable choice for this off-grid cabin.

Your Blueprint for Energy Independence

A methodical lithium ion battery bank calculation is the foundation of a successful off-grid power system. By carefully auditing your energy consumption, accounting for system variables like efficiency, and planning for autonomy, you can create a reliable and long-lasting energy storage solution. This detailed approach to sizing off-grid lithium battery capacity ensures your investment provides the energy security you need. The International Energy Agency (IEA) highlights that battery storage is the fastest-growing energy technology, making it central to modern energy solutions. As detailed in guides on solar storage performance, high efficiency is a crucial metric for system design, and LiFePO4 batteries excel in this area.

Frequently Asked Questions

Can I add more batteries to my bank later?

Yes, especially with modular lithium battery systems. However, it's best to connect batteries of the same age, chemistry, and capacity. Mixing old and new batteries can lead to imbalances. Always follow the manufacturer's guidelines for expansion.

Why is a 48V system often recommended for off-grid homes?

A 48V system operates at a lower current (Amps) for the same amount of power compared to a 12V or 24V system. This reduces energy loss in the wiring and allows for the use of thinner, less expensive cables. It's generally more efficient for larger systems like a complete off-grid home.

How does temperature affect my lithium battery bank size?

Lithium iron phosphate (LiFePO4) batteries perform well across a wide range of temperatures. However, extreme cold can temporarily reduce their available capacity and charging efficiency. If your batteries will be in a location that experiences freezing temperatures, you might consider oversizing the bank slightly or incorporating a heating solution to ensure optimal performance.
