A Foundational Analysis of Off-Grid Photovoltaic Systems: Principles and Material Considerations

From my perspective in the field of photovoltaics, the pursuit of energy autonomy through off-grid solar systems represents a fascinating challenge in applied physics and electrochemical engineering. An off-grid system is not merely an assembly of components; it is an isolated microgrid that must harmoniously balance energy generation, storage, and consumption without the stabilizing influence of a public utility. The success of such a system hinges on a rigorous understanding of the underlying scientific principles and the material properties of each component. This analysis moves beyond a superficial overview to dissect the core science that governs system viability and long-term performance.

The Core Components: A Material Science Perspective

An off-grid system's reliability is dictated by the weakest link in its chain. Therefore, a granular examination of each primary component is essential. We must look beyond marketing terms and focus on the fundamental parameters that define performance and longevity.

1. Photovoltaic Converters (Solar Panels): The process begins with the photovoltaic effect in semiconductor materials. While monocrystalline silicon currently dominates due to its high carrier mobility and mature manufacturing processes, achieving efficiencies over 22%, its performance is governed by the Shockley-Queisser limit. Key parameters for evaluation include the **temperature coefficient**, as efficiency degrades with heat, and the **spectral response**. For specialized applications, thin-film technologies like CdTe or CIGS offer advantages in flexibility and performance in low-light conditions, though typically at lower peak efficiencies. The future may lie in perovskite-silicon tandem cells, which promise to overcome the efficiency ceiling of single-junction silicon.
2. Charge Controllers (Energy Flow Regulation): This device is critical for battery health. A simple Pulse Width Modulation (PWM) controller acts as a switch, which is often inefficient. In contrast, a **Maximum Power Point Tracking (MPPT)** controller is a sophisticated DC-DC converter. It employs an algorithm to continuously adjust the electrical load to keep the photovoltaic array operating at the peak of its power curve (Vmp, Imp), maximizing energy harvest by up to 30% under specific conditions, particularly in colder weather when panel voltage is higher.

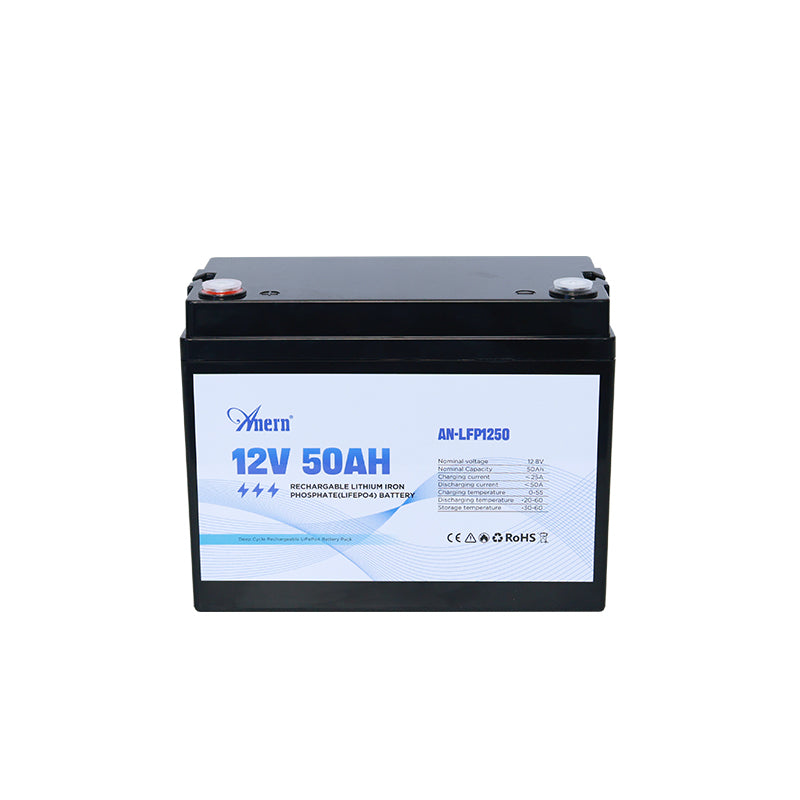

3. Electrochemical Storage (Battery Bank): This is arguably the most complex and critical subsystem. The choice between lead-acid and lithium-ion chemistries involves profound trade-offs. Lead-acid batteries, while cost-effective, suffer from low cycle life (typically <1000 cycles), limited Depth of Discharge (DoD) of ~50%, and significant Peukert effect losses at high discharge rates. In my view, **Lithium Iron Phosphate (LFP or LiFePO4)** represents a superior choice for stationary storage due to its exceptional thermal stability (resisting thermal runaway), high cycle life (>4000 cycles), high coulombic efficiency, and the ability to safely discharge to 80-90% DoD. For a detailed electrochemical comparison, one might explore a technical brief on the fundamental differences between lithium and lead-acid chemistries.
4. DC-AC Power Inverter: The conversion from DC to AC power must be precise. A pure sine wave inverter is non-negotiable for any serious application. Its quality is measured by **Total Harmonic Distortion (THD)**; a lower THD (<3%) ensures compatibility with sensitive electronics and inductive loads like motors. A modified sine wave inverter, with its stepped approximation of a sine wave, can cause damage to such devices over time.

System Design: A Quantitative Modeling Approach

Designing an off-grid system is an exercise in predictive modeling. Relying on guesswork guarantees failure. A systematic, data-driven approach is required.

Step 1: Load Profile Analysis

The first step is to quantify the energy demand. This involves a meticulous **load analysis**, cataloging every appliance's power consumption (Watts) and operational duration (hours/day). The sum yields the total daily energy requirement in Watt-hours (Wh). This is not a static number; seasonal variations must be accounted for. For an effective methodology, refer to the process of calculating energy requirements based on load profiles.

Step 2: Insolation and Irradiance Assessment

Next, we must quantify the available solar resource. This requires analyzing the site's average daily **solar insolation** (measured in kWh/m²/day), paying close attention to the month with the least sunlight (the "winter solstice" scenario). Shading from trees or structures must be modeled, as even partial shading can disproportionately reduce a panel string's output due to the bypass diode mechanism. Tools like the NREL's PVWatts can provide valuable location-specific data.

Step 3: Component Sizing Calculations

• PV Array Sizing: The required array wattage is determined by dividing the daily energy demand (Wh) by the location's average peak sun hours, factoring in system inefficiencies (typically a derating factor of 0.75-0.85).
• Battery Bank Capacity: This is defined by the required **days of autonomy**—the period the system can operate without any solar input. For critical applications, 3 to 5 days of autonomy is a common design parameter. The capacity (in Amp-hours) is calculated by: `(Daily Wh Usage × Days of Autonomy) / (Battery Voltage × DoD Limit)`.
• Inverter Sizing: The inverter must handle the **peak load**, which is the sum of the wattages of all appliances that could run simultaneously. Its continuous rating should exceed this value by at least 25% to ensure longevity.

Procedural errors in this stage are common. An examination of frequent mistakes in initial system setup can be instructive.

System Topologies: A Comparative Overview

It is useful to contrast the off-grid topology with its alternatives:

• On-Grid (Grid-Tied): These systems are electronically coupled to the utility grid and lack electrochemical storage. They export excess power and draw power when generation is insufficient. Critically, they deactivate during grid outages due to anti-islanding safety protocols.
• Off-Grid: An electrically isolated system that relies entirely on local generation and storage. It offers complete energy independence but requires meticulous energy management.
• Hybrid: This topology merges grid-tied functionality with a battery bank. It can store excess solar energy for later use (self-consumption) or provide backup power during an outage, offering a balance of resilience and grid interactivity.

Long-Term Performance and Degradation Mechanisms

A system must be designed for decades of service. This requires an understanding of material degradation.

• PV Module Degradation: Panels degrade over time, primarily through mechanisms like **Potential Induced Degradation (PID)**, light-induced degradation (LID), and encapsulant yellowing. A high-quality module will have a warrantied power output of over 80% after 25 years.
• Battery Cycle Aging: All batteries degrade with each charge/discharge cycle. For lithium-ion cells, this is often due to the growth of the solid electrolyte interphase (SEI) layer, which consumes lithium and increases internal resistance. Managing temperature and avoiding extreme states of charge is crucial for maximizing cycle life.

Therefore, a proactive maintenance schedule is not merely about cleaning panels; it's about monitoring performance data to detect premature degradation. A guide to maintaining system integrity should focus on these performance metrics.

Conclusion

An off-grid solar system is a testament to the practical application of advanced physics and chemistry. Its successful implementation demands more than a casual interest; it requires a rigorous, analytical approach to design, component selection, and long-term management. While the path to energy independence is complex, the underlying principles are well-established. By focusing on material quality, quantitative analysis, and an understanding of degradation mechanisms, one can engineer a robust and reliable power source capable of providing energy for decades.
