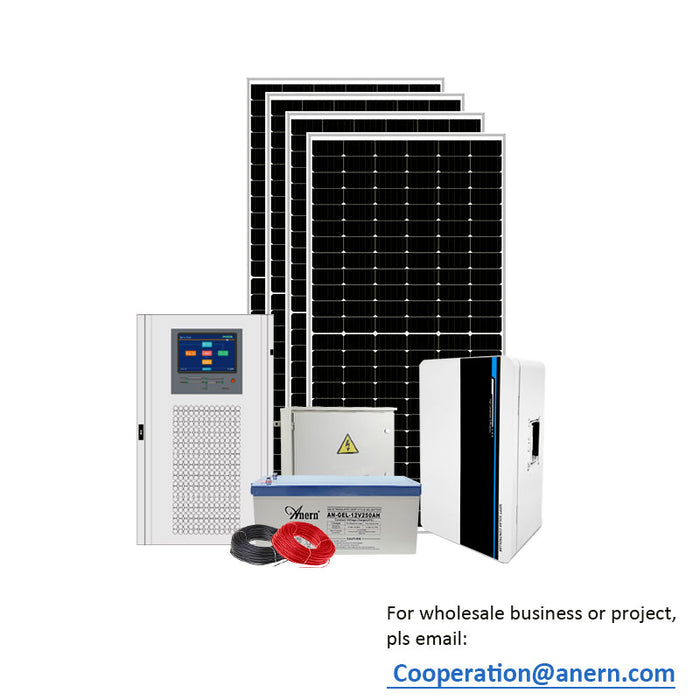

50KW Off-grid Solar Power System for Commercial and Industrial Solutions
Description:
Package Content:
Description:
Package Content:
System Basic Information: | Average daily generation<200KWH |
Rated Loads Capacity:50KW | |
Solar Panel(96pcs) | Type: Monocrystalline Silicon PV Module Max Power: 500W Pm: 500W Voc: 48.75V Isc: 13.14A Vm: 39.96V Ⅰm: 12.51A Size: 2158*1020*35MM 25 years power output guarantee |
Controller(2pcs) | PV Charging Controller 384V 100A; PMW charging type, LCD display, intelligent control. Temperature compensation; Protections: short circuit, deep discharge, input surge voltage, over current. |
PV Array Combiner(2pcs) | Simplify wiring between PV array and controller, protections to controller, features: - Wide range of DC input voltage - IP65 guard level, suitable for outdoor - Reliable thunderstorm & surge protection - Multiple PV strings inputs (4 strings) |
Inverter (1pcs) | Rated DC384V input, AC380V 3-phase output; Frequency: 50 Hz +/- 0.5% Rated Output Capacity: 50KW True sine-wave, off-grid type, with grid power switch function; LCD display of operating parameters; • Protections: Short circuit, overload, surge current, over temperature, over/under voltage, over/under frequency, lightning, phase imbalance, reverse polarity |
Battery(96pcs) | 12V250AH per piece AGM valve-regulated lead-acid battery, fully sealed, deep cycle, free maintenance type Service Life: 5~6 years |
Solar Panel Rack(1pcs) | Roof type mounting rack including complete fittings, aluminum alloy (Rack can be customized per request) |
Cables | International standard, with specification suitable for solar system,PV1-F-1*4 series red and black |
Cables | International standard, with specification suitable for solar system, BVR-1*10 series |
System Working Principle:
This industrial off grid power systems uses batteries to store the solar energy, at the same time, the 50kw solar system can be connected with the grid for utilization of grid power optionally. The industrial off grid power systems uses battery power in priority, but when sunshine is not so good or loads consumption is too big which caused the battery power inadequacy, then the industrial off grid power systems can switch automatically to grid power supply. When the batteries restore capacity, the 50kw solar system can switch back to battery power source.
Terms and conditions:
1. Package: Export standard package suitable for tough handling and sea transport.
2. Delivery: Goods to be ready within 7~30 days depending on order quantity.
3. Warranty: 5 years for solar panel, 2 years for controller/inverter/battery.
4. Certification: CE,ROHS
5. Validity: 30 days
50kw solar system descriptions:
This 50 kwh solar system generates clean, reliable, and affordable solar energy. Whether you need direct grid-tied or hybrid systems, we have the perfect size solution for you. Our systems are easy to install, operate and maintain.
Our 50kw solar system is designed to be used for both commercial and industrial applications, such as business, resorts, farms or outstations. With our powerful battery bank, which means longer backup time when the sun is not shining. You can utilize this industrial off grid power system and commercial off grid solar systems as an emergency power source in case of power outage without any worries of it running out of juice. With this 50KW solar system you don't need to rely on the grid for your electricity supply.
