When planning a solar energy system with battery storage, one of the fundamental design choices revolves around how the components are connected. This is known as "coupling," and the two primary methods are Alternating Current (AC) coupling and Direct Current (DC) coupling. The path electricity takes from your solar panels to your battery and then to your home's appliances defines the system's architecture, impacting everything from efficiency to cost. Understanding the ac vs dc coupled differences is crucial for designing a system that aligns with your energy goals, whether you're installing a new system or upgrading an existing one.
For years, our focus on manufacturing high-performance LiFePO4 lithium batteries and developing integrated energy storage systems (ESS) has provided us with firsthand experience in the real-world performance of both configurations. This article offers a detailed comparison to help you determine the optimal setup for your journey toward energy independence.
The Fundamentals: What Are AC and DC Coupling?
At their core, both AC and DC coupling achieve the same goal: storing excess solar energy in a battery for later use. However, they accomplish this through different electrical pathways. Solar panels generate DC electricity, and batteries store it as DC electricity. Your home and the electrical grid, however, run on AC electricity. The key distinction between these two architectures is when and how many times the electricity is converted between DC and AC.
Understanding DC Coupling
In a DC-coupled system, the DC power from the solar panels is fed through a charge controller directly to the battery bank, without being converted to AC first. The system uses a single, intelligent hybrid inverter that manages power flow from the panels, the battery, and the grid. This inverter converts the stored DC battery power into AC power only when your home needs it. This streamlined approach minimizes energy conversions, making it a highly efficient choice, particularly for new, fully integrated solar and storage installations. Our expertise in creating all-in-one ESS solutions, which combine LiFePO4 batteries with advanced hybrid inverters, is centered on maximizing this efficiency.
Understanding AC Coupling

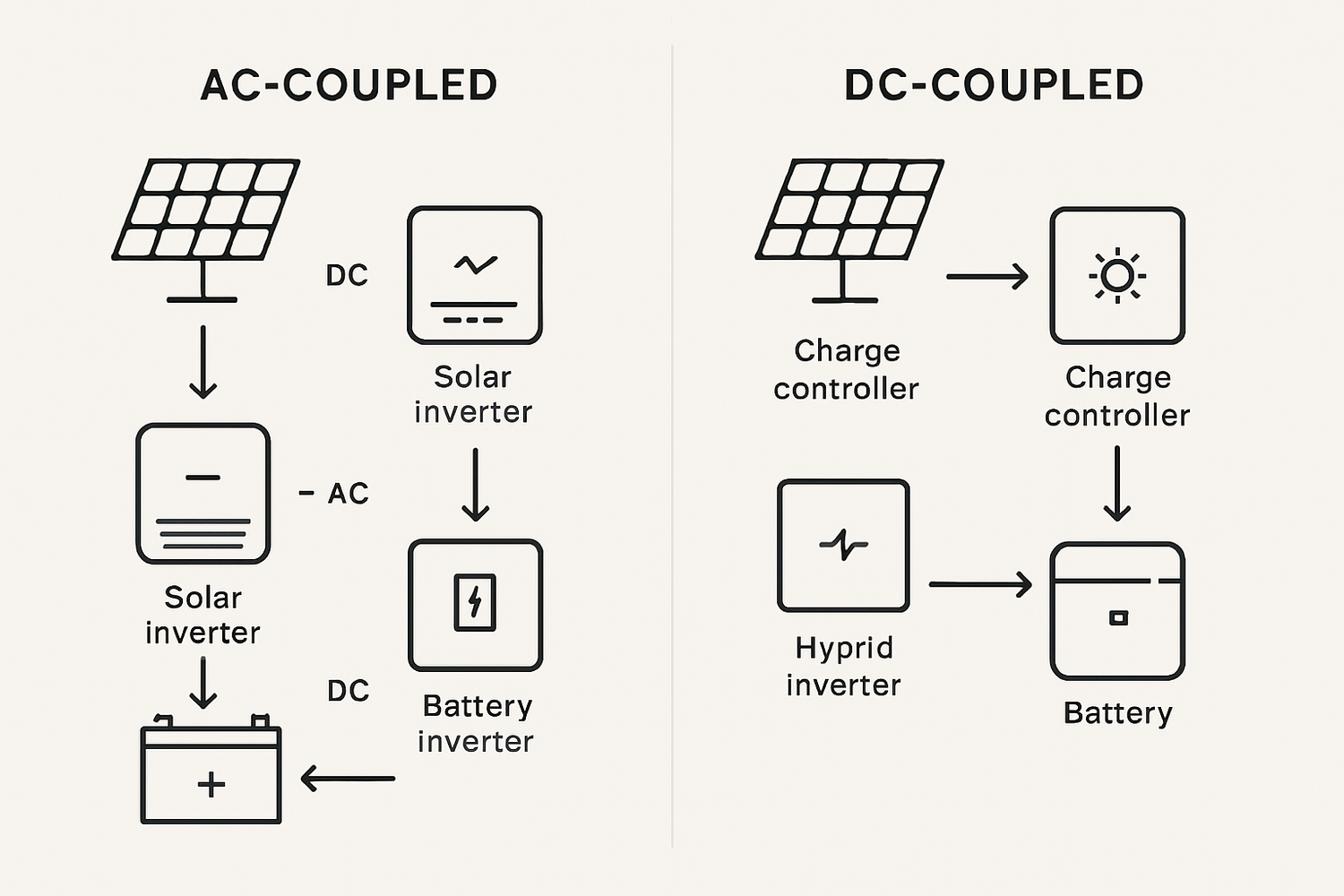

In an AC-coupled system, the DC power from the solar panels first goes to a standard solar inverter, which converts it into AC power for immediate use in the home or export to the grid. To charge a battery, this AC power is then routed to a separate, second inverter (a battery inverter), which converts it back to DC to be stored. When you need to draw power from the battery, it's converted back to AC a third time. This method is especially popular for retrofitting battery storage into an existing grid-tied solar system because it doesn't require replacing the original solar inverter. You can learn more about this in our article on Retrofit or New Build? Choosing Your Solar Energy Storage.
Core Differences: Efficiency, Cost, and Complexity
The choice between AC and DC coupling involves trade-offs in three key areas: round-trip efficiency, installation cost, and overall system complexity. Evaluating these factors based on your specific situation is essential for making a sound investment.
Round-Trip Efficiency Compared
Round-trip efficiency measures how much of the energy sent to a battery can be retrieved for later use. Each time electricity is converted from DC to AC or vice versa, a small amount of energy is lost.
Because DC-coupled systems involve only one conversion to power your home from the battery, they are generally more efficient. A typical DC-coupled system can achieve a round-trip efficiency of up to 98%. In contrast, AC-coupled systems, with their multiple conversion steps, usually have an efficiency in the range of 90-94%. While a 4-8% difference may seem small, it can add up to a significant amount of usable energy over the lifespan of the system. For a deeper dive into this topic, see our analysis in AC vs DC Coupled: Which Solar Battery Storage is Best?.
| Feature | DC Coupled System | AC Coupled System |
|---|---|---|
| Typical Efficiency | Up to 98% | 90-94% |
| Number of Inversions (Solar to Battery to Load) | One (DC -> AC) | Three (DC -> AC -> DC -> AC) |
| Best For | New installations, off-grid systems | Retrofitting existing solar systems |
| Primary Components | Hybrid Inverter, Charge Controller | Solar Inverter, Battery Inverter |
Installation Costs and System Scalability
For new installations, DC-coupled systems can be more cost-effective as they require only one hybrid inverter instead of two separate inverters. This simplified design also means fewer components and potentially lower maintenance costs.
However, for homeowners who already have a solar array, AC coupling is often the more economical choice. It allows the addition of battery storage without replacing the existing solar inverter, saving on equipment and labor costs. This flexibility is a major advantage. As the U.S. Energy Information Administration (EIA) notes, the trend of adding storage to existing solar installations is growing rapidly. Our commitment is to provide scalable energy solutions, and both architectures offer paths to expand your system as your energy needs evolve.
System Design and Complexity
DC-coupled systems are more integrated, with the solar array and battery managed by a single hybrid inverter. This can simplify monitoring and control. However, the installation can be more complex, as the inverter typically needs to be located near the battery bank. In contrast, AC-coupled systems are more modular. The battery and its inverter can be installed farther away from the solar array if needed, offering more flexibility in placement. This modularity is a key point we explore in 7 Key Differences Between AC & DC Home Battery Storage Systems.
Practical Applications: Which System is Right for You?
The ideal choice between AC and DC coupling is not universal; it depends entirely on your specific circumstances and objectives.
New Solar Installations: The Case for DC Coupling
If you are installing a new solar and storage system from the ground up, a DC-coupled architecture is often the superior choice. Its higher efficiency means more of your generated solar power is stored and used, maximizing your investment. The streamlined design with a single hybrid inverter simplifies the system and can lower initial hardware costs. Our integrated home energy storage systems are designed around this principle, combining high-performance LiFePO4 batteries and a hybrid inverter into a seamless, highly efficient unit. Explore how to capitalize on this with our Unlock Higher Efficiency: A Guide to DC Coupled LiFePO4 Battery guide.
Retrofitting Existing Solar Systems: The Advantage of AC Coupling
For the millions of homes that already have a grid-tied solar system, AC coupling is the most practical and cost-effective way to add energy storage. The ability to add a battery system without altering the existing solar installation is a significant benefit. The battery system connects to your home's main electrical panel, operating in parallel with your solar array. This ease of integration has made AC coupling the standard for retrofit projects.
Off-Grid and Backup Power Scenarios
In off-grid applications, efficiency is paramount, making DC coupling a very strong contender. The direct charging path from panels to battery ensures minimal energy loss, which is critical when you are completely reliant on your own power generation. Our off-grid solar solutions, featuring robust LiFePO4 batteries, are engineered for this demanding environment. You can see a real-world example in our Case Study: A 200ah Lithium Battery in an Off-Grid System. That said, modern AC-coupled systems can also provide reliable backup power and are often designed to create a "microgrid" during an outage, keeping your solar panels producing even when the utility grid is down.
Technical Deep Dive: Inverters and Battery Integration
The inverter is the brain of a solar storage system, and its interaction with the battery is fundamental to performance. The International Renewable Energy Agency (IRENA) highlights that advancements in battery technology and power electronics are key to the clean energy transition.
The Role of the Inverter
In a DC-coupled system, the hybrid inverter is a multitasking powerhouse, functioning as both a solar inverter and a battery inverter. In an AC-coupled system, these roles are split between two separate devices. The choice of inverter is critical for system performance and compatibility. For guidance on this, refer to our article on How to Select the Right Inverter for Your Lithium Battery Pack.
Battery Compatibility and Performance
Modern lithium-ion batteries, particularly Lithium Iron Phosphate (LiFePO4), are well-suited for both AC and DC coupling. Their high efficiency, long lifespan, and deep depth of discharge make them an ideal choice for energy storage. IRENA notes that LFP chemistry's market share has grown dramatically due to its lower cost and improved safety. As manufacturers of LiFePO4 batteries, we engineer our products for maximum performance and reliability, regardless of the system architecture. Debunk common misconceptions with our article on AC/DC Coupling Myth vs. Reality for Lithium Ion Solar Battery and learn how to get the most from your investment in The Engineer's Take: Maximizing Your 12V LiFePO4 Battery.
Making an Informed Decision
Choosing between AC and DC coupling is a foundational decision in designing your solar energy storage system. A DC-coupled system generally offers higher efficiency and lower costs for new installations. An AC-coupled system provides unparalleled flexibility and is the go-to solution for retrofitting storage onto an existing solar array.
The global shift towards renewable energy, as tracked by the IEA, shows a massive expansion in solar and storage capacity. Your choice of coupling architecture is a key step in participating in this transition. By carefully considering your current setup, future goals, and budget, you can design a reliable and scalable system that empowers you to achieve energy independence.
Disclaimer: This article is for informational purposes only and does not constitute financial or investment advice. Please consult with a qualified professional before making any decisions regarding your energy system.
