7 Key Differences Between AC & DC Home Battery Storage Systems

Choosing a home battery storage system is a significant step toward energy independence. As you evaluate your options, you'll encounter a fundamental technical choice: should you get an AC-coupled or a DC-coupled system? The way a battery connects to your solar array impacts everything from efficiency and cost to installation complexity. Understanding these differences is crucial for selecting a system that aligns with your energy goals and existing setup.

The Fundamentals: AC vs. DC Power in Your Home

To grasp the difference between AC and DC coupling, it's helpful to know how electricity works in a solar energy system. Solar panels produce Direct Current (DC) electricity, where electrons flow in one direction. Batteries, including advanced LiFePO4 (lithium iron phosphate) models, also store energy as DC. However, your home's appliances and the utility grid operate on Alternating Current (AC), where the current reverses direction periodically. The device that bridges this gap is the inverter.

What is Direct Current (DC)?

DC power is the native language of solar panels and batteries. It's a steady, unidirectional flow of energy. When your panels capture sunlight, they generate DC electricity. To use it later, you must store it in its DC form within a battery.

What is Alternating Current (AC)?

AC power is the standard for electrical grids and household wiring. It can travel efficiently over long distances, which is why it was adopted for widespread power distribution. Nearly every appliance you plug into a wall outlet uses AC power.

The Inverter's Critical Role

An inverter is a power electronics device that converts DC electricity into AC electricity. Every solar and storage system has at least one. The distinction between AC and DC coupling lies in where this conversion happens and how many inverters are involved in the process of getting solar energy into your battery and then back out to your home.

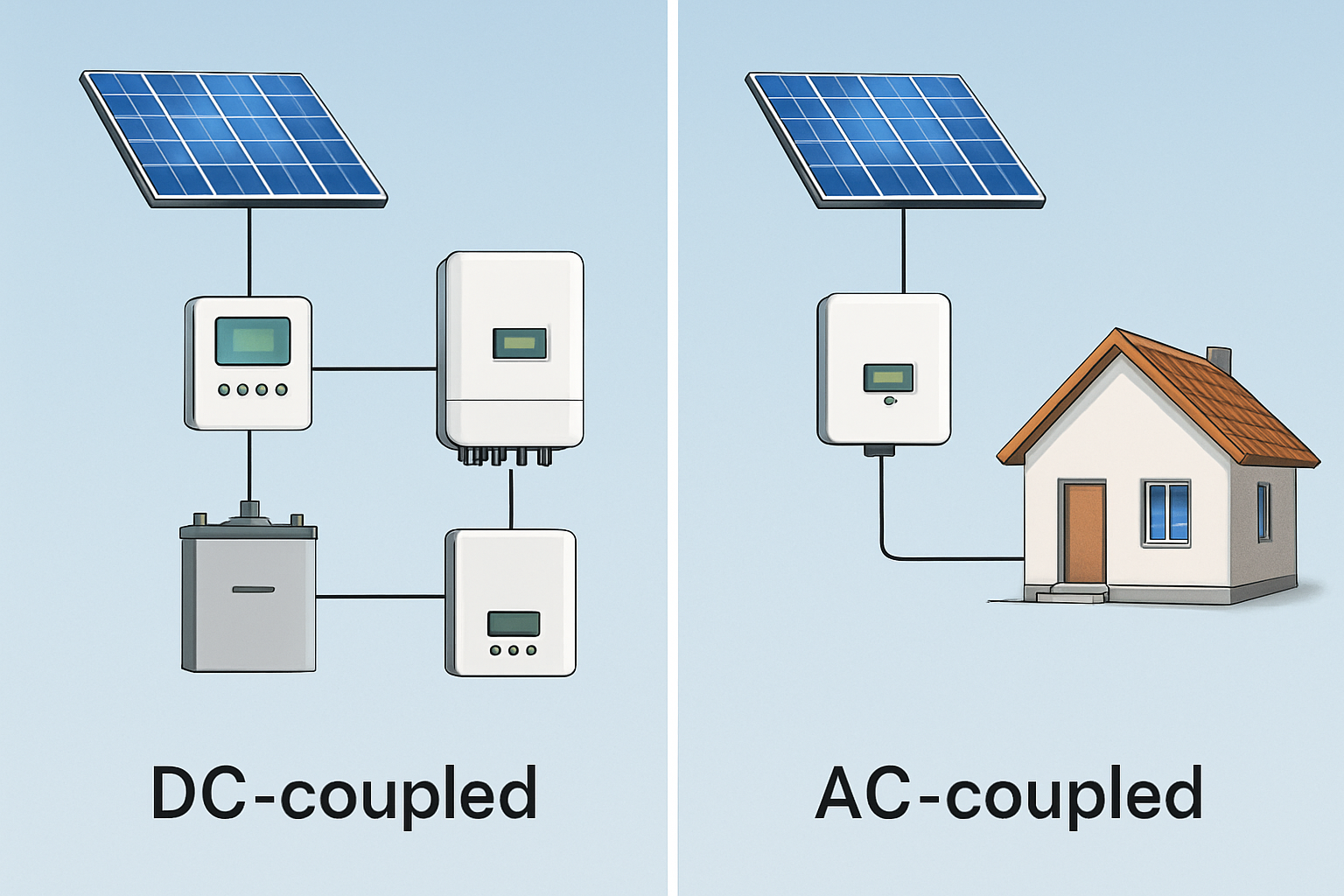

Difference 1: System Architecture and Components

The physical layout and the number of components differ significantly between the two system types. This is the most fundamental distinction that influences all other differences.

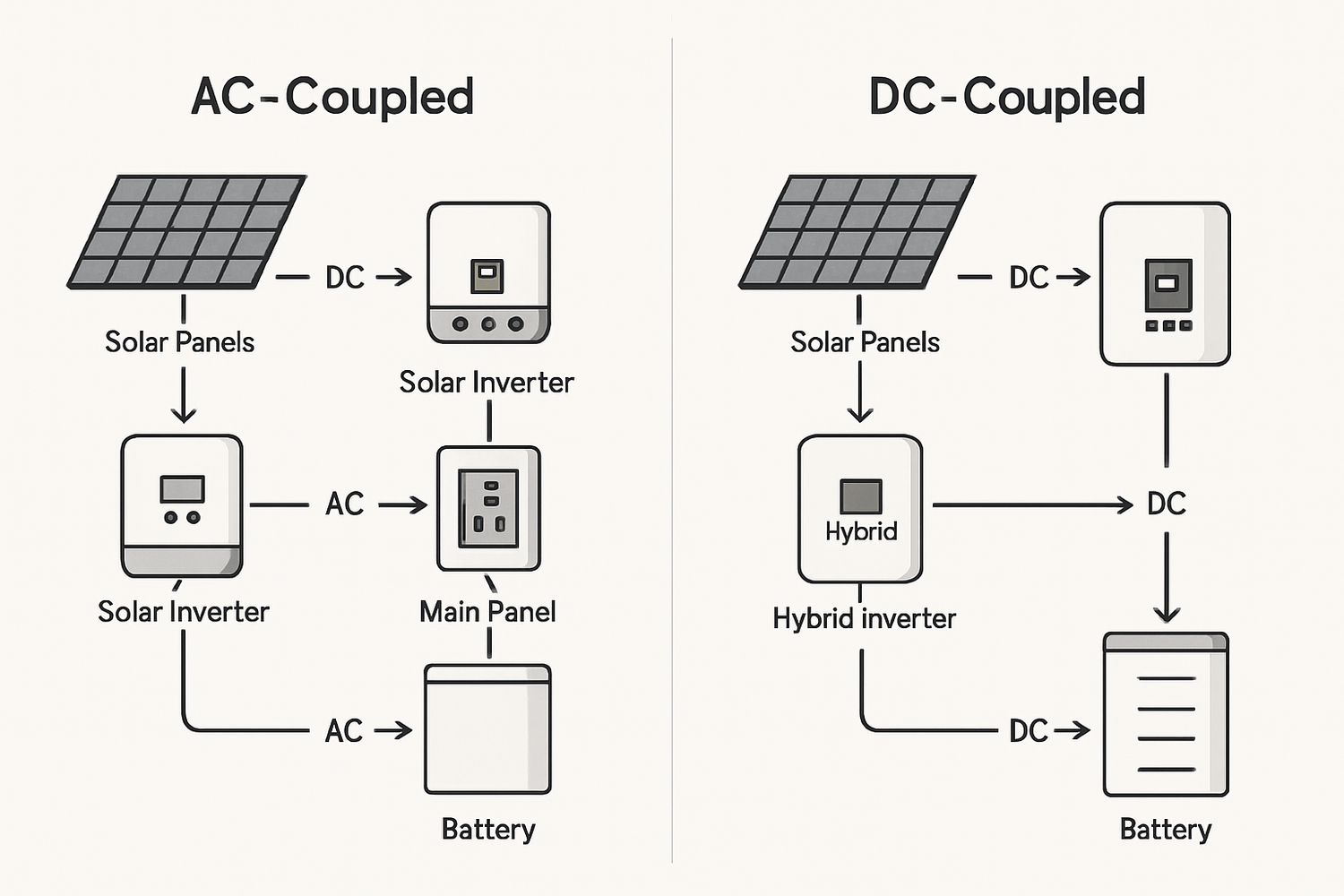

DC-Coupled Systems Explained

In a DC-coupled system, the DC power from your solar panels flows through a charge controller to charge your battery directly. A single, specialized 'hybrid' inverter then sits between the battery and your home. This hybrid inverter manages power from the panels, the battery, and the grid, converting DC power to AC only when your home needs it. The path is direct: Solar Panels (DC) -> Battery (DC) -> Hybrid Inverter -> Home (AC).

AC-Coupled Systems Explained

An AC-coupled system essentially treats the solar panels and the battery as two independent systems. The DC power from the panels first goes to a dedicated solar inverter to become AC power for your home. Any excess AC power is then sent to a second inverter—a battery inverter—which converts it back to DC to store in the battery. The path has more steps: Solar Panels (DC) -> Solar Inverter (AC) -> Home (AC) -> Battery Inverter (DC) -> Battery (DC). When you use the stored energy, it's converted back to AC again.

Difference 2: Efficiency and Energy Loss

Every time electricity is converted from DC to AC or vice versa, a small amount of energy is lost as heat. Minimizing these conversions can improve overall system efficiency.

Round-Trip Efficiency in DC Systems

DC-coupled systems are generally more efficient when storing solar energy directly. Because the DC power from the panels charges the DC battery without an intermediate conversion to AC, less energy is wasted. This direct path can result in round-trip efficiencies as high as 98%. This means for every 10 kWh of solar energy sent to the battery, up to 9.8 kWh is available for later use.

Conversion Losses in AC Systems

AC-coupled systems involve more conversion steps to store solar power, which introduces greater energy loss. The process involves converting DC to AC and then back to DC for storage. This 'double conversion' typically results in a round-trip efficiency of around 90-94%. While this is still highly efficient, the small percentage difference can add up over the 10-15 year lifespan of a battery system.

Difference 3: Ease of Installation and Retrofitting

Your current situation—whether you have an existing solar array or are starting from scratch—is a major factor in choosing between AC and DC coupling.

AC Coupling: Ideal for Existing Solar Systems

If you already have a grid-tied solar system, adding an AC-coupled battery is often the most straightforward and cost-effective option. The battery and its dedicated inverter can be installed with minimal disruption to your existing solar setup because they connect independently to your home's main electrical panel.

DC Coupling: Suited for New Installations

For a new, fully integrated solar-plus-storage system, DC coupling is often preferred. Installing a single hybrid inverter from the start is typically simpler and can have a lower initial equipment cost compared to the multiple inverters required for an AC-coupled system. However, retrofitting a DC-coupled battery into an existing solar installation can be complex and expensive, as it usually requires replacing the original solar inverter with a compatible hybrid model.

Difference 4: Performance and Scalability

How the system performs under different conditions, especially during a power outage, and how easily it can be expanded are also key considerations.

Off-Grid and Backup Power

DC-coupled systems are often favored for off-grid applications. Their higher efficiency in charging the battery directly from solar is a significant advantage when grid power isn't an option. Furthermore, a DC system can often restart and charge a completely depleted battery using only solar power, a feature known as 'black start' capability, which is critical for resilience.

System Scalability

AC-coupled systems can be easier to scale. If you decide to add more battery capacity later, you can often just add another AC-coupled battery with its own inverter. In a DC-coupled system, the total capacity is often limited by the power rating of the central hybrid inverter.

Differences 5, 6, & 7: Cost, Reliability, and Grid Interaction

Finally, the financial investment, long-term reliability, and how the system interacts with the grid are crucial decision points.

Initial Cost vs. Long-Term Value

For new installations, DC-coupled systems may have a lower upfront equipment cost due to requiring only one hybrid inverter. For retrofits, AC-coupled systems are almost always less expensive initially because they don't require replacing existing equipment. Over the long term, the higher efficiency of a DC-coupled system could lead to slightly greater energy savings, but this must be weighed against potential maintenance costs.

System Reliability

The reliability argument has two sides. A DC-coupled system has a single point of failure: if the hybrid inverter goes down, you could lose both your solar generation and battery access. An AC-coupled system has multiple inverters; if the battery inverter fails, your solar panels can often continue to power your home during the day.

Grid Charging and EV Integration

AC-coupled systems offer great flexibility for charging the battery from the grid, which is useful for taking advantage of time-of-use electricity rates. They are also well-suited for homes with electric vehicle (EV) chargers, as the high-power AC charger can operate efficiently alongside the solar and battery inverters.

Making the Right Choice for Your Home

Deciding between an AC and DC home battery system isn't about which is universally 'better,' but which is better for *you*. The optimal choice depends entirely on your specific circumstances.

If you have an existing solar array, an AC-coupled system is the logical choice. If you're installing a complete new system, a DC-coupled configuration often provides higher efficiency and a more integrated design. For a detailed look at how different system designs and battery types affect real-world output, the ultimate reference on solar storage performance offers valuable data that can help inform your decision. As noted by the U.S. Department of Energy, the value of energy storage is multi-faceted, encompassing resilience, cost savings, and grid support, making the right system choice critical to maximizing these benefits.

Frequently Asked Questions

Can I add a battery to my existing solar panel system?

Yes, you can. An AC-coupled battery system is specifically designed for this purpose and is the most common method for retrofitting storage to an existing solar installation.

Is a DC or AC battery system better for off-grid living?

DC-coupled systems are generally preferred for off-grid applications. Their higher efficiency for charging the battery directly from solar panels is a major advantage when you are completely reliant on the energy you generate.

What is 'round-trip efficiency' and why does it matter?

Round-trip efficiency measures how much energy you get back from a battery compared to the amount you put in. A higher efficiency means less energy is wasted during the charging and discharging process. For example, a 95% round-trip efficiency means that for every 100 kWh you store, you can use 95 kWh. This directly impacts your long-term energy savings.

Do both systems provide backup power during an outage?

Yes, both AC and DC-coupled systems can be configured to provide backup power when the grid goes down. The effectiveness of the backup depends on the battery's capacity, the inverter's power output, and how the system is wired into your home's electrical panel.
