Pairing solar panels with a battery storage system is a powerful step toward energy independence. It allows you to store the clean energy you generate during the day for use at night or during a power outage. But as you plan your system, you'll encounter a key technical decision: should you use an AC coupled or DC coupled architecture? The way your solar panels connect to your battery system impacts efficiency, cost, and installation complexity. This choice is fundamental to designing a system that meets your specific energy goals.
Understanding the Basics: How Solar Energy is Stored
To grasp the difference between AC and DC coupling, it's helpful to know how electricity flows through a home solar energy system. The core components work together to capture, convert, and store energy for when you need it most.
The Role of Inverters in Solar Systems
Solar panels produce Direct Current (DC) electricity, but homes and the utility grid operate on Alternating Current (AC). A solar battery inverter is the device that bridges this gap, converting DC power into usable AC power. In a storage system, inverters also manage the flow of energy to and from the battery, ensuring it charges and discharges correctly.
Direct Current (DC) vs. Alternating Current (AC)
Direct Current (DC) is a one-way flow of electricity, like the power from a battery. Alternating Current (AC) changes direction periodically and is the standard form of electricity used to power appliances in our homes. The process of converting between these two types of current is where the distinction between AC and DC coupling becomes important.

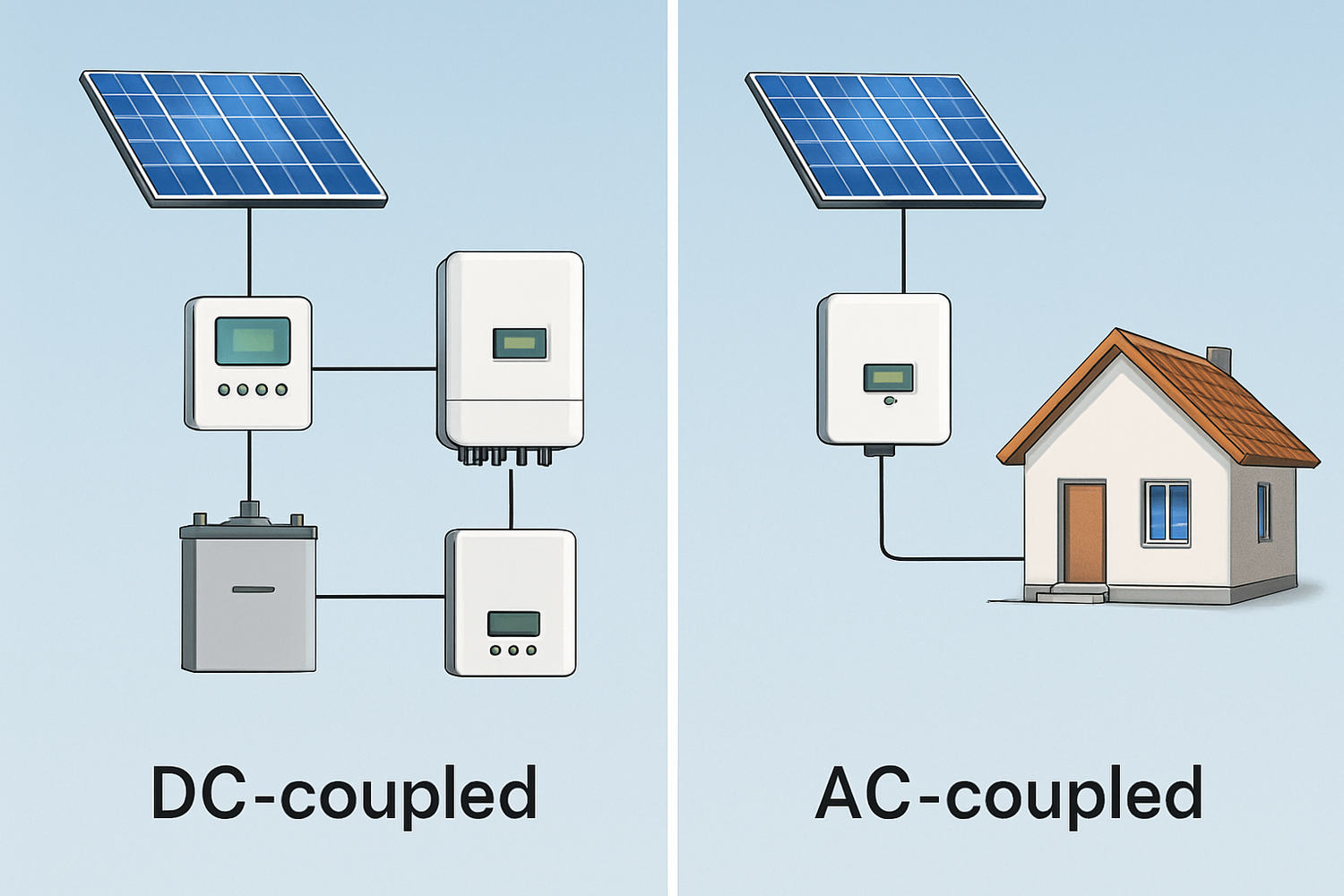

DC Coupled Solar Battery Storage: A Direct Approach
A DC coupled system connects the solar panels, charge controller, and batteries on the DC side of the system. A single hybrid inverter then converts the stored DC electricity into AC power for your home, or sends it to the grid. This architecture is known for its high efficiency.
How DC Coupling Works
In a DC coupled setup, the DC power generated by your solar panels goes to a charge controller, which regulates the power sent to the DC battery. The energy is stored in its original DC form. When your home needs power, a hybrid inverter draws from either the solar panels or the battery, converts the DC power to AC, and supplies it to your appliances. This direct connection minimizes energy conversion steps.
Advantages of DC Coupled Systems
- Higher Efficiency: Since the power from the solar panels is stored directly in the battery without being converted to AC first, DC coupled systems have a higher round-trip efficiency. Fewer conversions mean less energy is lost.
- Cost-Effective for New Installations: For a new solar-plus-storage system, DC coupling can be more affordable because it often requires only one hybrid inverter for both the panels and the battery.
- Ideal for Off-Grid Systems: The high efficiency of DC coupling makes it a preferred choice for off-grid solar solutions, where maximizing every watt of generated power is critical.
Limitations of DC Coupled Systems
- Installation Complexity: These systems can be more complex to install, especially when retrofitting. The inverter needs to be located near the battery bank, which can limit placement options.
- Less Flexible for Expansion: The size of the solar array is often limited by the capacity of the single hybrid inverter. Expanding the system later may require replacing the inverter.
AC Coupled Solar Battery Storage: The Flexible Retrofit
AC coupling is a popular choice for adding battery storage to an existing solar panel installation. In this configuration, the solar panels and the battery each have their own inverter, creating two independent but interconnected systems.
How AC Coupling Works
With AC coupling, the DC power from the solar panels first goes to a standard solar inverter, which converts it to AC power for your home. If there is excess energy, a separate battery inverter pulls that AC power, converts it back to DC, and stores it in the battery. When you need to draw from the battery, the battery inverter converts the DC power back to AC for your home.
Advantages of AC Coupled Systems
- Excellent for Retrofitting: AC coupling is the easiest and most cost-effective way to add a battery to an existing grid-tied solar system without needing to replace the current solar inverter.
- Scalability and Modularity: The solar array and the battery system operate independently. This allows you to size and scale each component separately, offering greater flexibility for future upgrades.
- Backup Power Reliability: Many AC coupled systems are designed to provide seamless backup power during grid outages, creating a stable microgrid to power essential loads.
Limitations of AC Coupled Systems
- Lower Round-Trip Efficiency: The multiple conversions of power (DC to AC, then AC to DC for storage, and DC back to AC for use) result in slightly lower overall efficiency compared to DC systems.
- Higher Cost for New Systems: For a brand new installation, the need for two separate inverters (one for solar, one for the battery) can make AC coupled systems more expensive.
Key Comparison: AC vs. DC Coupling Head-to-Head
Choosing the right architecture depends on your specific situation. A direct comparison of key factors can help clarify which option is better suited for your home energy storage needs.
Round-Trip Efficiency
Round-trip efficiency measures how much energy you get out of a battery relative to the amount of energy put into it. DC coupled systems are generally more efficient, with typical round-trip efficiencies of 90-95%, because the energy is converted only once. AC coupled systems have slightly lower efficiencies, around 85-90%, due to the extra conversion steps. While a few percentage points may seem small, this can add up to significant energy savings over the life of the system.
System Cost and Installation Complexity
For new installations, DC coupled systems tend to have a lower upfront cost because they use a single hybrid inverter. However, for homeowners who already have solar panels, AC coupling is far more cost-effective as it avoids the need to replace the existing solar inverter. Installation complexity also varies; DC systems can be more intricate for retrofits, while AC systems are designed for straightforward integration with existing setups.
Scalability and System Design
AC coupled systems offer superior flexibility. You can expand your solar array or your battery bank independently without affecting the other. DC coupled systems are more integrated, meaning the inverter's capacity dictates the maximum size of both the solar array and the battery bank, requiring more careful upfront planning.
A critical part of any storage system is the battery itself. For a deeper look into evaluating battery performance metrics like cycle life and depth of discharge, the ultimate reference on solar storage performance provides valuable data.
Comparison Table
| Feature | DC Coupled System | AC Coupled System |
|---|---|---|
| Best For | New solar + storage installations, off-grid systems | Adding a battery to an existing solar system (retrofit) |
| Efficiency | Higher (fewer energy conversions) | Lower (more energy conversions) |
| Cost | Generally lower for new systems | Generally lower for retrofits, higher for new systems |
| Components | Hybrid Inverter | Solar Inverter + Battery Inverter |
| Scalability | Limited by hybrid inverter capacity | Highly modular and scalable |
Making the Right Choice for Your Home
The decision between AC and DC coupling is not about which is universally 'better,' but which is better for your circumstances. The growth in residential energy storage, as noted by the U.S. Energy Information Administration (EIA), highlights the increasing need for well-designed systems that match homeowner needs.
When to Choose a DC Coupled System
A DC coupled solar battery storage system is the ideal choice if you are installing a brand-new solar and battery system at the same time. It offers higher efficiency and is often more cost-effective for a complete package. It is also the standard for off-grid applications where maximizing energy capture is paramount.
When to Choose an AC Coupled System
If you already have a grid-tied solar system and want to add battery storage, an AC coupled system is almost always the right answer. Its design makes for a simple and affordable retrofit. It also provides excellent flexibility if you plan to expand either your solar array or battery capacity in the future.
A Final Perspective
Both AC and DC coupled systems provide effective pathways to energy storage and independence. The global push toward renewables, tracked by organizations like the International Energy Agency (IEA), shows that solar and storage are becoming central to our energy future. Your choice will depend on your starting point—a new installation or an existing one—and your long-term goals. By weighing the factors of efficiency, cost, and flexibility, you can design a reliable and scalable solar energy storage system tailored to your home.
Disclaimer: This article is for informational purposes only and does not constitute financial or investment advice. Consult with a qualified professional before making any decisions about your solar energy system.
Frequently Asked Questions
What is round-trip efficiency in a solar battery?
Round-trip efficiency is the percentage of energy you can retrieve from a battery compared to the amount you put into it. For example, if you store 10 kWh of energy and can use 9 kWh, the round-trip efficiency is 90%. Higher efficiency means less energy is lost during the storage and retrieval process.
Can I add a battery to my existing solar panel system?
Yes, you can. The most common and cost-effective method for adding a battery to an existing solar installation is through an AC coupled system. This allows the new battery and its inverter to be integrated with your current solar setup without replacing the existing solar inverter.
Is AC or DC coupling better for off-grid solar?
DC coupled systems are generally preferred for off-grid applications. Their higher efficiency is a significant advantage when you are completely reliant on the energy you generate and store. Every bit of energy saved is crucial for maintaining power through nights and cloudy days.
Do both systems work during a power outage?
Yes, both AC and DC coupled systems can be designed to provide backup power during a grid outage. They can isolate from the grid and use the solar panels and battery to power your home's essential loads. The specific functionality depends on the inverter and components chosen for the system.
