Ballasted vs rail mounts: roof load and uplift trade-offs

Selecting a solar panel mounting system is a foundational decision for any rooftop solar installation. The choice between a ballasted system and a rail-based (or mechanically attached) system directly influences your roof's structural integrity, the system's resilience against weather, and the overall installation process. This decision involves a careful balance of competing forces: the downward pressure of weight (roof load) and the upward pull of wind (uplift). Understanding these trade-offs is crucial for the long-term safety and performance of your solar array.

Understanding Rail-Based Mounting Systems

Rail-based mounting is a traditional and widely used method that involves physically attaching the solar array to the structure of the building.

How They Work: The Penetration Method

Rail-based systems are mechanically fastened directly to the roof's structural members, such as rafters or trusses. The primary components include rails that hold the panels, mounts that create a secure connection point, and flashing—a critical element that creates a watertight seal around each penetration point. This direct attachment ensures that the loads from the solar array are transferred effectively to the building's frame.

Strengths in Uplift Resistance

The key advantage of a rail-based system is its exceptional resistance to wind uplift. By anchoring the array to the building's structure, it creates a robust defense against strong winds. This makes it a preferred solution in regions prone to hurricanes or extreme weather. When installed correctly, these systems are designed to withstand significant aerodynamic forces, protecting both the solar panels and the roof itself. Installing rooftop solar alters how wind dynamics impact a roof; the panels bear the brunt of uplift pressures, transferring concentrated loads to the attachment points.

Considerations for Roof Load

While rail-based systems are lighter overall than ballasted options, they create concentrated point loads at each attachment location. A structural load analysis is necessary to ensure the roof can handle these focused stresses without compromising its integrity. The total weight of the panels and racking, typically 2-4 pounds per square foot (psf), is distributed across numerous attachment points, minimizing the overall dead load on the roof.

Exploring Ballasted Mounting Systems

Ballasted systems offer a non-invasive alternative, relying on weight rather than mechanical attachments to secure the solar array.

The Non-Penetrating Approach

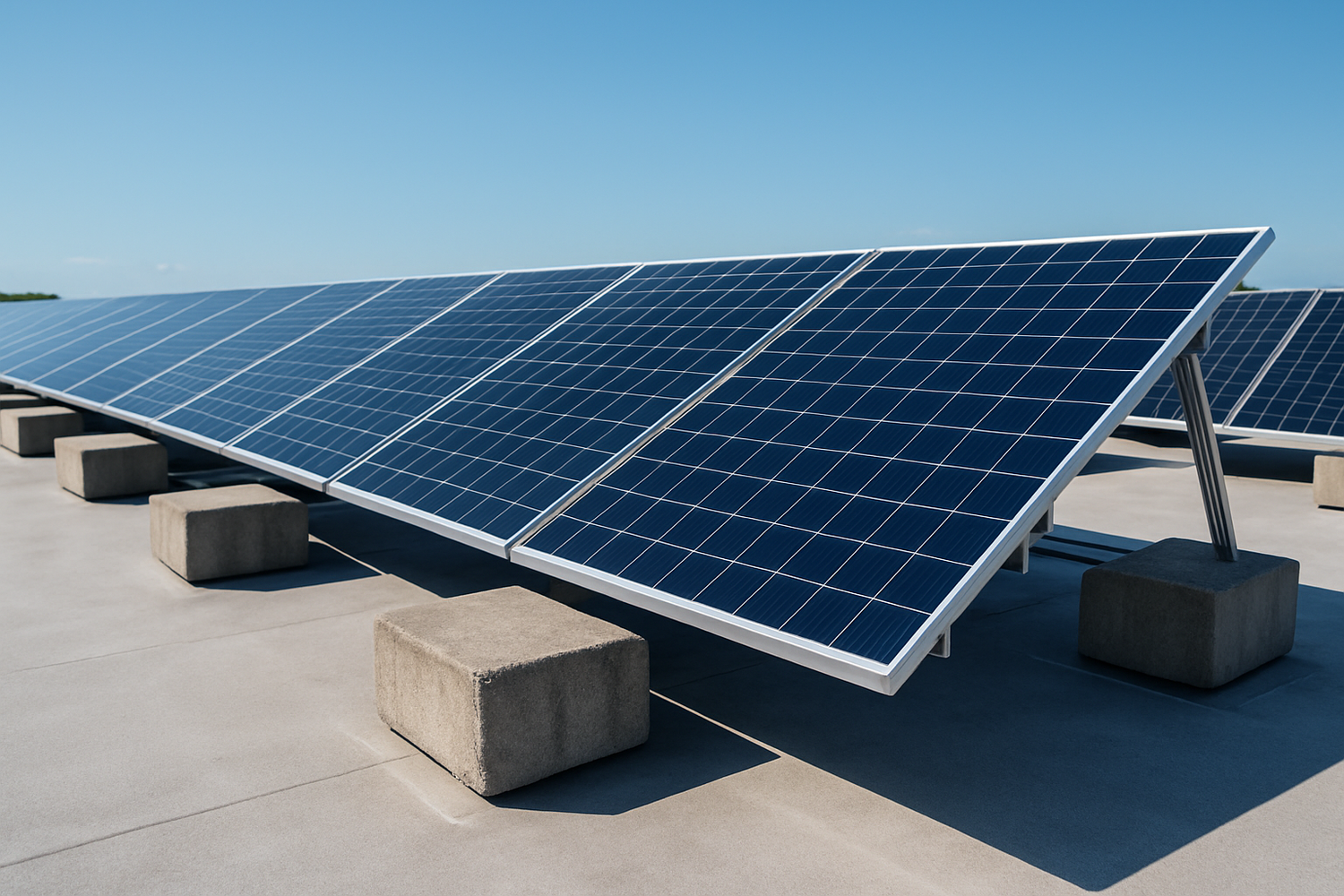

Primarily designed for flat or low-slope roofs (typically less than 5 degrees), ballasted systems use concrete blocks or pavers to hold the array in place. The most significant benefit is the absence of roof penetrations. This approach preserves the roof's warranty, eliminates the risk of leaks from faulty seals, and can significantly speed up the installation process.

The Challenge of Roof Load

The primary trade-off with ballasted systems is the substantial added weight. The ballast required to counteract wind uplift can add a dead load of 4 to 7 psf, and sometimes more in high-wind zones. Before considering this option, a thorough structural load analysis by a qualified engineer is mandatory. The analysis must confirm that the roof can support this continuous, heavy load without risking structural failure.

Managing Wind Uplift with Weight and Aerodynamics

The amount of ballast needed is precisely calculated based on factors like building height, wind exposure, and the specific location on the roof (corners and edges experience higher uplift forces). Modern ballasted systems often incorporate aerodynamic features, such as wind deflectors, to reduce the uplift forces on the array. This innovation can decrease the amount of weight needed, making the system viable for a wider range of buildings.

Head-to-Head Comparison: Key Trade-offs

Choosing between these two systems requires a clear understanding of their respective strengths and weaknesses in different scenarios.

Roof Load: Distributed vs. Concentrated Dead Load

The fundamental difference lies in how weight is managed. Rail-based systems have a lower overall weight but concentrate stress at attachment points. Ballasted systems avoid point stress but apply a much heavier, uniform load across the entire array footprint. A professional roof load analysis is non-negotiable for either system but is especially critical for ballasted designs to prevent overloading the structure.

Uplift Resistance: Mechanical vs. Gravity

Mechanical attachments provide a direct, positive connection to the building frame, offering the highest level of security against wind uplift. Ballasted systems rely entirely on gravity. While effective when engineered correctly, the calculations are complex and must account for worst-case wind scenarios as defined by local building codes and standards. According to the Solar Futures Study by the U.S. Department of Energy, robust and reliable installations are key to expanding solar energy's role in our power grid.

Making the Right Choice for Your Project

The optimal choice depends on a professional evaluation of your building, location, and energy goals. The International Energy Agency (IEA) notes that technological advancements continue to make solar more adaptable, but proper engineering remains paramount for safety and efficiency.

The Critical Role of Structural Load Analysis

Regardless of the system you lean towards, a structural load analysis is the first step. A professional engineer will assess your roof's framing, decking, and overall condition to determine its load-bearing capacity. This assessment will dictate which mounting options are viable and safe for your property.

Factoring in Your Local Climate

Your local environment plays a decisive role. In areas with high wind speeds, a mechanically attached system may be the only suitable option. In regions with heavy snowfall, the additional weight of snow must be factored into the roof load calculations, which might favor a lighter rail-based system.

Integrating with Your Energy System

The mounting system is the foundation of your power generation asset. A stable and secure platform is essential for the long-term productivity of your solar panels, which in turn affects your inverters and energy storage. Optimizing the physical installation is just as important as understanding solar storage performance metrics, which are crucial for achieving energy independence.

A Forward-Looking Perspective

The decision between ballasted and rail-based mounts is not about finding a single 'best' solution, but the most appropriate one for a specific application. A rail-based system offers superior uplift protection with less weight, while a ballasted system provides a non-invasive, fast installation for suitable flat roofs. Both require professional engineering and a deep understanding of structural loads. By prioritizing a thorough structural analysis and considering local climate factors, you ensure your solar investment is secure, durable, and productive for decades.

Frequently Asked Questions

Can ballasted mounts be used on a sloped roof?

Generally, no. Ballasted systems are designed for flat or very low-slope roofs, typically under 5 degrees. On a sloped roof, gravity would cause the ballast blocks and panels to slide, making the system unstable and unsafe.

Do rail-based mounts always cause leaks?

When installed by a qualified professional, the risk of leaks from a rail-based system is extremely low. Installers use specialized flashing and industrial-grade sealants at every penetration point to create a durable, watertight seal that is designed to last for the lifetime of the system.

How much weight does a ballasted system add?

The added weight, or dead load, from a ballasted system typically ranges from 4 to 7 pounds per square foot (psf). However, this can be higher in areas with high wind exposure. A structural engineer must perform detailed calculations to determine the precise ballast requirement and confirm the roof's capacity to support it.

Which system is more expensive?

Costs can vary. Ballasted systems often have lower labor costs due to faster installation times. However, they may require more extensive and costly engineering analysis. Rail-based systems might have higher labor costs but use less material by weight. The final cost depends on the project's specific requirements, roof condition, and local labor rates.
