Installing a solar PV array is a significant step toward energy independence. Yet, beneath the gleaming panels lies a critical foundation: your roof structure. A miscalculation in how the array's weight and environmental forces are handled can lead to serious structural damage, including cracked rafters. Ensuring the long-term safety and stability of your installation requires a careful analysis of structural loads.
Underestimating the Total System Weight

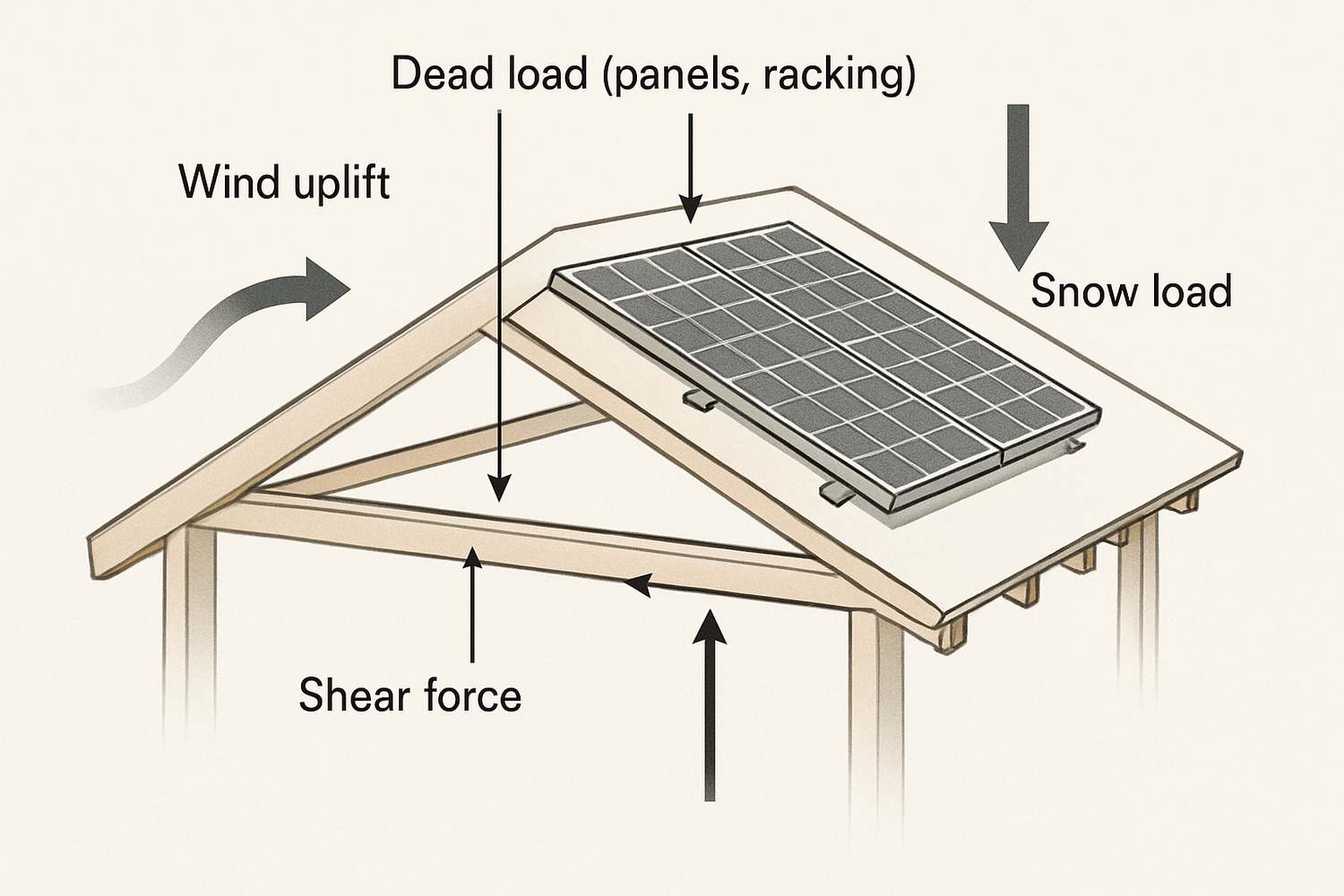

One of the most frequent errors is looking only at the weight of the solar panels themselves. The true 'dead load' is a combination of multiple components, and underestimating it puts constant, excessive stress on your roof's framework.
Forgetting the Racking and Hardware
The total dead load includes not just the PV modules but also the mounting racks, brackets, wiring, and any power electronics attached to the array. While individually light, these components collectively add significant weight. A typical solar panel system can add about 3-5 pounds per square foot (psf), and this entire load must be factored into the structural calculations from the start.
Ignoring Accumulated Debris and Snow
Beyond the hardware, environmental factors contribute to the dead load. Over time, leaves and other debris can accumulate. More importantly, in many climates, snow and ice are major considerations. The weight of heavy, wet snow can dramatically increase the load on your roof. According to the U.S. Department of Energy, this additional weight must be calculated based on local climate data to prevent structural failure during winter weather. A proper structural analysis will always account for the maximum potential snow load in your specific region.
Disregarding Dynamic and Environmental Forces
A roof with a PV array must withstand more than just static weight. Dynamic forces from wind and other environmental factors can exert powerful stresses on the structure, leading to fatigue and failure over time.
The Impact of Wind Uplift and Shear
Wind flowing over a roof creates both downward pressure and significant upward lift. Solar panels can act like a sail, catching the wind and transferring immense lifting forces to the mounting points and, consequently, to the rafters. This is particularly dangerous in coastal or mountainous regions. According to standards like the ASCE 7-16, wind load calculations are critical for ensuring the mounting system doesn't get ripped from the roof during a storm.
Overlooking Seismic Activity
In earthquake-prone areas, a structural analysis must include seismic loads. The ground motion during an earthquake can shake the PV array violently, creating inertial forces that stress the mounting hardware and the roof structure itself. A proper analysis ensures the racking system is designed to flex and absorb these shocks without failing.
Making Flawed Point Load Calculations
How the total load is transferred to the roof structure is just as important as the total weight itself. Errors in calculating how this weight is concentrated can lead directly to cracked rafters.
Concentrating Stress on Single Points
Solar arrays are attached to the roof at specific points, creating 'point loads' rather than a uniformly distributed load. If these attachment points are not spaced correctly, they can concentrate the entire weight of several panels onto a single rafter. Over time, this concentrated stress can exceed the rafter's load-bearing capacity and cause it to crack or fail.
Using Incorrect Attachment Spacing
The spacing of mounting feet is determined by a structural engineer to distribute the load evenly across multiple rafters. Using incorrect spacing—either too far apart or not aligned with the structural members—is a common installation error. This mistake overloads some rafters while leaving others to carry very little weight, creating a critical imbalance that compromises the entire roof's integrity.
Ignoring Pre-Existing Roof Conditions
Not every roof is ready to support a solar installation. Failing to conduct a thorough inspection of the existing structure is a recipe for disaster. An installation on a compromised roof can accelerate its decay and lead to costly repairs.
Skipping a Professional Inspection
Before any installation, a qualified professional should inspect the roof for any signs of existing damage, such as sagging, water damage, rot, or cracked framing members. Installing panels on a weak roof is unsafe and can void warranties for both the roofing material and the solar equipment.
Overlooking Age and Material Degradation
An older roof may not have the same structural integrity as a new one. Wood can dry out and become brittle, fasteners can corrode, and the overall load-bearing capacity can diminish over time. The age and condition of the roofing materials and the underlying structure must be assessed to confirm they can handle the additional, long-term load of a PV system.
Misinterpreting Codes and Standards
Building codes and engineering standards exist to ensure safety. Bypassing or misinterpreting these regulations can lead to an installation that is both unsafe and non-compliant.
Relying on General Guidelines
Local building codes are paramount. They provide specific requirements for factors like wind speed and snow load that are unique to the region. A one-size-fits-all approach is inadequate and dangerous. Adherence to local codes, which often reference standards from the American Society of Civil Engineers (ASCE), is not optional.
Failing to Consult a Structural Engineer
For most rooftop installations, especially on older or uniquely shaped roofs, consulting a licensed structural engineer is a critical step. An engineer can perform a detailed analysis, provide certified documentation that the roof can support the array, and specify any necessary reinforcements. This provides peace of mind and ensures the installation is safe for the long term.
Disclaimer: This article provides general information and does not constitute professional engineering or legal advice. Always consult with a qualified structural engineer and adhere to local building codes for any solar installation project.
Securing Your Energy Future on a Solid Foundation
Avoiding these common structural load mistakes is fundamental to a successful and lasting solar energy investment. A properly engineered PV installation protects your home, ensures the system's longevity, and allows you to generate clean energy with confidence. The structural integrity of your roof is the bedrock of your energy independence. Once you have confirmed your roof is sound, you can focus on maximizing your system's output. For a comprehensive look at evaluating system output, you can review this ultimate reference for solar and storage performance.
Frequently Asked Questions
How can I tell if my rafters are cracked?
Signs of cracked rafters can include visible cracks or sagging in your ceiling, unusual creaking sounds from the attic or roof area, or a noticeable dip in the roofline when viewed from the outside. If you suspect an issue, the safest course of action is to have a professional roofer or structural engineer conduct an inspection.
Is my roof too old for solar panels?
Age itself isn't the only factor; the roof's overall condition is what matters most. Many older homes have robust structures capable of supporting a PV array. However, a professional structural assessment is necessary to evaluate the condition of the wood, check for any degradation or damage, and determine if the roof can handle the additional weight or if reinforcements are needed.
Who is responsible for the structural load analysis?
The solar installation company is typically responsible for ensuring a proper structural load analysis is performed. They often work with a third-party structural engineer to assess the roof and provide a stamped letter certifying that the design is safe. As the homeowner, you should always request and keep a copy of this structural report for your records.
