The structural integrity of a solar array begins long before the first panel is installed. It starts with a deep analysis of the installation environment. A critical, yet often misunderstood, element of this analysis is the site's Terrain Exposure Category. This classification directly influences the wind and snow forces that your photovoltaic (PV) racking will endure for decades. Getting it wrong can lead to under-engineered systems and, ultimately, structural failure. This report provides a data-focused look at how terrain exposure dictates the stress placed on PV racking systems.

Understanding Terrain Exposure Categories

In wind load engineering, the ground's surface characteristics significantly alter wind behavior. Structures built in open fields experience wind forces differently than those surrounded by tall buildings. Terrain Exposure Categories provide a standardized way for engineers to classify a site's landscape, ensuring the PV racking is designed to withstand location-specific wind loads.

The Primary Classifications: B, C, and D

Standards like the ASCE 7 (Minimum Design Loads for Buildings and Other Structures) define several categories. For most solar projects, three are of primary concern:

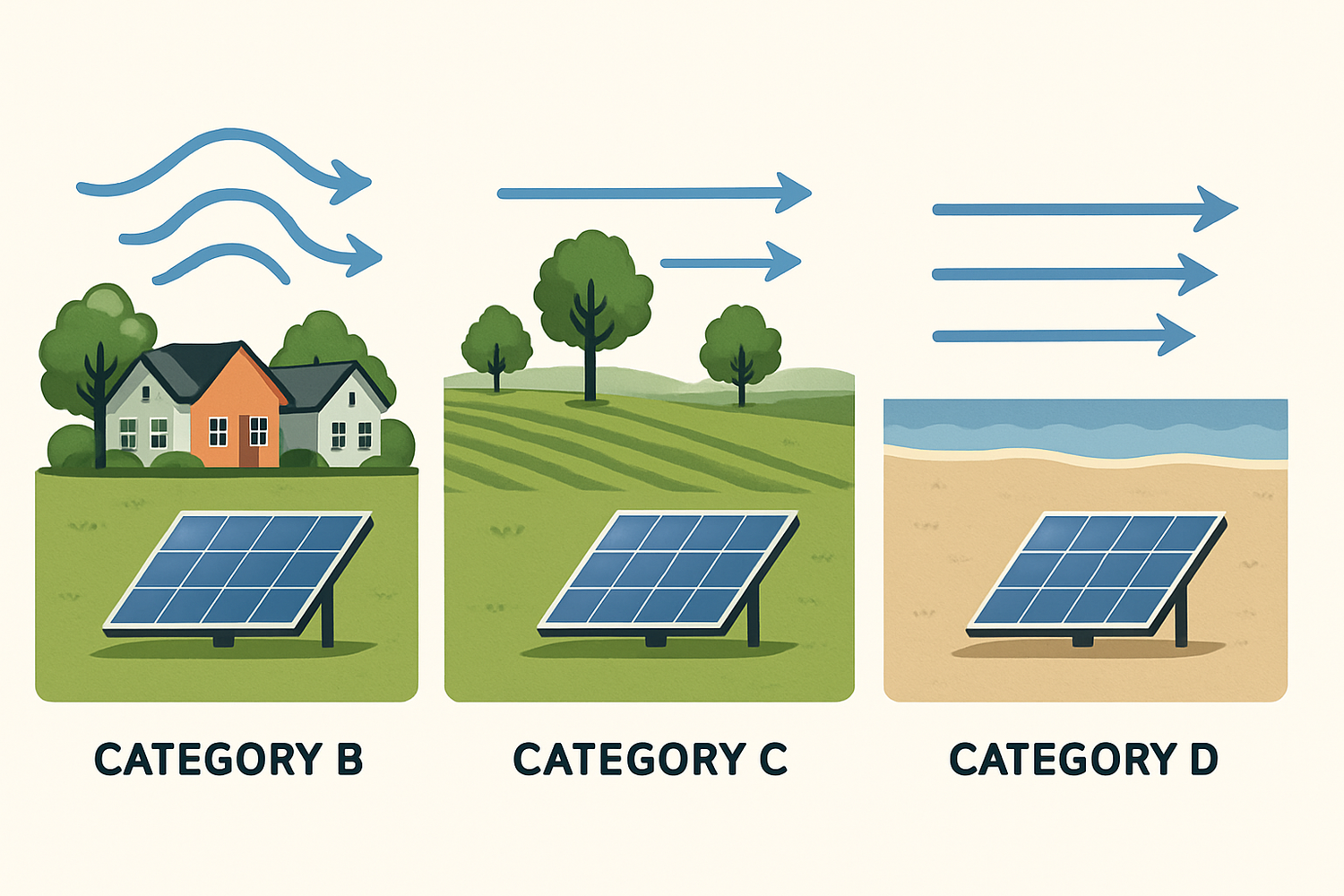

  • Category B: This category applies to urban and suburban areas, wooded regions, or other terrain with numerous, closely spaced obstructions the size of single-family dwellings or larger. These obstructions, such as buildings and trees, create surface roughness that slows wind speed near the ground.
  • Category C: This classification covers open terrain with scattered obstructions having heights generally less than 30 feet. It includes flat, open country and grasslands. Many large ground-mount solar farms fall into this category.
  • Category D: This is the most severe category. It describes flat, unobstructed areas exposed to wind flowing over open water for a distance of at least one mile. Shorelines in hurricane-prone regions, mud flats, and salt flats are prime examples. These locations offer no friction to slow the wind, resulting in the highest possible forces.

Why This Classification Dictates Design

The choice between Category B, C, or D is not arbitrary. It fundamentally changes the design pressures calculated for a project. According to research from the International Energy Agency, ensuring that technical standards for renewable energy power plants are up to date is a critical part of successful integration. As highlighted in their report Next Generation Wind and Solar Power, robust technical capabilities are essential as renewable energy comprises a larger portion of the generation fleet. A correct terrain classification is one of these foundational technical requirements.

How Terrain Directly Impacts Wind Loads on PV Racking

The physical environment surrounding a solar array governs the intensity and behavior of wind forces. The difference in stress on a racking system between a sheltered suburban roof and an exposed coastal field is substantial, and it all comes down to the physics of wind flow.

From Wind Speed to Racking Stress

The force or pressure exerted by wind is proportional to the square of its speed. This means that even a small increase in wind velocity results in a much larger increase in the load applied to the PV array. The obstructions in Category B disrupt and slow the wind, while the smooth surfaces of Category D allow it to reach its maximum potential speed and force.

Data-Driven Comparison of Wind Pressures

To illustrate the impact, consider a hypothetical solar array with a basic wind speed of 115 mph. The design pressures would vary significantly based on the terrain. The table below shows an example of how the velocity pressure coefficient (Kz), a factor used in calculating wind pressure, changes with terrain and height.

Exposure Category Description Typical Velocity Pressure Coefficient (Kz at 15 ft) Resulting Design Pressure (Example)
B Urban / Suburban 0.70 ~24 psf (pounds per square foot)
C Open Terrain 0.85 ~29 psf
D Flat, Unobstructed 1.03 ~35 psf

Note: These are simplified, illustrative values. Actual calculations are more complex.

As the data shows, moving from a Category B to a Category D environment can increase the design wind pressure by over 45%. A racking system designed for 24 psf would likely experience catastrophic failure if installed in a location that actually requires a design for 35 psf.

The Interaction of Snow Loads and Terrain

Wind's influence doesn't stop at direct pressure. It also plays a major role in how snow accumulates on and around a solar array, creating another layer of potential stress. This is a key consideration in snow load engineering for PV systems.

Wind's Role in Snow Accumulation

In open terrain (Categories C and D), wind can move significant amounts of snow. This can lead to two primary issues: scouring, where wind removes snow from the array, and drifting, where wind deposits large amounts of snow, creating unbalanced and potentially excessive loads on parts of the racking structure. In contrast, a sheltered Category B site might experience more uniform snow accumulation without significant drifting.

Designing for Combined Stresses

Engineers must account for the combined load scenarios of wind and snow. A well-designed system not only withstands these forces but also uses its environment to its advantage, for instance, by optimizing tilt angles to promote natural snow shedding. This holistic approach to resilience extends beyond just the structure. A truly robust system ensures energy continuity even in harsh conditions. Building a reliable energy supply involves more than just strong racks; it requires integrating dependable components, a topic covered in the ultimate reference on solar storage performance, which details how to maintain energy independence.

Engineering Best Practices for Site-Specific Design

Applying the principles of wind and snow load engineering requires diligence and expertise. A successful project depends on an accurate assessment and the selection of appropriate components to handle the site-specific stresses.

The Importance of Accurate Site Assessment

Correctly identifying the Terrain Exposure Category is a non-negotiable first step. This process involves more than a quick glance. A qualified engineer will analyze topographical maps, satellite imagery, and the definitions within controlling building codes (like the IBC) and standards (like ASCE 7) to make a determination. The International Renewable Energy Agency's report, Grid Codes for Renewable Powered Systems, emphasizes the need for updated technical requirements to ensure system stability, a principle that starts at the component level with proper structural design.

Selecting the Right Racking System

Once the design loads are calculated based on the terrain category, you can select a racking system certified to meet or exceed those requirements. Manufacturers provide load tables and testing data that specify the wind and snow load capabilities of their products. A system adequate for a Category B site is insufficient for a Category C or D site. Investing in a more robust system for a high-exposure area is critical for the project's long-term viability.

Beyond Categories: Localized Effects

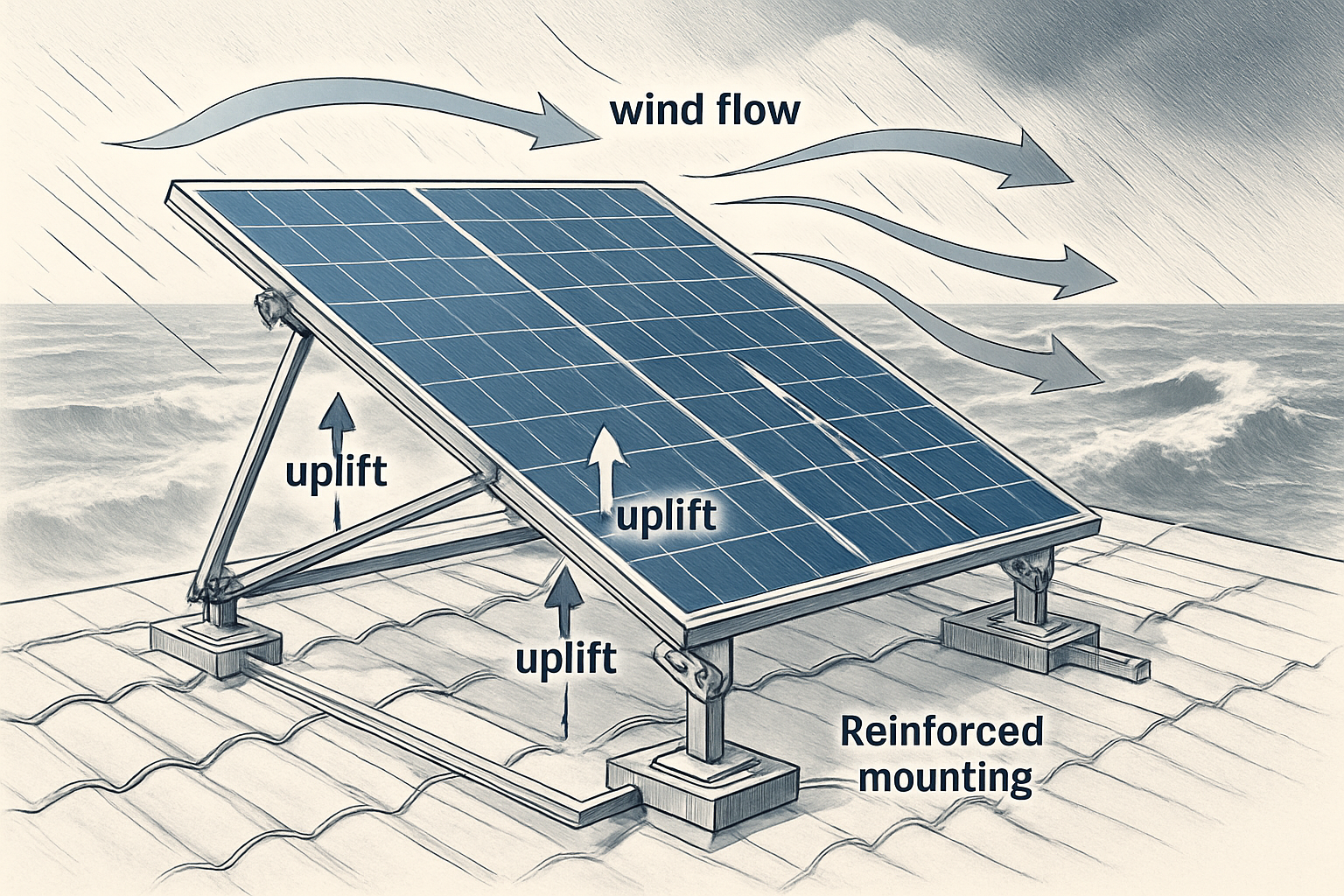

Engineers also consider localized wind effects. Topographic features like hills, ridges, and escarpments can accelerate wind speed, creating conditions even more severe than what the general terrain category might suggest. These factors must be included in the calculations to ensure a safe and resilient design.

Final Thoughts on Structural Resilience

The Terrain Exposure Category is a cornerstone of PV racking design. It is the primary input that informs the wind and snow loads a solar array must withstand. As this data report shows, the difference in stress between a sheltered suburban location and an open coastal plain is immense. Misclassifying the terrain is a direct path to an under-engineered system, putting a valuable energy asset at risk. By adhering to rigorous engineering principles and performing accurate site assessments, you ensure the structural foundation of your solar project is secure for its entire operational life.

Frequently Asked Questions

Can a single property have multiple terrain exposure categories?

Yes, it's possible, especially on large or complex sites. Wind exposure can be different from various directions. An engineer must assess the terrain in all directions and typically use the worst-case, most exposed category for the design calculations to ensure safety.

How do I determine the correct terrain exposure category for my project?

This determination must be made by a qualified structural engineer. They will use local building codes, ASCE 7 standards, and a detailed analysis of the site's topography and surroundings. It is not a task for a DIY assessment, as errors can have severe consequences.

Does a higher terrain exposure category always mean higher costs?

Generally, a more severe exposure category (like C or D) will require a more robust and, therefore, more expensive racking and foundation system. This is because the components must be stronger to handle the higher calculated wind and snow loads. This upfront investment is essential for protecting the asset long-term.

What happens if the terrain exposure is misclassified?

Underestimating the terrain exposure (for example, classifying a Category C site as Category B) is one of the most dangerous errors in solar design. It leads to a system that is not strong enough for its environment. During a major storm, this can result in structural failure, damaged panels, and a complete loss of the investment.
