Solar installations in coastal regions face a unique combination of environmental stressors that can compromise both energy production and structural integrity. The persistent salt spray, intense wind gusts, and heavy, wet snow create a demanding environment. A successful project requires a design philosophy that anticipates these challenges from the ground up. This blueprint provides a framework for engineering durable and reliable solar systems capable of withstanding the harsh conditions of a coastal setting.
The Corrosive Threat: Safeguarding Systems from Salt Spray
Corrosion is a primary adversary for any coastal infrastructure. The saline moisture carried by sea breezes accelerates the degradation of metal components, leading to premature failure if not properly addressed. Protecting your investment starts with smart material choices and consistent upkeep.
Material Selection and Protective Coatings
The first line of defense is selecting materials inherently resistant to salt-induced corrosion. For structural components like racking and fasteners, 316-grade stainless steel and 6000-series anodized aluminum are superior choices. While galvanized steel is an option, a heavier coating, such as G235, is necessary for extended life. Standard G90 galvanization is often insufficient for these environments. Additionally, applying protective coatings like high-quality powder coats can add another layer of protection, sealing the metal from corrosive agents. It is also vital to prevent galvanic corrosion by using insulating washers and spacers when joining dissimilar metals.
Proactive Maintenance in Saline Environments
Even with the best materials, a proactive maintenance plan is essential. Regular rinsing of the entire array—panels, racking, and enclosures—with fresh water helps remove salt deposits that can accumulate and cause damage over time. Inspections should be conducted at least twice a year to check for any signs of pitting, rust, or coating deterioration, particularly at connection points and fasteners. Early detection allows for timely remediation before minor issues become significant structural problems.
Engineering for Extreme Wind: Beyond Standard Load Calculations
Coastal areas are prone to high winds and sudden, powerful gusts that exert immense force on solar arrays. Standard wind load engineering must be adapted to account for the specific aerodynamic challenges present in these locations. As noted in the Offshore wind energy: Patent insight report, innovations in infrastructure are critical for project success in windy, marine environments.
Understanding Gusts and Aerodynamic Effects

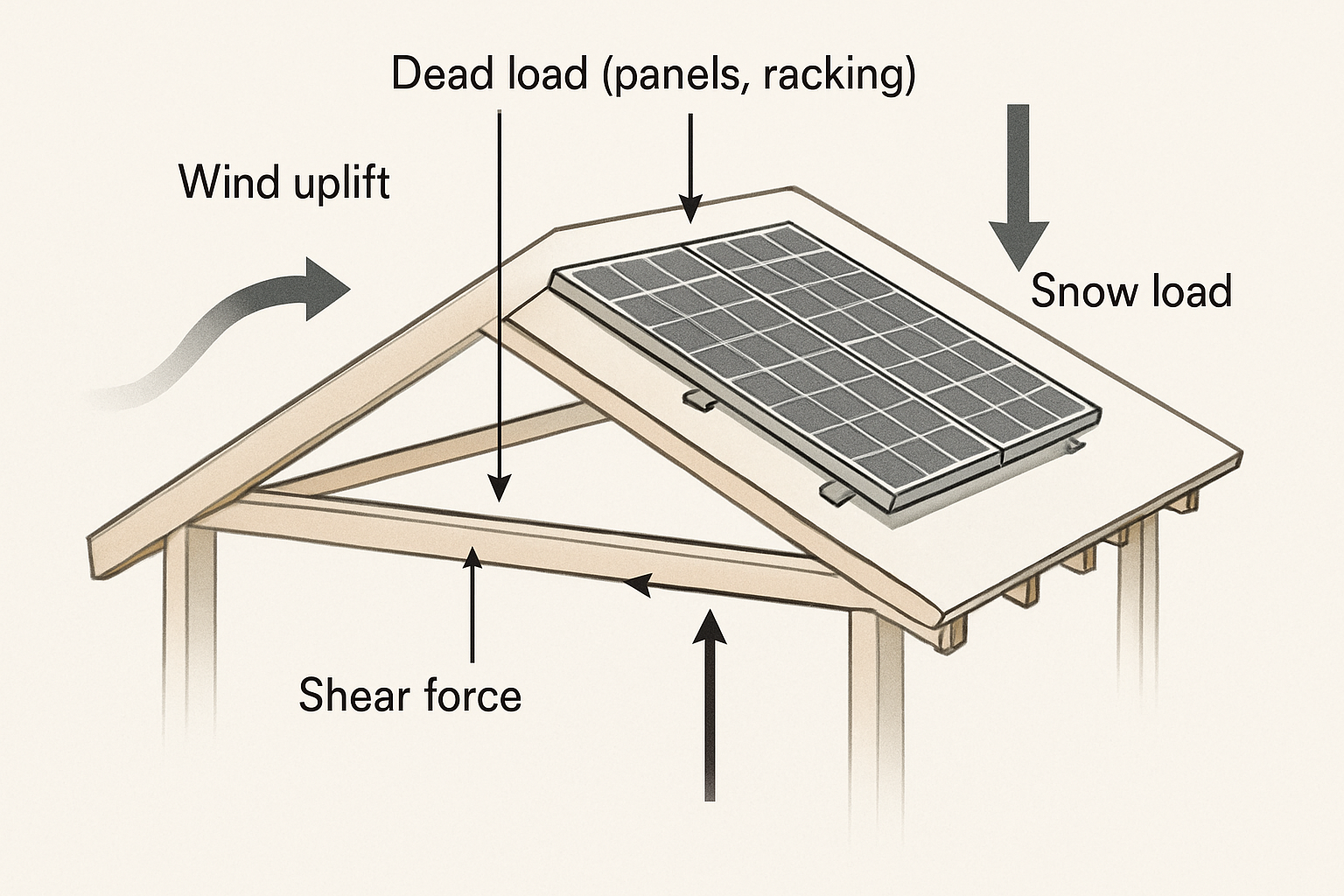

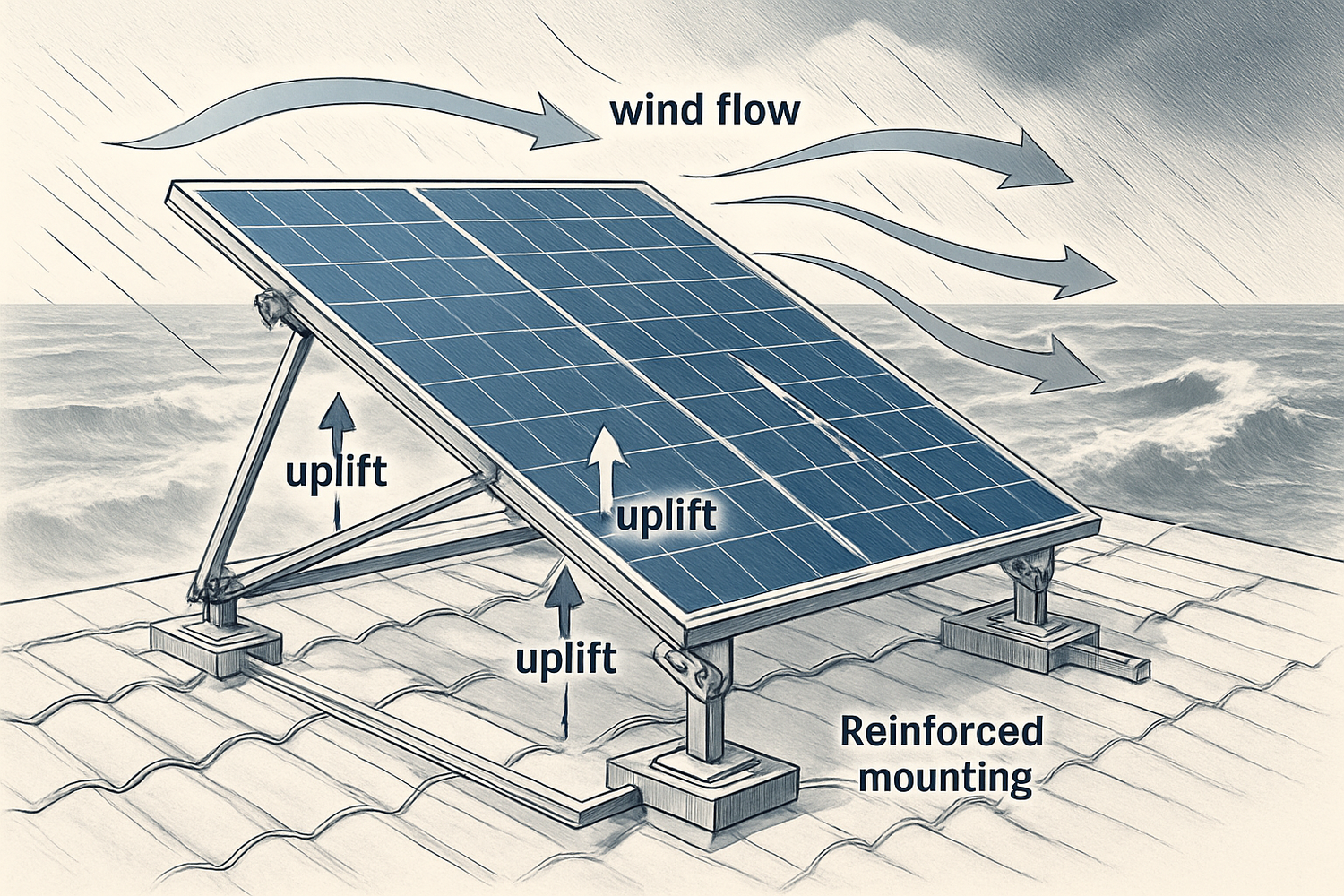

Wind load calculations, often guided by standards like ASCE 7, must consider the peak 3-second gust speeds specific to the region, not just average wind speeds. Solar arrays, especially on rooftops, can experience significant aerodynamic lift, similar to an airplane wing. The wind flowing over and around the building creates complex pressure zones, with particularly high uplift forces at the edges and corners of an array. Proper engineering accounts for these concentrated loads to prevent panels from being torn from their mounts.
Structural Reinforcement and Secure Mounting
To counteract these forces, the mounting system must be robust. This often involves reducing the span of support rails between attachment points, increasing the total number of roof penetrations, and using heavier-duty clamps and fasteners. For ground-mounted systems, foundation design is critical, requiring deeper footings or helical piles to ensure stability. Every component, from the smallest bolt to the largest support beam, must be rated to handle the dynamic and often unpredictable loads generated by coastal winds.
The Overlooked Challenge: Managing Coastal Snow Drift
Snow in coastal regions presents a different challenge than its inland counterpart. It is typically denser and has a higher water content, making it significantly heavier. When combined with the persistent winds of a coastal storm, this snow does not accumulate uniformly, creating unbalanced loads and dangerous drifts.
How Coastal Snow Differs from Inland Snow
Wind-driven coastal snow rarely settles evenly. Instead, wind scours snow from some parts of an array while depositing it deeply in others, creating drifts. This results in an unbalanced load, where one section of a racking system may bear several times the weight of another. Standard snow load calculations based on uniform accumulation can severely underestimate the actual stresses placed on the structure, leading to bent rails or connection failures.
Design Strategies for Snow Shedding and Load Management
Several design strategies can mitigate the risks of coastal snow. Increasing the tilt angle of the panels encourages the heavy, wet snow to slide off more easily. For ground-mount systems, elevating the leading edge of the array and ensuring ample space between rows prevents snow sliding from one row from piling up on the row behind it. The racking system itself must be engineered to withstand these unbalanced loads, requiring stronger materials and more frequent support points than a system designed for uniform snow.
Integrating Resilient Energy Storage
In regions susceptible to grid outages from severe weather, a reliable energy storage system is not a luxury; it is a core component of energy independence. Protecting this power hub is just as important as protecting the solar array itself.
Protecting Your Power Hub
Battery and inverter systems must be housed in enclosures rated for corrosive environments, such as NEMA 4X. These enclosures protect sensitive electronics from salt spray and moisture intrusion. Furthermore, all equipment should be elevated above the anticipated flood level based on local storm surge maps. This simple step can prevent a total loss of the system during a major coastal storm.
Ensuring Performance Under Duress
A resilient storage system provides critical power during blackouts. Understanding its operational limits is key to reliability. The ultimate reference on solar storage performance offers valuable details on metrics like depth of discharge and cycle life, which determine how much energy you can use and for how long. Selecting a system with robust performance characteristics ensures it will be ready when you need it most.
A Forward-Looking Perspective
Building resilient solar projects in coastal areas demands a holistic approach that integrates material science, advanced structural engineering, and a deep understanding of local weather patterns. The principles outlined in the U.S. Department of Energy's Solar Futures Study project a massive expansion of solar capacity, with a significant portion located in coastal states where these design considerations will be paramount. A proactive design that addresses corrosion, wind, and snow from the outset is the most effective way to ensure a solar asset's longevity and performance. As highlighted in a report on Floating offshore wind outlook, sharing environmental data and best practices is crucial for advancing renewable energy development in marine and coastal zones.
Frequently Asked Questions
What is the best material for solar racking in a coastal area?
Anodized aluminum and 316-grade stainless steel are excellent choices. Hot-dipped galvanized steel with a heavy coating (like G235) is a viable alternative, but regular inspection is crucial. The key is resistance to chloride-induced corrosion.
How often should I clean my solar panels near the coast?
A quarterly cleaning with fresh water is a good starting point to remove salt and grime buildup, which can both cause corrosion and reduce efficiency. After major storms, an additional inspection and rinse are recommended.
Do I need a special permit for a coastal solar installation?
Permitting requirements vary by location but are often stricter in coastal zones. You may need additional engineering reviews to verify compliance with high-wind and potential flood-zone regulations. Always consult your local building authority. This information does not constitute legal advice.
