Compliance Checklist: IEC 62109 Safety for PV Inverters

The solar inverter is the operational core of any photovoltaic (PV) system. It diligently converts the direct current (DC) from your solar panels into alternating current (AC) for your home or the grid. Given its central role, its safety is paramount. The IEC 62109 standard provides a critical framework for ensuring the safety and reliability of PV inverters, protecting both the equipment and the people who interact with it.

Understanding IEC 62109: The Foundation of Inverter Safety

Navigating the world of solar standards can seem complex, but IEC 62109 is a cornerstone. It provides manufacturers with a clear path to designing and building safer power conversion equipment for photovoltaic applications.

What is IEC 62109?

IEC 62109 is a two-part international standard that specifies the safety requirements for power converters in PV systems. Its primary goal is to mitigate potential hazards like electric shock, fire, and personal injury throughout the product's lifecycle. The standard is divided into two sections:

• IEC 62109-1: General Requirements: This part covers fundamental safety principles applicable to all power conversion equipment (PCE) used in solar setups. It addresses everything from mechanical construction to protection against electrical hazards.
• IEC 62109-2: Particular Requirements for Inverters: This section builds upon Part 1 with specific safety considerations for PV inverters. It includes requirements for features like islanding protection and ground fault detection.

The development of robust quality infrastructure relies on these international benchmarks. As noted in a report on Quality infrastructure for smart mini-grids, certifications based on standards like IEC 62109 are essential for establishing reliable energy systems.

IEC 62109 vs. UL 1741 and IEEE 1547

While IEC 62109 is a global benchmark for safety, it often works in conjunction with other regional standards. In North America, UL 1741 and IEEE 1547 are prominent. Understanding their distinct roles is important.

Essentially, IEC 62109 sets the safety foundation. UL 1741 builds on this with additional tests, including those for advanced grid support functions, which are critical for modern utility-interactive inverters. IEEE 1547, meanwhile, is not a product certification standard but a technical specification that defines how distributed energy resources (DERs) must behave when connected to the grid. The Grid Codes for Renewable Powered Systems report highlights how standards like IEEE 1547 are crucial for managing the impact of renewable sources on grid stability.

Key Safety Requirements of IEC 62109-1 (General Requirements)

Part 1 of the standard establishes the baseline for a safe inverter design, focusing on physical and electrical integrity.

Protection Against Electrical Hazards

This is the most critical aspect of the standard. It mandates specific design features to prevent electric shock. Key requirements include adequate insulation between live parts and accessible surfaces, proper protective earthing (grounding) to safely discharge faults, and defined clearance and creepage distances to prevent arcing between conductors.

Mechanical and Environmental Durability

An inverter must withstand its operating environment for many years. IEC 62109-1 specifies requirements for the enclosure to ensure it protects internal components from dust, moisture (IP ratings), and physical impact. It also includes tests for resistance to UV radiation, extreme temperatures, and corrosion, ensuring long-term reliability.

Fire Hazard Prevention

High-power electronics generate heat, creating a potential fire risk. The standard addresses this by requiring the use of materials with specific flammability ratings, ensuring sufficient spacing between heat-generating components, and mandating over-temperature protection systems that can de-rate or shut down the inverter if it gets too hot.

A Practical Compliance Checklist for IEC 62109-2 (Inverter-Specifics)

Part 2 details the safety functions and features that are unique to the operation of a PV inverter.

Input and Output Circuit Safety

This covers protections for both the DC (solar array) and AC (grid/load) sides of the inverter. Compliance involves incorporating approved DC and AC disconnects, providing overcurrent protection (fuses or circuit breakers), and often including surge protection devices (SPDs) to guard against lightning or grid surges.

Control and Monitoring Functions

Modern inverters rely on intelligent software and hardware for safety. IEC 62109-2 mandates several critical functions:

• Anti-Islanding Protection: This function ensures the inverter shuts down immediately if the grid goes down. This prevents the inverter from energizing a dead power line, which would pose a severe risk to utility workers.

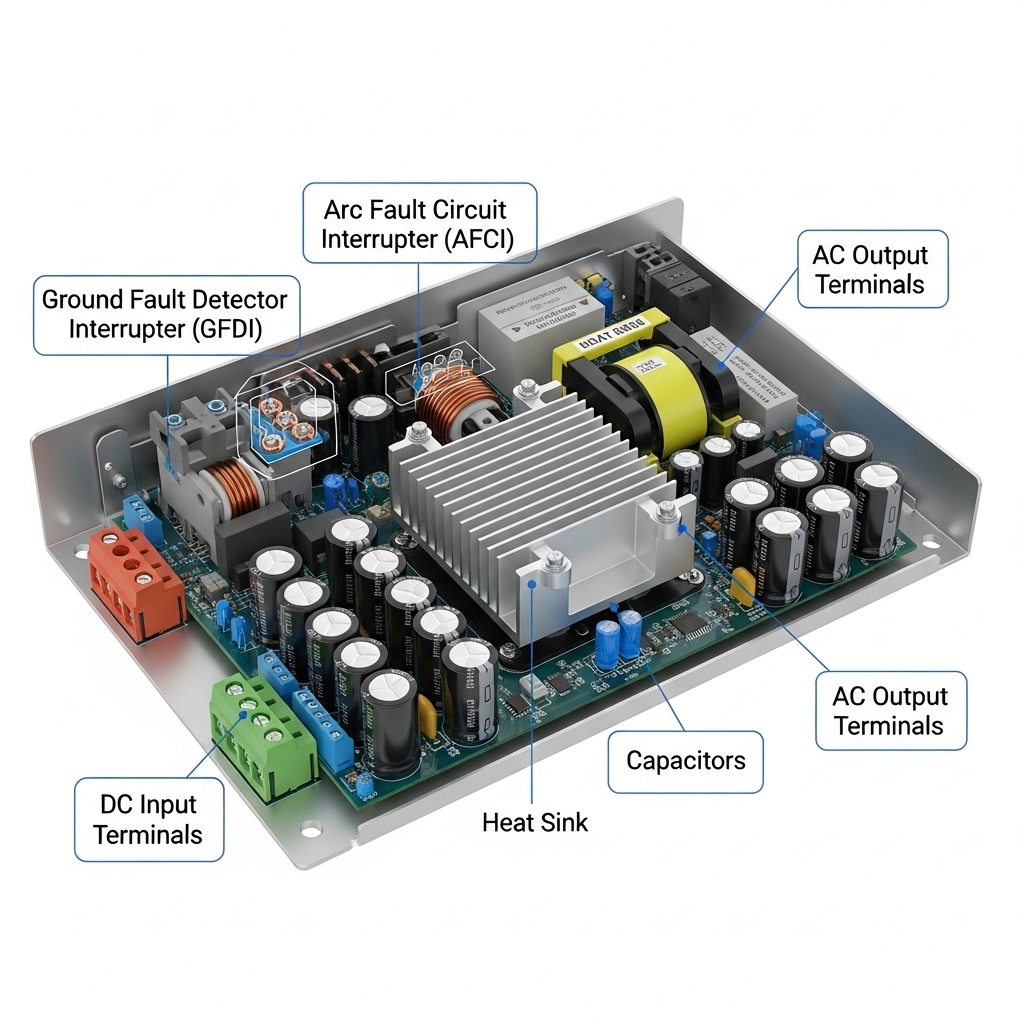

• Ground Fault Detection Interrupter (GFDI): This system monitors for unintended current paths to ground and de-energizes the system to prevent shock and fire hazards.
• Arc Fault Circuit Interrupter (AFCI): This advanced feature detects the signature of dangerous electrical arcs, which can be caused by damaged wiring, and shuts down the circuit before a fire can start.

Marking, Labeling, and Documentation

Clear communication is a safety feature. The standard requires that inverters be permanently marked with essential information, including voltage and current ratings, warning labels, and manufacturer details. Comprehensive installation and user manuals must also be provided to guide proper and safe deployment.

The Impact of Compliance on System Performance and Bankability

Choosing an IEC 62109-certified inverter is not just about meeting regulations; it's a strategic decision that affects the entire solar project.

Enhancing System Reliability and Lifespan

The rigorous testing required for certification ensures a higher-quality, more durable product. An inverter built to withstand electrical, thermal, and mechanical stresses is inherently more reliable and will have a longer operational life. Understanding the metrics behind inverter efficiency and durability is key. For a deeper look into evaluating overall system effectiveness, you can review this ultimate reference on solar storage performance.

Meeting Market Access and Regulatory Demands

In many parts of the world, IEC 62109 compliance is a ticket to market entry. It is a prerequisite for the CE mark in Europe, which signifies conformity with health, safety, and environmental protection standards. As IRENA points out, component certification is a key element of the quality infrastructure needed to grow and sustain renewable energy markets.

Financial and Insurance Implications

Using certified components is a sound financial decision. Projects with certified inverters are considered lower risk by investors and financial institutions. They are also easier to insure, sometimes at lower premiums. Conversely, using non-certified equipment can void warranties, create significant liability exposure, and jeopardize project financing.

A Commitment to Safety

The IEC 62109 standard is more than a technical document; it represents a global commitment to safety in the solar industry. It provides a unified set of rules that helps ensure every PV inverter is designed with protection as a primary feature. For installers, developers, and homeowners, selecting an inverter that meets this standard is a fundamental step in building a safe, reliable, and high-performing solar energy system that will last for decades.

Frequently Asked Questions

Is IEC 62109 certification mandatory everywhere?

Not universally, but it serves as the foundation for CE marking in Europe and is highly influential in many other regions worldwide. Local regulations, which may harmonize with or reference IEC standards, always take precedence. Always check the specific requirements for your jurisdiction.

Can an inverter be certified to both IEC 62109 and UL 1741?

Yes, and it is common for manufacturers that sell globally. While there is overlap in the fundamental safety testing, each standard has unique requirements. UL 1741, for example, includes specific tests for grid support functions required in the North American market.

Does IEC 62109 cover battery storage inverters?

IEC 62109 is specifically for power converters used in photovoltaic systems. Hybrid or battery inverters that interface with energy storage systems typically require additional certifications to standards that address battery safety and management, though IEC 62109 provides a strong safety foundation for the power conversion portion of the device.
