How to Certify Hybrid Inverters under UL 1741 SB, IEEE 1547

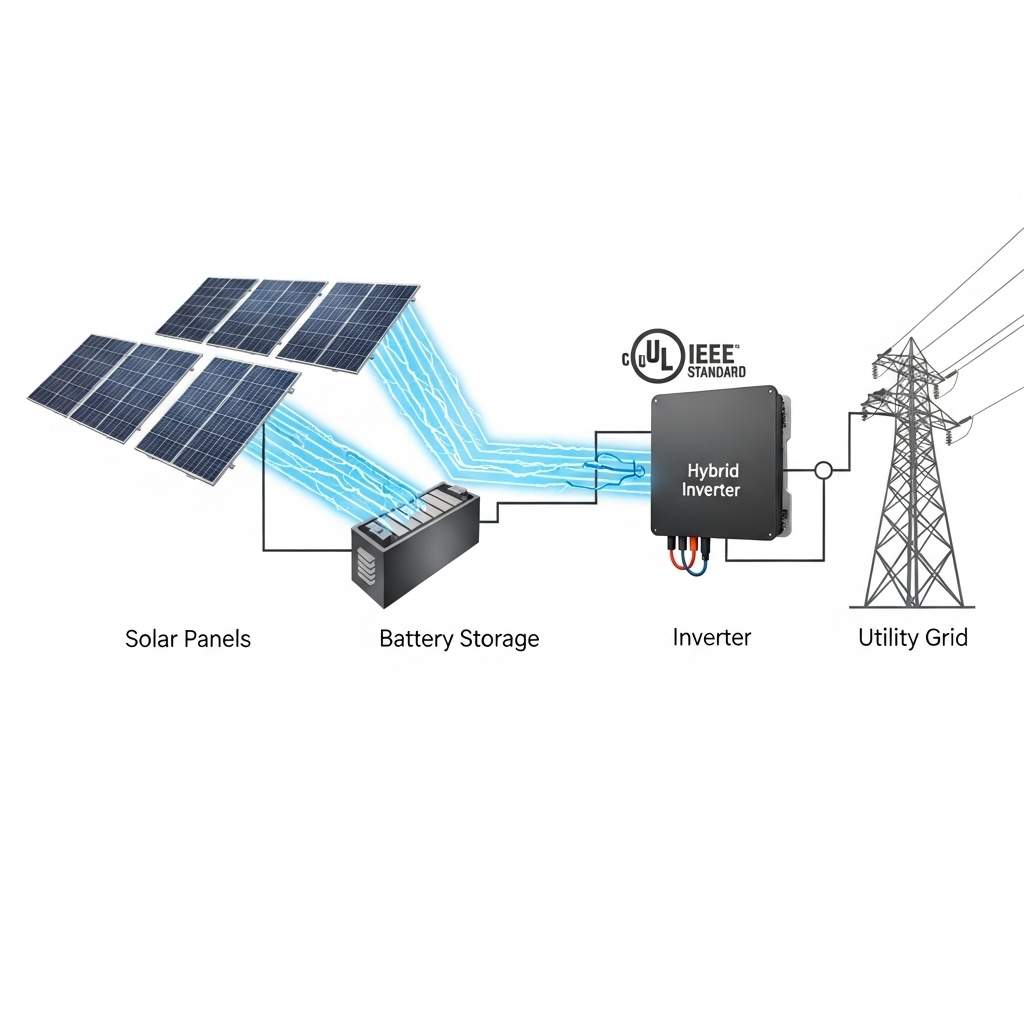

Hybrid inverters are the command center of modern solar and storage systems. They manage the flow of energy between solar panels, batteries, the grid, and your home. To ensure these critical devices operate safely and support grid stability, they must undergo rigorous certification. This process validates their compliance with key standards, primarily UL 1741 SB and IEEE 1547. Achieving these certifications is not just a technical requirement; it is a passport to market access and a testament to product quality.

Understanding the Core Standards: A Three-Pillar Framework

Navigating the certification landscape requires a clear understanding of the main standards. Think of them as three pillars that together support a safe and reliable energy future. Each standard serves a distinct but complementary purpose, covering grid interaction, advanced functionality, and fundamental safety.

IEEE 1547: The Foundation for Grid Interconnection

IEEE 1547 is the foundational standard for interconnecting Distributed Energy Resources (DERs), including solar and storage systems, with the electric power grid. Its primary goal is to establish universal requirements to prevent any harm to the grid or personnel. As solar adoption has increased, the standard has evolved. The 2018 revision introduced advanced 'smart' inverter capabilities to actively support the grid. As noted in the U.S. Department of Energy's work, standardized testing protocols are crucial for verifying these advanced functions, ensuring inverters can help maintain grid stability rather than hinder it. EERE Success Story—SunShot Funding Spurs Standardized Testing for “Smart” Solar Inverters highlights how these developments enable utilities to rely on inverters for grid support.

UL 1741 SB: The Supplement for Advanced Inverter Functions

While IEEE 1547 sets the requirements, UL 1741 SB defines the testing procedures to verify them. The 'SB' stands for 'Supplement B,' which was added to the existing UL 1741 safety standard. It provides a clear, repeatable methodology for testing the advanced grid-support functions mandated by IEEE 1547-2018. This includes testing for voltage and frequency ride-through, power factor control, and other smart capabilities. An international report on grid codes points out that this combination of standards is currently a key international certification option for DER. According to Grid Codes for Renewable Powered Systems, the tests specified in IEEE 1547.1-2020 form the basis for the UL 1741 SB product standard, creating a comprehensive framework for compliance.

IEC 62109: The Global Benchmark for Inverter Safety

Before an inverter can even think about interacting with the grid, it must be fundamentally safe. IEC 62109 is the international standard for inverter safety. It covers basic design and construction requirements to protect against electrical shock, fire, and mechanical hazards. It ensures the inverter is safe for installers to handle and for homeowners to have in their property. While UL 1741 also contains safety requirements for the North American market, IEC 62109 is recognized globally and often serves as a baseline for safety certification worldwide.

The Step-by-Step Certification Process

Achieving certification is a methodical process that begins long before the product reaches a testing lab. A strategic approach can prevent costly delays and redesigns.

Phase 1: Design for Compliance

The most efficient path to certification starts at the drawing board. Integrating the requirements of UL 1741 SB, IEEE 1547, and IEC 62109 into the initial hardware and software design is critical. This includes selecting certified components, designing protective circuits to meet safety standards, and developing firmware that can execute the required grid-support functions with precision. Proactive design avoids the need for expensive hardware changes late in the development cycle.

Phase 2: Pre-Certification and Internal Testing

Before submitting a product for formal evaluation, conducting thorough in-house testing is a valuable step. Simulating grid fault conditions and running the test procedures outlined in UL 1741 SB can uncover firmware bugs and hardware limitations. This pre-certification phase allows your engineering team to identify and resolve potential failure points early, increasing the likelihood of a successful first-pass result at the formal lab and significantly reducing the overall time to market.

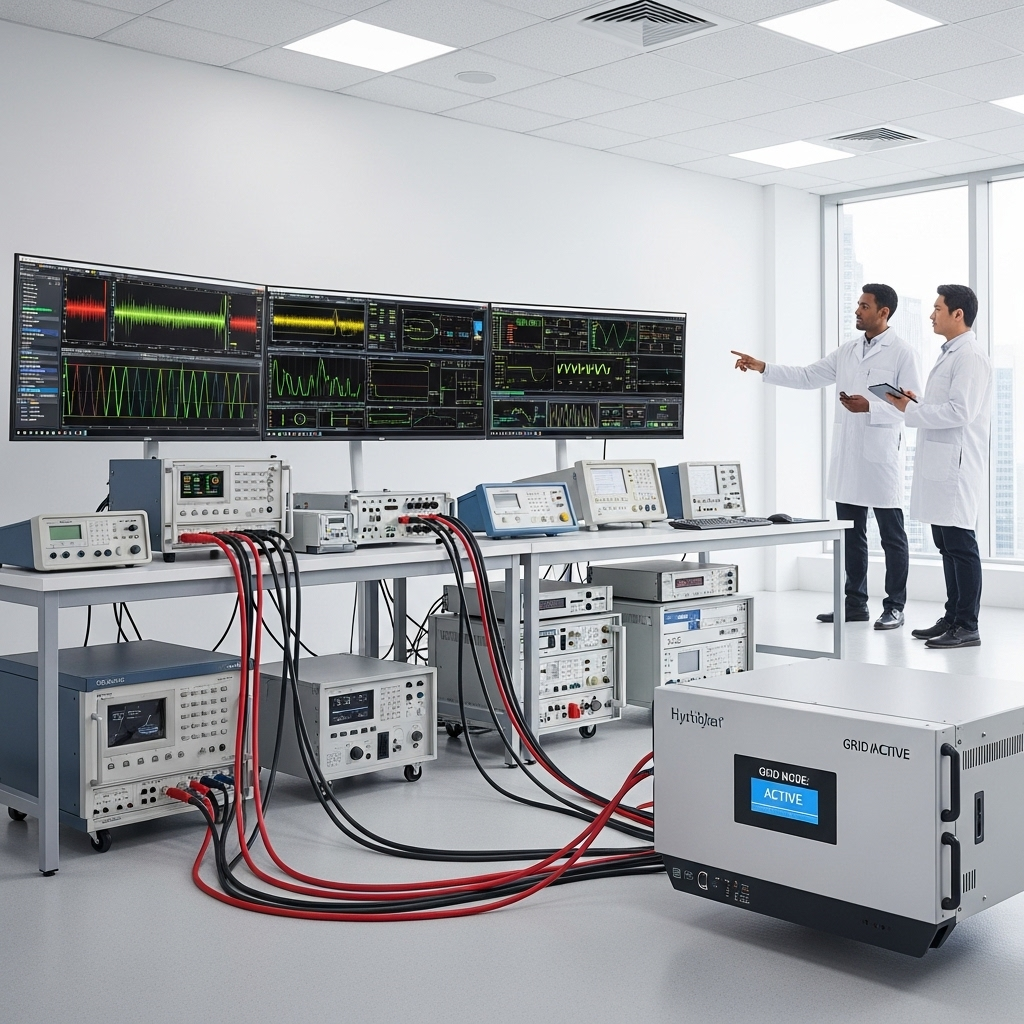

Phase 3: Formal Testing with a Nationally Recognized Testing Laboratory (NRTL)

This is the final and most critical phase. The hybrid inverter is submitted to an accredited third-party lab, such as UL, CSA, or Intertek. The NRTL performs a battery of tests to verify compliance with all applicable standards. They will evaluate everything from electrical safety and material durability to the inverter's response to simulated grid events. A successful evaluation results in the product receiving its certification mark, which is required for legal sale and installation in most markets.

Key Technical Requirements and Testing Procedures

Certification testing focuses on an inverter's ability to behave as a good grid citizen, especially during abnormal conditions. The goal is to ensure that as more renewable resources are added, they contribute to a more resilient grid.

Voltage and Frequency Ride-Through

This capability requires the inverter to remain connected and operational during short-term grid voltage or frequency fluctuations. In the past, inverters would disconnect immediately, which could destabilize the grid if many disconnected at once. Modern standards require them to 'ride through' these events. The table below outlines typical requirements.

Volt-VAR and Volt-Watt Control

These are 'smart' functions that allow the inverter to provide active grid support. Volt-VAR control adjusts the reactive power output to help regulate local grid voltage, preventing over-voltage in areas with high solar penetration. Volt-Watt control reduces the active power output if the grid frequency rises too high, helping to balance power generation and load across the system.

Anti-Islanding Protection

This is a critical safety function. If the local grid loses power, the inverter must detect this 'island' condition and immediately stop exporting power. This prevents the inverter from energizing a de-energized line, which could pose a severe electrocution risk to utility workers attempting to make repairs. Testing for anti-islanding is one of the most important parts of the safety certification process.

Navigating Challenges and Accelerating Market Access

The path to certification is rigorous and presents several potential challenges, from documentation errors to last-minute firmware issues. Understanding these hurdles and the broader regulatory context can streamline the process.

Common Pitfalls in the Certification Process

Manufacturers often face delays due to incomplete documentation, failure to meet specific test criteria, or misinterpretation of the complex standards. Firmware bugs discovered during formal testing can be particularly time-consuming to fix and re-test. A common issue is a discrepancy between how a function performs in a controlled lab versus its behavior under the specific test sequences of an NRTL. Thorough preparation and partnership with an experienced lab can mitigate these risks.

The Role of Global Harmonization

While North America relies on the IEEE 1547 and UL 1741 SB framework, other regions have their own grid codes. A report from IRENA on Quality infrastructure for smart mini-grids emphasizes the importance of aligning national rules with international standards to reduce complexity. For manufacturers, designing products that can be adapted to different grid codes without major hardware changes is a significant competitive advantage. This requires a flexible software architecture and a deep understanding of global requirements.

Leveraging Performance Data for a Stronger Case

Certification proves compliance, but real-world performance builds customer trust. Beyond passing standardized tests, demonstrating how your inverter performs in actual conditions is vital. Key metrics such as round-trip efficiency, power quality, and thermal management provide a complete picture of the product's value. According to an ultimate reference on solar storage performance, factors like depth of discharge and operational efficiency directly influence a system's financial return and long-term durability. Presenting this data alongside certification credentials creates a powerful case for your product.

Looking Ahead: The Future of Inverter Standards

The world of energy standards is constantly evolving. The next frontier includes grid-forming inverters, which can create their own stable grid without relying on a traditional power source. Additionally, as inverters become more connected, cybersecurity is a growing concern. The NREL guide to the Distributed Energy Resources Cybersecurity Framework outlines emerging requirements to protect these devices and the grid from digital threats. Staying ahead of these trends is key for any manufacturer planning for the future.

Frequently Asked Questions

What is the main difference between IEEE 1547 and UL 1741 SB?

IEEE 1547 sets the technical requirements for what a DER must do to connect to the grid safely and effectively. UL 1741 SB provides the specific test procedures and methods to prove that the DER actually meets those requirements.

Is IEC 62109 certification required for the US market?

In the US, UL 1741 is the primary safety standard. However, since IEC 62109 is an international standard, many components used within inverters are certified to it. Some manufacturers certify to both to streamline access to global markets.

How long does the hybrid inverter certification process typically take?

The timeline can vary significantly based on product readiness and lab availability. It can range from a few months to over a year. A well-prepared product that passes on the first attempt will have the shortest timeline. Pre-certification testing can help accelerate this process.

Why is anti-islanding protection so important?

Anti-islanding is a critical safety feature that protects utility line workers. When the grid is down for maintenance or repair, workers must be certain that the lines are de-energized. An inverter that continues to export power to a downed grid creates a life-threatening hazard.
