Grid-tied solar often goes dark during outages. That is not a flaw. It is a deliberate safety function called anti-islanding, guided by IEEE 1547 and related standards. This piece explains how anti-islanding works, why PV shutdowns happen, and how modern energy storage systems can provide backup power without compromising safety.
Anti-Islanding: Why PV Shuts Off in a Blackout
Safety first for crews and equipment
During a grid outage, a local PV system must stop feeding the lines. Utilities need a de‑energized circuit to restore service safely. A live “island” near a fault could endanger line workers, skew power quality, and damage devices during reconnection. As noted by IRENA’s Quality infrastructure for smart mini‑grids, grid operators require anti‑islanding so local sources do not keep a dead line energized during failures.
The role of IEEE 1547
IEEE 1547 defines how distributed energy resources (DER) such as PV inverters must detect abnormal grid conditions and disconnect. The standard also covers interoperability and grid support functions. According to the U.S. Department of Energy, the SunShot Initiative funded work that helped establish standardized testing for “smart” inverters through the IEEE 1547.1a amendment, improving safety and resilience features across products (EERE Success Story—SunShot Funding Spurs Standardized Testing for “Smart” Solar Inverters).
Testing and certification
Manufacturers validate anti‑islanding performance using grid simulators and formal test procedures. IRENA highlights pre‑certification testing at NREL’s Energy Systems Integration Facility for IEEE 1547 conformance, including mandated disconnection tests and islanding/reconnection evaluations (IRENA). These programs reduce the risk of unsafe behavior during utility events.
What IEEE 1547 Requires in Practice
Trip, ride‑through, and reconnection
Inverters monitor voltage, frequency, and other grid signals. If conditions fall outside defined limits, the inverter trips offline to avoid unintentional islanding. Modern “advanced” inverters can also support the grid during disturbances with functions like volt‑VAR and frequency‑watt control, as encouraged by the IEEE 1547 family. After the grid stabilizes, a mandatory wait time and resynchronization step occur to prevent back‑feeding into unstable circuits. IRENA notes that reconnection includes re‑synchronizing voltage, frequency, and phase to utility service and may be coordinated with interoperability standards like IEEE 2030 (IRENA).
How inverters detect islanding
Anti‑islanding uses passive and active techniques. Passive methods look for abnormal voltage or frequency. Active methods gently “probe” the grid to verify it is present.
| Method | How it works | Strengths | Considerations |
|---|---|---|---|
| Passive V/F monitoring | Trips on out‑of‑bounds voltage or frequency | Simple, fast | May not detect perfect load‑generation balance islands |
| Active frequency shift | Applies a small frequency bias; lack of grid “stiffness” reveals an island | Improved detection in edge cases | Must avoid nuisance trips |
| Active impedance/phase shift | Injects signals or shifts phase to test for grid presence | Robust for diverse feeders | Requires careful coordination with standards |
What PV Shutdowns Look Like During Outages
Typical sequence in a neighborhood outage
- The utility circuit opens. Voltage and frequency deviate from normal.
- The grid‑tied inverter senses the abnormal state and trips quickly.
- PV output to the grid stops. A fixed‑speed wait period follows.
- After utility service is restored and stable, the inverter resynchronizes and ramps back up.
This sequence protects crews and equipment. It also explains why a standard grid‑tied array without storage cannot power a home during a blackout. The inverter needs a stable reference to operate. Without a battery‑backed microgrid controller, there is no reference and no safe local island.
Outages are not rare. EIA reports that U.S. customers experienced an average of 5.5 hours of power interruptions in 2022 (EIA: Average power interruptions in 2022). As solar adoption grows rapidly—see the global Solar PV overview by the IEA—more homes and facilities are asking for safe backup during such events.
From Anti-Islanding to Resilient Backup: Microgrids and Intentional Islands
How intentional islanding works

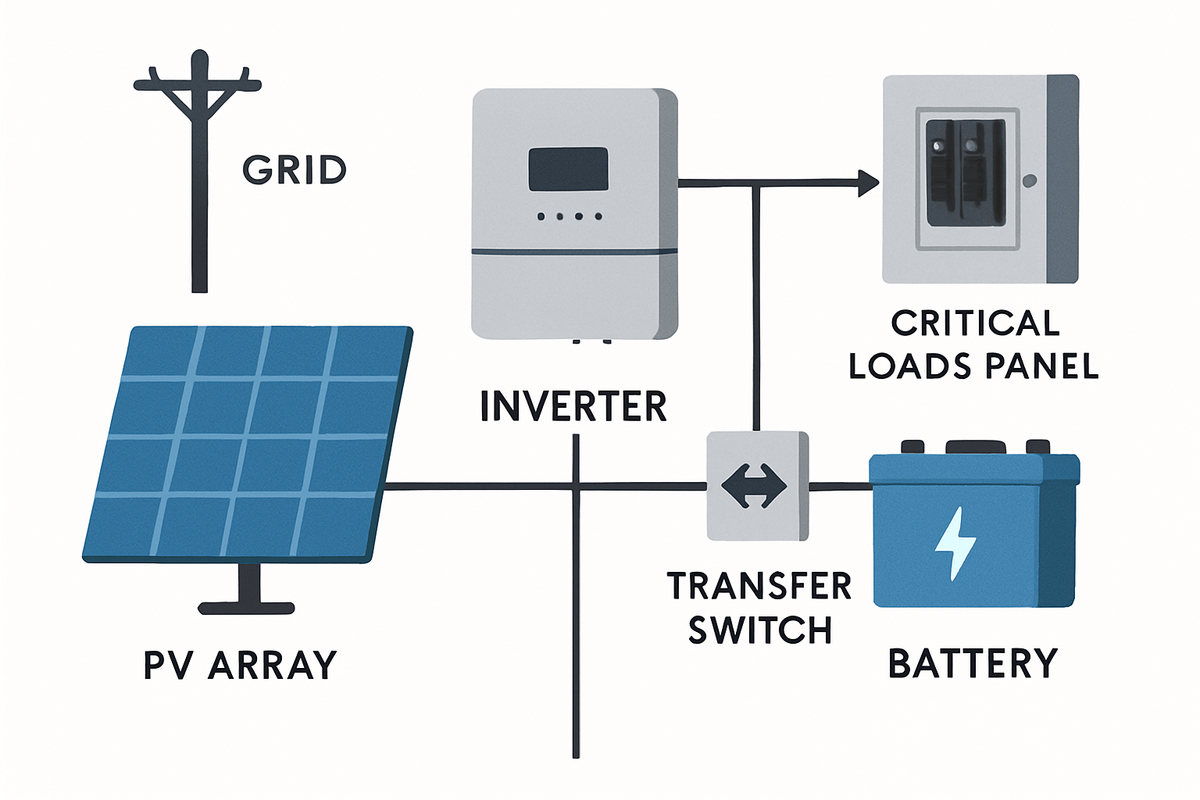

With the right hardware, a site can disconnect from the utility and operate as a microgrid during an outage. IEEE Standard 1547.4 provides guidance for microgrid design and operation with the wider grid, as noted by IRENA. A controller opens a transfer device at the point of common coupling, forms a stable local voltage and frequency, and supplies critical loads from PV and batteries. No power flows onto the utility lines while islanded.
IRENA also highlights that, as of 2019, less than 4 GW of microgrid capacity was installed in the U.S., yet interest in PV‑based microgrids is rising fast (IRENA).
What you need to run as an island
- Hybrid inverter with transfer switching and IEEE 1547/UL 1741‑based certification
- Battery storage, ideally LiFePO4 for cycle life, safety, and stable power
- A critical loads subpanel and properly sized conductors, breakers, and grounding
- Controls for black start, PV curtailment, and battery dispatch
Our integrated storage systems combine a hybrid inverter, LiFePO4 battery, and PV interface to manage intentional islands safely. The design focus is reliable, scalable backup power, aligned with the anti‑islanding rules that protect linemen and equipment.
Coordination and testing
IRENA points to full system testing at the point of common coupling to comply with IEEE 1547, with relaxed internal settings to avoid nuisance shutdowns while islanded (IRENA). On the certification side, the U.S. DOE notes that the 1547.1a test amendment enables standardized methods to verify grid support and interoperability, a key step for high penetration of solar in a safe, reliable, and cost‑effective way (Energy.gov).
System Behavior in Outages: Side‑by‑Side
| System type | Grid outage behavior | Power available to home/site | Standards considerations |
|---|---|---|---|
| Grid‑tied PV (no battery) | Trips off quickly due to anti‑islanding | No power | IEEE 1547 mandates disconnection |
| PV + Battery with hybrid inverter (critical loads) | Opens transfer switch; forms local island; PV follows battery/controller | Yes, for critical circuits sized to battery and inverter | IEEE 1547 at PCC; UL/IEEE testing for anti‑islanding and reconnection |
| Fully off‑grid solar | Independent from utility | Yes, based on PV, battery, and generator capacity | Not interconnected; follow local electrical codes |
Technical Tips for Safe, Reliable Backup
Design and settings
- Right‑size batteries for your outage profile. EIA’s reliability figures (5.5 hours average in 2022) offer a planning reference for autonomy (EIA).
- Use a critical loads panel. Put refrigeration, lighting, networking, and key outlets on it. Move large HVAC or EV charging off the island unless storage is ample.
- Enable grid‑support functions per IEEE 1547 capabilities (volt‑VAR, frequency‑watt) to improve normal operation stability.
- Configure reconnection delays to match utility rules. Many utilities require a fixed wait to avoid reclosing into unstable lines, as highlighted in IRENA.
Hardware choices
- LiFePO4 batteries offer high cycle life, stable chemistry, and good round‑trip efficiency—well suited to daily cycling and standby backup.
- Hybrid inverters should carry current IEEE 1547/UL 1741‑based certifications and support microgrid mode with seamless transfer.
- Consider pre‑engineered ESS cabinets to reduce integration risk and speed permitting.
Permitting and coordination
- Engage your utility early. Interconnection agreements define anti‑islanding, metering, and protection settings.
- Follow Authority Having Jurisdiction (AHJ) requirements for transfer equipment, labeling, and disconnects.
- Document test results. Commissioning should include trip tests, island formation, black start, and reconnection checks.
Policy and Market Context
The IEA notes strong growth in Solar PV capacity, which heightens the need for robust interconnection standards and smart inverter functions (IEA: Solar PV). Standardization efforts backed by the U.S. DOE’s SunShot program have accelerated the rollout of advanced inverter features that support both safety and resilience (Energy.gov). For deeper background on federal solar initiatives and grid integration topics, see Energy.gov: Solar Energy.
Key takeaways
- Anti‑islanding protects people and equipment. IEEE 1547 mandates fast, reliable PV shutdowns during grid failures, as described by IRENA.
- Standardized testing (IEEE 1547.1a and related procedures) improves trust in advanced inverters and enables higher penetrations of PV (Energy.gov).
- For backup power, use a certified hybrid inverter, transfer device, and LiFePO4 storage to create a compliant island that never back‑feeds the grid.
- Microgrids are growing from a small base, and interest in PV‑battery systems is rising as outages persist and solar expands (see IEA and EIA).
With careful design and standards‑aligned equipment, you can keep critical loads running during outages while honoring the safety rules that keep the grid—and the people who maintain it—safe.
