How to Maximize Your LiFePO4 Deep Cycle Battery Lifespan

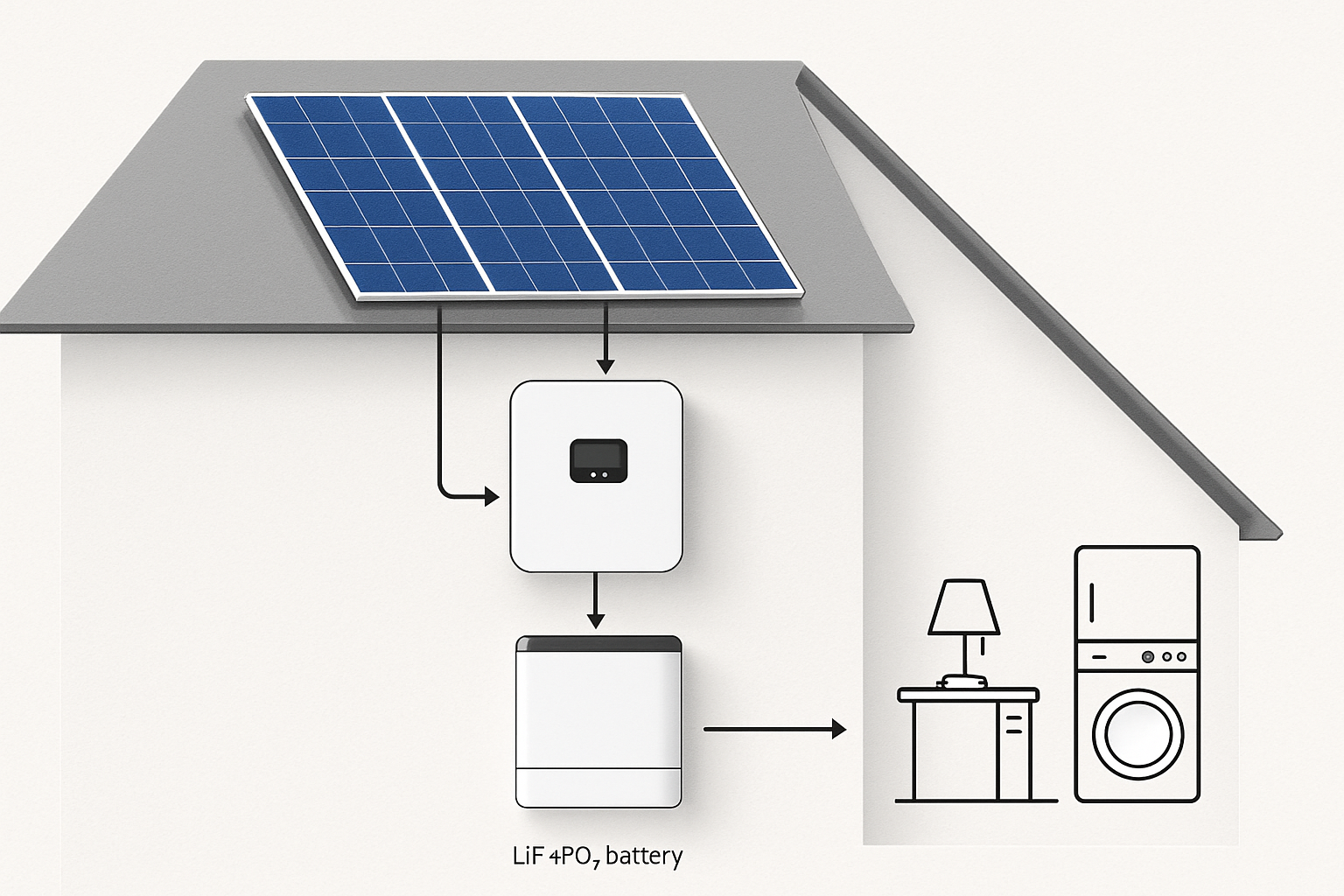

Lithium iron phosphate (LiFePO4) batteries are known for their impressive longevity and safety, making them a top choice for solar energy storage systems and off-grid applications. While these batteries are built to last, achieving their maximum potential requires proper care and maintenance. Implementing a systematic approach to charging, discharging, and storage will help you get the most value and performance from your energy investment.

The Core Principles of LiFePO4 Battery Health

Understanding the fundamental factors that influence the lifespan of a LiFePO4 deep cycle battery is the first step toward effective maintenance. It's not about complex procedures, but rather consistent, mindful operation.

Understanding Cycle Life and Depth of Discharge (DoD)

A battery's cycle life refers to the number of charge and discharge cycles it can endure before its capacity significantly degrades. For LiFePO4 batteries, this is heavily influenced by the Depth of Discharge (DoD)—the percentage of the battery's capacity that has been used. There is an inverse relationship: shallower discharges lead to a much longer cycle life. For instance, a battery consistently discharged to only 50% DoD may last thousands of cycles more than one regularly drained to 100%. High-quality LiFePO4 cells can last from 2,000 to 5,000 cycles, and with proper care, some can exceed 6,000 cycles.

The Critical Role of the Battery Management System (BMS)

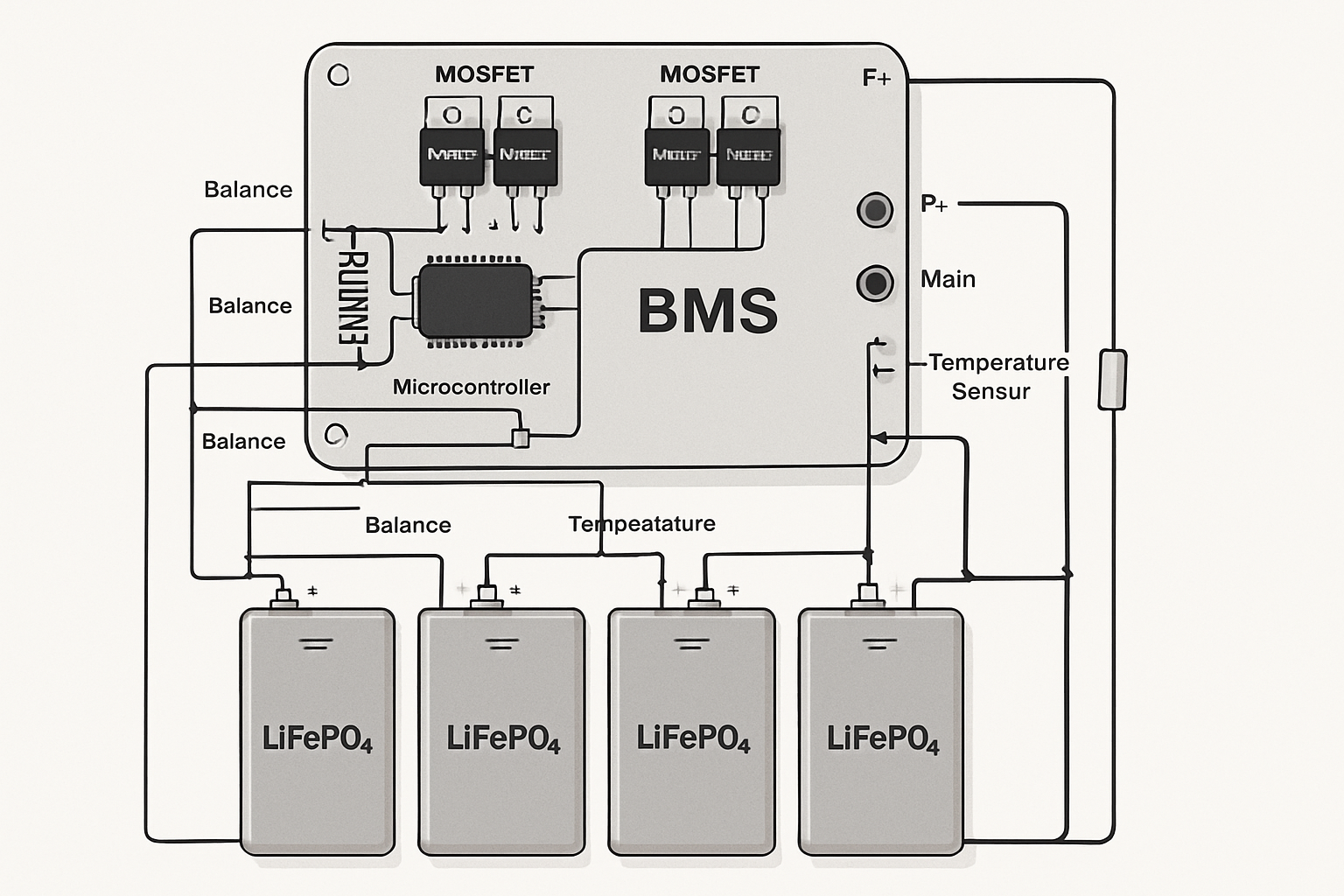

The Battery Management System (BMS) is the brain of your LiFePO4 battery pack. It's an electronic system that monitors and manages the battery's performance to ensure safety and longevity. The BMS protects against overcharging, over-discharging, overheating, and short circuits. It also performs cell balancing, which ensures all cells within the pack maintain a uniform voltage. This function is vital for optimizing performance and extending the battery's lifespan. Relying on a high-quality BMS is the most effective way to safeguard your battery from common operational stresses.

Optimal Charging Practices for Longevity

How you charge your LiFePO4 battery has a direct impact on its health. Consistent and correct charging habits are fundamental to maximizing battery life.

Correct Voltage and Current Settings

Using the right voltage and current is crucial. For a 12V LiFePO4 battery, the recommended charge voltage is typically between 14.2V and 14.6V. The nominal voltage of a single LiFePO4 cell is 3.2V, and it should not be charged beyond 3.65V. Adhering to these parameters prevents stress on the cells. A charge rate of 0.5C (half the battery's capacity) is generally recommended. For example, a 100Ah battery would be charged at 50A. Adhering to these charging parameters is crucial for achieving the high cycle counts advertised. As detailed in guides on solar storage performance, consistency in charging is directly linked to sustained capacity and efficiency.

The Myth of 'Topping Off'

Unlike lead-acid batteries, LiFePO4 chemistry does not require being kept at a 100% state of charge (SoC). In fact, they are healthier when not constantly held at full charge. There is no need for float charging. If your system will be inactive, allowing the battery to rest at a partial SoC is better for its long-term health.

Charger Compatibility

Always use a charger specifically designed for LiFePO4 batteries. These chargers use a Constant Current/Constant Voltage (CC/CV) charging profile that is optimized for the chemistry. Lead-acid chargers, especially those with 'desulfation' or equalization modes, can damage a LiFePO4 battery by applying incorrect voltages.

Smart Discharging and Load Management

Just as important as charging, managing the discharge process helps preserve your battery's capacity and extend its service life.

Avoiding Consistently Deep Discharges

While the BMS will prevent the battery from over-discharging, consistently draining it to its low-voltage cutoff will shorten its lifespan. As shown in the table above, shallower discharge cycles significantly increase the number of cycles you can expect. For daily use, aiming to keep the battery above 20-30% SoC is a good practice for balancing usability and longevity.

Managing High Current Loads

Drawing a current that is very high relative to the battery's capacity (a high C-rate) can generate excess heat and stress the internal components. While LiFePO4 batteries can handle high discharge rates, sustained use of heavy loads can accelerate degradation. Ensure your battery is sized appropriately for your expected loads to avoid consistently pushing it to its limits.

Environmental Control: Temperature and Storage

The environment in which a battery operates and is stored plays a significant role in its overall lifespan. Both heat and cold can negatively affect performance and longevity.

The Ideal Operating Temperature Range

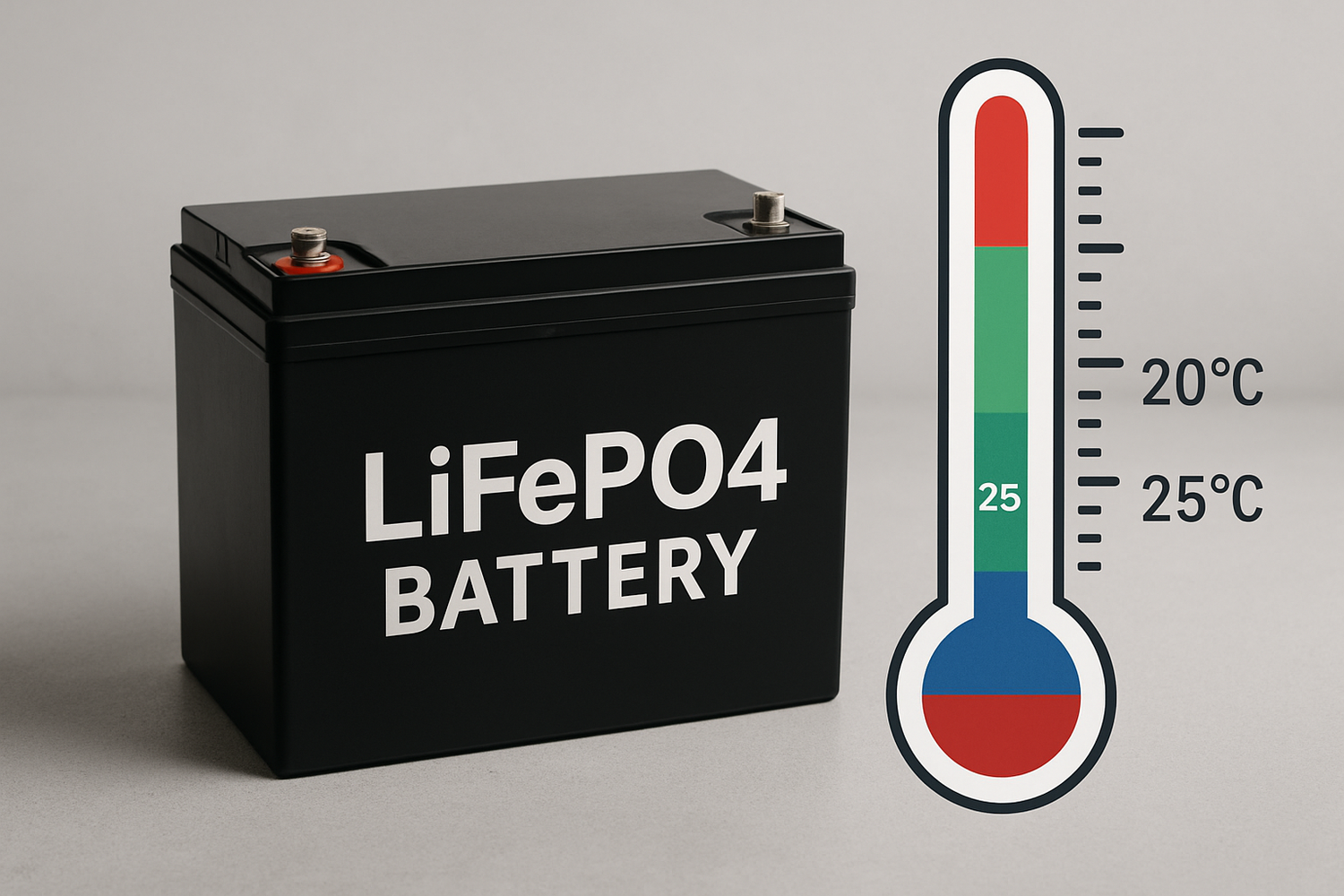

LiFePO4 batteries perform best in a moderate temperature range. The optimal operating temperature is generally between 20°C and 25°C (68°F to 77°F). According to the International Renewable Energy Agency (IRENA), managing temperature is a key factor in battery performance. High temperatures accelerate internal chemical degradation, which can permanently reduce capacity. While these batteries can be discharged in a wider range, typically -20°C to 60°C (-4°F to 140°F), charging should only occur between 0°C and 45°C (32°F to 113°F). Many quality BMS systems include cold-temperature protection that prevents charging below freezing to avoid irreversible damage.

Long-Term Storage Procedures

If you need to store your LiFePO4 deep cycle battery for an extended period (more than a few months), follow a few simple steps. First, disconnect it completely from any loads or charging sources. Second, bring the battery to a state of charge between 50% and 70%. Storing a battery fully charged or fully depleted can cause stress. Finally, store it in a cool, dry place, ideally within a stable temperature range. Because of their low self-discharge rate of about 1-3% per month, they can hold a charge for a long time.

A Proactive Maintenance Approach

Maximizing the lifespan of your LiFePO4 battery is not about a single action but a collection of good habits. By understanding and respecting the battery's chemistry through proper charging, smart discharging, and environmental control, you ensure its reliability for years to come. Trust in a quality BMS to handle the critical protective functions, and focus your efforts on providing the optimal operational conditions. This proactive approach will help you realize the full long-term value of your energy storage solution.

Frequently Asked Questions

How often should I fully charge my LiFePO4 battery?

It is a good practice to charge the battery to 100% periodically to allow the BMS to perform a top balance, ensuring all cells are at an equal state of charge. However, it is not necessary to do this every cycle. For daily use, cycling within a partial state of charge (e.g., between 20% and 90%) is excellent for longevity.

Can I use a lead-acid battery charger for a LiFePO4 battery?

It is strongly discouraged. Lead-acid chargers have different voltage profiles and often include equalization modes that can push the voltage too high for LiFePO4 cells, potentially causing damage and bypassing the BMS protections. Always use a charger specifically designed for LiFePO4 chemistry.

What is the biggest factor that shortens LiFePO4 battery life?

While several factors contribute, consistent exposure to high temperatures is one of the most significant causes of accelerated degradation and capacity loss. Operating and storing the battery in a cool, stable environment is critical for maximizing its lifespan.
