When planning a solar energy system, the battery is a critical component for achieving energy independence. Among the available technologies, Lithium Iron Phosphate (LiFePO4) batteries have become a leading choice due to their safety, efficiency, and longevity. A common question is: what is the realistic lifespan of a LiFePO4 battery in a solar storage application? The answer isn't a single number; it depends on a combination of factors, including usage patterns, operating conditions, and system quality.
Understanding LiFePO4 Lifespan Metrics
To accurately assess how long a LiFePO4 battery will last, it's important to look beyond just years. Three key metrics provide a comprehensive view of a battery's expected service life: cycle life, calendar life, and energy throughput.
Cycle Life: The Core Measurement
Cycle life refers to the number of full charge and discharge cycles a battery can endure before its capacity drops to a certain level, typically 80% of its original rating. LiFePO4 batteries excel in this area, commonly offering between 2,500 and 9,000 cycles. This is a significant advantage over traditional lead-acid batteries, which may only last for 300-1,000 cycles, and other lithium-ion chemistries that offer 500-1,500 cycles.
Calendar Life: The Inevitable Aging Process
Calendar life is the lifespan of a battery under specified storage and operating conditions, regardless of how many cycles it undergoes. All batteries degrade chemically over time. For LiFePO4 batteries, the calendar life is generally projected to be between 10 and 20 years. This slow degradation is due to the stable olivine crystal structure of the cathode material, which resists the structural changes that plague other battery types.
Energy Throughput: A Holistic View
Energy throughput measures the total amount of energy a battery can deliver throughout its life, often expressed in megawatt-hours (MWh). This metric combines cycle life and capacity, offering a more practical measure of the battery's total work output. A higher energy throughput indicates a more durable and long-lasting battery, providing better long-term value.
Key Factors Influencing LiFePO4 Battery Longevity
The impressive lifespan figures of LiFePO4 batteries are not guaranteed. They are highly dependent on how the battery is used and maintained. Several operational factors have a direct impact on how long your battery will perform optimally.
Depth of Discharge (DoD)
Depth of Discharge refers to the percentage of the battery's capacity that is used in a cycle. There is an inverse relationship between DoD and cycle life: shallower discharges lead to a much longer life. For example, a battery cycled to 100% DoD might achieve 3,000 cycles, but if it's only cycled to 80% DoD, its cycle life could increase to 4,500 or more. Regularly leaving some charge in the battery reduces stress on its components.
| Depth of Discharge (DoD) | Estimated Cycle Life |
|---|---|
| 100% | ~3,000 Cycles |
| 80% | ~4,500 Cycles |
| 50% | ~6,000+ Cycles |
| 30% | ~10,000+ Cycles |
Operating Temperature
Temperature is a critical factor for battery health. The optimal operating range for LiFePO4 batteries is generally between 15°C and 35°C (59°F to 95°F). High temperatures, especially above 45°C (113°F), accelerate chemical degradation and can permanently reduce capacity. Conversely, charging below 0°C (32°F) can cause lithium plating, which is a serious safety hazard and causes irreversible damage. Most quality batteries include a Battery Management System (BMS) with thermal protection to prevent operation in extreme temperatures.
Charge and Discharge Rates (C-Rate)
The C-rate measures the speed at which a battery is charged or discharged relative to its capacity. A 1C rate means a 100Ah battery is charged or discharged at 100 amps. While LiFePO4 batteries can handle high C-rates, consistently using lower rates (e.g., 0.2C to 0.5C) is much gentler on the battery. Lower C-rates reduce internal heat and mechanical stress, significantly extending the battery's cycle life.
The Critical Role of the Battery Management System (BMS)
A high-quality Battery Management System is the brain of a LiFePO4 battery pack and is non-negotiable for ensuring a long and safe service life. Its primary functions are to protect the battery from damaging conditions and to optimize its performance.
Protection Against Damaging Conditions
The BMS constantly monitors cell voltage, current, and temperature. It will automatically disconnect the battery to prevent over-charging, over-discharging, short circuits, and operation outside of safe temperature limits. This protective function is the single most important factor in preventing premature battery failure.
Cell Balancing for Maximum Capacity
A battery pack consists of many individual cells connected in series. Over time, slight differences can cause these cells to become imbalanced, meaning some are at a higher state of charge than others. The BMS performs cell balancing, typically during the final stage of charging, to ensure all cells reach an equal state of charge. This process maximizes the usable capacity of the pack and prevents individual cells from being over-stressed, which is essential for longevity.
Real-World Expectations and System Design

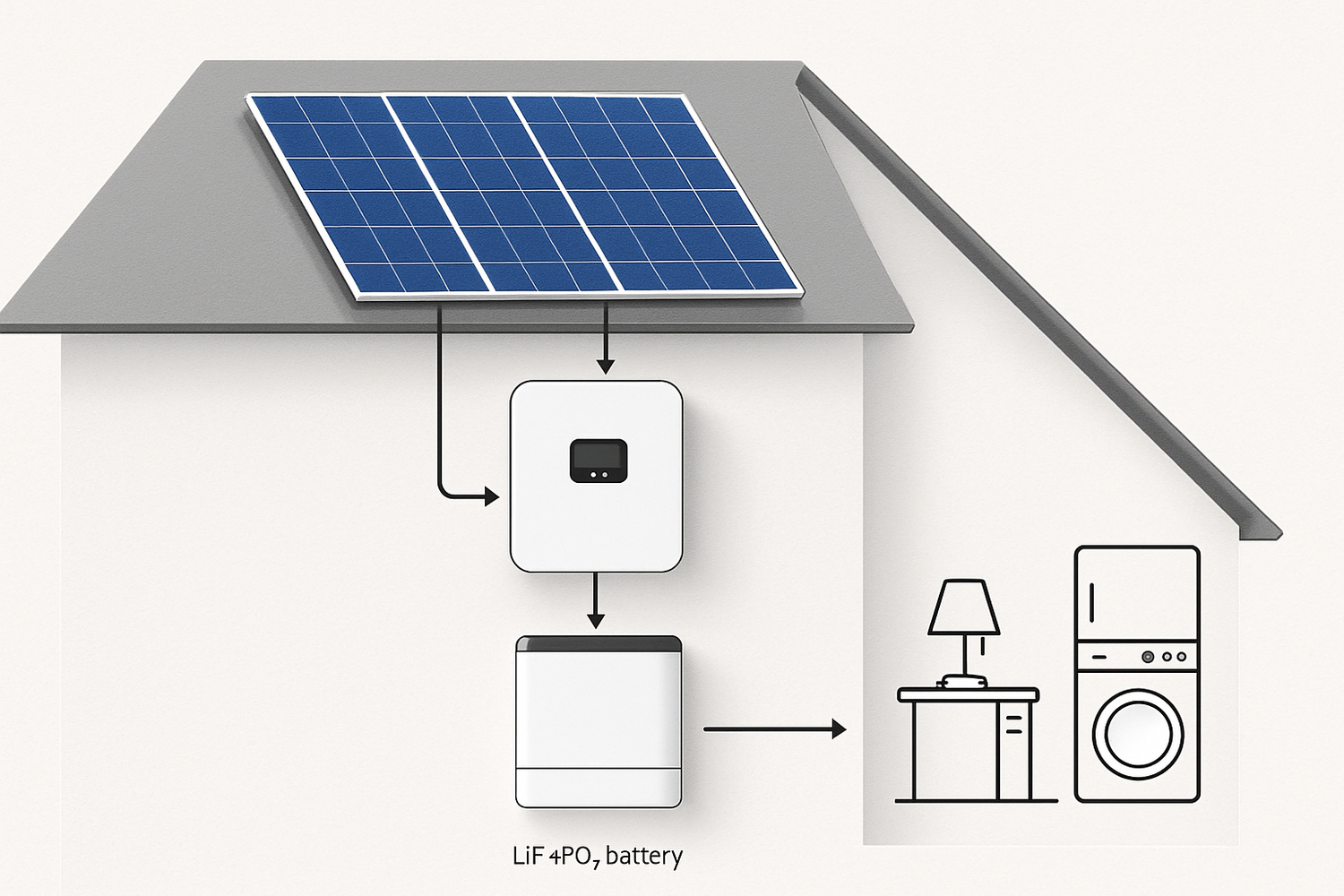

Translating technical specifications into real-world performance requires careful system design. According to the U.S. Energy Information Administration (EIA), most battery storage paired with solar facilities is designed for daily cycling to shift solar energy from midday to evening peak hours. This usage pattern makes longevity a key consideration.
Calculating Lifespan in Years
You can estimate the lifespan in years by dividing the expected cycle life by the number of cycles per year. For a typical solar storage system that cycles once per day:
- At 80% DoD (4,500 cycles): 4,500 cycles / 365 cycles/year ≈ 12.3 years.
- At 50% DoD (6,000+ cycles): 6,000 cycles / 365 cycles/year ≈ 16.4 years.
Sizing Your System for Longevity
To benefit from shallower discharge cycles, it is often wise to slightly oversize the battery bank. While this increases the initial investment, it can significantly lower the total cost of ownership by extending the battery's life well beyond a decade. A properly sized system ensures the battery operates well within its comfort zone. For a detailed analysis of matching system components, the Ultimate Reference for Solar Storage Performance offers valuable data on optimizing battery capacity with inverter and solar array output.
A Forward-Looking Perspective on Battery Life
LiFePO4 batteries represent a significant advancement in energy storage, offering a long and reliable service life for solar systems. With a potential lifespan of 10 to 20 years and thousands of cycles, they are a durable foundation for energy independence. As organizations like the International Renewable Energy Agency (IRENA) note, continued improvements in battery technology are driving down costs and enhancing performance, making solar storage increasingly accessible. Ultimately, the longevity of your LiFePO4 battery is directly influenced by how it's treated. By investing in a quality system with a robust BMS and managing factors like Depth of Discharge, temperature, and C-rate, you can maximize its lifespan and secure a reliable power source for years to come.
Frequently Asked Questions
How does LiFePO4 lifespan compare to lead-acid batteries in solar systems?
LiFePO4 batteries last significantly longer. A typical LiFePO4 battery can provide 2,500 to 9,000 cycles, whereas a deep-cycle lead-acid battery usually lasts for 300 to 1,000 cycles. This means a LiFePO4 battery can last 5 to 10 times longer, resulting in a lower total cost of ownership despite a higher upfront cost.
Will my LiFePO4 battery still be usable after 10 years?
Yes, in most cases. A battery's 'end-of-life' for solar applications is typically defined as when it can only hold 70-80% of its original capacity. After 10 years of normal use, a well-maintained LiFePO4 battery should still retain a significant portion of its capacity and remain perfectly usable, albeit with a reduced storage amount.
Is it worth oversizing my LiFePO4 battery bank for a longer life?
Often, yes. While it requires a higher initial investment, oversizing your battery bank allows you to operate it at a lower average Depth of Discharge (DoD). This drastically reduces strain on the battery and can extend its cycle life by thousands of cycles, potentially doubling its service years and providing better long-term value.
