Stop Over-Ballasting: Smarter Wind Uplift Controls for Flat Roofs

For years, the standard approach to securing solar arrays on flat roofs was simple: add more weight. This practice of over-ballasting was born from a straightforward desire to prevent panels from lifting off in high winds. Yet, this seemingly safe method can introduce significant risks, including structural strain, roof membrane damage, and inflated project costs. It is time to shift from a brute-force method to a precision-engineered strategy. Modern wind load engineering offers smarter controls that enhance safety while reducing unnecessary weight and expense.

The Hidden Dangers of Over-Ballasting

Piling on concrete blocks might seem like a foolproof solution, but it overlooks the complex interplay of forces acting on a building. The consequences of this oversight can be both damaging and costly, compromising the very structure you aim to improve.

Beyond the Obvious: Structural Stress and Material Fatigue

Every roof has a specific load-bearing capacity. Exceeding this limit with excessive ballast places constant, immense stress on the building's structure. This dead load, combined with dynamic live loads like snow, ice, or heavy rain, can lead to serious issues. Over time, the weight can compress the roof's insulation, reducing its effectiveness. It can also cause the roof membrane to stretch or wear prematurely, creating pathways for water intrusion and costly leaks that are difficult to trace and repair.

The Financial Drain of Inefficiency

The 'more is better' mindset directly translates to higher project costs. The price of the ballast blocks themselves is just the beginning. Transporting and lifting hundreds of heavy blocks to a rooftop requires more labor, specialized equipment, and time, all of which inflate the installation budget. Furthermore, should the excessive weight cause roof damage in the future, the repair costs can far exceed any perceived savings from a simplified initial design. This approach is not just inefficient; it's a long-term financial liability.

Wind Load Engineering: A Precision-Based Approach

Instead of relying on guesswork, a modern approach uses detailed analysis to understand and counteract wind forces precisely. This discipline transforms flat roof design from a practice of approximation into a science of optimization, ensuring safety without unnecessary excess.

Understanding the Forces at Play

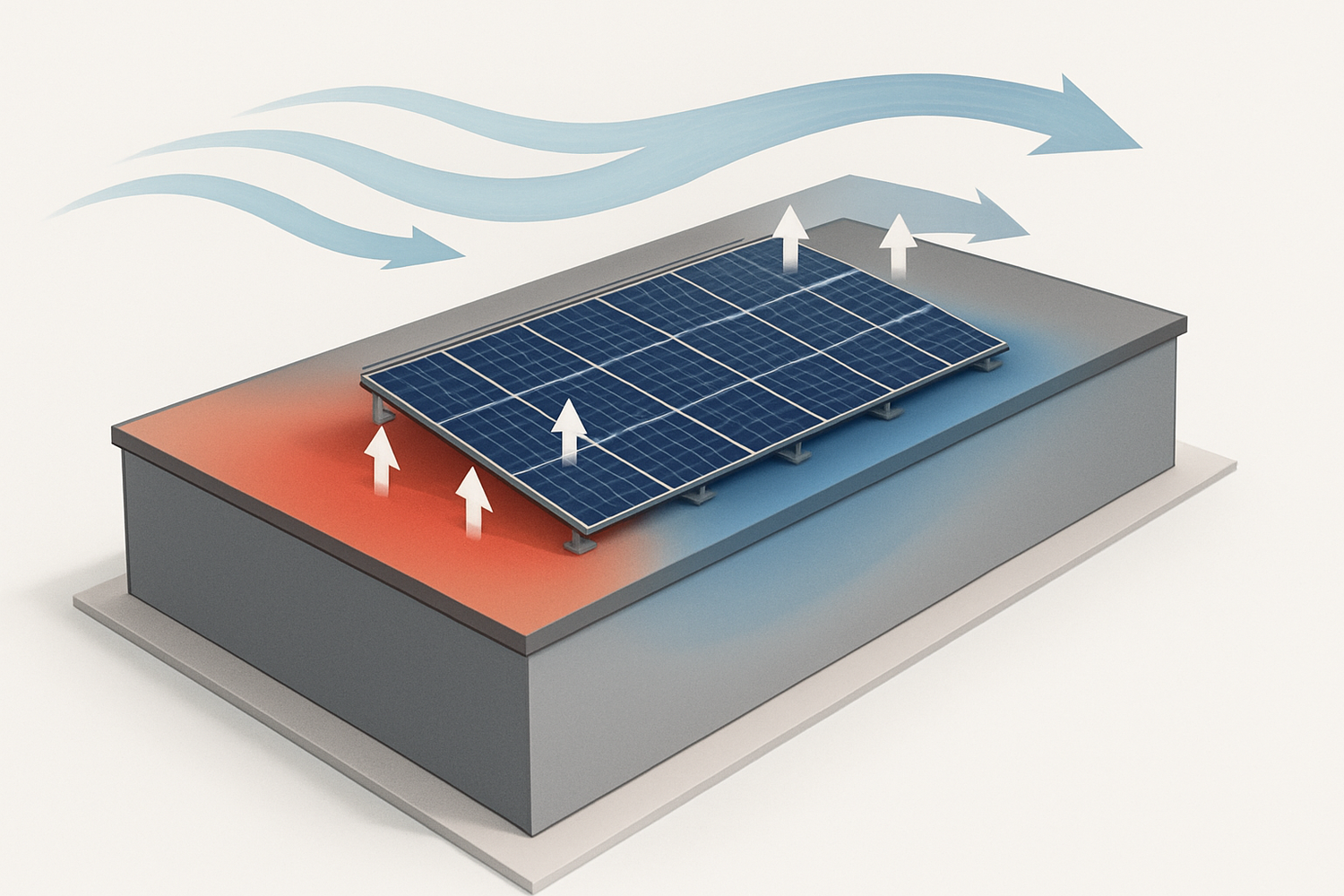

Wind uplift occurs when airflow over and around a building creates areas of negative pressure, effectively trying to lift the roof and anything on it. The intensity of this force is not uniform. It varies significantly based on factors like the building's height, its geographic location, and the surrounding terrain. Wind engineering standards, such as ASCE 7, divide a roof into distinct zones: corners, perimeters, and the central 'field'. Corner and perimeter zones experience dramatically higher uplift forces than the field, a critical detail that uniform ballasting completely ignores.

Moving from Guesswork to Calculation

Advanced engineering leverages tools like computational fluid dynamics (CFD) and wind tunnel testing to model how air moves over a specific building. This data allows engineers to map the pressure zones on a roof with high accuracy. The result is a precise ballast plan that places weight exactly where it's needed most—more on the corners and edges, and significantly less in the middle. This data-driven method ensures every pound of ballast serves a specific purpose. As noted in the IEA's report, Next Generation Wind and Solar Power, ensuring technical standards are up to date is critical for the successful integration of new energy technologies, a principle that applies directly to mounting and racking systems.

Smart Controls and Ballast Reduction Techniques

Technology and intelligent design offer innovative ways to secure solar arrays without relying solely on dead weight. These ballast reduction techniques not only lower the load on the roof but also improve the overall efficiency and safety of the installation.

Aerodynamic Enhancements: Deflectors and Shields

One of the most effective ballast reduction techniques is the use of aerodynamic deflectors. These are specially designed shields integrated into the racking system, typically along the front and sides of the array. They manage airflow by deflecting wind up and over the panels, which prevents the formation of high-velocity, low-pressure zones that generate uplift. By reducing the primary lifting force, these systems can decrease ballast requirements by 50% or more in some cases, leading to a lighter, safer, and more cost-effective installation.

Inter-Row Spacing and System Configuration

The physical layout of the solar array also plays a crucial role in its aerodynamic profile. The spacing between rows of panels can be optimized to allow air pressure to equalize, disrupting the forces that contribute to uplift. Some modern racking systems are designed as self-ballasting networks, where interconnected components and the panels themselves form a unified, stable structure that is inherently resistant to wind forces. This holistic design philosophy minimizes the need for external ballast.

The Role of Advanced Monitoring

While more common for large wind turbines, the principles of advanced monitoring are increasingly relevant for large-scale solar installations. According to an IRENA report, Offshore wind energy: Patent insight report, state-of-the-art monitoring techniques are completely automated and can track even the smallest changes in dynamic behavior. Applying this concept, sensors can be used to monitor wind speeds and structural loads on an array in real time. This data helps validate initial engineering models and ensures long-term system integrity. Just as monitoring is crucial for the mounting, understanding the system's output is vital for overall reliability. A comprehensive view of solar storage performance ensures that the energy produced by a securely mounted system is captured and utilized effectively.

A Smarter Framework for Flat Roof Design

Adopting an engineered philosophy requires a holistic view of the project, from initial assessment to system selection. This ensures a solution that is tailored to the specific conditions of each building, providing optimal safety and performance.

The Importance of a Site-Specific Assessment

There is no universal solution for flat roof solar installations. A successful project begins with a comprehensive site assessment. This includes a structural analysis to determine the roof's maximum load capacity, a thorough review of local building codes and wind zone requirements, and a detailed wind load calculation performed by a qualified engineer. This foundational step ensures that the chosen system is appropriate, safe, and compliant.

Comparing Ballasted, Mechanically Attached, and Hybrid Systems

Different situations call for different solutions. Understanding the options is key to making an informed decision.

Moving Forward: Adopting an Engineered Philosophy

The era of simply adding more weight to solve wind uplift challenges is over. Over-ballasting is an outdated method that introduces unnecessary risks and costs. By embracing a modern, engineered philosophy, you can design and build flat roof solar projects that are safer, more reliable, and economically sound. This approach prioritizes data-driven calculations, aerodynamic innovations, and site-specific solutions. By working with qualified professionals who apply these principles, you ensure the long-term integrity of both the solar array and the building it rests upon.

Frequently Asked Questions

How much ballast is too much?

It depends entirely on the roof's structural capacity and the calculated wind uplift forces for your specific location. A structural engineer must determine the maximum allowable load. Anything beyond the precise requirement calculated according to standards like ASCE 7 is excessive.

Can wind deflectors eliminate the need for ballast entirely?

In some cases with low wind loads and specific system designs, they can significantly reduce it, but they rarely eliminate it completely. They work by improving the aerodynamics of the array to lower the uplift force, thereby decreasing the amount of ballast needed to counteract it. A hybrid system combining deflectors and minimal ballast is common.

What is the biggest mistake people make with flat roof ballasting?

The most common mistake is using a uniform ballast layout across the entire roof. Wind pressures are much higher at the corners and edges of a roof. An engineered design applies more ballast in these high-pressure zones and less in the center (the 'field'), optimizing weight and safety.

Are mechanically attached systems always better than ballasted ones?

Not necessarily. Mechanically attached systems involve roof penetrations, which can create potential leak points if not sealed properly. They are often necessary for roofs that cannot support additional weight or in extremely high-wind areas. The best choice depends on a thorough evaluation of the building's structure, roofing material, and local climate.
