7 protection settings before paralleling off‑grid inverters

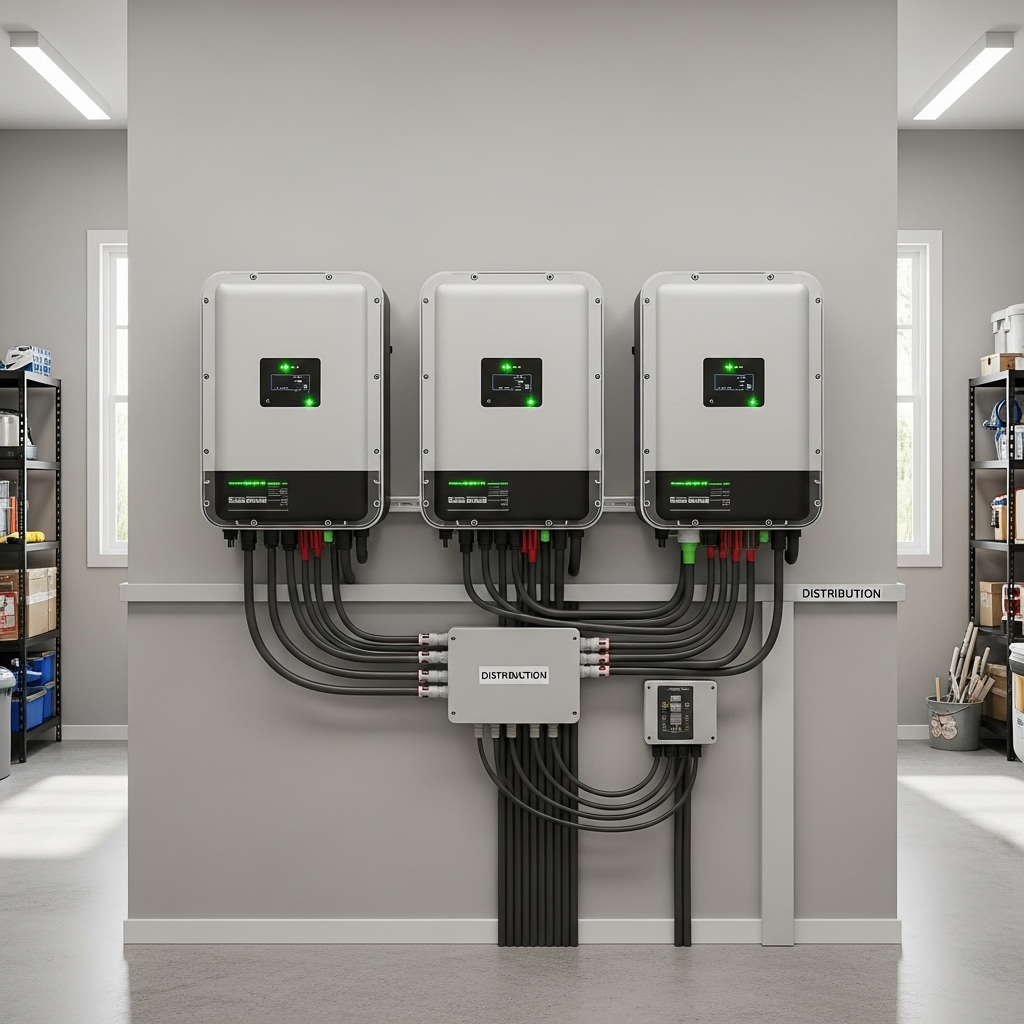

Expanding the capacity of an off-grid solar system often involves paralleling inverters. This technique allows you to increase your power output to support more appliances or handle larger loads. While stacking inverters is an effective way to scale up, it requires careful configuration to ensure safety, stability, and longevity of your equipment. Incorrect settings can lead to system instability, equipment damage, or complete failure. Getting the protection parameters right from the start is fundamental to building a robust and reliable energy solution.

The Foundation: Why Protection Settings Matter in Parallel Systems

When you connect multiple inverters, they form a mini-grid that must operate in perfect harmony. Each unit needs to function as part of a cohesive team rather than as an independent device. Proper protection settings are the rules that govern this teamwork, preventing operational conflicts and safeguarding your investment.

Ensuring System Stability and Safety

A parallel inverter system must maintain a stable voltage and frequency across all units. Without synchronized settings, inverters can work against each other, causing voltage fluctuations, frequency drift, and potential system collapse. These settings act as the primary defense against electrical faults that could pose a safety risk or damage connected appliances.

Preventing Equipment Damage

Mismatched settings can force one inverter to carry a disproportionate share of the load, leading to overheating and premature failure. Fault conditions, such as short circuits or grid anomalies, can send damaging currents through the system. Protection mechanisms are designed to instantly disconnect the inverters before permanent damage occurs. As research into inverter-based resources (IBRs) shows, managing fault currents is a significant challenge in modern power systems, making these settings even more critical.

Critical Protection Setting 1: Voltage and Frequency Parameters

The most fundamental task of an inverter is to produce a stable AC waveform. In a parallel system, all inverters must agree on the characteristics of this waveform. This is achieved by setting precise voltage and frequency limits.

Setting Grid Voltage Limits (High/Low)

You must define an acceptable operating voltage window. The over-voltage and under-voltage protection settings tell the inverter to shut down if the voltage rises too high or drops too low. This protects both the inverters and your sensitive electronics. A common setting for a 120V system might be an under-voltage trip at 105V and an over-voltage trip at 135V, but always consult the manufacturer's specifications.

Configuring Frequency Trip Points (Over/Under)

Similar to voltage, the operating frequency must be tightly controlled. In North America, the standard is 60 Hz. Setting over-frequency and under-frequency trip points ensures the system disconnects if the frequency deviates from the norm. This is a lesson learned from large-scale grid operations. According to a report by the IEA, Germany faced the '50.2 Hz issue', where a fixed frequency trip point in numerous solar systems could have collectively destabilized the grid. The Technology Roadmap - Solar Photovoltaic Energy 2010 explains how this led to revised regulations, a principle that applies to ensuring stability in off-grid parallel systems as well.

Critical Protection Setting 2: Current and Overload Protection

Managing current is essential for preventing thermal damage and handling unexpected load demands. These settings define how your system responds to high current situations.

AC Overcurrent Protection

This setting determines the maximum current an inverter can supply before it trips. In a parallel configuration, the total fault current is the sum of contributions from all units. The protection must be sensitive enough to detect a fault but not so sensitive that it trips during normal motor start-ups or other temporary high-draw events. Legacy protection systems rely on current magnitude, and the introduction of multiple inverters can complicate coordination.

Output Overload Protection

This feature protects the inverter from sustained loads that exceed its rated capacity. It typically has a time-based element, allowing the inverter to handle a small overload for a short period but forcing a shutdown if the overload persists. For example, an inverter might handle a 110% load for one minute but will trip immediately at a 150% load. These parameters are crucial for preventing component burnout.

Critical Protection Setting 3: Anti-Islanding Protection

While often associated with grid-tied systems, anti-islanding principles are also relevant for complex off-grid systems, especially those incorporating multiple power sources like a backup generator.

What is Islanding?

Islanding occurs when a power source continues to energize a circuit even though the main power supply has been disconnected. In an off-grid parallel system, this could happen if one inverter fails or disconnects, but the others continue to feed power into it. This creates a significant safety hazard for anyone working on the system.

Configuring Anti-Islanding Parameters

Anti-islanding protection uses methods like monitoring the Rate of Change of Frequency (RoCoF) to detect an unstable grid and disconnect quickly. The International Renewable Energy Agency (IRENA) discusses the importance of this feature extensively. As noted in its publication Grid Codes for Renewable Powered Systems, anti-islanding protection is a key requirement to prevent unwanted generator operation and ensure grid safety, a concept that enhances the security of a multi-inverter off-grid setup.

Critical Protection Settings 4-7: Advanced Configurations

Beyond the core parameters, several other settings contribute to a fully protected and stable parallel system.

Synchronization and Phase Matching

This is less of a user-adjustable setting and more of a core function, but it must be confirmed. The inverters must perfectly synchronize their AC waveforms before connecting their outputs. A failure to do so would be equivalent to creating a direct short circuit, resulting in catastrophic failure.

Battery Voltage Protection (High/Low Cutoff)

The inverters must protect the battery bank, which is the heart of the system. The low-voltage cutoff prevents over-discharging the batteries, which can cause permanent damage. The high-voltage cutoff protects the batteries from overcharging, typically from the solar array.

Ground Fault Protection

This safety feature monitors for any current that may be 'leaking' to the ground, which indicates a potentially dangerous fault in the wiring or an appliance. A ground fault detector will shut down the system to prevent the risk of electric shock.

Reverse Power Protection

This function prevents power from flowing from the AC output back into an inverter. This is critical in a parallel system where a running inverter could potentially back-feed a failed or shut-down unit, causing further damage.

A Practical Look at Implementation

Configuring these settings is not an isolated task. It requires a holistic approach, ensuring all parts of your system work together seamlessly.

The Importance of a Coordinated Approach

Protection settings must be coordinated across all devices. This sometimes requires a detailed study of the system's electrical characteristics to ensure that the correct device trips in the correct sequence during a fault. This prevents a small issue from cascading into a system-wide outage.

Matching Inverter Models and Firmware

For the best results, always use identical inverter models from the same manufacturer. It is also critical to ensure that all units are running the same firmware version. Manufacturers often release updates that improve parallel communication and performance, and a mismatch can lead to unpredictable behavior.

Reference Performance Metrics

Achieving optimal output requires more than just correct settings; it depends on the inherent capabilities of your components. Understanding key metrics is vital for benchmarking your system's health and efficiency. For a deeper analysis of system capabilities, you can consult an ultimate reference for solar storage performance to help evaluate your setup.

Final Checks for a Robust System

Properly configuring the protection settings on your parallel off-grid inverters is a non-negotiable step for building a powerful and resilient energy system. By carefully setting voltage, frequency, current, and other protective parameters, you create a stable environment where inverters work collaboratively. This not only maximizes performance but also safeguards your valuable equipment from damage. Always refer to the manufacturer’s documentation for specific values and procedures, and when in doubt, consult with a qualified professional. Your energy independence relies on a system that is not only powerful but also fundamentally safe and reliable.

Disclaimer: This information is for educational purposes only. It is not professional electrical or financial advice. Always consult with a qualified professional before designing or installing any solar energy system.

Frequently Asked Questions

Do all off-grid inverters support parallel operation?

No, not all inverters are designed for parallel stacking. This capability must be built into the inverter's hardware and software by the manufacturer. Always check the product specifications to confirm if an inverter supports parallel, split-phase, or three-phase configurations before purchasing.

Can I parallel inverters with different power ratings?

This is generally not recommended and is often prohibited by manufacturers. Paralleling inverters of different sizes can lead to load-sharing imbalances, where one unit is consistently overworked, leading to reduced efficiency and a shorter lifespan. It is best practice to use identical models.

What happens if one inverter fails in a parallel system?

A well-designed system with proper protection settings should isolate the failed unit. The remaining inverters will continue to supply power, although the system's total output capacity will be reduced. The failed inverter should automatically disconnect from the parallel bus to prevent it from affecting the other units.
