As energy systems move away from centralized power plants, the stability of the grid faces new challenges. Grid-forming inverters paired with Energy Storage Systems (ESS) offer a robust solution. They provide the foundation for a resilient, independent power supply. This text explains the essential topology, control mechanisms, and the critical black start capability that these advanced inverters deliver.
Foundational Concepts: Grid-Following vs. Grid-Forming Inverters
Understanding the distinction between inverter types is key to appreciating the shift in grid management technology. Each plays a different role in today's evolving energy landscape.
The Role of Traditional Grid-Following Inverters
Most inverters installed in solar and storage systems are grid-following. They function by detecting the voltage and frequency of an active electrical grid and synchronizing their power output to it. These inverters are designed to inject current into a stable, pre-existing grid. If the grid fails, they are required by safety standards to shut down immediately to prevent islanding, which could endanger utility workers.
The Emergence of Grid-Forming Technology
Grid-forming inverters operate differently. Instead of following the grid, they create it. Functioning as a voltage source, a grid-forming inverter establishes its own stable voltage and frequency signal. This allows it to operate independently, forming a self-sufficient microgrid. This capability is fundamental for providing backup power during an outage and is the core technology that enables a seamless black start.

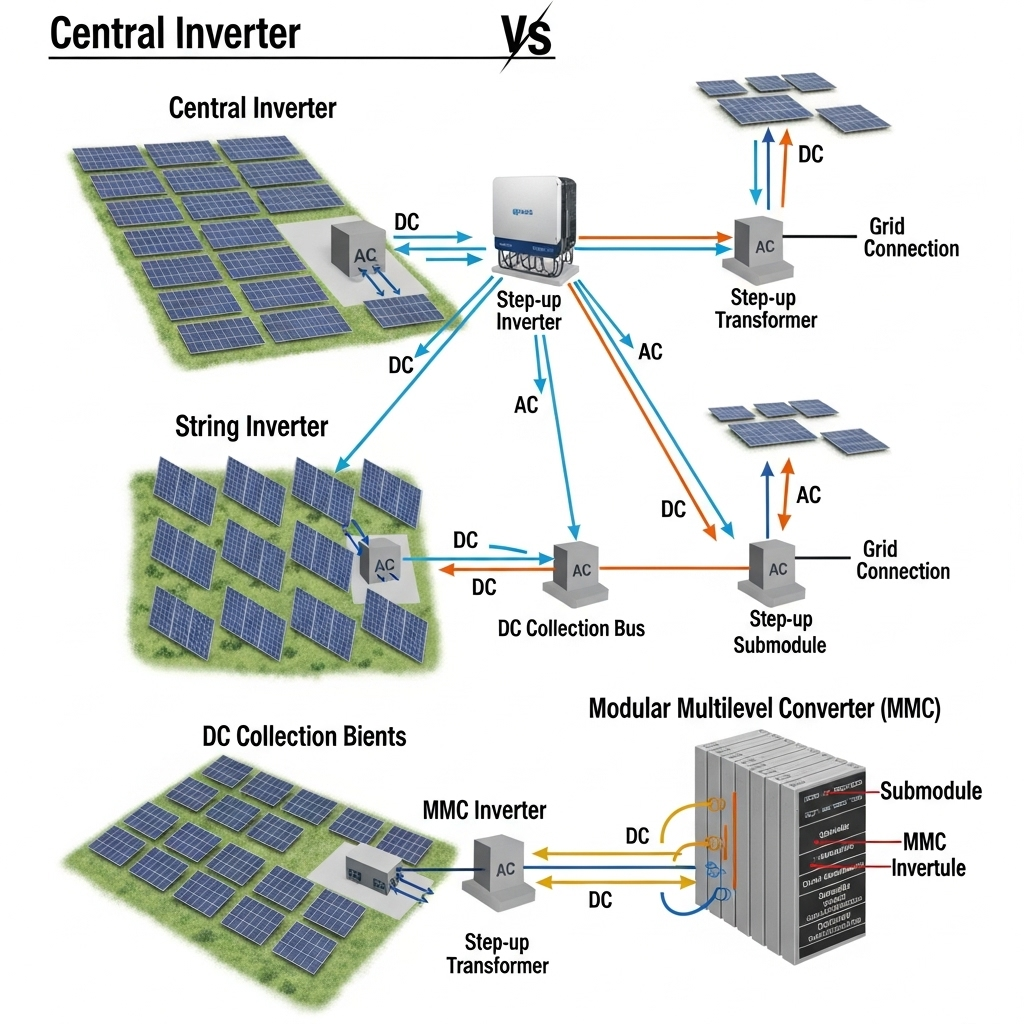

Core Topologies and Components of Grid-Forming ESS Inverters
The ability of an inverter to form a stable grid depends on a sophisticated combination of hardware and software. The internal design dictates its performance, reliability, and efficiency.
Key Power Electronics and Switching Devices
At the heart of any inverter are its power electronics switching devices, such as Insulated-Gate Bipolar Transistors (IGBTs) or Silicon Carbide (SiC) MOSFETs. These components switch on and off at very high frequencies to synthesize the AC waveform. The choice of switching device directly impacts the inverter's efficiency, heat generation, and physical size. For grid-forming functions, these devices must handle dynamic loads and provide rapid voltage correction, making their performance critical.
Control Systems: The Brain of the Operation
The intelligence of a grid-forming inverter lies in its control algorithms. Advanced strategies like droop control and Virtual Synchronous Machine (VSM) allow the inverter to mimic the stabilizing behavior of traditional rotating generators. These controls constantly monitor the local grid and adjust voltage and frequency to maintain stability, balance loads, and seamlessly manage power flow from the connected energy storage system.
Integration with Energy Storage Systems (ESS)
A grid-forming inverter requires a dependable DC power source, which is provided by a battery-based ESS. The battery's performance characteristics are just as important as the inverter's. A successful black start depends on the battery's ability to deliver a high burst of power to energize loads, a factor directly related to its C-rate and state of charge. A complete understanding of these metrics is vital for designing a reliable system. You can find a detailed breakdown of these performance indicators in this ultimate reference for solar storage performance.
Black Start Capability: Restoring Power from Zero
The most powerful feature of a grid-forming inverter is its ability to perform a black start, a procedure that is becoming increasingly vital for modern power systems.
What is Black Start Functionality?
A black start is the process of restoring power to a section of the grid without assistance from the main transmission network. Historically, this service was provided by large fossil fuel power plants. According to a report from the International Renewable Energy Agency, the decommissioning of these conventional plants necessitates a new approach to black-start provision. The Grid Codes for Renewable Powered Systems report highlights that variable renewable energy (VRE) resources with grid-forming inverters are an important enabler for these revised black-start plans.
How Grid-Forming Inverters Enable Black Start
The process unfolds in a controlled sequence. First, the system isolates itself from the inactive main grid. The grid-forming inverter then draws power from the ESS to generate a stable voltage and frequency, creating a localized microgrid. It begins energizing circuits and connecting critical loads in a stepwise fashion to manage inrush currents. Once the local microgrid is stable, it can synchronize with other local power sources to expand the restored area, all before the main grid returns.
System Requirements and Challenges
Executing a successful black start is a complex task. It requires a robust control system capable of managing large inrush currents from transformers and motors without collapsing the newly formed grid. As noted in IRENA's analysis, in systems with a high share of distributed energy resources, effective real-time communication and control interfaces are key to providing reliable black-start capability.
Practical Applications and Future Outlook
Grid-forming technology is moving from theory to practice, proving its value in a variety of real-world scenarios and influencing the future of grid management.
Use Cases in Microgrids and Critical Facilities
The most immediate applications are in microgrids for critical facilities like hospitals, data centers, and remote communities. These locations cannot afford power interruptions. A grid-forming ESS inverter provides true energy independence, ensuring that essential services remain operational during a widespread outage. It creates a resilient power island that functions autonomously.
Evolving Grid Codes and Ancillary Services
System operators are recognizing the value of these capabilities. New grid codes are being developed to define the technical requirements for grid-forming inverters. The IRENA report on grid codes suggests that requirements for grid-forming inverters are needed sooner rather than later. By providing services like synthetic inertia and fast frequency response, these inverters can actively support the stability of the larger grid, creating new revenue opportunities for system owners.
A New Standard for Grid Resilience
Grid-forming inverters integrated with energy storage are more than just an incremental improvement. They represent a fundamental shift in how we ensure power reliability. By creating a stable grid from the ground up, they provide the ultimate safeguard against outages. This technology empowers homeowners, businesses, and entire communities to achieve true energy independence, paving the way for a more distributed and resilient power system.
Frequently Asked Questions
Can any hybrid inverter perform a black start?
Not all hybrid inverters can perform a true black start. This function requires specific grid-forming control algorithms and robust hardware designed to establish a grid independently. Standard grid-following hybrid inverters can provide backup power to isolated circuits but cannot energize a dead grid section or form a stable microgrid from scratch.
What is the main difference between grid-forming and UPS functionality?
A UPS (Uninterruptible Power Supply) is designed to provide instantaneous but short-term battery backup for specific, connected devices until a primary backup source activates. A grid-forming inverter is a system-level solution designed to create and sustain a stable, independent AC microgrid, capable of powering entire facilities for extended periods and managing complex, dynamic loads.
How does ESS capacity affect black start capability?
The ESS is critical. It must have sufficient energy capacity (measured in kWh) to power the required loads for the desired duration of an outage. Equally important is its power output rating (in kW), which must be high enough to handle the large inrush currents from starting equipment like air conditioners, pumps, and refrigerators during the initial energization sequence.
