Data Deep-Dive: Recovery Rates by PV Module Type

The global installed capacity of solar energy continues to expand at a record pace. With this growth comes an important future consideration: managing millions of photovoltaic (PV) modules as they reach the end of their operational life. Creating a sustainable solar industry depends on our ability to effectively recover the valuable materials within these panels. This analysis provides a data-focused look at the recovery rates for different PV module technologies, highlighting the technical processes and the potential for a robust circular economy.

Understanding PV Module Composition: What's Inside?

To appreciate the recycling process, you first need to know what materials make up a solar panel. The composition varies significantly between the two dominant technologies on the market: crystalline silicon and thin-film.

Crystalline Silicon (c-Si) Modules: The Industry Standard

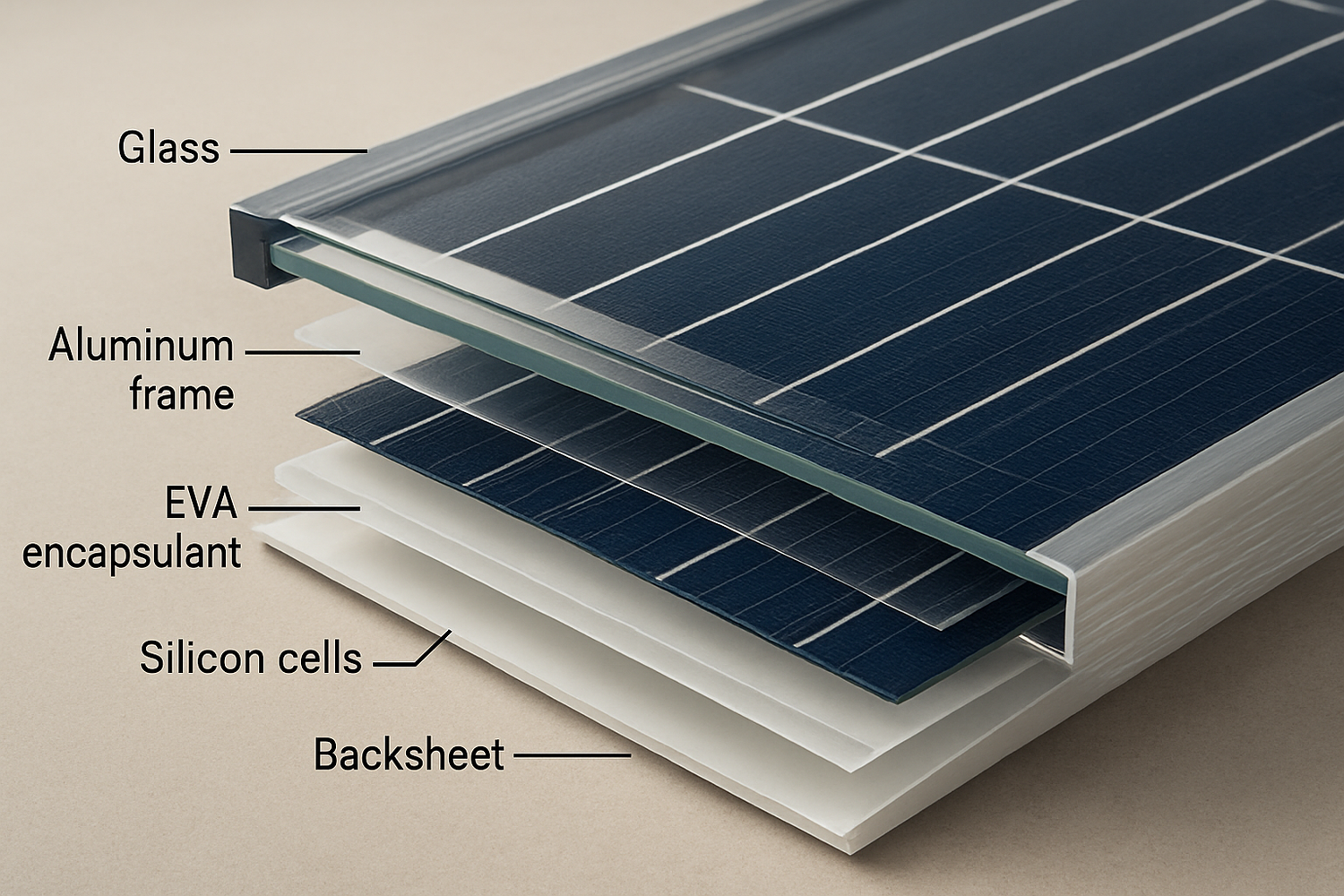

Crystalline silicon (c-Si) panels, including both monocrystalline and polycrystalline types, are the most common. By weight, their composition is relatively straightforward. Glass makes up the largest portion, followed by the aluminum frame. The silicon solar cells themselves constitute a smaller, but highly valuable, fraction. Other critical materials include polymer encapsulants and backsheets (like EVA), and conductive metals such as copper, silver, and tin used in the wiring and junction box.

Thin-Film Modules: A Different Material Mix

Thin-film solar panels, such as Cadmium Telluride (CdTe) and Copper Indium Gallium Selenide (CIGS), use a different construction. They apply incredibly thin layers of semiconductor material onto a substrate, which is often glass. This design means they use significantly less semiconductor material compared to c-Si panels. While they still contain glass, the specific valuable elements—cadmium, tellurium, indium, and selenium—require distinct and specialized recovery processes.

The Economic Value Locked in EOL Panels

End-of-life solar panels are not waste; they are a rich source of secondary raw materials. The economic incentive for recycling is driven by the value of recovered commodities like high-purity silicon, silver, and copper. As global supply chains face increasing pressure, developing a reliable stream of recycled materials is becoming a strategic priority. According to one report, the value of recoverable materials from solar panels could reach approximately $15 billion by 2050.

A Closer Look at Material Recovery Rates

The effectiveness of recycling is measured by its recovery rate—the percentage of a specific material that is successfully extracted and made available for reuse. These rates depend heavily on the module type and the sophistication of the recycling technology employed.

Crystalline Silicon (c-Si) Module Recycling

The recycling process for c-Si modules typically begins with mechanical dismantling to remove the aluminum frame and junction box. The remaining laminate is then processed, often through thermal or chemical methods, to separate the glass from the silicon cells and polymer layers. Advanced techniques focus on preserving the purity of the recovered materials.

Note: Rates can vary based on the specific recycling process used. Achieving high-purity, solar-grade silicon presents a greater technical challenge than recovering metallurgical-grade silicon.

Thin-Film Module Recycling

Thin-film recycling uses different chemical and mechanical processes tailored to its unique composition. For CdTe modules, established industrial processes can recover a high percentage of the key materials. Research shows that these specialized methods can recover about 90% of the glass and 95% of the semiconductor materials for use in new products. These high recovery rates are essential for managing the hazardous components and retaining the value of critical elements.

Emerging Technologies and Future Challenges

Newer module technologies like PERC, TOPCon, and HJT introduce different materials and more complex cell structures. These innovations may require adaptations to current recycling methods. As the International Energy Agency (IEA) highlights in its report on Solar PV Global Supply Chains, future policy and design efforts should focus on making modules easier to recycle from the start, reducing the complexity and cost of managing future end-of-life equipment.

Factors Influencing Recovery Efficiency

Achieving high recovery rates consistently is not just a technical issue. It is also influenced by economic conditions, infrastructure, and data availability.

Recycling Technology and Infrastructure

The gap between basic and advanced recycling is significant. Basic methods may involve shredding panels and recovering only the easiest materials, like aluminum and mixed glass (downcycling). High-value recycling, in contrast, uses sophisticated processes to recover high-purity materials that can be reintroduced into manufacturing supply chains. The development of this advanced infrastructure is key to a truly circular model.

Economic Viability and Market Demand

The profitability of solar panel recycling is directly tied to the market prices of the commodities being recovered. Fluctuations in the value of silver, copper, aluminum, and silicon can impact the economic case for investing in advanced recycling facilities. Supportive regulations, such as Extended Producer Responsibility (EPR) schemes, play a vital role in ensuring that recycling remains viable even when commodity prices are low.

Data Gaps and The Path Forward

A significant challenge for the nascent EOL management industry is a lack of comprehensive data. Currently, very little public data exists on the total flow and specific reasons why PV modules reach their end-of-life. Partnering across the PV value chain—from owners and installers to financiers—to systematically collect this information could significantly reduce investment risk and help scale the recycling industry effectively.

Building a True Circular Economy for Solar PV

Recycling is a cornerstone of sustainability, but it is only one piece of the puzzle. A holistic approach to the circular economy prioritizes extending the life of products before they ever reach a recycler.

Beyond Recycling: Repair, Refurbishment, and Reuse

The most sustainable module is one that continues to generate clean energy. Before recycling, options like repair, refurbishment, and reuse should always be considered. Extending the service lifetime of a panel maximizes the energy and resources invested in its initial manufacturing. A study from PV Cycle on the reuse of PV modules underscores both the opportunities and challenges in creating a robust secondary market for used panels, which can provide affordable energy access while delaying the need for recycling.

The Role of Policy and Industry Collaboration

Creating a closed-loop system for PV materials requires strong collaboration. Manufacturers can contribute through 'Design for Recycling' principles. Installers and service providers are critical for collecting EOL panels. Recyclers provide the technological solutions. Tying this all together are effective policies that create clear responsibilities and financial incentives to ensure panels are managed properly instead of ending up in landfills.

Wrapping It Up

Different PV module types feature distinct material compositions that demand tailored recycling strategies. The data shows that very high material recovery rates are technically achievable for both crystalline silicon and thin-film technologies. Realizing this potential on a global scale is the next major step for the solar industry's sustainability. By improving data collection, investing in advanced recycling infrastructure, and prioritizing circular economy principles like reuse and repair, we can ensure that solar energy remains a truly clean power source for generations to come.

Frequently Asked Questions

What percentage of a typical solar panel can be recycled?

For common crystalline silicon panels, over 95% of the total weight, primarily from the glass and aluminum frame, can be recovered. High-value recycling processes aim to recover the smaller but more valuable material fractions, like pure silicon and silver, at very high rates as well.

Is it profitable to recycle solar panels?

Profitability depends on several factors, including the market price of recovered commodities, the efficiency of the recycling process, transportation costs, and local regulations. The value of recovered silver, copper, and aluminum is a primary economic driver. As the volume of end-of-life panels increases, economies of scale are expected to improve the financial viability of recycling operations.

Are thin-film solar panels harder to recycle?

Thin-film panels are not inherently harder to recycle, but they do require different, highly specialized processes compared to crystalline silicon panels. Their unique material composition (e.g., CdTe or CIGS) means that tailored chemical and mechanical methods are needed. These dedicated processes can achieve excellent recovery rates for the valuable and critical semiconductor materials they contain.
