Stop Confusion: A Plain-English Glossary for Solar Jargon

Cut through acronyms and tech-speak with a clear solar terminology glossary. You will see plain English definitions, quick checks, and practical ranges that help you read quotes, compare options, and talk to installers with confidence. This piece stays neutral and references credible sources from the industry.

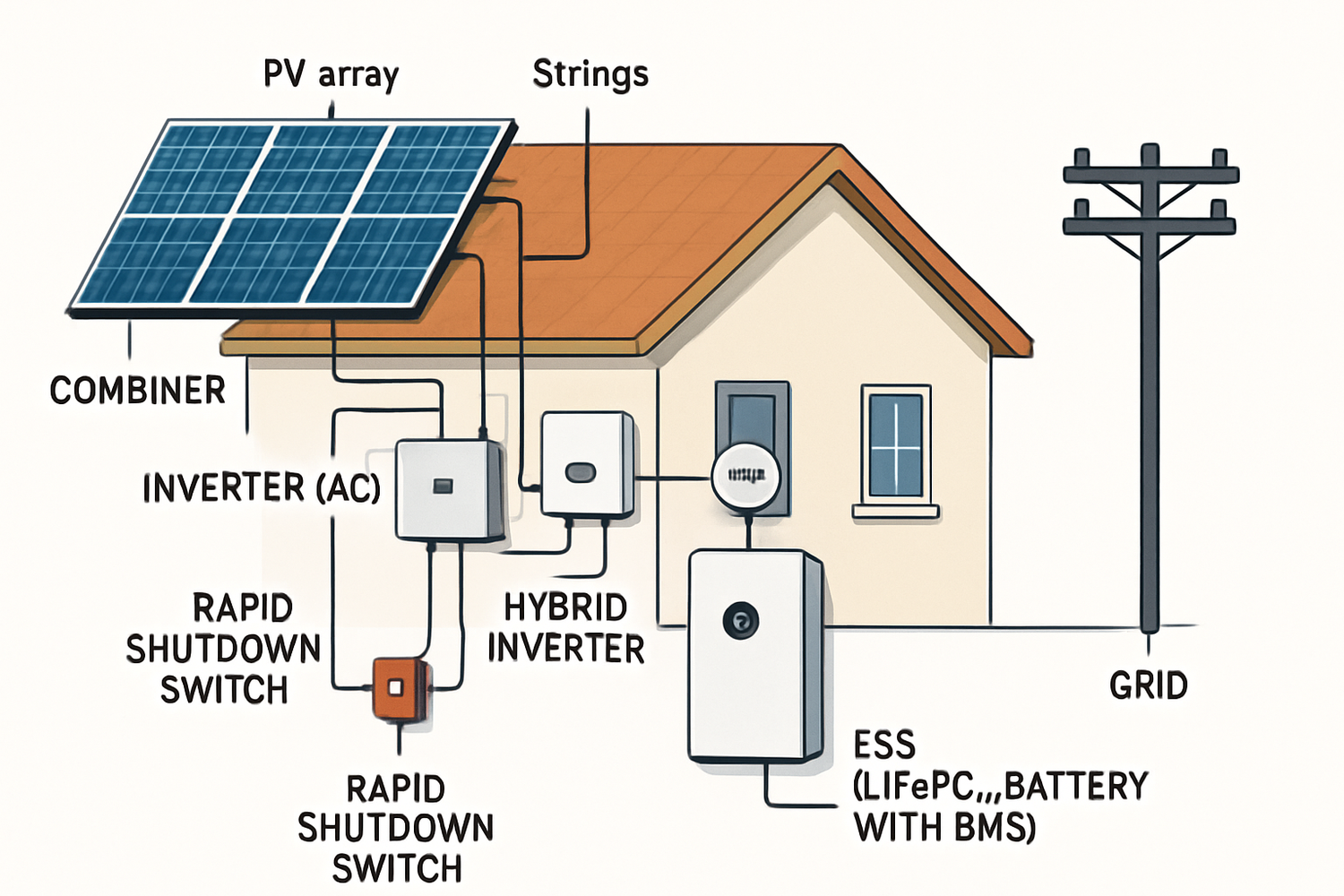

Plain-English diagram of a home solar + battery system with labeled parts

How to use this glossary

Start with the big piece: PV panels make DC; the inverter makes AC; batteries store energy; the grid balances the rest.
Spot the context: design, safety, policy, or finance. The same acronym can mean different things in each context.
Apply the quick checks below to validate quotes and claims.

For deeper system behavior and grid integration, see the high-level insights in Integrating Solar and Wind and Getting Wind and Solar onto the Grid. For thermal solar terms, the IEA roadmap Technology Roadmap - Concentrating Solar Power is a helpful reference. Policy and safety basics are covered at Energy.gov Solar Energy. Cost and market language appears widely in IRENA and EIA publications.

Plain-English glossary core

Use this quick table to translate common solar jargon into plain language and action.

Term	Plain English	Quick check or use
PV (photovoltaic)	Solar panels and wiring that turn sunlight into DC power.	Think “DC power side.” Strings feed an inverter.
Module (panel)	A single framed PV unit.	Datasheet shows watts at STC; real output varies with sun and temperature.
String	Panels wired in series to raise voltage.	Stay inside the inverter’s MPPT voltage window and cold-voltage limit.
Array	All strings combined.	Array DC watts often exceed inverter AC watts.
Inverter	Converts DC from panels to AC for home or grid.	Match AC rating to main panel and service limits.
Hybrid inverter	Inverter with battery charging and control built in.	Check battery voltage range, charge current, and backup transfer speed.
MPPT	Feature that finds the voltage-current point with max panel power.	More than one MPPT input helps with mixed roof orientations.
ESS (energy storage system)	Battery, controls, and safety gear as a package.	Check usable kWh, peak kW, and round-trip efficiency.
BMS	Battery Management System that balances cells and prevents abuse.	Protects against over/under-voltage, over-current, and over-temperature.
LiFePO4	Lithium iron phosphate chemistry used in many home batteries.	Stable, long cycle life; typical round-trip efficiency ~90–95%.
SoC	State of charge, the “fuel gauge” of a battery.	50% SoC = half full. Use reserve for outage resilience.
DoD	Depth of discharge; how much of capacity you use.	80% DoD on a 10 kWh battery uses 8 kWh.
DC/AC ratio	Array DC kW divided by inverter AC kW.	1.1–1.4 is common; higher boosts shoulder-hours, may clip at noon.
Clipping	Lost panel power because the inverter is maxed out.	Small, planned clipping can be normal in a cost‑optimized design.
BOS	Balance of system: racking, wiring, switches, and all non‑module parts.	Often 30–50% of installed cost in small systems; check line items.
O&M	Operations and maintenance over the system life.	Includes cleaning, checks, firmware updates, and warranty service.
LCOE	Average cost per kWh over the life of the system.	Use for apples‑to‑apples cost comparisons across tech and sizes.
Capacity factor	Actual energy vs. max possible if it ran at full power all the time.	Varies by sun and system losses; used widely by EIA.

Notes: The IEA highlights the role of flexible inverters, storage, and smart controls as solar scales on the grid; see Integrating Solar and Wind and Getting Wind and Solar onto the Grid. LCOE and BOS appear as standard cost metrics in IRENA cost tracking and project comparisons.

Grid, policy, and operations acronyms

These terms show up in utility interconnection, project approvals, and grid studies. They matter for timing, export rules, and curtailment risk.

Term	Plain English	Why it matters
VRE	Variable renewable energy like solar and wind.	Output moves with weather; grids need flexibility. See Next Generation Wind and Solar Power.
RoCoF	Rate of change of frequency during grid events.	High RoCoF can trip inverters; settings must be grid‑compliant.
TSO	Transmission system operator.	Runs the high‑voltage grid; sets interconnection rules and studies.
SCADA	Supervisory Control and Data Acquisition.	Remote monitoring/control for plants; required at larger scales.
STATCOM	Static synchronous compensator.	Power‑electronics device that supports voltage and reactive power.
SYNCON	Synchronous condenser.	Spinning machine that adds inertia and voltage support.
SNSP	System non‑synchronous penetration.	Share of grid demand served by inverter‑based sources.
REZ	Renewable Energy Zone.	Planned areas for new solar/wind and transmission.
PPA	Power purchase agreement.	Contract to sell energy; price and term drive project finance.
FIT	Feed‑in tariff.	Fixed rate for exported energy; program details vary by region.
Net metering	Bill credit for exported power.	Credit rate affects payback; rules can change.
TOU tariff	Time‑of‑use pricing by hour/season.	Storage can shift energy to high‑price periods.

For grid integration phases, operational tools, and flexibility options, see the IEA’s Getting Wind and Solar onto the Grid. For scaling strategies and curtailment management, the IEA’s Next Generation Wind and Solar Power (Full Report) provides a thorough framework. Safety, net metering, and rooftop program basics are summarized by Energy.gov Solar Energy. Cost and policy trackers across regions can be found via IRENA.

Note: Policy and interconnection topics touch regulations and contracts. This is general information, not legal or investment advice.

Thermal solar terms: not the same as PV

Some reports discuss solar thermal electricity in addition to PV.

CSP (concentrating solar power) / STE (solar thermal electricity): Uses mirrors to make heat and then generate electricity, often with thermal storage for evening output. See the IEA’s Technology Roadmap - Concentrating Solar Power.
Troughs (cylindro‑parabolic reflectors): A common CSP collector type that focuses sunlight onto a tube to heat fluid.
STEII: An industry initiative focused on solar thermal electricity in Europe.

The IEA and its SolarPACES collaboration document technology pathways, project performance, and costs for CSP/STE. See Technology Roadmap - Concentrating Solar Power and the broader integration context in Integrating Solar and Wind.

Battery and inverter talk in practice

Plain usage tips

Round‑trip efficiency: Losses in charging + discharging. Lithium packs often show 90–95%. Plan headroom if you need firm backup power.
Peak power vs. energy: kW runs appliances; kWh sets duration. A 5 kW inverter with a 10 kWh battery can run a 3 kW load for about three hours.
Surge: Many inverters supply 2× short‑term surge. Check motor start needs (pumps, compressors) and confirm with the spec sheet.
Temperature: Cold lowers battery output; heat hurts life. Follow the BMS recommended range.

Small-site example

A cabin has a 4 kW PV array, a 3 kW hybrid inverter, and a 10 kWh LiFePO4 ESS. The DC/AC ratio is 1.33. Expect some midday clipping on bright days, but more energy in mornings and afternoons. With 90% round‑trip efficiency, about 9 kWh returns from a full cycle. Under a TOU tariff, shift charging toward mid‑day and discharge in peak hours to cut bills.

These behaviors align with flexibility tactics discussed in Integrating Solar and Wind and operations themes in Getting Wind and Solar onto the Grid.

Safety and code phrases you will hear

Rapid Shutdown (RSD): A rooftop safety feature that reduces voltage near the array during an emergency.
AFCI: Arc‑fault detection that trips on arc signatures to reduce fire risk.
GFDI/GFCI: Ground‑fault protection on DC or AC circuits.
Combiner box: Where strings land on fuses and merge into a home‑run cable.
Isolation switch / DC disconnect: A visible‑blade or listed switch for service and emergency work.

Safety terms and practices appear in many national codes and training materials. For high‑level primers and consumer guidance, see Energy.gov Solar Energy.

Fast sanity checks you can apply

Claim or item	Plain check	What to ask
DC/AC ratio is 1.35	Common. Expect some clipping, better shoulder energy.	How much annual clipping in kWh? Any MPPT mismatch risks?
10 kWh battery for backup	Usable is less than nameplate. Cycle efficiency costs ~5–10%.	Usable kWh at chosen DoD? Peak and surge kW?
Performance ratio (PR) is 85%	PR aggregates losses. Values vary with climate and design.	What losses drive PR: temperature, wiring, mismatch, soiling?
PPA at a fixed rate	Contract terms control value and risk.	Escalator? Curtailment? Metering method? Exit options?
“Grid friendly” inverter	Should support ride‑through and reactive power.	Compliant with local grid code? RoCoF and voltage settings?

The IEA shows that as VRE shares rise, grid codes evolve and flexibility needs grow; see Getting Wind and Solar onto the Grid and Next Generation Wind and Solar Power.

Why this matters to buyers and project teams

Clear terms save rework. Misreading DC vs. AC ratings can skew payback and fail interconnection rules.
Shared language speeds approvals. Grid acronyms map to study steps and data the TSO expects.
Better O&M outcomes. Knowing BMS alarms, PR drivers, and SCADA tags keeps uptime high.

IEA and IRENA publications use consistent language so projects across regions can compare designs and costs. See Integrating Solar and Wind and IRENA cost and policy resources for context.

Wrap-up

Solar jargon should help, not confuse. Use the tables above to translate acronyms into action, verify quotes, and ask sharper questions. Keep an eye on grid and policy terms, because they influence export limits, timing, and value as much as equipment specs. For technical depth, the IEA’s reports on PV, CSP/STE, and grid integration remain solid anchors: Technology Roadmap - Concentrating Solar Power, Getting Wind and Solar onto the Grid, and Integrating Solar and Wind.

FAQ

What is the quickest way to read a solar quote filled with acronyms?

First, separate DC (array) and AC (inverter, service). Check DC/AC ratio, MPPT count, and interconnection notes. Then check battery usable kWh, peak kW, and warranty terms.

Do I need to know grid acronyms for a home install?

Only the basics. Focus on export rules, metering type, TOU rates, and any rapid shutdown or combiner requirements. Your installer handles grid studies.

How does LCOE help me choose equipment?

LCOE turns capital, O&M, and energy into a single cost per kWh. It helps compare options over time. Still pair it with reliability and warranty details.

Is CSP/STE relevant to rooftops?

CSP/STE is utility‑scale and different from PV. It uses heat and often thermal storage. It helps grids supply evening power. See the IEA roadmap noted above.

Are the ranges above exact?

No. They are practical ranges based on field practice. Site conditions, codes, and products vary. Always check the current datasheet and local rules.
