Solar Monocrystalline vs Poly vs Thin-Film: Efficiency Tradeoffs

Choosing the right solar panels is a critical step toward achieving energy independence. The solar market offers a variety of panel types, each with distinct characteristics and efficiency levels. Understanding the differences between monocrystalline, polycrystalline, and thin-film solar panels helps you make an informed decision for your energy needs. Each type presents a unique balance of efficiency, cost, and versatility, impacting your overall energy system's performance.

Monocrystalline Solar Panels: High Efficiency, Premium Performance

Monocrystalline solar panels are easily recognizable by their uniform dark color and rounded edges. They derive their name from their manufacturing process, which involves growing a single, continuous crystal of pure silicon. This single-crystal structure allows electrons to flow more freely, resulting in higher efficiency and superior performance.

Characteristics and Efficiency

• Pure Silicon Structure: Monocrystalline panels are made from a single silicon crystal, ensuring a highly uniform structure.
• High Efficiency: These panels typically offer the highest efficiency among the three main types, often ranging from 15% to 22% for typical residential systems, with some advanced models reaching up to 24.1%.
• Space Efficiency: Due to their higher efficiency, monocrystalline panels generate more power per square foot. This makes them ideal for installations with limited roof space where maximizing power output from a smaller area is crucial.

Performance and Applications

Monocrystalline panels often perform well in low-light conditions and tend to have a lower degradation rate, with some as low as 0.3% annually. They are a popular choice for homeowners and commercial entities seeking to maximize energy production from a constrained footprint. Their durability and long lifespan, often backed by 25-year warranties, contribute to a reliable long-term energy solution.

Polycrystalline Solar Panels: Balanced Performance and Value

Polycrystalline solar panels, also known as multicrystalline panels, present a cost-effective alternative to monocrystalline panels. Their manufacturing process involves melting multiple silicon fragments together and then cutting them into wafers. This process is simpler and less energy-intensive than that for monocrystalline panels.

Characteristics and Efficiency

• Multiple Silicon Crystals: These panels are composed of multiple silicon crystals, giving them a speckled blue appearance.
• Moderate Efficiency: Polycrystalline panels generally have slightly lower efficiency rates compared to monocrystalline panels, typically falling within the 14% to 17% range. Some newer options can reach over 20% efficiency.
• Cost-Effectiveness: The simpler manufacturing process makes polycrystalline panels more affordable, offering a solid balance between performance and price.

Applications and Considerations

Polycrystalline solar panels are a common choice for larger installations where space is not a significant limitation and upfront cost is a primary concern. They remain a viable option for many residential and commercial projects, providing reliable energy generation. While their efficiency is lower, their economic advantage can make them an attractive investment, especially when integrated into a comprehensive energy system that includes efficient inverters and reliable energy storage solutions like LiFePO4 batteries.

Thin-Film Solar Panels: Versatility and Specialized Applications

Thin-film solar panels represent a distinct category, manufactured by layering thin sheets of photovoltaic material onto a substrate. Unlike crystalline silicon panels, thin-film panels can use various materials such as amorphous silicon (a-Si), cadmium telluride (CdTe), or copper indium gallium selenide (CIGS).

Characteristics and Efficiency

• Flexible and Lightweight: Thin-film panels are known for their flexibility and lighter weight, enabling unique installation possibilities.
• Lower Efficiency: Generally, thin-film panels have the lowest efficiency, typically ranging from 7% to 15%. However, specific types like CdTe have reached 22.1% cell efficiency in laboratory settings, and CIGS panels have shown efficiencies up to 22.4% in lab tests.
• Performance in Diffuse Light and High Temperatures: Thin-film panels can perform well in diffuse light conditions and often have a better temperature coefficient, meaning their efficiency degrades less in high temperatures compared to crystalline silicon panels.

Applications and Unique Advantages

Thin-film panels are particularly suited for specialized applications where flexibility, aesthetics, or weight are important. This includes building-integrated photovoltaics (BIPV), curved surfaces, or portable solar solutions. Their lower material usage during manufacturing can also contribute to lower production costs.

Efficiency Tradeoffs and Practical Considerations

Selecting the optimal solar panel type involves weighing various tradeoffs beyond just peak efficiency. Your specific situation, including available space, budget, climate, and energy goals, will guide your decision.

Key Comparison Factors

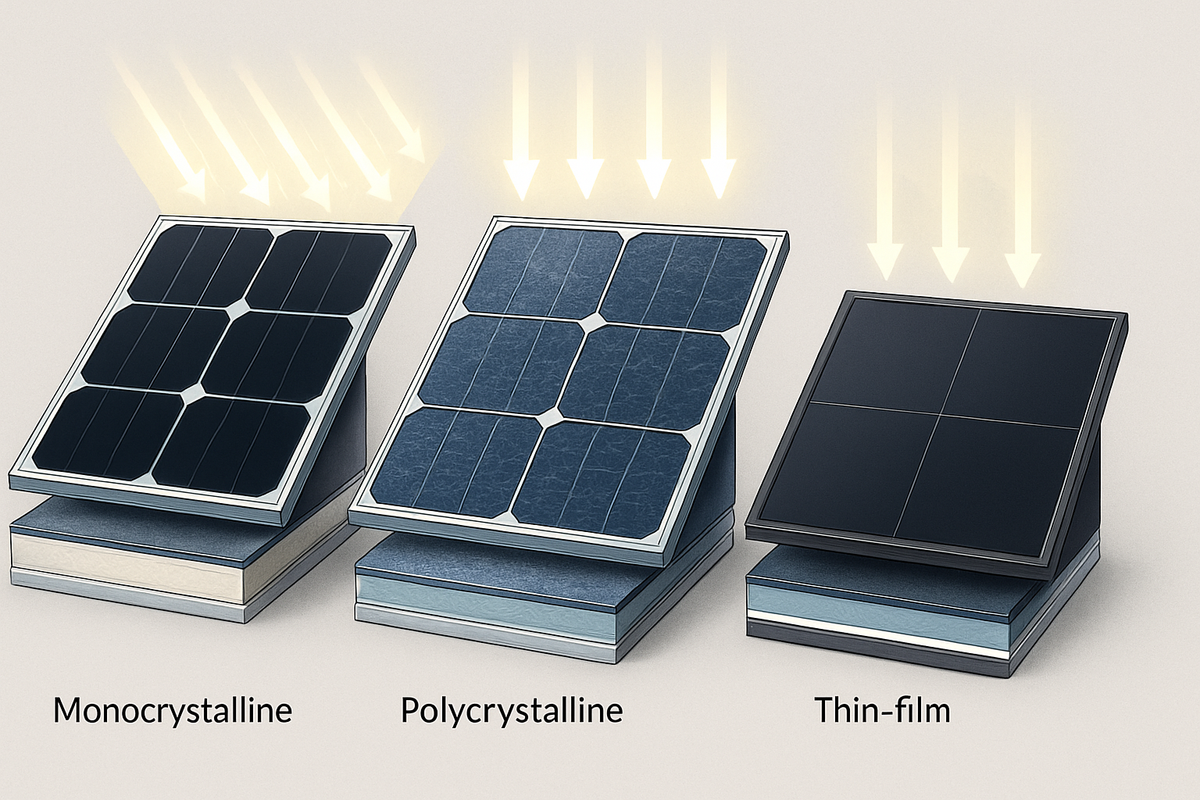

The table below summarizes the key differences and tradeoffs between monocrystalline, polycrystalline, and thin-film solar panels:

Maximizing Your Energy System

Beyond the panel type, the overall system design significantly impacts your energy production. Integrating high-quality solar inverters, which convert the direct current (DC) electricity from your panels into alternating current (AC) for your home, is crucial for efficiency. Furthermore, pairing your solar panels with a robust energy storage system, such as a home energy storage system featuring reliable LiFePO4 batteries, allows you to capture and store excess solar energy. This stored energy becomes available during periods of low sunlight or high demand, significantly enhancing your energy independence and system resilience.

Toward Energy Independence

The decision between monocrystalline, polycrystalline, and thin-film solar panels depends on balancing efficiency, budget, and specific site conditions. While monocrystalline panels lead in efficiency and space utilization, polycrystalline panels offer a compelling cost-to-performance ratio, and thin-film panels provide unique flexibility for niche applications. Regardless of the panel type you choose, a well-designed solar energy system, complete with efficient solar inverters and advanced LiFePO4 energy storage, empowers you to generate and manage your own power reliably. This holistic approach ensures you achieve greater energy independence and enjoy a stable, sustainable energy supply for your home or business.
