Why STC, NOCT, and BOS matter
Spec sheets list power at Standard Test Conditions (STC). Rooftops and fields run closer to Nominal Operating Cell Temperature (NOCT). The rest of the system—racking, wiring, inverters, and more—is the Balance of System (BOS). These three terms anchor solar power terminology and shape real output and costs.
Agencies treat them as core vocabulary. The U.S. DOE solar energy page uses standard electrical units and test conventions to describe PV performance. The IEA Technology Roadmap - Solar Photovoltaic Energy 2010 references STC and common PV metrics used in lab and field analysis. The EIA tracks installed capacity and generation using consistent units (kW, MW, kWh, MWh). The IRENA knowledge base highlights non-module cost and performance levers, which are BOS topics.

Standard Test Conditions (STC)
What STC sets

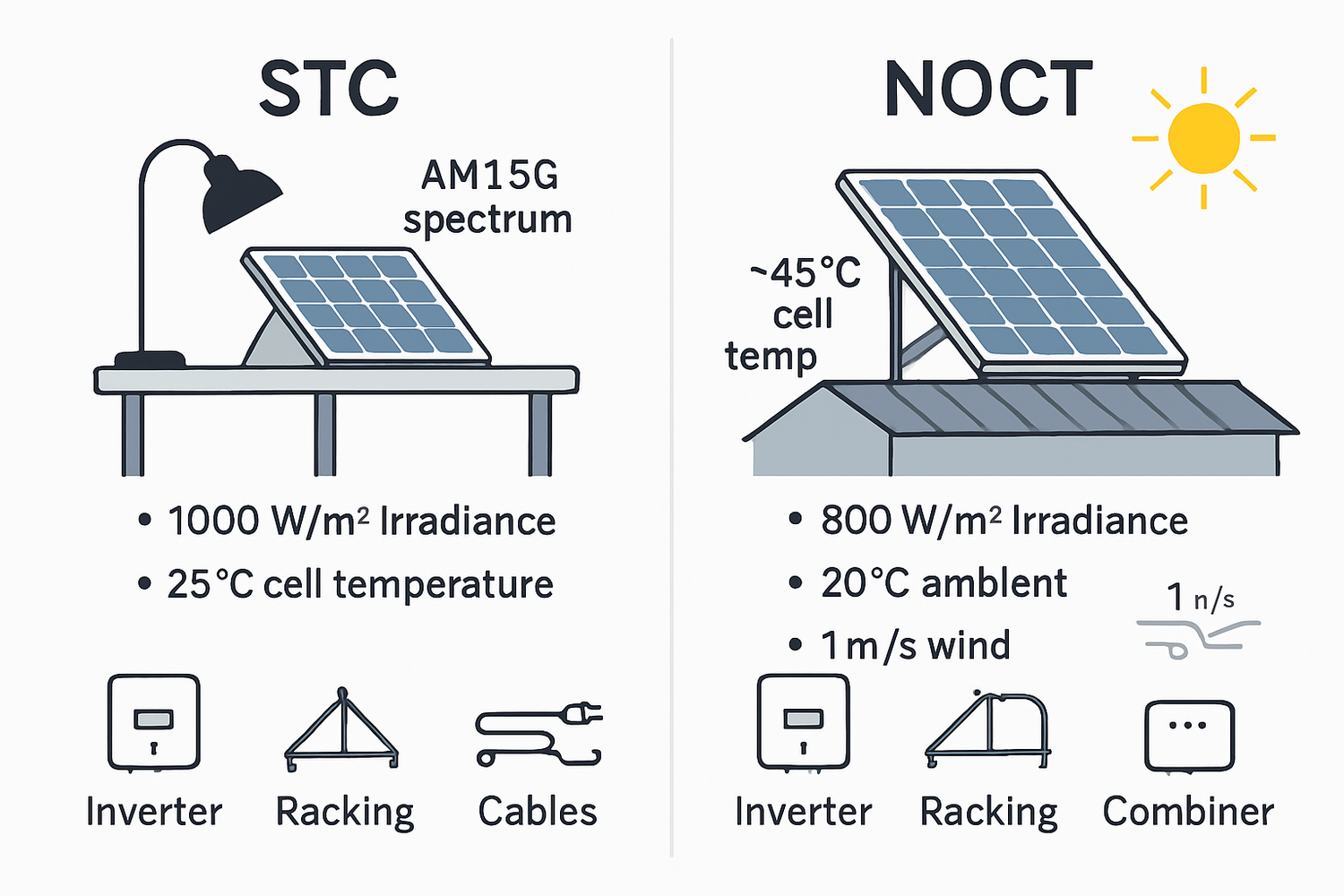

STC creates a repeatable lab point for module ratings. It fixes three items: irradiance, spectrum, and cell temperature. Manufacturers use it to state nameplate watts. Engineers use it as a baseline for sizing.
| Parameter | STC Value | Notes |
|---|---|---|
| Irradiance | 1000 W/m² | Uniform plane-of-array irradiance |
| Spectrum | AM1.5G | Represents mid-latitude sun spectrum |
| Cell Temperature | 25°C | Internal cell temperature, not ambient |
As discussed in the IEA Technology Roadmap - Solar Photovoltaic Energy 2010, consistent rating points like STC enable fair comparisons across PV technologies and vintages.
How to use STC data
- Start with the STC power (P_STC) on the nameplate.
- Adjust for irradiance and temperature to estimate field power.
- Apply BOS losses and availability to reach AC output.
Temperature correction is straightforward. Most silicon modules specify a power temperature coefficient γ (gamma), typically around −0.34% to −0.45% per °C. A quick estimate for power at cell temperature T_cell and irradiance G is:
P ≈ P_STC × (G / 1000) ×
This simple relation aligns with engineering practice found across agency technical material, including PV analysis primers referenced by DOE.
NOCT: the bridge to field reality
Definition and typical values
NOCT (also seen as NMOT in newer datasheets) reflects the typical cell temperature a module reaches outdoors under partial sun and light wind on an open rack.
| Parameter | NOCT Test Condition | Typical Result |
|---|---|---|
| Irradiance | 800 W/m² | — |
| Ambient Temperature | 20°C | — |
| Wind Speed | 1 m/s | — |
| Mounting | Open rack, rear ventilated | — |
| Cell Temperature | Measured outcome | ~42–48°C for many crystalline modules |
Why it matters: temperature pushes power down as cells heat up. Field output tracks actual cell temperature, not just ambient. The IEA report “Integrating Solar and Wind” (2024) stresses that realistic yield assessment needs on-site operating conditions, which include temperature and irradiance profiles.
Estimating cell temperature from NOCT
Use a linear model tied to the NOCT point:
T_cell ≈ T_amb + (NOCT − 20°C) × (G / 800 W/m²)
Example: If NOCT = 45°C, ambient T_amb = 30°C, and irradiance G = 800 W/m², then T_cell ≈ 30 + (45 − 20) × (800/800) = 55°C.
From STC watts to field watts
Example module: 400 W (STC), γ = −0.35%/°C, NOCT = 45°C, G = 800 W/m², T_amb = 30°C. First find T_cell ≈ 55°C. Then:
- Irradiance factor: 800/1000 = 0.80
- Temperature factor: 1 + (−0.0035) × (55 − 25) = 1 − 0.105 = 0.895
- Estimated DC power: 400 × 0.80 × 0.895 ≈ 286 W
This aligns with field experience where midday output at moderate irradiance and warm temperatures sits well below STC. The need for realistic field assumptions is echoed in the IEA Medium-Term Renewable Energy Market Report 2016, which highlights performance and deployment sensitivities.
BOS: Balance of System
What BOS includes
BOS covers everything except PV modules: design labor, racking, fasteners, wiring, conduit, junction boxes, combiner boxes, fuses, surge protection, inverters, monitoring, networking, meters, and often site works (trenching, foundations, permitting).
Public sources note that non-module items shape both CAPEX and energy yield. The IRENA library and IEA “Transforming Global Markets for Clean Energy Products” discuss how product standards, test methods, and market practices affect efficiency and cost—topics that map to BOS choices and quality control.
Typical efficiency and loss ranges
| Category | Typical Range | Notes |
|---|---|---|
| Module temperature loss (vs 25°C) | 0–20% | Site and season dependent; driven by γ |
| Soiling | 1–5% | Arid or dusty sites can exceed 5% |
| Mismatch | 1–2% | String/row variations |
| DC wiring | 1–3% | Long runs, gauge, connectors |
| Inverter efficiency | 96–99% | Partial-load behavior matters |
| Transformer | 0.5–1.5% loss | Utility-scale coupling |
| Availability | 97–99% | O&M quality and hardware reliability |
The balance between DC nameplate and AC output also depends on the inverter-loading ratio (ILR). System design trade-offs like ILR feature in the IEA’s 2024 integration report. Cost and performance tracking, reported by the EIA and IRENA, further show that BOS choices often drive local outcomes.
Quick ways to cut BOS losses
- Shorten DC runs; upsize cable where voltage drop exceeds 2% on hot days.
- Use string layouts that limit mismatch (similar tilt, shading, and orientation).
- Select inverters with high CEC or Euro efficiency around your expected loading.
- Keep connectors consistent and properly crimped; avoid mixed metallurgy.
- Plan cleaning for high-soiling sites; weigh water and labor costs.
Data-backed mini case: 4 kW rooftop
Array: 10 modules × 400 W = 4.0 kW STC. γ = −0.35%/°C. NOCT = 45°C. Mid-afternoon conditions: G = 800 W/m², ambient = 30°C.
- Cell temperature: T_cell ≈ 30 + (45 − 20) × (800/800) = 55°C
- Irradiance factor: 0.80
- Temperature factor: 1 − 0.0035 × (55 − 25) = 0.895
- DC power: 4.0 kW × 0.80 × 0.895 ≈ 2.864 kW
- Apply losses: soiling 3%, mismatch 2%, DC wiring 2% → DC subtotal factor ≈ 0.93
- Inverter efficiency: 97% → AC factor 0.97
- Estimated AC output: 2.864 × 0.93 × 0.97 ≈ 2.59 kW
This is a realistic snapshot rather than a ceiling. Cooler days or higher irradiance raise output; heat or heavy soiling lower it. The need for condition-aware modeling is consistent with guidance seen across DOE and IEA materials.
Spec sheet checklist
- Confirm both STC and NOCT (or NMOT) appear, with γ, Voc, Isc, and temperature coefficients for V and I.
- Note NOCT test mounting (open rack) vs your mounting (flush roof runs hotter).
- Log inverter efficiency at expected loading; check nighttime tare consumption.
- Plan cable gauge with worst-case heat; verify conductor temperature ratings and derates.
- Account for local codes and permitting timelines in the BOS plan.
Notes from agencies
- According to the IEA PV Roadmap (2010), consistent rating conventions (kW, kWh, STC) are a foundation for fair performance comparisons.
- The IEA Medium-Term Renewable Energy Market Report 2016 underscores the role of performance factors and non-hardware elements in deployment—core BOS themes.
- The IEA report on clean energy products details how test methods and efficiency standards shape product qualification and market outcomes.
- The IEA Integrating Solar and Wind (2024) report highlights the value of realistic operating assumptions and inverter loading choices on overall yield.
- The DOE, EIA, and IRENA provide neutral references for units, costs, and trends used in project planning.
Key takeaways
- STC gives a clean lab rating. It is not a field guarantee.
- NOCT translates weather into cell temperature. Use it to adjust STC watts.
- BOS design decides how much DC becomes AC. It also drives a big share of cost.
- Write the math down. Measure on site. Compare results over seasons.
Aligning design math with local data helps you target the right inverter-loading ratio, cable sizes, and cleaning plans. That reduces surprises and improves delivered kWh.
Compliance and notes
Follow local electrical codes and safety standards. Use certified equipment and qualified installers. Agency references, such as the DOE solar energy hub and IEA PV roadmap, provide neutral definitions and context.
Disclaimer: Technical content here is for planning and education. It is not legal, tax, or investment advice.
FAQ
What is the short difference between STC and NOCT?
STC sets a lab point: 1000 W/m², AM1.5G, 25°C cell. NOCT reflects typical outdoor conditions: 800 W/m², 20°C ambient, 1 m/s wind, open rack, and a resulting cell temperature around the mid-40s °C.
Is NOCT the same as NMOT?
Datasheets often use NMOT (Nominal Module Operating Temperature). Methods and values are very close. Check the exact test method and stated temperature on the spec sheet.
Does higher STC wattage always produce higher energy?
Not always. Heat, irradiance, shading, and BOS losses change the result. Two systems with the same STC kW can deliver different AC kWh across a year due to design and site conditions.
How do I estimate AC kW quickly?
Start with STC kW. Adjust by G/1000 and temperature using γ and T_cell from NOCT. Then multiply by BOS factors (soiling, wiring, inverter efficiency). Cross-check with a data logger after commissioning.
Where can I find neutral references for units and ratings?
See the DOE solar energy hub, the EIA for standard units and statistics, and the IEA PV roadmap for rating conventions. The IRENA library covers costs and deployment insights.
