Roadmap to UL 969-Compliant PV Labels that Last 10+ Years

Long-lasting labels are safety gear. If a PV label fades, peels, or smears, crews can misread voltages or isolation points. That risks equipment, uptime, and people. This roadmap shows how to build UL 969-compliant PV labels that hold up for a decade or more, from material stacks to test plans and field controls.

Why UL 969 matters for PV durability

UL 969 sets performance requirements for marking and labeling systems, including adhesion, legibility, defacement resistance, and endurance after environmental conditioning. For PV, labels live on rooftops, carports, trackers, and ESS cabinets. They face UV, heat, cold, moisture, and cleaning agents. Meeting the standard is the minimum. Designing for real sites is the leap from compliance to long service life.

Scale amplifies the impact. As PV manufacturing and deployment grow, small reliability gaps create large maintenance costs. Recent analysis notes rapid increases in solar manufacturing investment across major supply-chain steps, with concentrated activity in key regions, which lifts the need for robust downstream practices like permanent labeling. See the IEA’s Advancing Clean Technology Manufacturing.

Permitting and late-stage changes can drag projects. Clear, durable labeling helps reduce back-and-forth during field checks, limiting rework. The IEA’s energy investment review points to permitting bottlenecks as a practical obstacle for renewable projects; better site readiness eases that pressure (IEA Energy Investment 2023).

PV and storage adoption trends add more assets in harsher placements. The U.S. Solar Futures study projects steep growth in distributed and utility PV alongside storage, which increases the count of outdoor-labeled enclosures and conductors (U.S. Solar Futures Study). EIA’s primer on PV also shows typical PV system components and exposure points where labels must last (EIA PV overview).

Material stack that survives 10+ years

UL 969-compliant systems are qualified as a stack: facestock, ink system, overlaminate (optional), and adhesive. Your PV label must match the substrate (powder-coated aluminum, painted steel, polycarbonate housings), climate, and cleaning routine.

Facestock selection

• Polyester (PET): Good dimensional stability, decent UV resistance, wide UL recognition. With a UV overlaminate, it can serve outdoors for many years.
• Cast vinyl: Flexible for curved conduits. With UV-stable pigments and overlaminate, it handles outdoor exposure well.
• Polycarbonate (PC): Strong and clear but less UV stable outdoors unless hard-coated; more common as an overlay window than an exposed label.
• Anodized aluminum nameplate: Excellent outdoor permanence and abrasion resistance. Useful for high-heat zones and harsh wash-down, though not a traditional pressure-sensitive label.
• Polyimide: Excellent high-temperature resistance; typically indoor or under-hood; requires UV protection if used outside.

Adhesive and substrate readiness

• Adhesive: High-performance acrylic adhesives bond to powder coat and painted metals. Target an adhesive temperature range spanning project extremes (e.g., -40 to 120°C service).
• Surface energy: Powder coats vary. Clean with isopropyl alcohol and a lint-free wipe. Avoid silicone residues. For low-energy plastics, use a primer tested within the UL 969 system.
• Profile and fasteners: On textured powder coat, thicker adhesive calipers improve wet-out. For very rough or hot surfaces, use mechanical retention (riveted aluminum plate) where allowed.

Print and overlaminate

• Print: Resin thermal transfer, UV-curable inkjet, or two-part screen inks. Resin ribbons on PET are a proven combination. Avoid dye-based inks outdoors.
• Overlaminate: UV-stable, abrasion-resistant film (acrylic or fluoropolymer) to shield text and color codes. Edge sealing increases longevity on high-pressure wash paths.

Field life depends on climate and placement. Label the sun side of an inverter door only if you can add shade or a UV overlaminate; otherwise place on the inner door or sidewall while staying visible.

Test plan that predicts field life (UL 969 + extras)

UL 969 includes adhesion, legibility, defacement resistance, and environmental conditioning. Build on that with PV-relevant extras to model real sites. Keep a matrix that ties each risk to a test and an acceptance limit.

For storage-integrated PV, label temperature ratings should exceed enclosure hot spots. Battery cabinets often run warm during cycling. A practical reference that catalogs storage performance parameters can help size margins; see this neutral overview of storage performance ranges (solar storage performance reference).

Artwork and content choices that prevent failures

• Contrast first: Black on yellow or white yields high readability. Aim for minimum 70% contrast ratio for small text.
• Font and size: Sans-serif fonts. For safety-critical text on equipment, target ≥ 4 mm cap height; for distance reads, size up based on viewing distance.
• Color codes: Align with NEC conventions for DC hazard, rapid shutdown, and arc-flash placards. Keep a single palette to avoid supplier drift.
• Symbols and data: Add standardized symbols plus PV voltage/current ratings, hazard statements, and date/lot. Include a QR code that links to label specifications and as-builts; print the QR in resin and verify with a verifier (grade B or better).
• Surface geometry: Avoid locations with rivet heads or deep texture. Round label corners (≥ 3 mm radius) to reduce peel starts.

Field installation and QA

Application checklist

• Surface prep: Clean with IPA and a lint-free wipe. Dry fully. Do not touch the bonding face.
• Temperature: Apply within the adhesive’s recommended range (often 15–38°C). Use a roller and firm pressure to reach bond. Allow 24–72 hours for full wet-out.

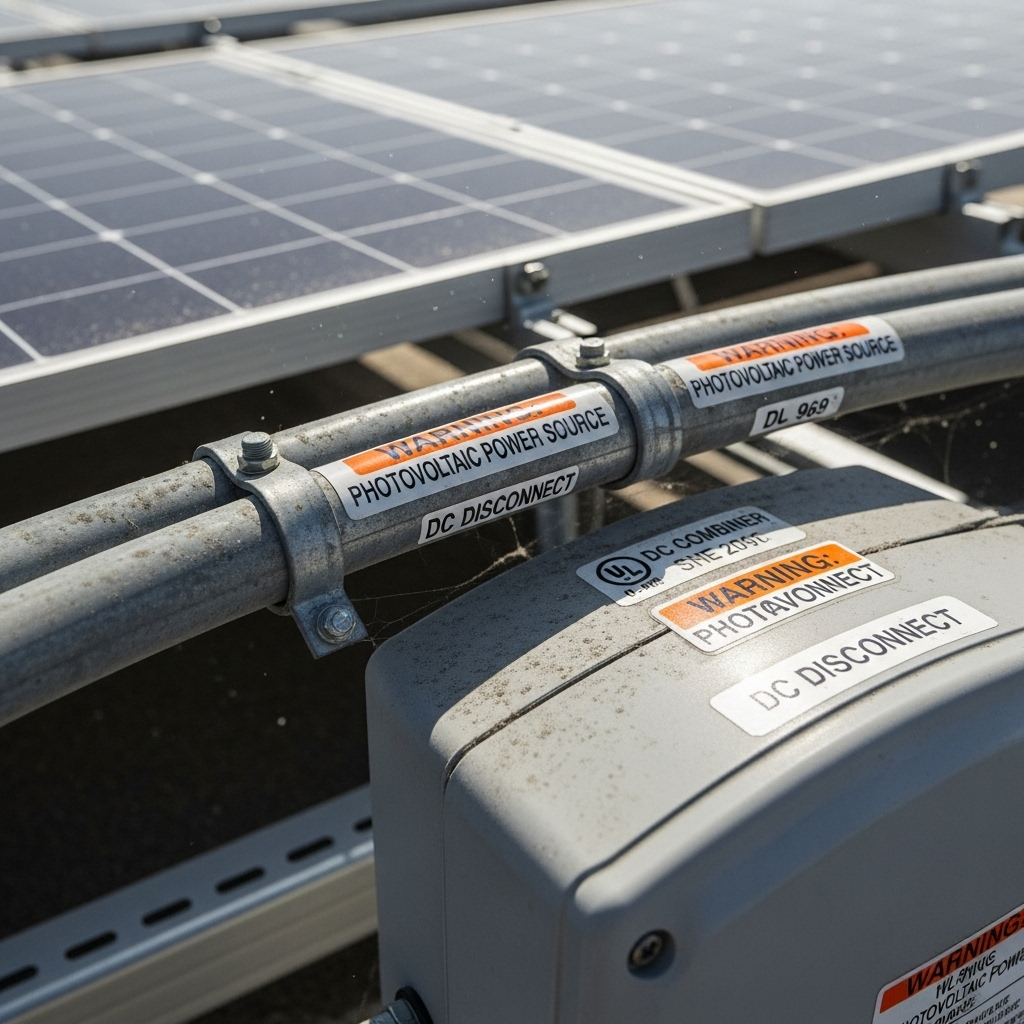

• Placement: Shield from direct spray of pressure washers and from ponding water. On conduits, use flexible film and align along the axis, not around tight bends.
• Edge sealing: For high-wash zones, use a compatible edge-sealant or a full overlaminate that extends beyond the printed area.

Process controls

• Supplier control: Use a UL 969-recognized system with documented components and print method.
• Lot traceability: Print lot/date. Keep retain samples per project for 10 years.
• On-site QC: Peel test a sacrificial label during hot and cold days. Photo-log all labels after installation.

Mini case example

A 2 MW rooftop system in a hot-dry climate saw early peeling on textured, light-colored powder coat. Root cause: thin adhesive and application at 8°C. Fix: switched to a thicker acrylic adhesive PET system with UV overlaminate, raised application temperature to 20°C, added roller pressure, and rounded corners. Adhesion checks after 1,000 hours of UV exposure and 240 hours of damp heat kept peel retention above 80%, and QR codes graded A. Re-inspections cleared with no label punch-list items.

Durability data and context from credible sources

• Large deployments require consistent field specs; scale magnifies small defects. Manufacturing investment trends underscore the need for robust downstream practices (IEA manufacturing report).
• Permitting queues place pressure on site readiness. Durable, code-aligned labels reduce questions during inspections (IEA energy investment).
• PV growth scenarios shift operations and maintenance needs; storage and PV co-deployment increases the labeled asset count (U.S. Solar Futures).
• Long-term cost declines in solar came with rising attention to O&M quality; persistent identification aids safe O&M (IRENA costs 2020).
• PV system elements and exposure points where labels sit are summarized by EIA’s PV primer (EIA PV explained).
• Earlier technical roadmaps stressed the need for system-level reliability measures as deployment rises; durable labeling is part of that toolbox (IEA solar PV roadmap 2010).

Cost and ROI of long-lasting labels

Label failures rarely happen all at once. They show up as scattered punch-list items that consume site time. A simple model helps justify a better stack.

The delta grows on larger fleets. Savings also come from fewer safety holds and faster onboarding of O&M crews who rely on clear, consistent placards.

Step-by-step roadmap

1. Define environments: UV index, temperature range, salt exposure, wash routines, substrate types for each label location.
2. Pick a UL 969-recognized system: Match facestock, ink, overlaminate, and adhesive to the site risks.
3. Prototype and test: Run UL 969 core tests plus UV weathering, salt, low-temp flex, and abrasion. Validate QR readability.
4. Lock artwork: Standardize colors, fonts, sizes, and symbol sets. Freeze a master library with change control.
5. Control installation: Train crews, control application temperature, use rollers, and photo-log placements.
6. Audit and improve: Inspect at 6 and 12 months, then annually. Track failures by root cause; update specs, not just vendors.

Notes for PV+Storage sites

ESS cabinets and battery rooms add heat and chemicals to the mix. LiFePO4 systems, common in home and C&I storage, run cooler than some chemistries yet still create hot spots near power electronics. Align label temperature ratings with these zones. An independent overview of storage performance ranges helps set margins on label temperature and cleaning resistance; see this storage performance reference.

Wrap-up

UL 969 sets the foundation. Long life needs the right material stack, realistic testing, clean artwork, and disciplined installation. Do that, and your PV labels will stay readable, bonded, and compliant for a decade or more, cutting rework while keeping people safe.

Disclaimer: Non-legal advice. Labeling requirements vary by jurisdiction and code cycle. Confirm with your AHJ and safety professionals.

FAQ

What is the fastest way to validate a label system for a rooftop PV site?

Start with a UL 969-recognized PET or cast-vinyl system that includes a UV overlaminate and acrylic adhesive. Run a small site pilot with adhesion checks after hot sun, overnight cold, and a solvent rub. Lock the spec only after this pilot.

How to ensure PV label durability in high-UV climates?

Use UV-stable inks (resin or UV-curable), a UV overlaminate, rounded corners, and shaded placement where allowed. Add UV weathering in your test plan and verify color shift and legibility, not just adhesion.

Do QR codes survive long-term?

Yes, if printed with resin on durable films and protected by a UV overlaminate. Verify with a barcode grader. Keep a short URL fallback in human-readable text.

Are metal nameplates always better?

They excel in heat and abrasion but cost more and require mechanical fastening. For many PV locations, a UL 969 PET stack with a UV overlaminate meets durability goals at lower cost.

What about coastal arrays?

Add salt-mist exposure to your test plan and prefer aluminum plates or PET stacks with corrosion-resistant adhesives. Avoid placements with trapped spray or standing water.
