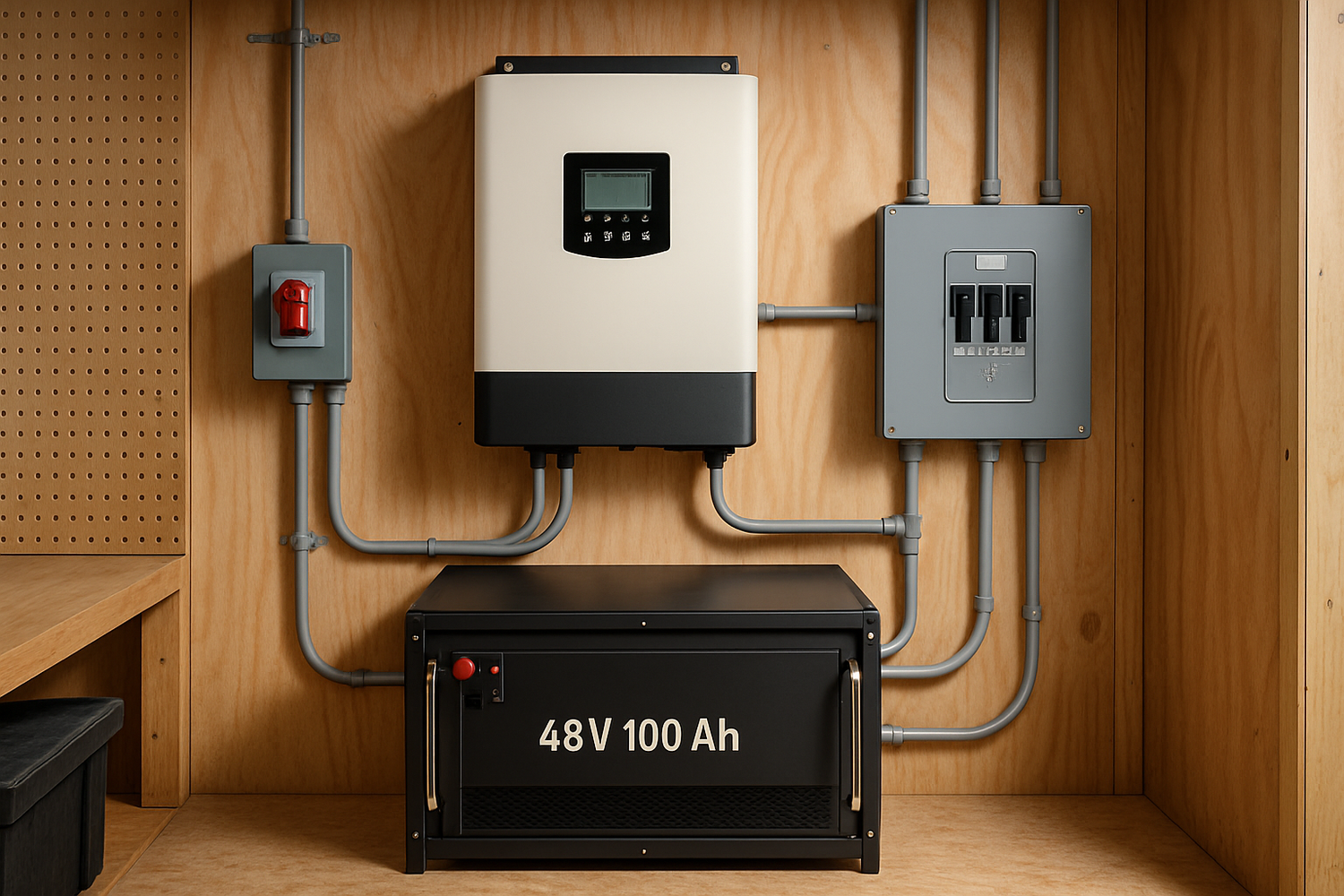

Case Study: Installing a 48V LiFePO4 Off-Grid System

Achieving energy independence is a primary goal for many homeowners, farmers, and cabin dwellers. An off-grid solar system provides a reliable path to that goal. At the heart of a modern, efficient system is the battery bank. This case study details the process of planning and installing a robust 48V LiFePO4 off-grid solar system, focusing on the practical steps and technical considerations involved.

Project Planning and Component Selection

A successful off-grid system begins with meticulous planning. Before purchasing any equipment, it's crucial to understand your energy consumption and select components that work together seamlessly. This planning phase ensures the system meets your power demands reliably and safely.

Calculating Your Energy Needs

The first step is to conduct an energy audit. This involves listing all the electrical appliances you intend to power, their wattage, and the estimated hours of use per day. This calculation determines your daily energy consumption in watt-hours (Wh). For this project, a remote workshop, the primary loads included LED lighting, power tools, a small refrigerator, and charging stations for electronics. The total estimated daily consumption was approximately 5,000 Wh.

Choosing the Right Components

With a clear energy target, the next step is component selection. A 48V architecture was chosen over 12V or 24V systems for its higher efficiency and lower wiring costs. Higher voltage systems experience less energy loss over the same distance because they operate at a lower current for the same amount of power.

• Solar Panels: A 2000W solar array, consisting of five 400W monocrystalline panels, was selected. Monocrystalline panels generally offer higher efficiency and better performance in less-than-ideal light conditions compared to polycrystalline types.
• 48V LiFePO4 Battery Bank: A 100Ah 48V LiFePO4 battery was the core of the storage system. Lithium Iron Phosphate (LiFePO4) chemistry is superior to traditional lead-acid batteries due to its long cycle life (often exceeding 4000-6000 cycles), high depth of discharge (DoD) of 80-90%, and inherent safety. The integrated Battery Management System (BMS) protects against overcharging, over-discharging, and short circuits.
• Solar Charge Controller: An 80A MPPT (Maximum Power Point Tracking) charge controller was chosen. MPPT controllers are more efficient than PWM (Pulse Width Modulation) controllers because they can convert the higher voltage from the solar panels down to the battery's charging voltage, capturing more power from the array.
• Inverter: A 5000W 48V pure sine wave inverter was selected to handle the workshop's power tools' high startup surge and provide clean power for sensitive electronics. Most high-capacity inverters are optimized for 48V systems.

System Sizing Summary

The Installation Process: A Step-by-Step Breakdown

Proper installation is critical for both safety and system performance. This involves physically mounting the hardware and correctly wiring all the components. Adhering to electrical codes and safety standards is paramount.

Mounting and Wiring

The solar panels were mounted on the workshop's south-facing roof for maximum sun exposure. According to U.S. Occupational Safety and Health Administration (OSHA) guidelines, proper fall protection was used throughout the roof installation process. All roof penetrations were sealed to prevent water ingress. Inside, the inverter, charge controller, and battery were installed in a dry, well-ventilated utility closet. The wiring followed a specific order: panels to the charge controller, charge controller to the battery, and finally, the battery to the inverter. Appropriate wire gauges were used to handle the current, and circuit breakers were installed at key points for overcurrent protection.

Adherence to Safety Codes

Following the National Electrical Code (NEC) is crucial for a safe and compliant installation. This includes proper equipment grounding to prevent electrical shock and bonding of all metallic components. Before the system was activated, all connections were double-checked for correct polarity and tightness. Local permits were obtained, and the final installation was inspected to ensure it met all safety requirements.

System Commissioning and Performance

With the installation complete, the system was ready for its initial power-up. Commissioning involves a careful, sequential startup to verify that all components are functioning correctly. Ongoing monitoring is key to optimizing performance and ensuring longevity.

Initial Power-Up and Checks

The startup sequence began with the circuit breaker between the charge controller and the battery bank, allowing the controller to recognize the battery voltage. Next, the breaker from the solar panels was switched on, and the controller immediately began charging the battery. Finally, the inverter was powered on. Voltage readings were checked at each stage to confirm they were within the expected ranges. The system performed as designed, smoothly converting solar energy into usable AC power for the workshop.

Monitoring and Performance Metrics

The system's performance is continuously tracked via the inverter's monitoring interface. Key metrics include daily solar yield, battery state of charge (SoC), and load consumption. As detailed in the ultimate reference for solar storage performance, a significant advantage of LiFePO4 technology is its high round-trip efficiency and the ability to consistently use a high depth of discharge without harming the battery's lifespan. This allows for more usable energy from the same rated capacity compared to older battery technologies.

Achieving True Energy Independence

This case study demonstrates that a well-planned 48V LiFePO4 off-grid system offers a reliable and efficient solution for energy independence. The combination of high-efficiency components and the superior performance of LiFePO4 batteries creates a durable, low-maintenance power system. The initial investment is offset by long-term energy savings and freedom from the grid. The International Renewable Energy Agency (IRENA) notes that the declining costs of solar PV and battery storage make such systems increasingly accessible and economically viable.

Disclaimer: This article details a specific installation and is for informational purposes only. It is not a substitute for professional electrical advice. All electrical work should be performed by a qualified professional in compliance with local codes and regulations.

Frequently Asked Questions

Why choose a 48V system over a 12V system?

A 48V system is significantly more efficient for larger loads. Power loss is proportional to the square of the current (Amps). Since a 48V system draws one-fourth of the current of a 12V system for the same power output, energy loss in wiring is drastically reduced. This also allows for the use of thinner, less expensive copper wires.

How long will a LiFePO4 battery last?

LiFePO4 batteries are known for their exceptional longevity. They can typically deliver between 3,000 and 6,000 charge-discharge cycles, and sometimes more, before their capacity degrades to 80% of the original. For a typical off-grid application, this translates to a lifespan of 10 to 15 years or longer, far surpassing the 3-5 year lifespan of most lead-acid batteries.

Can this off-grid solar system be expanded later?

Yes, one of the advantages of this system design is its scalability. To increase power generation, more solar panels can be added, though this might require a larger charge controller. To increase energy storage, additional 48V LiFePO4 batteries can be wired in parallel to the existing bank, providing more autonomy and supporting higher energy demands.
