7 Costly Marine Solar Mistakes That Drain Your Battery Bank

Boat solar can run your fridge, autopilot, pumps, and lights day after day. Yet small errors in design or setup can siphon energy and wear down batteries. This piece pinpoints seven frequent marine solar mistakes and shows how to avoid them. You will improve charging efficiency, protect your battery bank, and sail longer on clean power.

Large energy reports show steady growth in solar and storage as costs improve and investors back robust deployment. See the IEA 2023 energy investment report for context. The U.S. Department of Energy Solar Energy pages also cover core PV behavior and best practices. These trends filter down to small systems on boats, where smart design choices make a big difference.

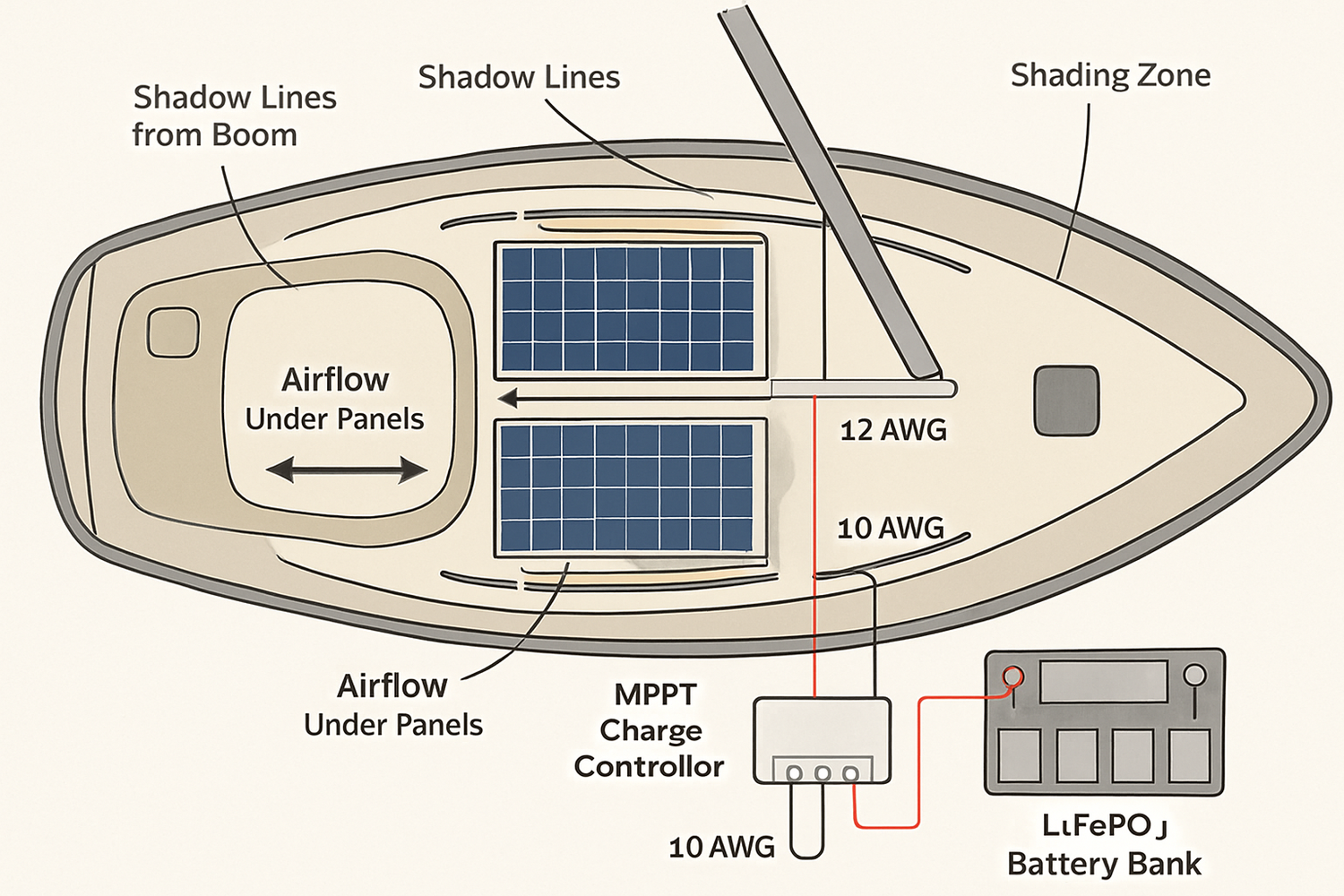

Mistake 1: Mounting panels where they see shade most of the day

Rigging, radar posts, booms, and arches cast moving shadows. Even small shade on a few cells can trigger bypass diodes and slash output. The result is weak charging and a slow battery decline. The U.S. Department of Energy notes that partial shading causes disproportionate power loss because series strings act like the weakest link.

What to do

• Map shadow paths at anchor and under way. Use phone photos each hour to spot recurring shade.
• Prefer multiple smaller panels over a single large one. Wire in parallel with fusing to limit shade impact.
• Place panels above the boom arc and away from backstay lines. Keep a small air gap for cooling.
• Use an MPPT controller with per-string input (or separate controllers) to isolate shade effects.

Numbers that matter

Light shade on about a fifth of a module can cut power by roughly a third. Heavy shade on a substring can reduce power far more. Actual loss depends on cell layout and bypass diode placement. Plan for shade; design parallel strings to reduce the penalty.

Mistake 2: Undersizing cables and ignoring voltage drop

On 12 V and 24 V systems, voltage drop is the hidden enemy. Long runs at modest current can waste tens of watts as heat. Keep charge-circuit drop under 3% whenever possible. This protects MPPT headroom and raises daily harvest.

Quick sizing rule

Use short runs, marine‑grade tinned copper, and generous wire gauge. Fuse both ends appropriately. The table below shows typical drops for a 12 V array at 10 A over a 10 m round‑trip (approximate). Values use standard DC resistance data and illustrate trends, not final design values.

For many boats, AWG 10 or AWG 8 on the array-to-controller run works well. Always check ampacity, insulation ratings, and derating for temperature. Follow marine electrical standards and local regulations. Non-legal advice.

Mistake 3: Using a PWM controller or the wrong MPPT settings

PWM ties panel voltage to battery voltage. That throws away headroom and harvest. MPPT tracks the power point and converts extra voltage into current. In typical conditions, MPPT can deliver 10–30% more energy than PWM. The U.S. Department of Energy describes how MPPT extracts more energy from PV modules across temperature and irradiance changes.

Set the right charge profile

• AGM/gel: Use temperature-compensated absorption and float.
• LiFePO4: Limit absorption time, set a lower or no float, and respect BMS limits. Many LiFePO4 BMS units block charging below ~0 °C to protect cells.
• Enable low‑temperature cut‑off and current limits where supported.

How much energy is at stake?

Real gains vary with temperature, wiring, and shading. As panel temperatures rise, Vmp drops, so MPPT headroom shrinks, but it still regulates better than PWM.

Mistake 4: Mismatching battery chemistry and charge targets

Lead‑acid dislikes chronic partial state of charge. It sulfates and loses capacity. LiFePO4 prefers shallow cycles and has higher usable capacity and longer cycle life. Many cruisers move to LiFePO4 for safety, stable voltage, and weight savings. The IRENA 2025 healthcare electrification brief highlights how lithium storage improves system performance and how depth of discharge (DoD) choices drive sizing. On boats, that translates into fewer genset hours and a healthier bank.

Set practical limits

• Lead‑acid: Aim to cycle between ~50–85% SOC for longevity. Run a full absorption regularly.
• LiFePO4: Many skippers target ~10–90% SOC daily. Avoid full charges and deep lows unless needed. Respect BMS limits.
• Program correct absorption voltage/time and float behavior per battery datasheet.

Energy storage investment continues to rise as economics improve. See battery storage trends in the IEA 2023 energy investment report. This momentum aligns with the strong adoption of lithium storage in small systems at sea.

Mistake 5: Flying blind without a proper battery monitor

Voltage alone is misleading, especially under load. A shunt‑based monitor tracks amp‑hours, current, and SOC. It helps you spot parasitic draws, charge deficits, and early bank issues. Calibrate the monitor after a measured full charge, and sync SOC readings monthly. Logging lets you compare sunny vs overcast days and adjust your routine.

What to watch daily

• kWh harvested by the solar array
• Peak charge current and absorption duration
• Overnight Ah consumption
• Resting voltage in the morning

Energy data across the sector show strong solar gains. The EIA tracks generation growth and shifting energy use across regions, reinforcing the value of consistent monitoring and data‑driven decisions.

Mistake 6: Letting panels overheat with no airflow

Flat deck mounts get hot. Cell temperature can easily run 25–35 °C above ambient in sun. Many modules lose around 0.3–0.5% output per °C above standard test conditions. Add a standoff gap to move air under the panel. Light‑colored surfaces reflect heat. Shade the controller and battery compartment as well.

Practical tweaks

• Use low‑profile brackets that still create airflow gaps.
• Route wiring away from hot exhaust paths.
• Check controller derating curves at high temperature.

Module behavior with heat and irradiance is covered in DOE solar basics. Cooling helps harvest on calm summer days.

Mistake 7: Skipping a load audit and solar resource check

Guessing leads to a flat bank. Start with a simple daily energy budget, then match array size to your use and available sun.

Step-by-step load audit

• List each device, current draw, and daily hours. Convert to Wh (V × Ah or W × h).
• Sum daily Wh. Add a buffer for cloudy days.
• Size the array for your location’s sun hours and boat constraints.

Sunlight varies by season and latitude. Planning with realistic resource data prevents undersizing. The DOE solar pages and international datasets show wide variation in global horizontal irradiance across regions. Design for your cruising grounds, not a brochure average.

Quick boat scenario

A 35‑ft cruiser with fridge (45 W × 20 h = 900 Wh), instruments/autopilot (35 W × 10 h = 350 Wh), lights and pumps (100 Wh), and devices (150 Wh) uses ~1,500 Wh/day. A good 400 W array can make about 1.2–1.6 kWh/day in summer at anchor in sunny latitudes, less in shoulder seasons. With LiFePO4 at 12 V 200 Ah (about 2.4 kWh nominal, ~80% usable), you have ~1.9 kWh usable. This balances well for most days, but you still want margin for cloudy spells.

Why LiFePO4 often suits boats

LiFePO4 offers flat voltage, high cycle life, and thermal stability. It reduces weight and boosts usable capacity. Pair it with a quality BMS, an MPPT controller, and correct charge limits. Many marine ESS packages mirror design practices used on land, adapted for vibration and salt. Large‑scale trends support this shift: energy storage spending more than doubled in 2022 and grew again in 2023, per the IEA 2023 energy investment report.

Key takeaways

• Place panels to avoid recurring shade. Parallel strings plus MPPT raise reliability.
• Control voltage drop. Use tinned, marine‑grade cable and target ≤3% on charge runs.
• Choose MPPT and program the right profile for your chemistry.
• Install a shunt monitor and sync SOC. Data prevents surprises.
• Cool the array with airflow gaps. Heat steals watts.
• Audit loads and plan for seasonal sun. Build in margin.

Energy agencies offer solid background on solar performance and storage. Start with DOE solar basics, the IEA 2023 report, and IRENA knowledge hubs for policy and system design insights.

Compliance and safety note: Work to marine electrical standards, protect circuits with proper fusing, and isolate sources as required. Engage a qualified marine electrician for final checks. Non-legal advice.

FAQs

How much solar does a 30–40 ft sailboat need?

Many cruisers target 300–600 W for light to moderate use. Heavy fridge and autopilot loads may push you to 600–800 W. Size to your daily Wh and your local sun hours, not a fixed wattage.

Can I mix panel wattages or brands?

You can, but keep voltage ranges similar per MPPT input. Mismatched Vmp in series can limit the string. Parallel strings are more tolerant. Use proper fusing and check Isc ratings.

Are flexible panels a good choice on decks?

They are light and low profile, but they run hotter and may wear faster if walked on. Provide airflow, avoid hard bends, and follow the maker’s mounting rules. Rigid panels usually run cooler and last longer.

What SOC window is sensible for LiFePO4 on a boat?

A common target is ~10–90% for daily cycling. Charge to 100% occasionally for BMS calibration if the manufacturer recommends it. Program current and voltage limits per the datasheet.

Do I still need an alternator‑to‑battery charger with solar?

Yes, if you motor often. A dedicated DC‑DC charger protects both alternator and house bank, especially with LiFePO4. It complements solar on cloudy runs and during night passages.
