MC4, Combiner Boxes, and Disconnects: What Goes Where?

Setting up a DIY solar energy system involves more than just panels and an inverter. Three critical components—MC4 connectors, combiner boxes, and DC disconnects—form the backbone of your solar array's wiring. Understanding the specific role of each and how they connect is fundamental for building a safe, efficient, and reliable system. This guide clarifies what each component does and shows you its proper place in your solar wiring diagram.

MC4 Connectors: The Foundation of Panel-to-Panel Wiring

Think of MC4 connectors as the universal language of solar panels. They provide a standardized, secure method for linking panels together into a productive array.

What Are MC4 Connectors?

MC4 connectors are single-contact electrical connectors commonly used for connecting solar panels. They come in male and female pairs and feature a locking mechanism that snaps together, creating a connection that is both robust and resistant to weather. This design prevents accidental disconnection while protecting the electrical contacts from dust and water, which is essential for any outdoor installation.

Correctly Connecting Solar Panels

You will use MC4 connectors to create 'strings' of solar panels. A series connection, which increases voltage, is made by connecting the positive MC4 connector of one panel to the negative connector of the next. For parallel connections, which increase current, you connect positives to positives and negatives to negatives. This often requires branch connectors or leads directly into a combiner box. A firm, fully seated connection is vital to prevent power loss and potential arc faults, a serious fire hazard.

The Combiner Box: Your Solar Wiring Hub

As your solar array grows, managing the wiring becomes more complex. A combiner box simplifies this process by acting as a central junction point for your solar panel strings.

The Role of a Combiner Box

A combiner box takes the DC output from multiple strings of solar panels and merges them into a single, larger set of wires. Its most important function, however, is safety. Each string is connected to a fuse or a circuit breaker within the box. If one string experiences an electrical fault and produces excessive current, its dedicated fuse will blow, protecting the rest of the system from damage. For systems with three or more parallel strings, a combiner box with this overcurrent protection is a critical safety feature.

Sizing and Installation

Choosing the right combiner box depends on the number of strings you have and the maximum voltage and current of your system. The box should be rated to handle your array's electrical characteristics. Install it in an accessible location, ideally out of direct, prolonged sunlight to protect the internal components. Ensure all cable entries are properly sealed with glands to maintain the box's weatherproof integrity and protect the connections inside.

DC Disconnects: The Critical Safety Switch

A DC disconnect is a manually operated switch that provides a clear and certain way to cut off power from your solar panels. It is one of the most important safety devices in your entire system.

Why You Need a DC Disconnect

The primary purpose of a DC disconnect is to de-energize the wires running from the solar array to your inverter or charge controller. This is essential for performing maintenance, such as cleaning panels or servicing the inverter. It is also a critical safety measure for emergency responders, allowing them to shut down the system quickly and safely. Many local electrical codes mandate a readily accessible DC disconnect for these reasons. The integration of such distributed energy resources (DER) requires careful planning to ensure grid stability and safety, as noted in studies on renewable system integration. According to the IEA's report on System Integration of Renewables, managing power flow from DERs is a key challenge that components like disconnects help address.

Placement in the System

The DC disconnect is installed in the DC circuit between the combiner box and the solar charge controller or inverter. If your system does not use a combiner box (for example, a small system with only one or two strings), the disconnect is placed between the solar panels and the controller/inverter. The goal is to have a way to isolate the power-generating part of your system from the power-converting and storage parts.

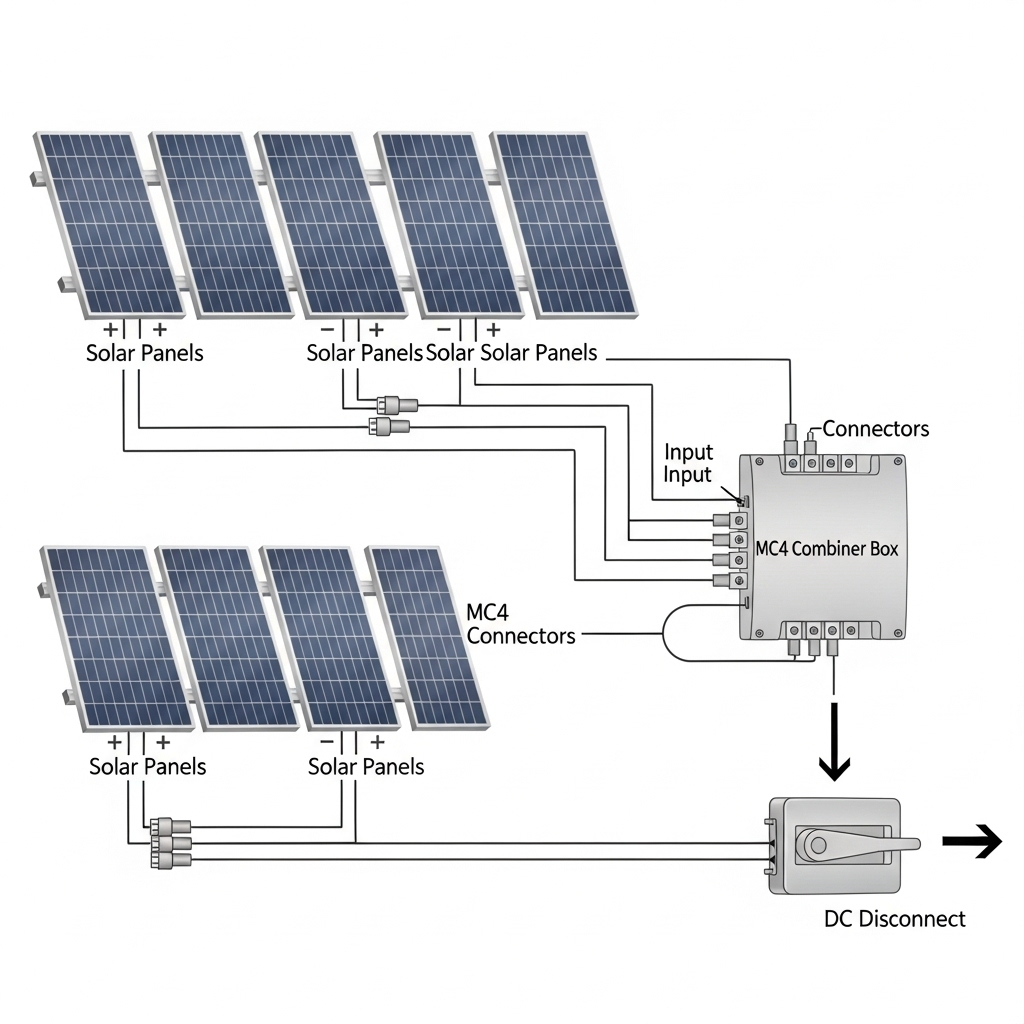

Putting It All Together: A Typical Wiring Sequence

Understanding the flow of power from your panels to your inverter clarifies how these components work together. The sequence is logical and prioritizes safety and efficiency at each step.

Step-by-Step Connection Flow

The path of electricity follows a clear sequence, with each component performing a specific task. This structured approach is vital as power systems increasingly incorporate next-generation technologies. As detailed in the IEA's analysis, Next Generation Wind and Solar Power, component standardization and proper installation are key to harnessing renewable energy effectively.

Integrating with Your Energy Storage System

Once the DC power is safely routed through your disconnect, it feeds your charge controller, which then manages the charging of your battery bank. The efficiency of this entire DC-side setup directly impacts your system's overall output. Optimizing this part of your installation is crucial for getting the most from your investment. A deep dive into solar storage performance shows that factors like correct component placement and minimal connection losses are key to maximizing how much energy you can store and use. This careful planning is part of a larger trend toward transforming power systems, where distributed generation plays a central role, a topic explored in the IEA's report on the China Power System Transformation.

Building for Safety and Reliability

MC4 connectors, combiner boxes, and DC disconnects are not just accessories; they are essential elements of a properly constructed solar energy system. Each one has a distinct role in connecting, consolidating, and protecting your installation. By understanding where each component goes and why it is there, you can wire your DIY solar project with confidence, ensuring it operates safely and performs reliably for years to come.

Disclaimer: This article provides general information and does not constitute professional electrical or legal advice. Always consult with a qualified electrician and adhere to local building and electrical codes for your projects.

Frequently Asked Questions

Can I connect solar panels without a combiner box?

For small systems with only one or two parallel strings, you can wire them directly to a DC disconnect or a charge controller with appropriate fusing. However, for any system with three or more strings, a combiner box is the standard and safest method for providing necessary overcurrent protection for each string.

Where is the DC disconnect switch located?

The DC disconnect switch should be installed in a readily accessible location. It is wired into the DC circuit between the combiner box (or the panels themselves in a small system) and the input of the solar charge controller or inverter.

Are all MC4 connectors the same?

While the MC4 design is a standard, the quality of materials and manufacturing can vary. It is highly recommended to use connectors from the same manufacturer throughout your array. Mismatched brands may not create a perfectly secure and weatherproof seal, potentially leading to moisture ingress and connection failure over time.

Does my inverter have a built-in DC disconnect?

Many modern inverters and some charge controllers include a built-in DC disconnect switch. You must verify if this integrated switch meets your local electrical code requirements. Some jurisdictions still require a separate, lockable, and externally mounted DC disconnect for emergency personnel access, regardless of what is built into the inverter.
