7 Costly Meter Mistakes That Kill Off‑Grid Batteries

Your multimeter is one of the most critical tools for maintaining a healthy off-grid power system. It provides vital signs about your battery bank's condition. Yet, a simple misuse of this device can lead to incorrect diagnoses, improper maintenance, and ultimately, the premature failure of your expensive batteries. Understanding how to use your meter correctly is fundamental to protecting your investment and ensuring reliable power. This text outlines seven common yet costly meter mistakes and provides clear, actionable steps to avoid them, helping you achieve true energy independence.

Understanding Voltage: More Than Just a Number

Voltage is the most frequently checked metric, but a surface-level reading can be deceptive. Getting an accurate picture of your battery's health requires looking deeper and avoiding two common pitfalls that can mask underlying issues.

Mistake 1: Trusting Surface Charge Readings

A battery that has just been disconnected from a charger will show a 'surface charge'—a temporarily inflated voltage reading that doesn't reflect its true state. Making decisions based on this number can lead you to believe a battery is fuller than it is, resulting in undercharging or unexpected power loss. To get an accurate reading, you must first dissipate this surface charge. Disconnect the battery from all charging sources and loads. Let it rest for at least 4-6 hours, though 12-24 hours is ideal for lead-acid types. For LiFePO4 batteries, a shorter rest period of 30-60 minutes is often sufficient. The voltage reading you take after this resting period is the true open-circuit voltage, a much more reliable indicator of its state.

Mistake 2: Ignoring Voltage Under Load

An open-circuit voltage reading tells you the battery's potential, but not how it performs under pressure. A failing battery might show a perfectly healthy voltage when resting, only to have it plummet the moment you connect a significant load. This is why testing voltage under load is critical. To perform this test, connect a known load (like an inverter powering an appliance) and measure the voltage at the battery terminals. A significant drop indicates high internal resistance or a diminished capacity. This simple test helps you identify weak batteries that can no longer deliver the required current, preventing system failures when you need power the most.

Current Measurement: The Path to Problems

Measuring current (amperage) is essential for diagnosing issues like parasitic drains and verifying component performance. However, incorrect amperage measurements are not only misleading but can also be dangerous, potentially damaging your equipment.

Mistake 3: Measuring High Current Through the Meter

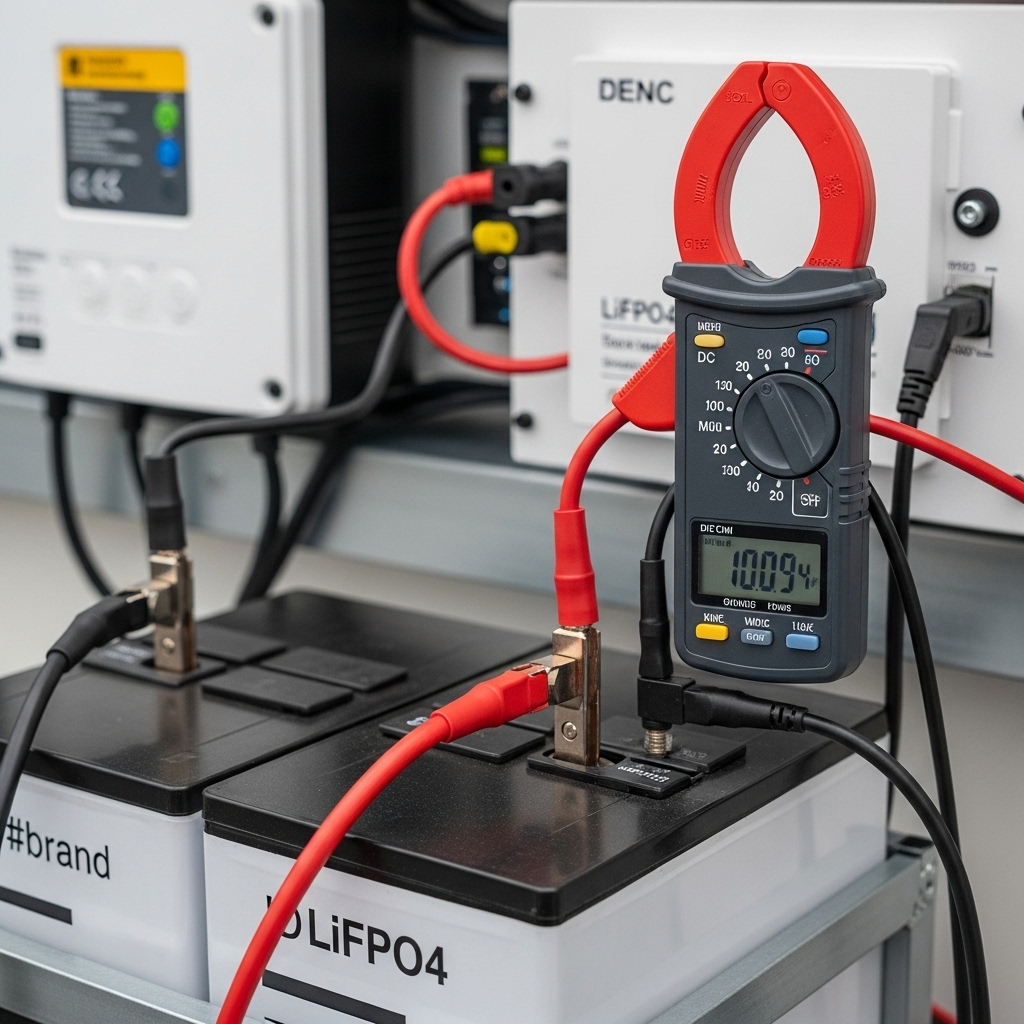

Standard multimeters are typically rated for a maximum of 10 amps through their fused ports. Attempting to measure the high current from a solar array, an inverter, or a large DC load directly through the meter will instantly blow the internal fuse or, in a worst-case scenario, destroy the meter itself. For any current measurement above a few amps, a DC clamp meter is the proper tool. It measures the magnetic field around a conductor, allowing you to get an accurate reading without ever disconnecting the circuit. This is safer, faster, and essential for any serious off-grid system owner.

Mistake 4: Overlooking Parasitic Drains

A parasitic drain is a small, continuous current draw that slowly depletes your batteries, even when you think everything is turned off. These are often caused by devices in standby mode, such as inverter monitoring circuits, propane leak detectors, or stereo system memory. To find them, turn off all known DC loads. Set your multimeter to its highest amp setting and connect it in series with the negative battery terminal. Gradually lower the range on the meter to get a precise reading of any stray current. Identifying and eliminating these small drains can significantly extend your battery's charge and overall lifespan.

Connections and Cables: The Unseen Saboteurs

The best batteries in the world will underperform if the pathways for electricity are compromised. Many system failures originate not in the battery itself, but in the connections and cables that join everything together.

Mistake 5: Neglecting Connection Resistance

A loose or corroded connection acts like a resistor, creating a bottleneck for electricity. This generates heat, causes a voltage drop, and prevents your batteries from charging or discharging efficiently. You can use your multimeter's millivolt (mV) setting to diagnose this. While the system is under load, touch the probes to either side of a connection (e.g., one probe on the cable lug, the other on the battery terminal). A reading of more than a few millivolts indicates a poor connection that needs to be cleaned and tightened. Regularly checking all terminal connections, bus bars, and circuit breaker lugs is a critical maintenance step.

Mistake 6: Assuming Continuity Equals Quality

A simple continuity test will tell you if a circuit is complete, but it won't tell you if the cable is sufficient for the job. An undersized or internally corroded cable can have continuity but still present high resistance, choking your system's performance. A voltage drop test is far more informative. With the system under load, measure the voltage at the start of a cable run and again at the end. The difference is the voltage drop. A drop of more than 2-3% indicates the cable is either too small for the current it's carrying or has been compromised. According to research from institutions like the International Renewable Energy Agency (IRENA) on grid codes, maintaining system stability and efficiency is paramount, a principle that applies equally to large grids and personal off-grid systems.

The Bigger Picture: Beyond Simple Meter Readings

Relying on a single metric from a multimeter can give you a false sense of security. For a truly comprehensive view of your battery's health, you need to look at a broader set of data.

Mistake 7: Using Only a Multimeter for State of Charge (SOC)

For lead-acid batteries, voltage provides a reasonably good estimate of SOC. This is not true for Lithium Iron Phosphate (LiFePO4) batteries. They maintain a very flat voltage curve through most of their discharge cycle, meaning the voltage barely changes from 90% SOC down to 20%. Relying on voltage alone makes it nearly impossible to know how much capacity is remaining. The only reliable way to track SOC for LiFePO4 is with a shunt-based battery monitor. This device precisely measures the energy flowing in and out of your battery, acting like a fuel gauge for your power system. While a multimeter gives you a snapshot, understanding the full picture requires looking at more comprehensive metrics. A detailed breakdown of key solar storage performance indicators can provide deeper insights into efficiency and long-term capacity.

Building a Resilient Off-Grid System

Avoiding these seven meter mistakes moves you from being a passive user to an active, informed manager of your off-grid power system. Proper measurement techniques are the foundation of effective battery maintenance, preventing costly replacements and ensuring you have power when you need it. As global deployment of battery storage grows, a trend noted in the IEA's report on clean energy transitions, personal responsibility for system maintenance becomes even more important. By investing in the right tools, like a quality clamp meter and a shunt-based battery monitor, and using them correctly, you safeguard your energy independence for years to come.

Frequently Asked Questions

What is the ideal resting voltage for a 12V LiFePO4 battery?

A fully charged 12V LiFePO4 battery will have a resting voltage of around 13.4V to 13.6V after the surface charge has dissipated. Unlike lead-acid batteries, the voltage remains very stable, typically above 13V, for most of the discharge cycle.

How often should I test my off-grid batteries?

A quick visual inspection and voltage check should be done monthly. A more thorough check, including testing connections under load and inspecting for parasitic drains, is recommended quarterly or semi-annually. Regular monitoring helps you catch small issues before they become major problems.

Can I use a cheap multimeter for my off-grid system?

While an inexpensive meter can work for basic voltage checks, it may lack the accuracy, safety features, and durability needed for serious off-grid diagnostics. A quality auto-ranging multimeter with features like a millivolt scale and a high-amperage fuse is a worthwhile investment. For current measurements, a separate DC clamp meter is non-negotiable.
