Case Study: Off-Grid Cabin Solar Kit with LiFePO4, Winter Lessons

The allure of a remote cabin is its promise of self-sufficiency and a connection to nature. A significant part of that independence is having a reliable source of power, a challenge that becomes more acute during the shorter, colder days of winter. This case study examines the design, installation, and real-world performance of a DIY off-grid cabin solar kit, with a special focus on the lessons learned from using Lithium Iron Phosphate (LiFePO4) batteries through a demanding winter season.

System Design: Sizing for Four-Season Reliability

A successful off-grid system begins with a thoughtful design phase. The goal was to create a cabin solar power system that could handle the variable energy production and increased demands of all four seasons, especially the unforgiving winter months.

Calculating Energy Needs

The first step was a detailed energy audit. This involved listing every appliance and its estimated daily usage. For this cabin, the primary loads included LED lighting, a small high-efficiency refrigerator, charging for personal electronics like laptops and phones, and a small water pump. A critical part of the calculation was accounting for winter's reduced solar insolation. We oversized the system's generation and storage capacity by approximately 30% to build a buffer for consecutive cloudy days.

Selecting the Core Components

With the energy needs defined, the next step was selecting the hardware. An Off-Grid Cabin Solar Kit provided a solid foundation, ensuring component compatibility. The key components included:

• Solar Panels: Monocrystalline panels were chosen for their higher efficiency, which is particularly beneficial in capturing the limited sunlight of winter. The total array was sized to recharge the battery bank even on short winter days.
• Hybrid Inverter: A pure sine wave inverter was selected to safely power sensitive electronics. The hybrid model integrates a charge controller, simplifying the wiring and installation process.
• LiFePO4 Battery Bank: A LiFePO4 battery was the heart of the system. Its high energy density, long cycle life, and inherent safety features made it a superior choice over traditional lead-acid batteries. The capacity was chosen to provide three days of autonomy without any solar input.
• MPPT Charge Controller: A Maximum Power Point Tracking (MPPT) charge controller was essential. It optimizes the power harvested from the solar panels, providing up to 30% more energy in cold weather compared to simpler PWM controllers.

The Installation Process: A Practical Walkthrough

Many off-grid solar kits are designed with the DIY enthusiast in mind. This project followed a methodical installation process, prioritizing safety and performance.

Mounting the Solar Array

Instead of a roof mount, a ground-mounted structure was chosen for the solar panels. This decision offered two distinct advantages for a cabin setting. First, it allowed the tilt angle to be adjusted seasonally, set steeper in the winter to face the low-hanging sun directly. Second, it made clearing snow from the panels a simple and safe task. All electrical connections were made using weatherproof connectors to withstand the elements.

Wiring the System Components

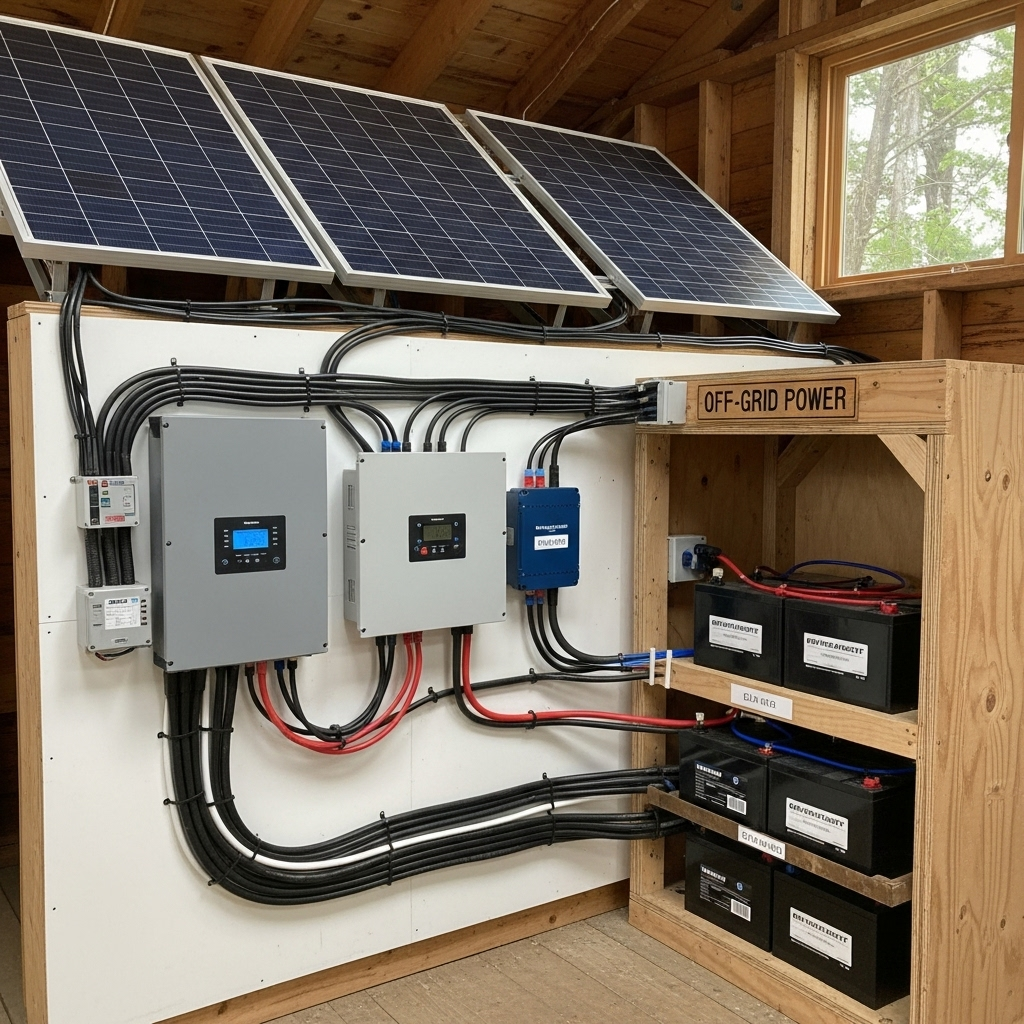

The power system components were housed in a small, insulated utility closet inside the cabin. The wiring followed a logical sequence: panels connect to the inverter's integrated charge controller, which then connects to the LiFePO4 battery bank, and the inverter provides AC power to the cabin's electrical panel. Using the correct wire gauge and installing fuses on all positive connections were critical safety measures to protect the equipment and the structure.

Winter Performance Deep-Dive: How the LiFePO4 Battery Fared

Winter is the ultimate test for any off-grid power system. This season provided invaluable data on LiFePO4 battery winter performance and highlighted necessary strategies for reliable operation.

The Cold Weather Challenge for Batteries

Low temperatures can negatively impact any battery's chemistry, reducing its efficiency. The primary concern with LiFePO4 batteries is a strict limitation on charging: they cannot be charged at temperatures below freezing (0°C or 32°F) without risking permanent damage through a process called lithium plating. Therefore, managing the battery's temperature was the most critical task.

Real-World Data and Observations

During a particularly cold week with ambient temperatures dropping to -15°C (5°F), the battery's thermal management system proved its worth. The chosen battery included low-temperature charging protection, which automatically prevents charging current if the internal cell temperature is too low. This feature was combined with a simple, yet effective, insulated battery box. Understanding how temperature affects battery capacity is crucial. As detailed in this comprehensive guide on solar storage performance, LiFePO4 batteries maintain capacity better than lead-acid in the cold, but charging below freezing remains a critical consideration. The system performed reliably, providing consistent power throughout the cold snap.

Lessons Learned and Mitigation Strategies

The winter experience yielded several key takeaways for winterizing solar kits. The most effective strategy was placing the battery bank within an insulated enclosure inside the cabin's conditioned space. For installations in unheated sheds, a battery with an integrated self-heating function is a highly recommended solution. According to the International Renewable Energy Agency (IRENA), advancements in battery systems and grid-forming inverters are making off-grid systems more reliable even in demanding conditions, a principle that applies directly to this cabin setup. This framework highlights the growing capabilities of such technologies.

Beyond Winter: Optimizing for Year-Round Energy Independence

Achieving a truly resilient off-grid living energy solution requires attention to detail throughout the year. The system's performance is influenced by both equipment and user habits.

Managing Snow and Debris

The ground-mounted array made snow management simple. A soft-bristled broom was used to clear accumulation after each snowfall, a task that took only a few minutes but significantly boosted energy production. Keeping the panels clear of dust and debris during other seasons is also important for maintaining peak efficiency.

Energy Conservation Habits

Off-grid living fosters a keen awareness of energy consumption. Simple habits make a huge difference, such as using power-hungry appliances during peak sun hours, switching to all LED lighting, and unplugging electronics to eliminate phantom loads. This mindful approach to energy use reduces strain on the system and increases its autonomy.

System Monitoring

The inverter's monitoring app provided real-time data on energy production, consumption, and the battery's state of charge. This information was invaluable for making informed decisions about when to run larger appliances and for understanding the system's overall health. The ability to monitor and manage distributed energy assets is a key factor in their success. The International Energy Agency (IEA) notes that intelligent software and storage systems enhance self-consumption and grid stability, principles that are just as vital for a standalone off-grid system. This report discusses how such technologies improve system friendliness.

Final Thoughts on This Off-Grid Solar Project

This case study demonstrates that a well-planned DIY solar installation can provide reliable, four-season power for an off-grid cabin. The success of the project hinged on three factors: accurate load calculation and system sizing, the superior performance of LiFePO4 battery technology, and proactive management strategies for winter conditions. An off-grid solar kit provides a clear path toward energy independence, offering both resilience and peace of mind. Projects like this demonstrate the growing accessibility of off-grid solar. As highlighted by the U.S. Department of Energy, hands-on training and accessible kits can empower communities and individuals to build their own power systems, fostering energy independence. This success story shows a similar spirit of self-sufficiency.

Disclaimer: This case study provides general information. Electrical work involves risks. Always consult with a qualified professional and adhere to local building and electrical codes for your specific project. This is not financial or legal advice.

Frequently Asked Questions

How much power can a typical cabin solar kit produce?

The output of a cabin solar power system depends entirely on its size (panel wattage and battery capacity), your geographic location (average daily sun hours), and the time of year. A small kit might power lights and electronics, while a larger one can handle refrigeration and pumps.

Can I install an off-grid solar kit myself?

Many kits are designed for a DIY solar installation guide approach, assuming you have basic mechanical and electrical skills. However, safety is paramount. If you are not comfortable working with electricity, it is always best to hire a qualified professional.

Are LiFePO4 batteries safe for an indoor installation in a cabin?

LiFePO4 batteries are among the safest battery technologies available. They are thermally stable and do not emit gases during charging, unlike traditional lead-acid batteries. This makes them an excellent choice for installation inside a cabin or home, provided they have adequate clearance for air circulation.

What is the most important factor for a winter solar system?

For winter performance, there isn't one single factor but a balance of two: an adequately sized solar array to capture as much of the limited sunlight as possible, and a robust battery management strategy. This means protecting the LiFePO4 battery from charging in freezing temperatures through insulation, placement in a conditioned space, or by using a battery with a self-heating function.
