What Runtime Do Remote Base Stations Need? Sizing ESS Right

Reliable communication networks are the backbone of modern society, connecting people and businesses across vast distances. Remote base stations, often located far from stable grid infrastructure, face a unique challenge: maintaining uninterrupted power supply. Without consistent energy, these critical communication hubs cannot operate, leading to service disruptions and significant operational hurdles. Energy Storage Systems (ESS) provide a robust solution, ensuring continuous operation even in the most challenging environments.

Properly sizing an ESS for a remote base station is not a one-size-fits-all task. It requires a detailed understanding of the base station's power demands and the desired operational duration without primary power. This article will guide you through the process of determining runtime requirements and effectively sizing an ESS, ensuring your remote telecom infrastructure remains powered and performs optimally.

The Imperative for Reliable Power in Remote Telecom

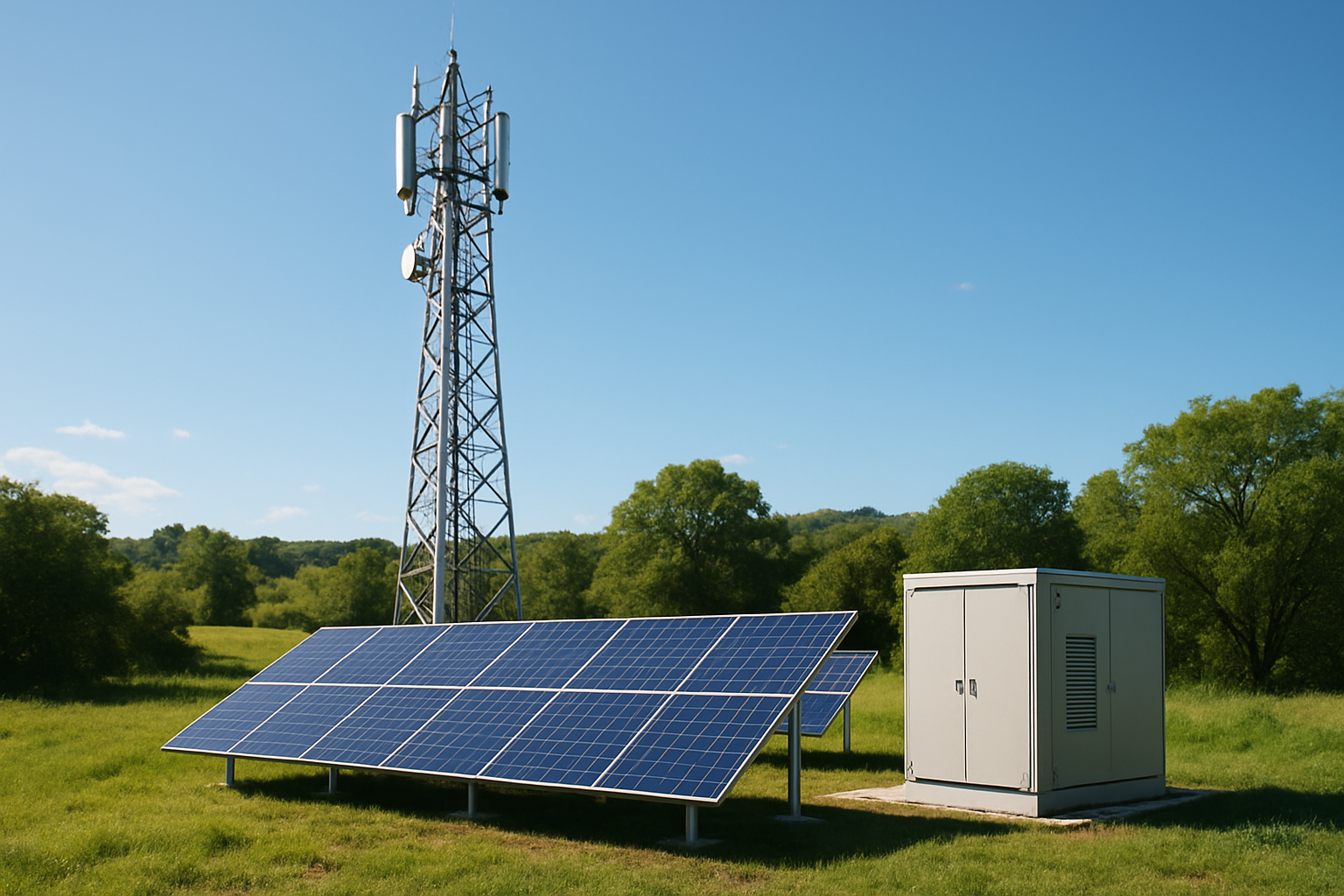

Telecom towers and remote base stations are vital links in our communication networks. Their continuous operation is non-negotiable for maintaining connectivity, supporting economic activity, and enabling emergency services. However, powering these sites often presents significant difficulties.

Challenges of Powering Remote Sites

• Many remote base stations operate in areas with either no grid access or an unreliable grid. This necessitates on-site power generation.
• Historically, diesel generators have been a common power source for off-grid and bad-grid towers. However, these generators come with high fuel costs, logistical complexities for fuel delivery, and considerable environmental impact through emissions. According to research, diesel-powered generators for off-grid and bad-grid towers inflict measurable costs on the environment and the balance sheets of mobile network operators.
• The energy consumption of data transmission networks is substantial. Mobile networks alone accounted for around two-thirds of total network energy consumption in 2022. This demand continues to grow, with projections indicating electricity consumption for networks and traditional data center services will increase by one to three percent each year until 2030.

Energy Storage Systems, especially when integrated with solar power, offer a sustainable and cost-effective alternative. They reduce reliance on fossil fuels, lower operational expenditures, and enhance the resilience of the power supply. The International Renewable Energy Agency (IRENA) highlights that off-grid renewable energy solutions provide an opportunity to achieve universal access to energy without undermining climate goals.

Determining Runtime Requirements for Remote Base Stations

Accurate ESS sizing begins with a clear understanding of the base station's power needs and how long it must operate independently. This is known as the "runtime" or "autonomy" requirement.

Understanding the Load Profile

The first step is to quantify the base station's power consumption. This involves identifying all equipment that needs power and their respective loads. Consider different operational states:

• Active Load: Power consumed during normal operation, including transceivers, cooling systems, and network equipment.
• Standby Load: Minimal power consumed when the system is idle or in a low-power mode.
• Peak Load: Maximum power drawn during high traffic periods or specific operational events.

Factors influencing load include the type of equipment (e.g., 2G, 3G, 4G, 5G), traffic volume, and ambient temperature, which affects cooling demands. For example, 5G networks are expected to be more energy efficient per traffic unit than 4G, but higher traffic volumes and more base stations will likely increase overall energy consumption.

Defining Desired Autonomy

Autonomy refers to the duration the ESS must power the base station without any external primary power source (like the grid or a generator). This duration depends on several factors:

• Grid Reliability: How frequently and for how long does the grid go down? Areas with frequent, prolonged outages need longer autonomy.
• Maintenance Schedules: How often are planned outages for maintenance? The ESS should cover these periods.
• Criticality of Service: Is the base station serving essential services (e.g., emergency communications)? Higher criticality demands longer backup.
• Regulatory Requirements: Some regions may have mandates for minimum backup power duration for critical infrastructure.

Typically, remote base stations may require autonomy ranging from 24 hours to several days, or even weeks, depending on the remoteness and grid conditions.

Calculating Energy Needs

Once you have the load profile and desired autonomy, you can calculate the total energy required. This calculation is fundamental for ESS sizing.

Total Energy (Wh) = Average Power Consumption (W) × Desired Autonomy (hours)

For example, if a base station consumes an average of 500 Watts and requires 48 hours of autonomy, the total energy needed is 500 W × 48 h = 24,000 Wh (or 24 kWh).

Sizing the Energy Storage System Components

With the energy requirements established, you can proceed to size the key ESS components: the battery bank and the inverter.

Battery Capacity Sizing

The battery bank stores the energy. Lithium Iron Phosphate (LiFePO4) batteries are an excellent choice for remote base stations due to their specific advantages.

• High Performance and Safety: LiFePO4 chemistry is inherently stable, significantly reducing the risk of thermal runaway. This makes them a safer option for installations in remote or sensitive locations.
• Long Cycle Life: LiFePO4 batteries typically offer a longer cycle life, often exceeding 2,000 to 5,000 cycles, compared to traditional lead-acid batteries. This translates to many years of reliable service and reduced replacement frequency.
• Deep Depth of Discharge (DoD): These batteries can be safely discharged deeply, often up to 80% or 90% of their capacity, without harming their lifespan. In contrast, lead-acid batteries should generally not be discharged beyond 50%. This means you can use more of the stored energy.
• High Efficiency: LiFePO4 batteries boast high charge and discharge efficiencies, frequently around 95-98%. This efficiency ensures more of the input energy is usable, making the overall system more effective.
• Temperature Tolerance: They perform reliably across a wide temperature range, suitable for varied climates.
• Compact and Lightweight: These batteries are typically lighter and more compact than lead-acid alternatives, simplifying installation and reducing space requirements.

The formula for calculating battery capacity (in Amp-hours) accounts for usable DoD and system voltage:

Battery Capacity (Ah) = (Total Energy Needed (Wh) / Battery Voltage (V)) / Usable DoD

For example, for 24,000 Wh needed with a 48V battery system and 80% usable DoD:

Battery Capacity (Ah) = (24,000 Wh / 48 V) / 0.80 = 500 Ah / 0.80 = 625 Ah

You would need a battery bank with at least 625 Amp-hours at 48V.

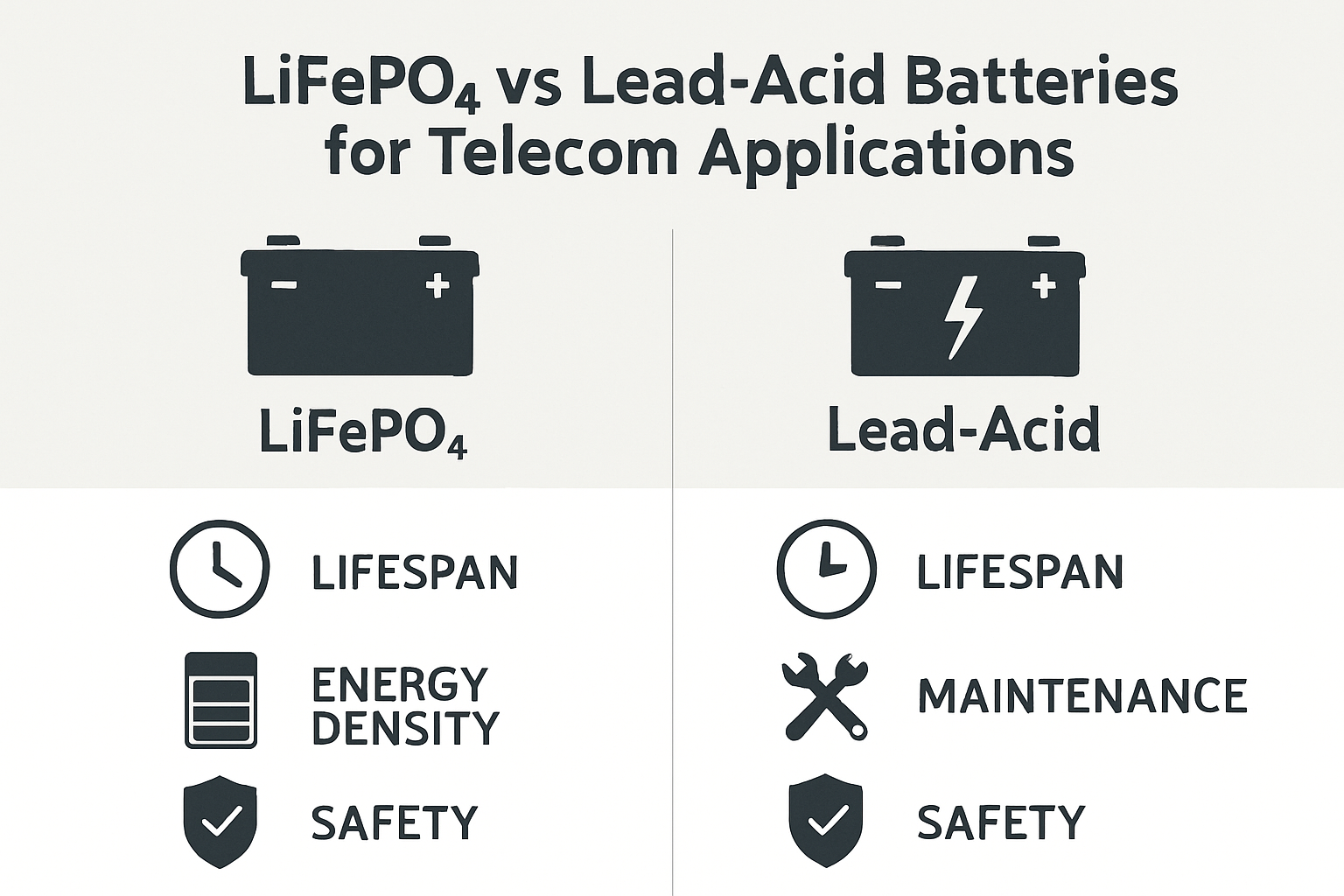

Here is a comparison highlighting the benefits of LiFePO4:

Feature	LiFePO4 Batteries	Traditional Lead-Acid Batteries
Cycle Life	2,000 - 5,000+ cycles	300 - 1,000 cycles
Depth of Discharge (DoD)	Up to 80-90% usable	Typically 50% usable
Efficiency	95-98%	70-85%
Safety	High thermal stability, low risk of thermal runaway	Can pose gas emission risks
Maintenance	Minimal to none	Regular watering and checks
Lifespan	10-15 years	3-5 years

Inverter Sizing

The inverter converts the DC power from the batteries into AC power for the base station equipment. Its size depends on the base station's maximum instantaneous power demand (peak load).

• Continuous Power: The inverter's continuous power rating must exceed the base station's typical operating load.
• Surge Power: Some equipment may have momentary power surges upon startup. The inverter should have a surge capacity higher than these peaks.

It is generally advisable to select an inverter with a capacity at least 20-30% higher than the calculated peak load to allow for inefficiencies and future expansion. For integrated solar solutions, a hybrid inverter efficiently manages power flow between solar panels, batteries, and the load.

Solar Panel Sizing (for Off-Grid Solar Solutions)

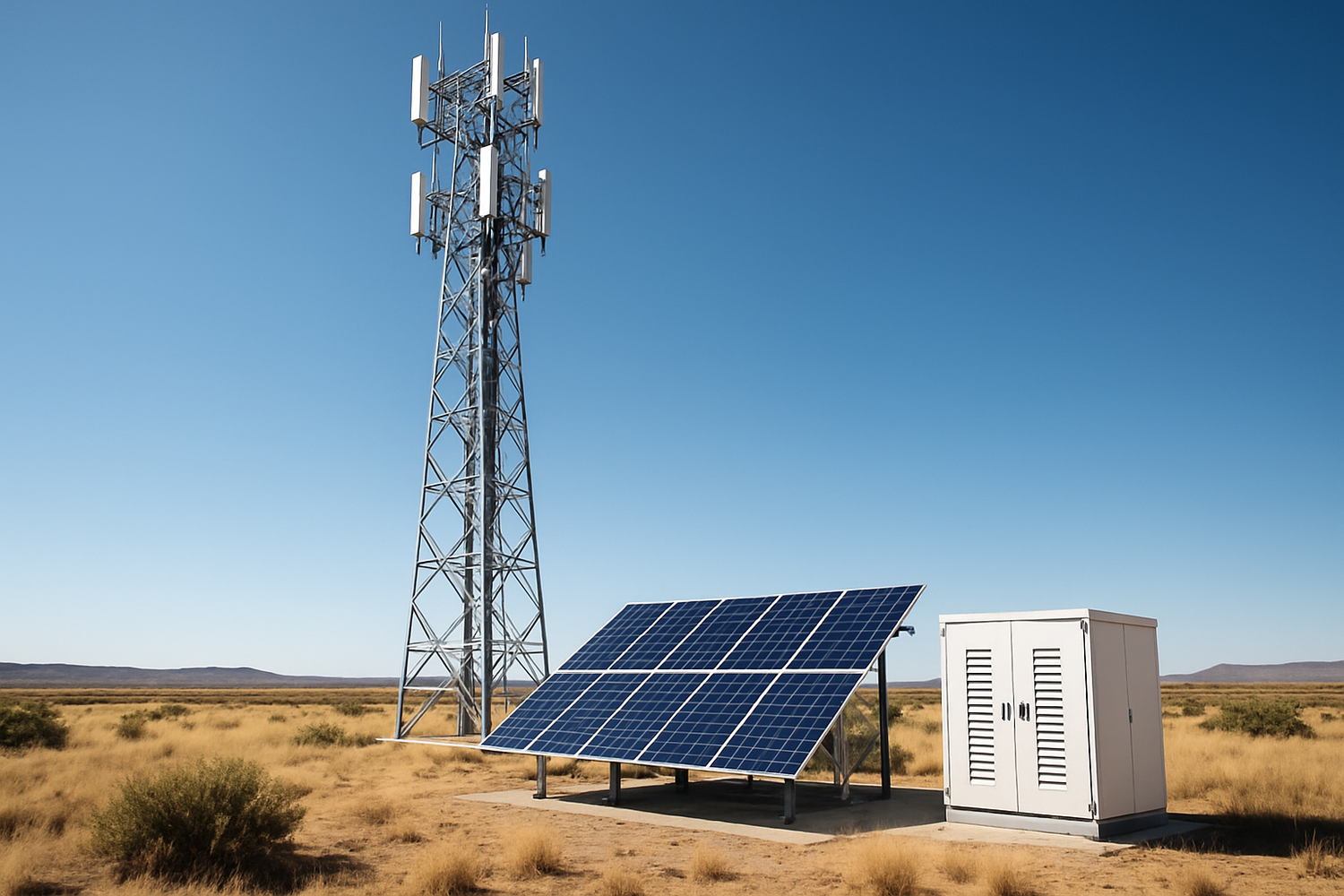

For off-grid base stations, integrating solar panels is a powerful strategy. Sizing the solar array involves considering:

• Average Daily Energy Consumption: The total Wh needed per day.
• Peak Sun Hours (PSH): The average number of hours per day when solar irradiation is equivalent to 1000 W/m². This varies by location and season.
• System Losses: Account for efficiency losses in wiring, temperature, dust, and the inverter (typically 20-30%).

Solar Panel Array Size (Wp) = (Total Daily Energy (Wh) / PSH) / (1 - System Losses)

Off-grid solar solutions, often combined with robust lithium battery storage, provide energy independence and significantly reduce operational costs for remote sites. IRENA estimates that some 133 million people accessed lighting and other electricity services using off-grid renewable energy solutions in 2016.

Practical Considerations and System Optimization

Beyond calculations, several practical aspects influence the success and longevity of an ESS for remote base stations.

Environmental Factors

Remote locations can present harsh environmental conditions. Consider:

• Temperature Extremes: Batteries and electronics perform best within specific temperature ranges. Proper enclosure design, ventilation, or climate control may be necessary. LiFePO4 batteries are known for their thermal stability.
• Dust and Humidity: These can degrade equipment over time. Enclosures with appropriate ingress protection (IP) ratings are crucial.

Monitoring and Management

Remote monitoring systems are invaluable for managing ESS performance. You can gain real-time insights into:

• Battery State of Charge (SoC) and State of Health (SoH).
• Power production from solar panels.
• Load consumption of the base station.
• System alarms and fault detection.

Effective monitoring allows for proactive maintenance, optimizing energy use, and quickly addressing potential issues, minimizing downtime and technician visits.

Scalability and Future-Proofing

As communication technologies evolve (e.g., from 4G to 5G) and traffic demands increase, the power requirements of base stations may change. Designing a modular ESS allows for easy expansion. You can add more battery modules or solar panels as needs grow, future-proofing your investment and adapting to evolving power demands.

Ensuring Uninterrupted Connectivity

Accurately sizing an Energy Storage System is a critical step in ensuring the continuous operation of remote base stations. By carefully assessing load profiles, defining runtime needs, and selecting appropriate components like high-performance LiFePO4 batteries and efficient solar inverters, you can build a resilient and sustainable power solution. This approach not only guarantees uninterrupted connectivity but also contributes to significant operational savings and a reduced environmental footprint.

Prioritizing reliable and scalable energy solutions helps achieve true energy independence for critical infrastructure, supporting the seamless communication that modern life depends on.
