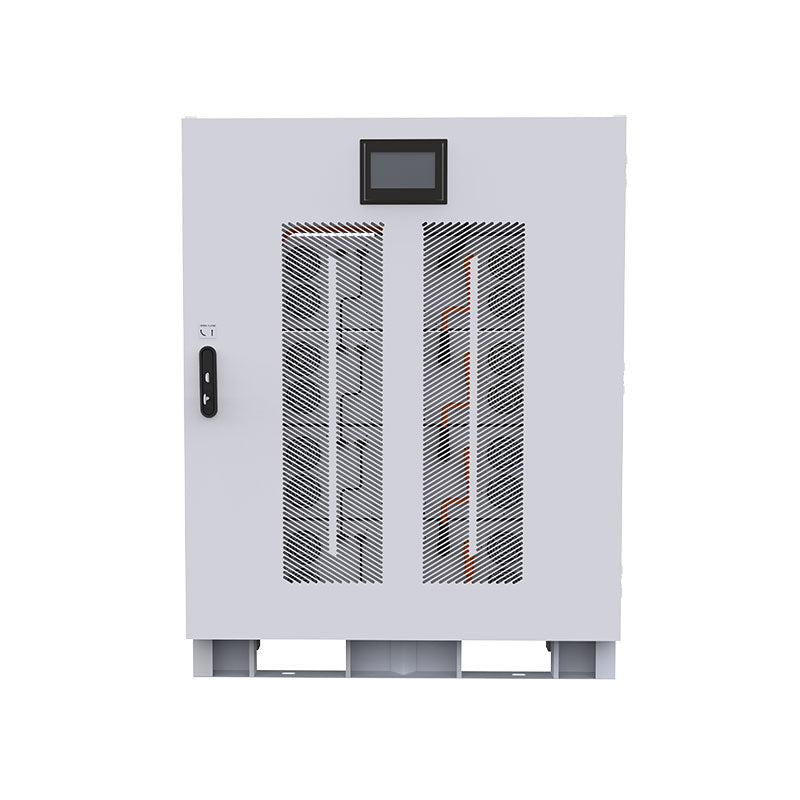

128KWH High Voltage Industrial Rack Lithium Battery

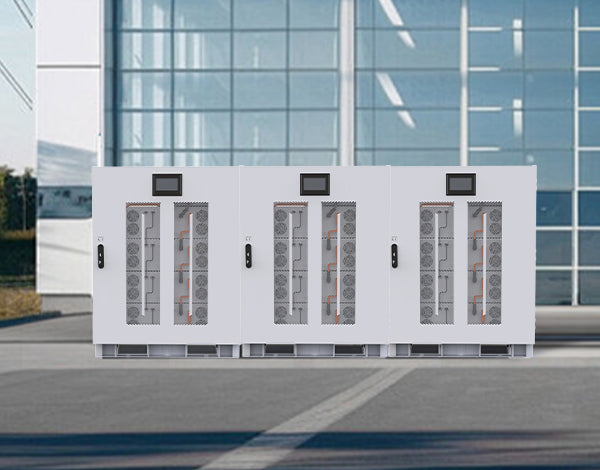

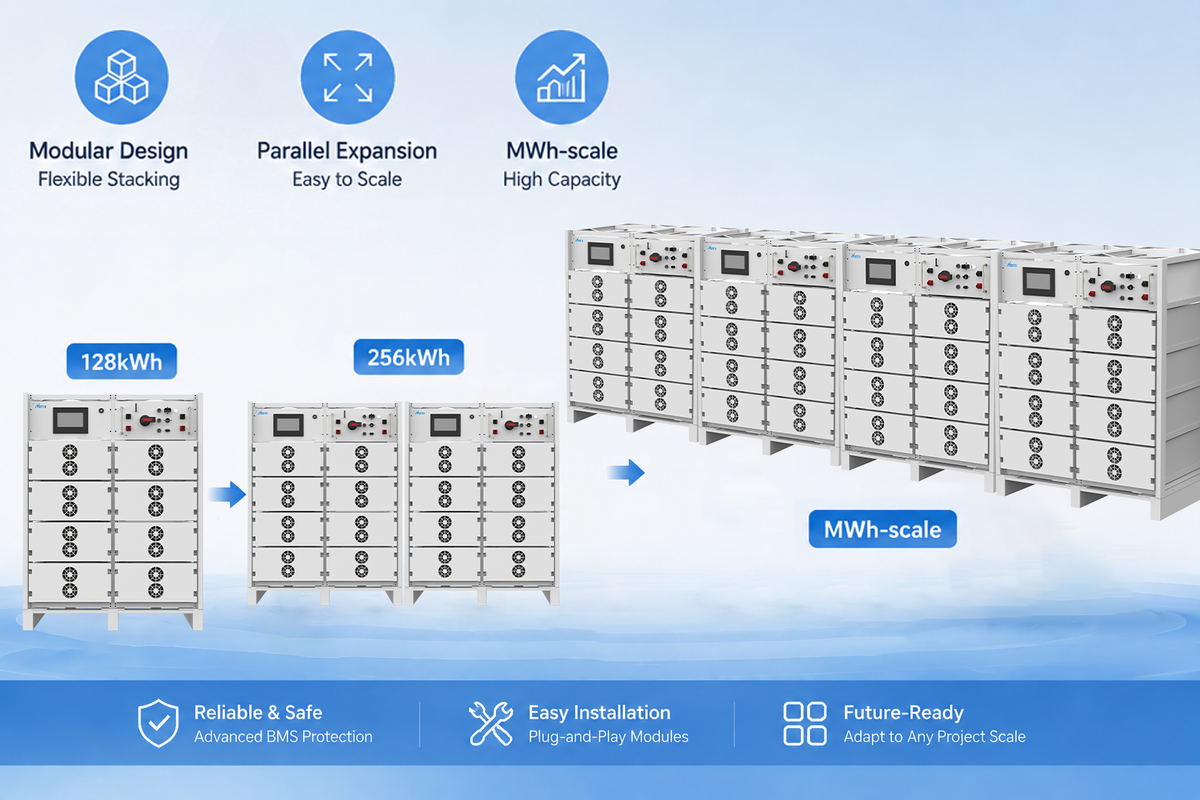

The 128kWh high voltage lithium battery is an iemn solution that is powerful to commercial, most businesses, and industrial, and utility scale projects. It is a modular rack based design, hence you can connect multiple racks in parallel to add additional storage area in the future.

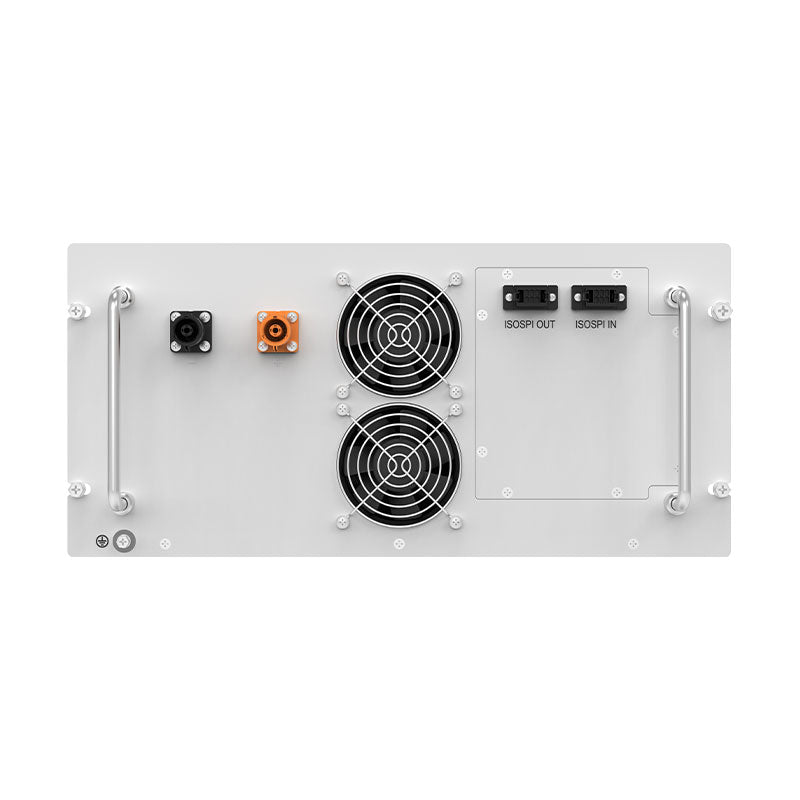

Battery module(Wh/V): 16.076kWh, 51.2V

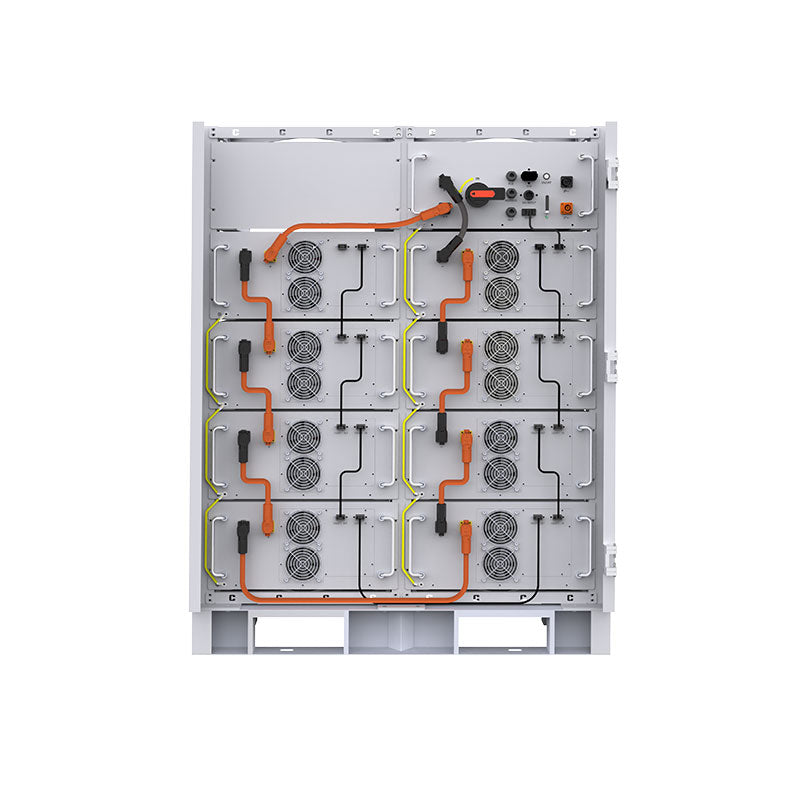

Number of modules: 8

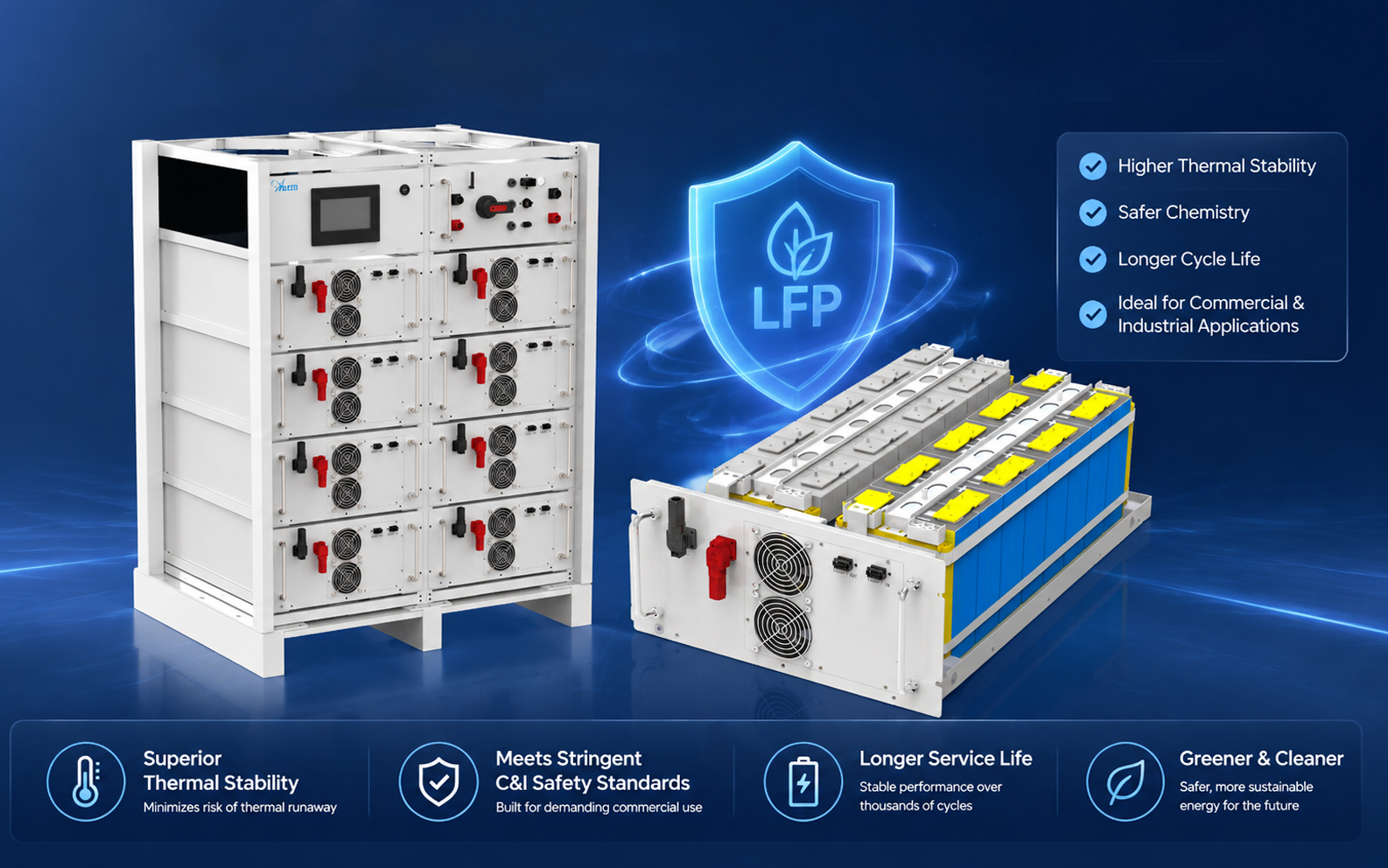

Cell technology: LFP (LiFePO4)
Battery usable energy: 128.61kWh
Nominal voltage: 409.6V
Operating voltage: 358.4-467.2V
Standard charging & discharging: 168A/0.6C
Maximum continuous charging & discharging: 168A/0.6C
Communication: CAN / RS485
Dimension (W*D*H)(mm): 1060(W)*845(D)*1385(H) mm
Weight Approximate (kg): 965kg
Discharging temperature range: -30~55℃
Charging temperature range: 0～55℃
Protection rating: IP20
DOWNLOAD
128kWh Large-Capacity HV Energy Storage
Ideal for:
- Factories & industrial equipment
- Commercial solar energy storage

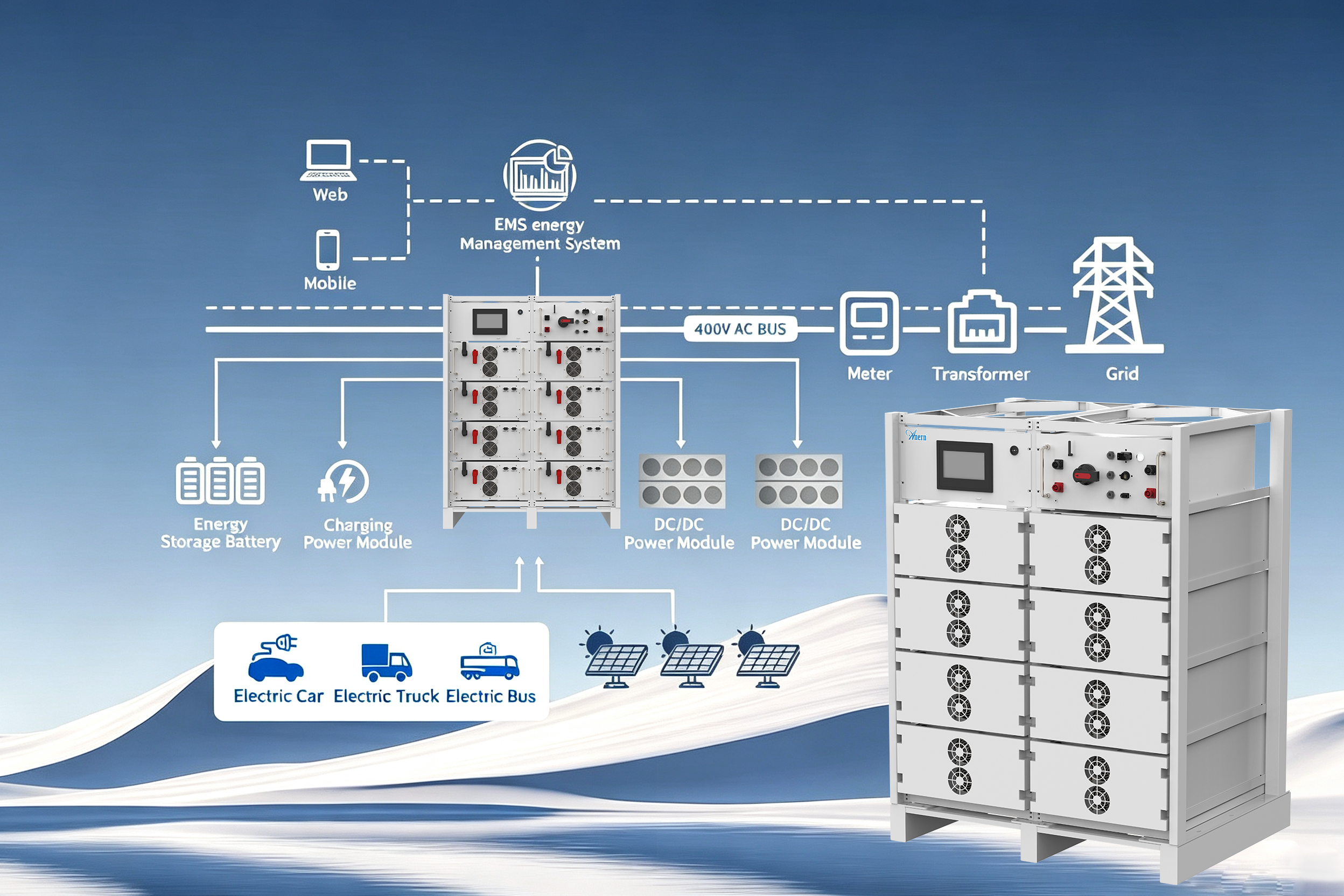

- Microgrid & hybrid systems
- EV charging stations
- Data centers & telecom stations
Designed for continuous high-load operation with stable performance.
High Voltage (HV) Architecture
The HV battery configuration provides:
Higher discharge efficiency
Reduced line loss
Greater power compatibility
Superior dynamic response
Stability for large inverters (50kW–250kW+)
Perfect for modern commercial ESS systems.
