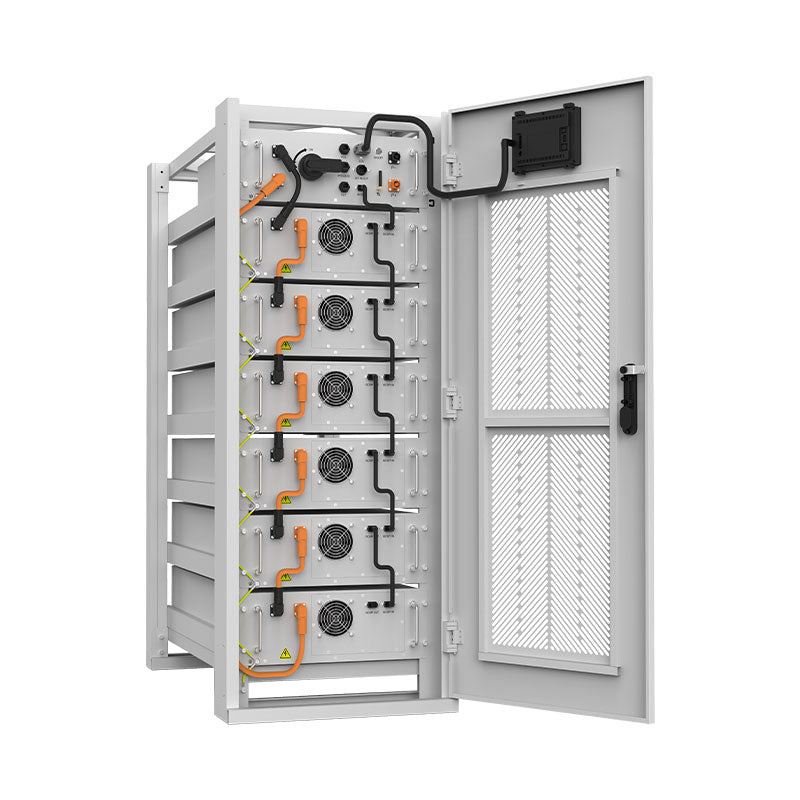

60kWh high voltage lithium-ion phosphate battery module with 6 stacks and visible orange connectors.

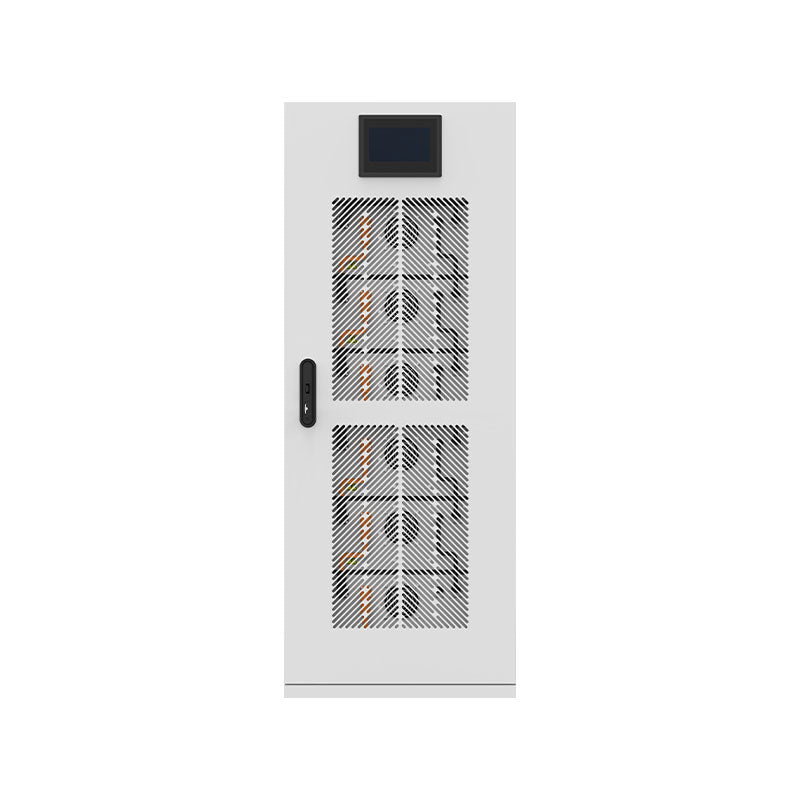

60KWH High Voltage Lithium-Ion Phosphate Battery energy storage cabinet with screen and vented door revealing cables.

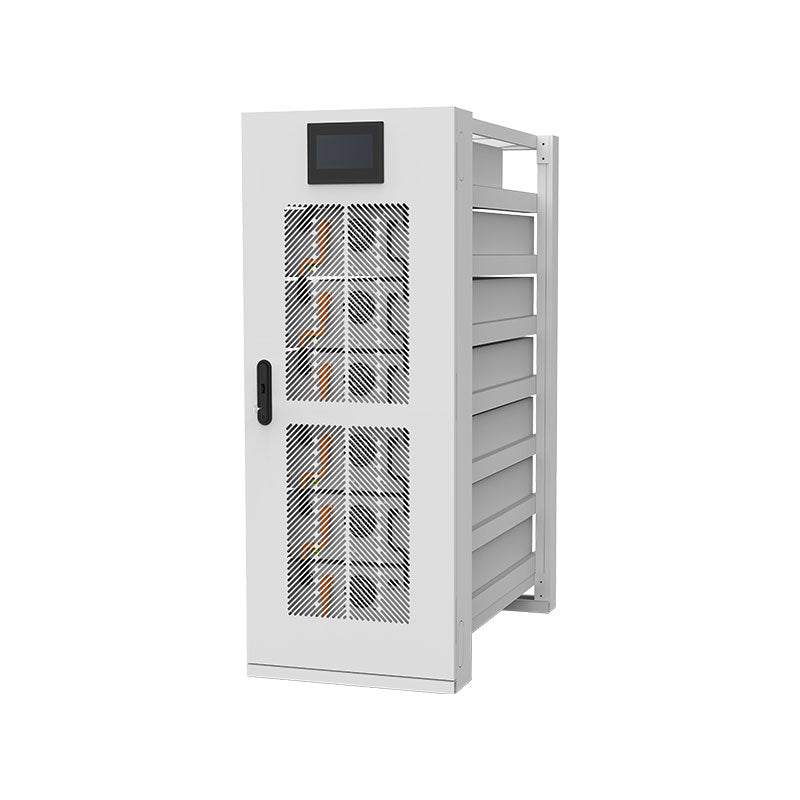

60KWH High Voltage Lithium-Ion Phosphate Battery with touchscreen display and ventilation.

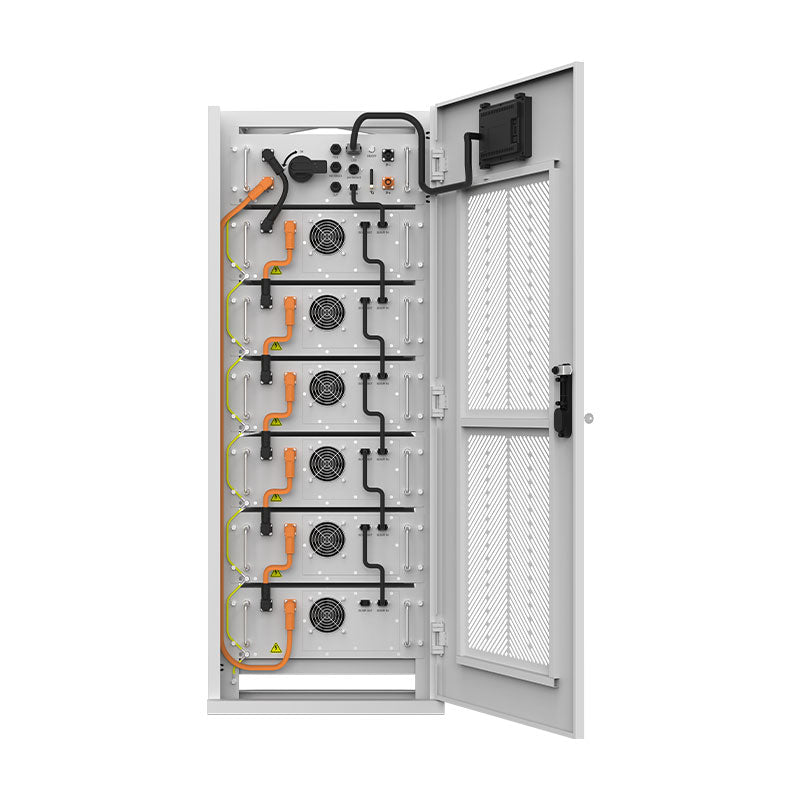

60kWh high voltage lithium-ion battery storage unit with six modules, internal wiring, and cooling fans.
60KWH high voltage lithium battery control panel: ON/OFF switch, LCD, PCS, IN/DEBUG, OUT, 24V IN/OUT, ISOSPI, P-, P+ ports.

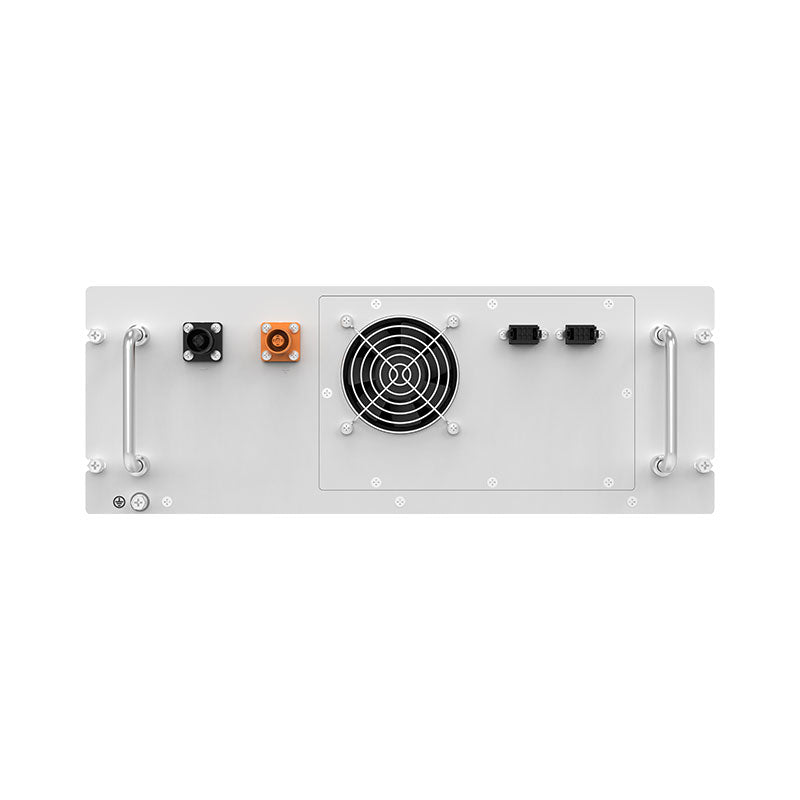

60KWH High Voltage Lithium-Ion Battery rear panel with fan, connectors, and handles

60KWH High Voltage Lithium-Ion Phosphate Battery

Contact us for more details

The 60kWh LiFePO₄ Battery functions as a commercial energy storage solution which operates at high performance levels for industrial facilities and microgrid projects and commercial solar systems and peak-shaving energy management applications. The commercial lithium battery 60kWh operates at high voltage levels through Grade-A LiFePO₄ cells which deliver powerful output and extended operational lifespan and multiple safety features.

Battery module(Wh/V): 10.24kWh, 102.4V
Number of modules: 6
Cell technology: LFP (LiFePO4)
Battery usable energy: 61.44kWh
Nominal voltage: 614.4V
Operating voltage: 537.6-700.8V
Standard charging & discharging: 50A/0.5C
Maximum continuous charging & discharging: 100A/1C
Communication: CAN / RS485
Dimension (W*D*H)(mm): 584(W)*1094(D)*1500(H) mm
Weight Approximate (kg): 670kg

DOWNLOAD

60KWH High Voltage Lithium Battery Manual

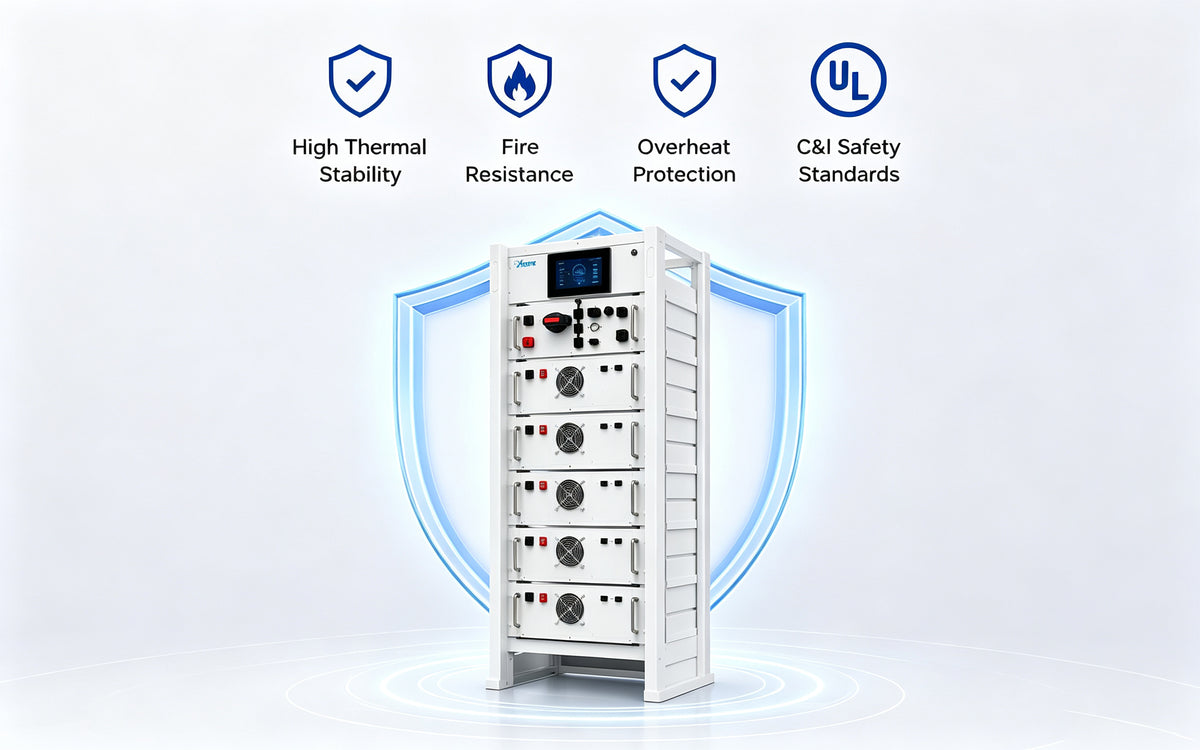

Commercial-Grade LFP Safety

Industry-leading Lithium Iron Phosphate technology with superior thermal stability, meeting stringent C&I safety standards.

Limitless Modular Scalability

High module capacity supports flexible stacking or parallel expansion, easily reaching Megawatt-hour (MWh) scale applications.

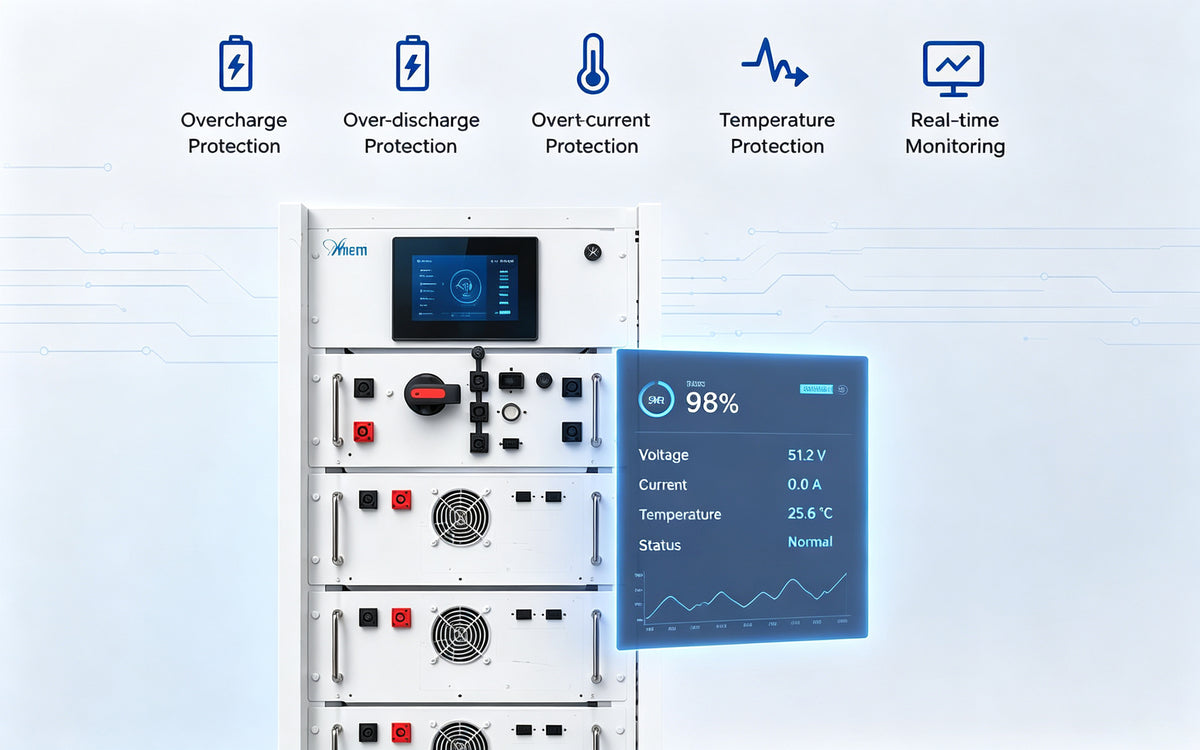

Intelligent Cluster Management

Equipped with a high-performance BMS for multi-module collaboration, ensuring millisecond-level response and precise energy dispatch.
