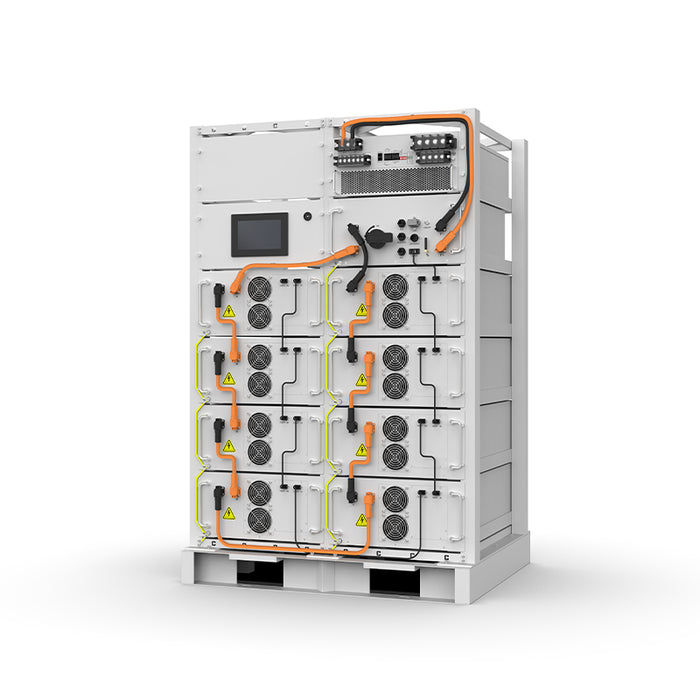

114KWH High Voltage Industrial Rack Lithium Battery

Description:

Battery module(Wh/V): 14.336kWh, 51.2V
Number of modules: 8
Cell technology: LFP (LiFePO4)
Battery usable energy: 114.68kWh
Nominal voltage: 409.6V
Operating voltage: 358.4-467.2V
Standard charging & discharging: 168A/0.6C
Maximum continuous charging & discharging: 168A/0.6C
Display: SOC status indication, Alarm indication, LCD display
Communication: CAN / RS485
Dimension (W*D*H)(mm): 1060(W)*845(D)*1385(H) mm
Weight Approximate (kg): 965kg
Discharging temperature range: -30~55℃
Charging temperature range: -10～45℃
Protection rating: IP20
