10KW Off-grid Lithium Ion Powerwall Solar System

10KW Off-grid Lithium Ion Powerwall Solar System

by Anern

Description:

Anern AN-OFF-SGHP 10KW off grid lithium ion powerwall series solar system are widely used in Solar Systems for residential and commercial use. Anern powerwall lithium battery with more than 6000 times deep cycle, up to 90% DOD and phosphate battery cell.You are completely independent from external energy supplies and can expand or change your system on a modular basis at any time.

Package Content:

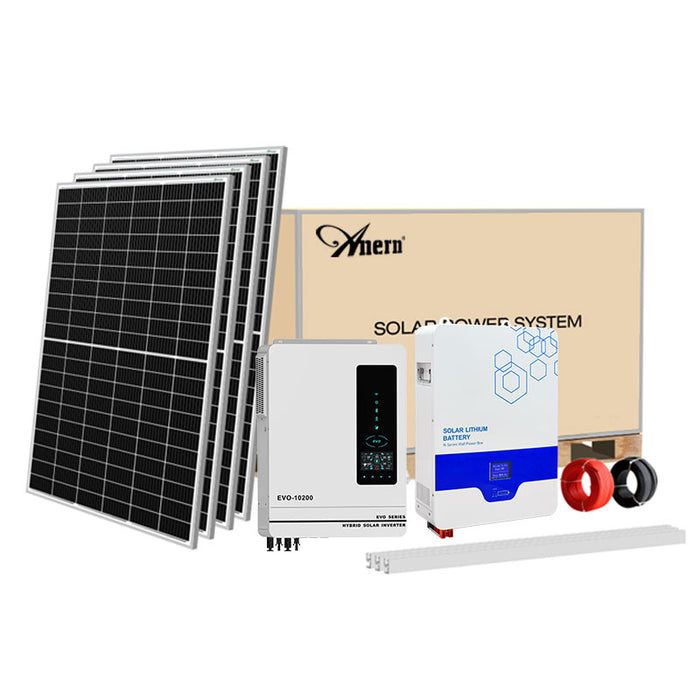

With 20pcs Half-cell Monocrystalline PV Module(450W), 2pcs Solar Inverter(5Kw), 2pcs PV Array Combiner, 4pcs Lifepo4 Battery, Solar Panel Bracket, Cables, 2pcs Circuit Breaker And 2pcs Wifi Monitoring Module

$9,086.00 - $9,086.00
$9,086.00
$9,086.00 - $9,086.00
$9,086.00

Video of 10KW Off-grid Lithium Ion Powerwall Solar System

 Specification of 10KW Off-grid Lithium Ion Powerwall Solar System

System Basic Information: Average daily generation: 34-39KWH
Rated Loads Capacity:10000W
Solar Panel(20pcs) Type: Half-cell Monocrystalline PV Module
Max Power: 450W
Size: 2094*1038*35mm
25 years power output guarantee
Solar Inverter(2pcs) Rated Ouput Power: 5000W
Rated DC Voltage: 48V
Grid Power Input:
    Grid Input Voltage: 220VAC
    Input frequency: 50HZ
Inverter Output:
    Output Voltage: 220VAC
    Output Frequency: 50Hz
    Wave Form: Pure Sine Wave
Solar Input:
    Max Input Voltage: 500V
    Rated Solar Input Power: 5000W
    Max Current: 80A
Battery Rated Voltage: 48V
MPPT Range @ Operating Voltage: 120 ~ 450 VDC
Protections: reverse polarity, short-circuit, overvoltage, undervoltage, over-discharge, anti-thunder
PV Array Combiner(2pcs) Simplify wiring between PV array and controller, protections to controller, features:
- Wide range of DC input voltage
- IP65 guard level, suitable for outdoor
- Reliable thunderstorm & surge protection
- Multiple PV strings inputs (4 strings)
Lifepo4 Battery(12pcs) 48V/200AH per piece
Super Graphene LifePo4 lithium cell
Wall-mounted design, easy installation
Smart Elite BMS

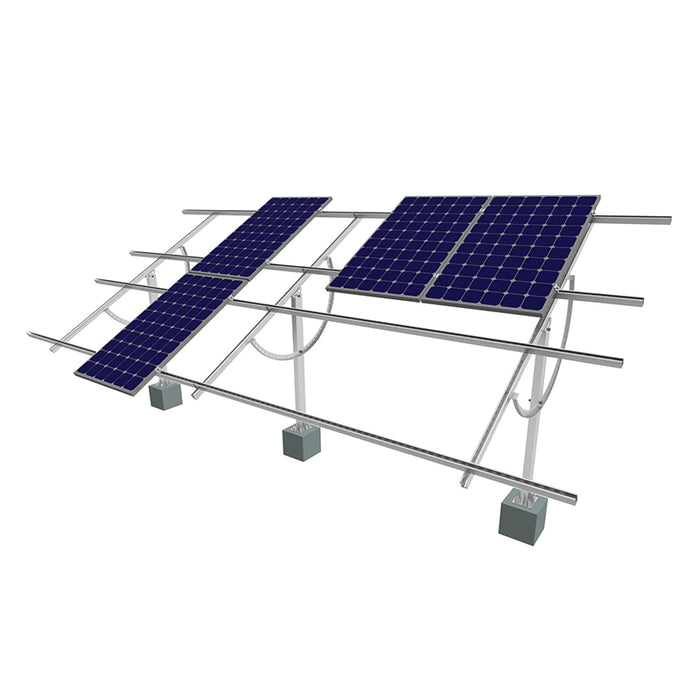

Solar Panel Rack(1pcs) Roof type mounting rack
including complete fittings,aluminum alloy
(Rack can be customized per request)
Cables International standard, with specification suitable for solar system, PVF-1*4 series red and black
Circuit Breaker(2pcs) DC500V 2P 63A(AC)
DC500V 2P 125A(Battery)
WIFI
Monitoring Module(2pcs)		 Monitor, troubleshoot, or communication
