Microgrids offer a path to greater energy resilience, but connecting them to the main electrical grid introduces critical safety challenges. The most significant of these is 'unintentional islanding'—a hazardous situation where a microgrid continues to power a section of the grid during a utility outage. This case study examines a multi-layered safety approach that effectively prevents this dangerous condition, ensuring the security of both the microgrid and the public power infrastructure.
Understanding the Hazard: Unintentional Islanding
When a grid-tied energy system, like a solar installation, becomes electrically isolated from the main utility grid but continues to generate power, it creates an 'island'. This unintentional islanding poses a severe risk. Utility workers expecting a de-energized line for repairs could face life-threatening electrical shock. Furthermore, the power generated by the isolated system can be unstable in voltage and frequency, potentially damaging connected appliances and utility equipment. Reconnecting an active island out-of-sync with the restored grid can cause catastrophic failures. For these reasons, standards like IEEE 1547 mandate that distributed energy resources (DERs) must detect an island and cease energizing the grid within two seconds.
The Role of Anti-Islanding Mechanisms
Anti-islanding protection is a non-negotiable feature for any grid-tied system. It is a core requirement of safety standards such as UL 1741 and IEEE 1547. These mechanisms are designed to instantly detect a grid outage and shut down the inverter's power output to the grid. This ensures the line is truly de-energized, creating a safe environment for maintenance and preventing equipment damage. Modern inverters use a combination of passive methods (monitoring grid voltage and frequency) and active methods (sending small signals to detect the grid's presence) to provide robust protection.
Compliance and Certification
Ensuring your system is equipped with certified anti-islanding technology is paramount. Certifications like UL 1741 confirm that inverters and other interconnection equipment have undergone rigorous testing to meet stringent safety and performance requirements. This verification process is essential for regulatory approval and utility interconnection, guaranteeing that the equipment will operate safely and reliably within the larger electrical system.

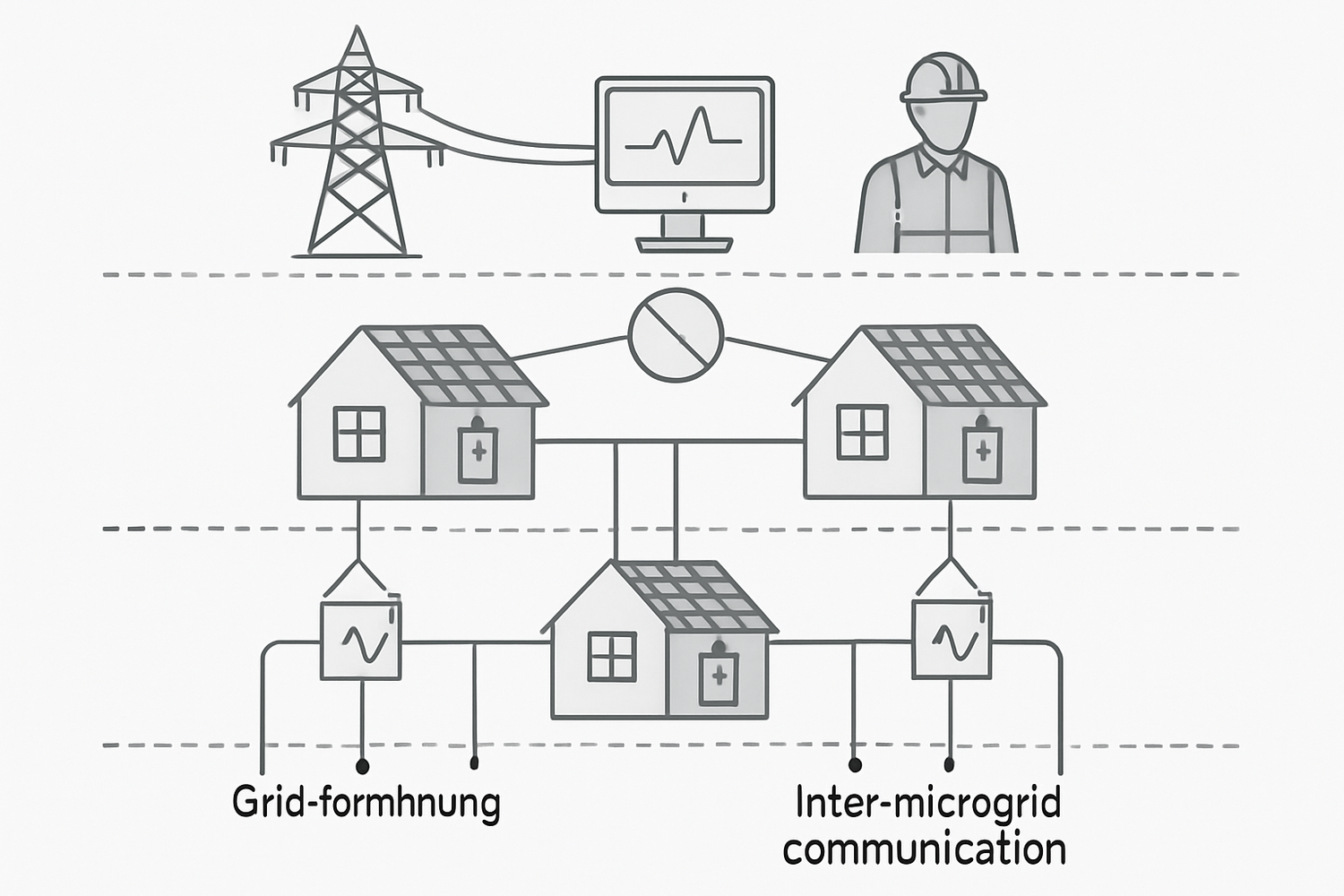

A Case Study in Layered Defense
To address the complexities of modern grids with high penetrations of renewable energy, a more sophisticated approach is necessary. A project developed by Siemens in partnership with the U.S. Department of Energy (DOE) demonstrates a powerful three-layer energy management system designed to secure microgrids and the main grid against various threats, including islanding. This system enhances resilience through intelligent, automated coordination.
Layer 1: Centralized Awareness and Control
The first layer operates at the distribution system level, providing grid operators with comprehensive situational awareness. According to the U.S. Department of Energy's report, Success Story—Using Renewable Microgrids to Keep the Lights On, this layer forecasts the availability of energy resources, allowing operators to make informed decisions to balance the electric load. In the event of an outage, it enables rapid reconfiguration to restore power faster. It can also detect and locate physical or cyber threats, isolating affected assets before they impact the system.
Layer 2: Cooperative Peer-to-Peer Operation
The second layer allows microgrids to work together cooperatively without central control. Even if a control room is compromised, individual microgrids can communicate with each other to assess the health of the surrounding network. As described in the DOE success story, they can 'talk to each other' to determine where support is needed and share energy resources accordingly. This decentralized intelligence ensures that critical loads, like hospitals and emergency services, can maintain a basic level of power supply during a widespread event.
Layer 3: Autonomous Restoration
The third and most fundamental layer enables the autonomous restoration of the power system using grid-forming inverters. Traditional 'grid-following' inverters need a signal from the grid to operate. In contrast, grid-forming inverters can generate their own stable grid signal, allowing them to initiate a 'blackstart'—restarting a section of the grid from a complete shutdown without human intervention. The project demonstrated that 24 grid-forming inverters could successfully restart a simulated grid and synchronize four microgrids, proving the viability of this self-healing capability.
Core Technologies for Islanding Prevention
The effectiveness of these safety layers depends on advanced hardware and standardized communication protocols. These components work in concert to ensure a microgrid can operate both in conjunction with the grid and safely apart from it.
Advanced 'Smart' Inverters
Modern inverters are far more than simple power converters; they are intelligent devices that actively support grid stability. Advanced functions, often required by updated grid codes, allow them to provide critical services:
- Voltage & Frequency Ride-Through: Instead of instantly disconnecting during minor grid fluctuations, these inverters can 'ride through' the event, helping to stabilize the grid.
- Volt/VAr & Frequency/Watt Modes: Inverters can automatically adjust reactive power output to regulate voltage (Volt/VAr) and reduce real power output if grid frequency becomes too high (Frequency/Watt), contributing to overall grid health.
- Grid-Forming Capability: As seen in the case study, grid-forming inverters can establish a stable, independent grid, a crucial function for both intentional islanding (like in an off-grid mode) and emergency grid restoration.
Interconnection Standards and Protocols
Standardization is the bedrock of grid safety. A cohesive framework of rules ensures that all equipment connected to the grid behaves predictably and safely. According to a report by the International Renewable Energy Agency (IRENA) titled Quality infrastructure for smart mini-grids, standards are critical for safe interconnection. Key standards include:
- IEEE 1547: This is the foundational U.S. standard for interconnecting DERs with the electric grid. It sets the technical specifications and testing procedures for anti-islanding protection and other grid-support functions.
- UL 1741: This standard focuses on the safety and certification of inverters, converters, and controllers. Compliance with UL 1741 is a prerequisite for connecting to the grid in North America.
- IEC 62116: An international standard that provides specific test procedures for islanding prevention measures, ensuring inverters disconnect safely and promptly when the grid is down.
A Safer, More Resilient Energy Future
Preventing unintentional islanding is not just a technical requirement; it is a fundamental safety imperative. The case study of the multi-layered energy management system illustrates a clear path forward. By combining intelligent, centralized oversight with decentralized, cooperative control and the autonomous capabilities of grid-forming inverters, we can build a more resilient and secure power grid. This approach allows microgrids to provide valuable support during normal operation and, crucially, to disconnect safely and reliably when the grid goes down, protecting personnel, equipment, and the public.
Disclaimer: This article is for informational purposes only and does not constitute legal or investment advice. Always consult with qualified professionals and local authorities before installing or modifying any grid-tied energy system.
Frequently Asked Questions
What is microgrid islanding?
Microgrid islanding occurs when a distributed energy resource, like a solar panel system, gets disconnected from the main utility grid but continues to generate and send power to the isolated grid section. Unintentional islanding is a serious safety hazard.
Why is anti-islanding protection important for grid-tie safety?
Anti-islanding protection is a critical safety feature that automatically shuts down a solar inverter during a grid outage. This prevents the system from energizing downed power lines, which protects utility workers from electric shock, prevents damage to household and utility equipment, and ensures a smooth, safe restoration of grid power.
What is a grid-forming inverter?
A grid-forming inverter is an advanced type of inverter that can generate its own stable voltage and frequency signal, effectively creating an independent electrical grid. This contrasts with more common grid-following inverters, which require a signal from the main grid to operate. Grid-forming capabilities are essential for intentional islanding (off-grid operation) and for autonomously restarting a grid after a blackout.
