The Interop Blueprint: Modbus, MQTT, OpenADR for ESS

Energy Storage Systems (ESS) are central to modern energy management. They store power from solar panels or the grid, providing backup and reducing electricity costs. To unlock their full capability, these systems must communicate effectively—with internal components, with cloud platforms, and with the utility grid itself. This requires a robust communication architecture. A powerful combination of three protocols—Modbus, MQTT, and OpenADR—provides a complete blueprint for intelligent and responsive energy storage.

The Three Pillars of ESS Communication

Effective ESS management relies on a layered communication strategy. Each protocol in this stack has a distinct and vital role, from the local hardware level up to grid-wide interaction. Understanding each one clarifies how a seamless flow of data and commands is achieved.

Modbus: The Industrial Workhorse

Modbus is a communication protocol first published in 1979. Its longevity is a testament to its simplicity and reliability. In an ESS, Modbus acts as the local language, enabling communication between the core components. The Battery Management System (BMS), the inverter, and local controllers often use Modbus to exchange critical operational data. This includes state of charge (SoC), voltage, current, and temperature. It is the foundational layer, ensuring all parts of the system are synchronized.

MQTT: The Lightweight Messenger for IoT

While Modbus excels at local communication, it is not designed for transmission over the internet to cloud platforms. This is where Message Queuing Telemetry Transport (MQTT) comes in. MQTT is a lightweight publish-subscribe protocol ideal for connecting devices over networks where bandwidth may be limited. A local gateway device collects data from the ESS via Modbus and then 'publishes' this information to an MQTT 'broker' in the cloud. This method is highly efficient and scalable, allowing for real-time monitoring of thousands of assets from a single dashboard.

OpenADR: The Language of Grid Demand Response

Open Automated Demand Response (OpenADR) is a standardized protocol that facilitates communication between utilities or grid operators and energy-consuming or -producing assets. When a utility needs to stabilize the grid, it can send an OpenADR signal requesting assets to reduce consumption or discharge stored energy. For an ESS, this is a command to participate in grid services. By supporting OpenADR, an ESS can automatically respond to these signals, helping to balance the grid and often generating revenue for the asset owner through demand response programs.

Creating a Cohesive Communication Chain

These three protocols do not work in isolation. They form a sequential chain that translates low-level hardware data into high-level, actionable grid intelligence. This synergy is what transforms a standalone battery into a dynamic grid asset.

From Local Control to Cloud Intelligence

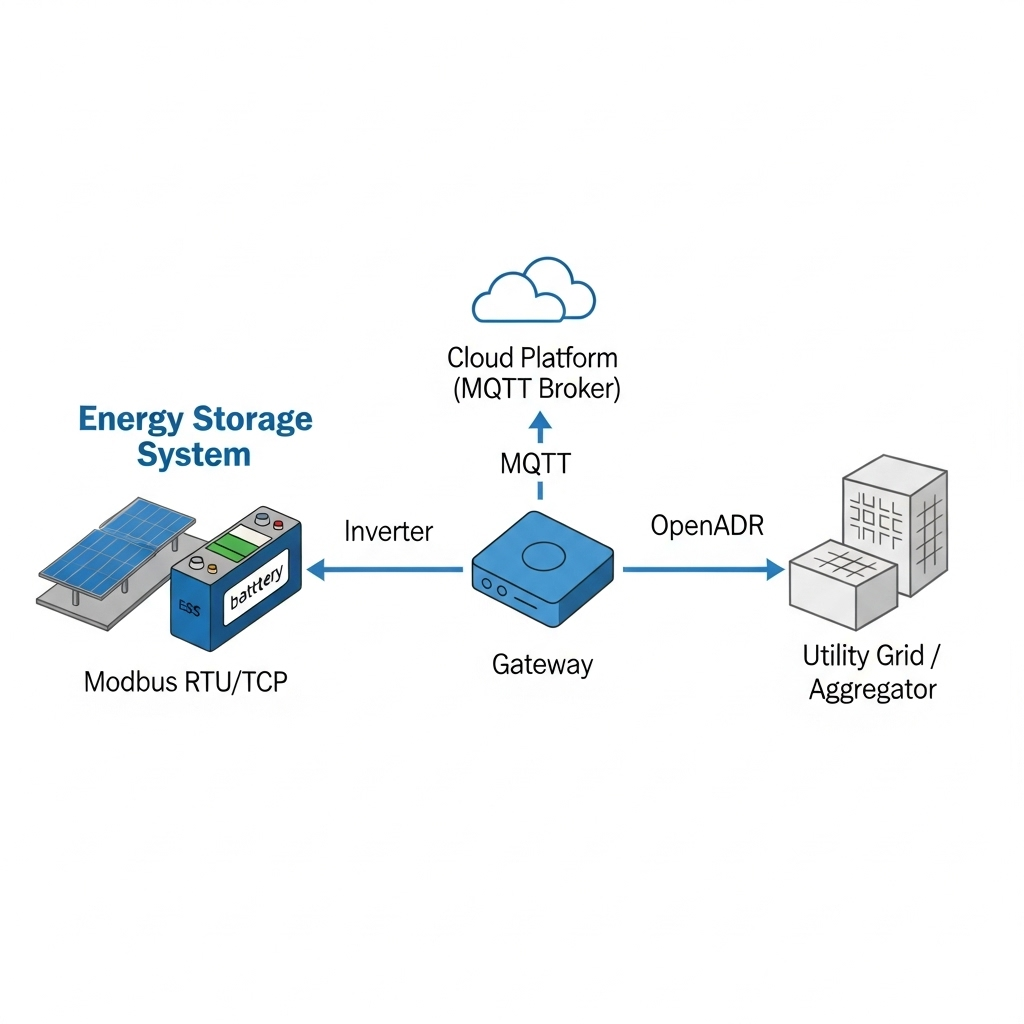

The process begins at the asset level. The gateway continuously polls the inverter and BMS for data using Modbus. This raw data, such as Kilowatt-hours and voltage levels, is then structured into a standardized format. The gateway publishes these formatted messages to specific 'topics' on the MQTT broker. For example, a message published to 'ess/123/soc' would contain the state of charge for the device with ID 123. Cloud applications can then 'subscribe' to these topics to receive a real-time stream of data for analysis, visualization, and record-keeping.

Enabling Grid Interaction with OpenADR

The communication flow becomes bidirectional when grid interaction is required. A utility sends an OpenADR event signal to the cloud platform, which acts as an OpenADR client. This signal might contain instructions like 'discharge 50 kW for the next 15 minutes'. The platform processes this request and translates it into a specific command for the target ESS. This command is then sent down to the correct gateway via an MQTT message. Finally, the gateway uses Modbus to instruct the ESS inverter to begin discharging at the specified rate. The entire process, from grid signal to battery action, can be fully automated.

The Importance of Data Standardization

Using standardized protocols is critical for building scalable and interoperable systems. According to the International Renewable Energy Agency's report, Grid Codes for Renewable Powered Systems, the increasing reliance on real-time, internet-based communication for power system control makes standardization essential for security and reliability. This layered approach ensures that devices from different manufacturers can be integrated into a single, cohesive energy network.

From Theory to Application

Implementing this communication stack involves specific hardware and software choices. The benefits include not just enhanced control but also new opportunities for optimization and revenue generation.

Key Hardware and Software Components

A typical implementation requires:

• An ESS with a Modbus-enabled inverter and BMS.
• A gateway device, which can be an industrial computer or even a small single-board computer, running software to handle Modbus-to-MQTT translation.
• A cloud-based MQTT broker for data aggregation.
• A software application that includes an OpenADR client to communicate with the utility and business logic to manage the ESS.

Performance Metrics and Optimization

This integrated system provides the granular data needed for deep performance analysis. To truly optimize your system, you need to track key metrics. As detailed in this guide on solar storage performance, monitoring round-trip efficiency, depth of discharge, and cycle life is fundamental. The Modbus-MQTT data pipeline delivers precisely the high-resolution data required to calculate these figures, helping you maximize the lifespan and financial return of your asset.

Unlocking Revenue and Grid Stability

The primary benefit of this full-stack implementation is the ability to participate in energy markets. By responding to OpenADR signals, an ESS can provide valuable ancillary services to the grid, such as frequency regulation and capacity support. This turns a capital expense into a revenue-generating asset. As noted in the IEA's System Integration of Renewables report, the integration of assets like energy storage is crucial for providing the flexibility needed to support grids with high levels of variable renewables like solar and wind.

Choosing the Right Tool for the Job

Each protocol is optimized for a specific task. The following table provides a clear comparison of their roles in the ESS communication ecosystem. The Innovation Outlook: Smart charging for electric vehicles report from IRENA further illustrates how different protocols are positioned within the larger energy communication chain, confirming their complementary functions.

Building a Future-Ready Energy System

The combination of Modbus, MQTT, and OpenADR creates a complete, end-to-end communication architecture for modern energy storage. This blueprint bridges the gap between low-level hardware control and high-level grid services. Modbus provides robust local command, MQTT offers efficient data transport to the cloud, and OpenADR enables intelligent participation in energy markets. By adopting this layered approach, system integrators and asset owners can build flexible, scalable, and future-ready energy solutions that enhance both asset value and grid stability.

Frequently Asked Questions

Can I use MQTT without Modbus for my ESS?

While it is technically possible if your ESS hardware (inverter, BMS) has native MQTT support, it is uncommon. Most industrial and commercial-grade components rely on established fieldbus protocols like Modbus for direct hardware-level communication due to its reliability and simplicity. A gateway is typically used to bridge Modbus to MQTT.

Is OpenADR the only protocol for demand response?

No, other protocols and proprietary systems exist for demand response. However, OpenADR is one of the most widely adopted open standards, especially in North America, Japan, and parts of Europe. Its standardization promotes interoperability, allowing asset owners to connect to various utility programs without needing custom integrations.

Do I need all three protocols for a simple home battery backup system?

For a basic residential ESS used purely for backup power and self-consumption, you likely do not need all three. The system will use Modbus (or a similar protocol) for internal communication between its components. It may use MQTT to send data to a mobile app for monitoring. OpenADR is only necessary if you plan to enroll your system in a utility or aggregator program that offers financial incentives for grid support.
