Investing in a 12V LiFePO4 battery for your solar energy system is a significant step towards energy independence. These batteries are known for their long life and safety, but unlocking their full potential requires understanding a key factor: cycle life. This isn't just about how many years the battery will last, but how much energy it can deliver over its entire operational life. The way you use your battery every day directly impacts its longevity.
This guide provides a detailed look at the relationship between cycle life, Depth of Discharge (DoD), and the gradual performance degradation of 12V LiFePO4 batteries. You will gain practical knowledge to help you configure your system for maximum lifespan and value.
Understanding the Fundamentals of LiFePO4 Cycle Life
The longevity of a LiFePO4 battery is one of its most compelling features, especially when compared to traditional battery chemistries. This durability stems from its stable internal structure and how it responds to repeated use.
What Defines a 'Cycle'?
A cycle refers to one complete charge and subsequent discharge of a battery. However, not all cycles are created equal. A 'deep' cycle, where you use most of the battery's capacity, puts more stress on the components than a 'shallow' cycle that only uses a small portion. The total number of cycles a battery can provide is directly influenced by how deeply it is discharged on a regular basis.
Why LiFePO4 Chemistry Excels in Longevity
Lithium iron phosphate (LiFePO4) chemistry is inherently stable. Its strong molecular bonds resist breaking down during the stress of charging and discharging. This structural integrity minimizes degradation, allowing the battery to perform thousands of cycles before its capacity begins to fade significantly. This reliability is crucial for energy storage, a sector the International Renewable Energy Agency (IRENA) identifies as vital for integrating renewables into our power grids. The robust nature of LiFePO4 makes it a preferred choice for applications that demand consistent, long-term performance.
The Critical Role of Depth of Discharge (DoD)
Depth of Discharge is the single most important operational parameter you can control to influence your 12V LiFePO4 battery's lifespan. Understanding and managing it correctly is key to protecting your investment.
Defining Depth of Discharge
Depth of Discharge (DoD) is the percentage of a battery's total capacity that has been used. For example, if you have a 100Ah battery and you use 80Ah of energy before recharging it, you have discharged it to 80% DoD. The remaining 20Ah is its State of Charge (SoC), meaning the battery is at 20% SoC. The two values are inversely related: DoD = 100% - SoC.

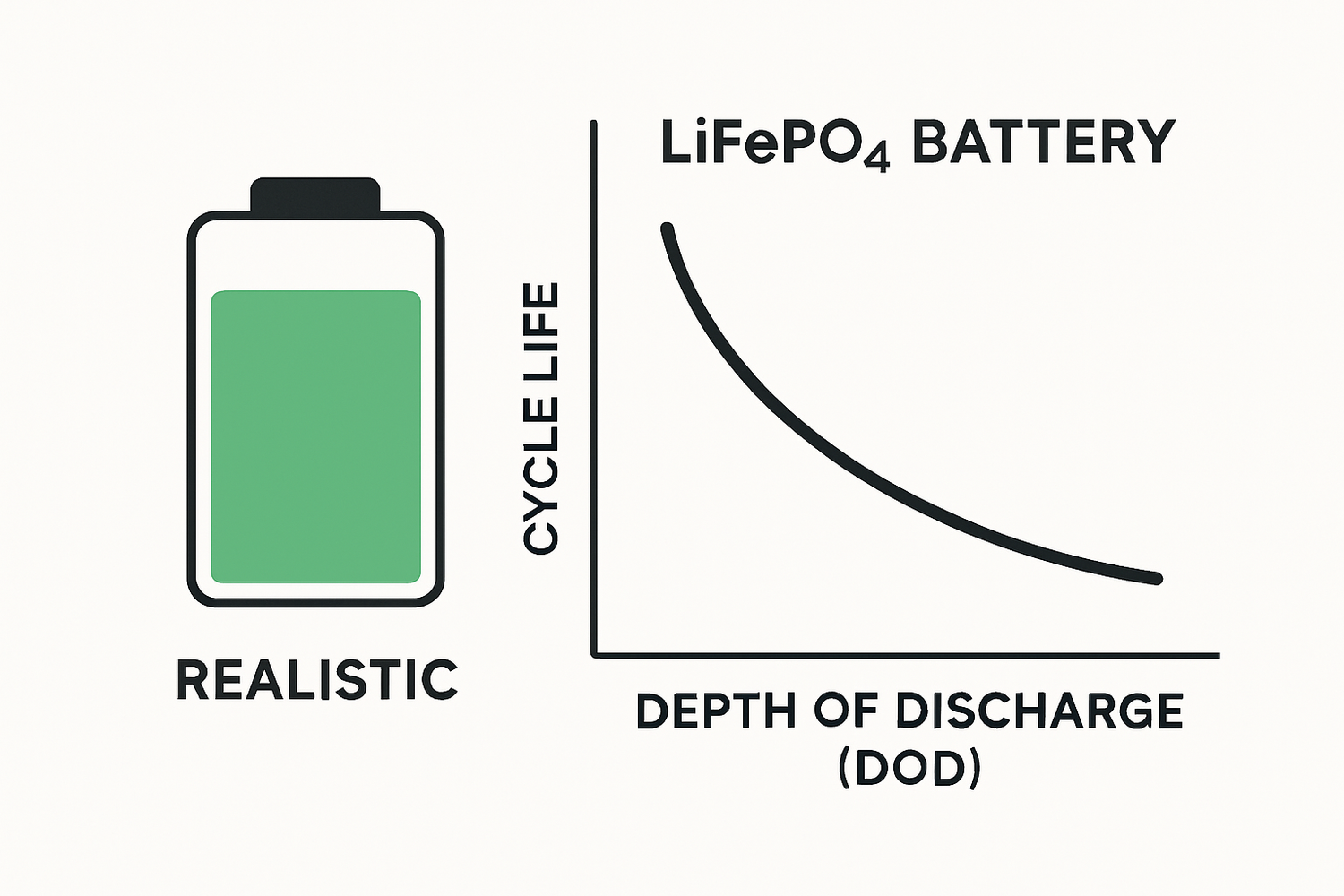

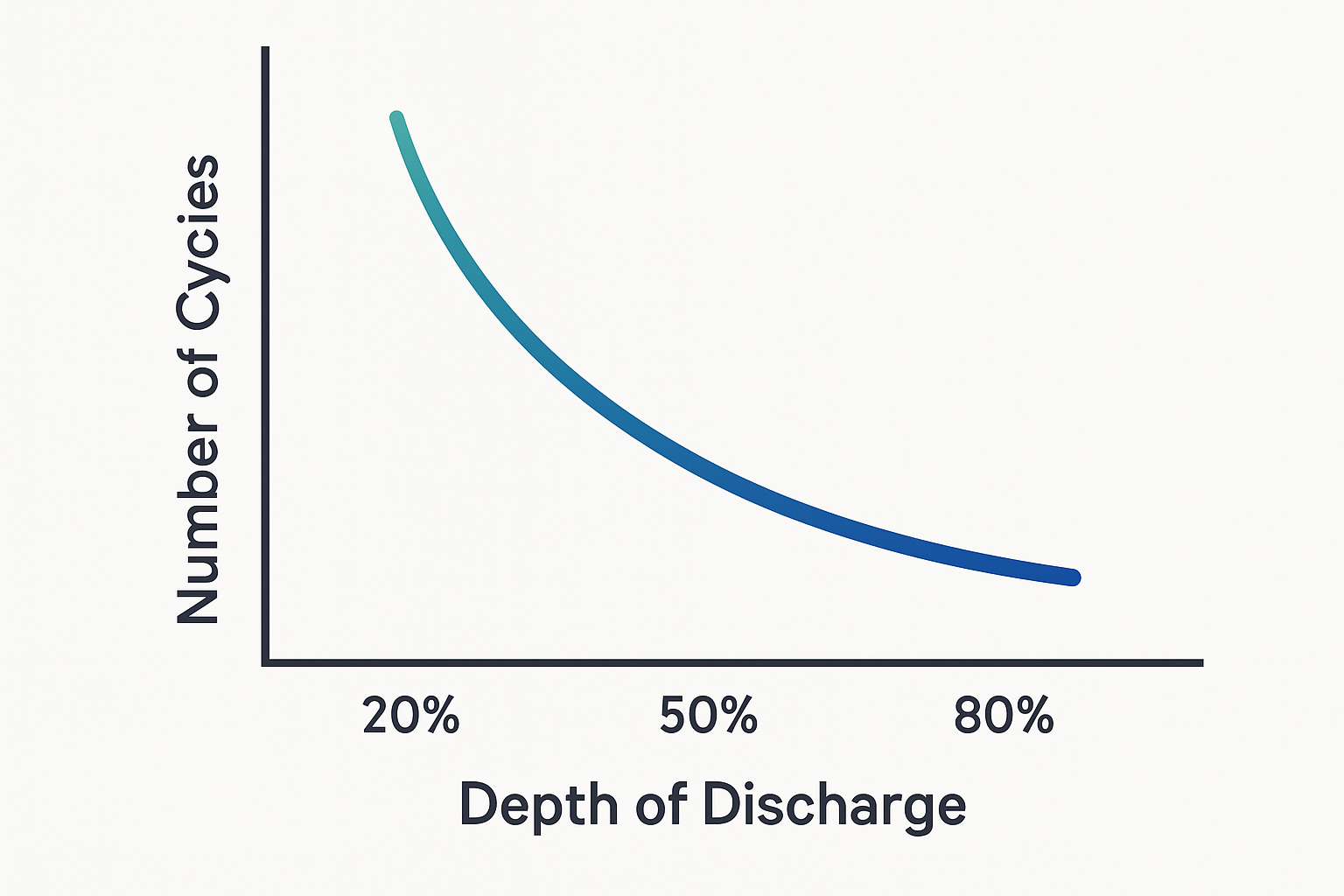

The Inverse Relationship Between DoD and Cycle Count
There is a clear and predictable relationship between how deeply you discharge your battery and how many cycles it will last. Shallower discharges result in an exponentially longer cycle life. Deeper discharges put more strain on the battery's internal components, accelerating wear and reducing its total lifespan. While a LiFePO4 battery can handle deep discharges far better than older technologies, consistent deep cycling will shorten its life.
| Depth of Discharge (DoD) | Estimated Cycle Life |
|---|---|
| 100% | 2,500+ cycles |
| 80% | 4,000+ cycles |
| 50% | 8,000+ cycles |
| 20% | 15,000+ cycles |
Note: These are typical estimates. Actual performance can vary based on battery quality, temperature, and charge/discharge rates.
Beyond Cycle Count: Performance Degradation Over Time
A battery's end-of-life is typically defined as the point when its initial capacity has faded by 20% (meaning it can only hold 80% of its original charge). This capacity fade is a gradual process, not a sudden failure. Higher DoD levels accelerate this degradation. Therefore, managing DoD is not just about reaching a specific cycle number; it's about slowing down the rate of capacity loss over many years. According to an analysis of energy systems, a comprehensive view of solar storage performance shows that long-term efficiency is heavily influenced by operational habits like DoD, which determines the total usable energy over the battery's lifetime.
Practical Strategies for Managing DoD and Extending Lifespan
You can actively manage DoD through smart system design and configuration. These strategies help balance your daily energy needs with the long-term health of your battery bank.
Right-Sizing Your Battery Bank
One of the most effective strategies is to size your battery bank appropriately for your energy needs. A slightly oversized bank allows you to power your loads using a smaller percentage of the total capacity, resulting in a lower average DoD. While this may involve a higher initial cost, it can significantly extend the battery's operational life, leading to a lower total cost of ownership over time.
Configuring Your System's Charge Controller and Inverter
Modern solar charge controllers and inverters offer programmable settings to protect your battery. You can set a low-voltage cutoff (LVC) point, which will disconnect loads to prevent the battery from discharging beyond a certain point (e.g., 80% DoD). The integrated Battery Management System (BMS) in a quality 12V LiFePO4 battery provides the primary layer of protection against over-discharge, over-charge, and extreme temperatures.
The Influence of Temperature and Charge Rates
While DoD is a primary factor, other conditions also affect battery health. Operating batteries in extreme heat accelerates chemical degradation. Similarly, charging or discharging at rates higher than the battery's specification can cause stress and shorten its life. A well-designed system manages these factors to ensure the battery operates within its ideal parameters, complementing the benefits of controlled DoD.
A Balanced Approach to LiFePO4 Battery Usage
Maximizing battery life is about finding a sustainable balance between performance and preservation. It's not about avoiding usage but about using your energy storage system intelligently.
Is 100% DoD Ever Acceptable?
One of the advantages of LiFePO4 chemistry is its ability to handle an occasional 100% DoD without immediate damage, unlike lead-acid batteries. In an emergency or for an infrequent, high-power demand, you can use the full capacity. However, making this a daily habit will reduce the cycle life as shown in the table above. For daily use, operating at a DoD of 80% or less provides a better balance of usable capacity and long-term value.
Calculating Your Return on Investment
A smarter way to view your battery's value is through its total energy throughput—the total kilowatt-hours (kWh) it can deliver over its life. A battery operated at 50% DoD will last for many more cycles than one operated at 100% DoD. Even though you use less capacity per cycle, the dramatic increase in cycles often results in a higher total energy throughput, giving you more value from your investment.
Disclaimer: This information is for educational purposes only and does not constitute financial advice. Consult with a qualified professional for investment decisions.
A Long-Term Perspective
Effectively managing the Depth of Discharge is the most powerful tool you have for extending the life of your 12V LiFePO4 battery. By understanding the direct link between discharge depth and cycle life, you can design and operate your solar energy system for optimal durability. A thoughtful approach that balances daily energy requirements with long-term battery health ensures you achieve reliable power and maximize the value of your energy storage system for years to come.
Frequently Asked Questions
How does DoD affect the performance of a 12V LiFePO4 battery over time?
A higher average DoD accelerates the gradual loss of a battery's capacity, known as capacity fade. While a new battery might offer 100Ah of capacity, one consistently cycled to a deep DoD will lose its ability to hold that full charge faster than a battery cycled more shallowly. This means its performance degrades more quickly over time.
What is a typical cycle life for a LiFePO4 battery at 80% DoD?
A high-quality 12V LiFePO4 battery can typically deliver 4,000 or more cycles when regularly discharged to 80% DoD. This often translates to over 10 years of reliable performance in a daily cycling application like a solar energy storage system.
Can I use 100% of my LiFePO4 battery's capacity?
Yes, you can use 100% of the capacity, but it is not recommended for daily use. LiFePO4 batteries can handle occasional deep discharges without sustaining immediate damage. However, consistent cycling to 100% DoD will significantly reduce the total number of cycles the battery can provide compared to operating at a lower DoD, such as 80% or 50%.
