A LiFePO4 battery pack is a team of individual cells working together. For this team to perform at its peak, every cell must be in sync. This is where cell balancing comes in. It's a critical function managed by the Battery Management System (BMS) that directly impacts your battery's usable capacity, lifespan, and safety. Choosing between the two main strategies, active and passive balancing, is a key decision for anyone building or buying a LiFePO4 energy storage system.
Understanding the Basics: Why LiFePO4 Cells Need Balancing
Even in a batch of high-quality cells, no two are perfectly identical. Tiny variations in manufacturing lead to slight differences in capacity, internal resistance, and self-discharge rates. While minor at first, these differences can become a major problem over time.
The Challenge of Cell Imbalance
As you charge and discharge your battery pack, these small inconsistencies cause some cells to charge faster or discharge slower than others. Over many cycles, this creates a state of imbalance. The higher-voltage cells will hit their maximum charge first, telling the charger to stop, even if other cells are not yet full. Conversely, during discharge, the lower-voltage cells will hit their minimum voltage first, causing the BMS to cut power while other cells still hold usable energy. This 'weakest link' effect reduces the entire pack's usable capacity and puts stress on individual cells, leading to accelerated degradation.

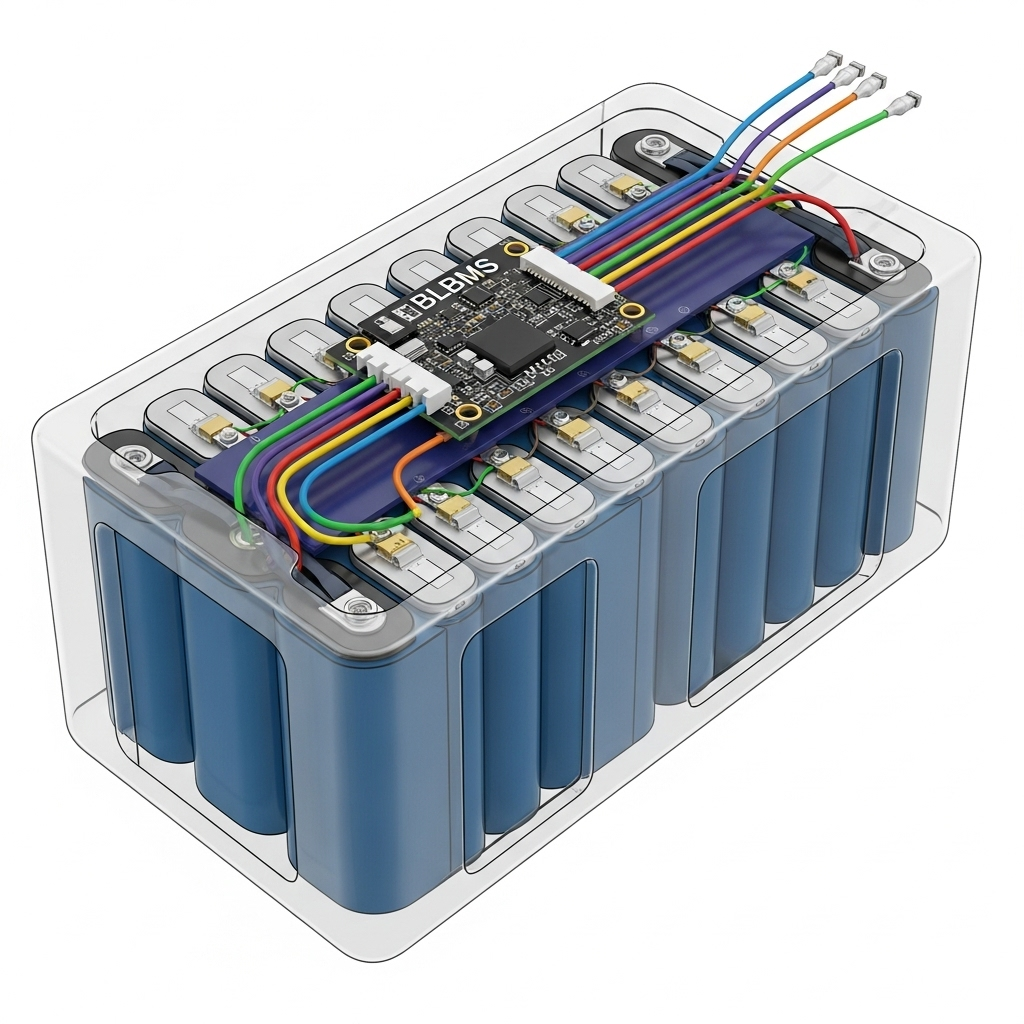

The Role of the Battery Management System (BMS)
The BMS is the brain of your battery. It monitors the voltage of every cell and protects the pack from overcharging, over-discharging, and extreme temperatures. A key responsibility of the BMS is to execute a balancing strategy to counteract cell drift. The method it uses—passive or active—determines how effectively it can maintain the health of the entire pack. The right BMS balancing strategies are fundamental to long-term performance.
Passive Balancing: The Traditional Approach
Passive balancing is the most common and straightforward method for maintaining cell equilibrium. It's a simple and often effective strategy, particularly for smaller battery packs or applications where cost is a primary concern.
How It Works: Bleeding Off Excess Energy

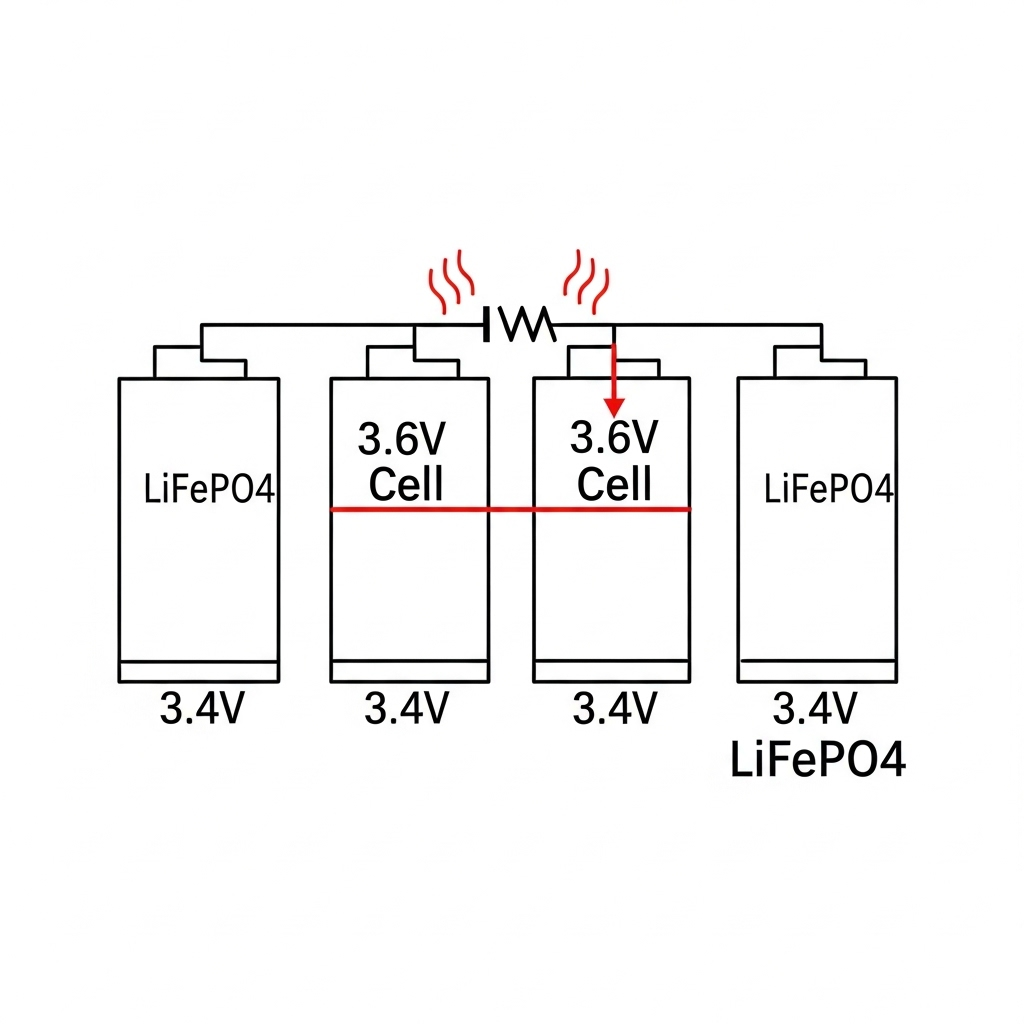

A passive balancing system works by targeting the cells with the highest voltage. When a cell's voltage exceeds a certain threshold during the charging process, the BMS connects a small resistor across that cell. This resistor creates a small load, 'bleeding off' the excess energy and converting it into a tiny amount of heat. This allows the other, lower-voltage cells to continue charging and catch up. This process is typically limited to the end of the charge cycle when the cells are nearly full.
Pros and Cons of Passive Balancing
The main advantage of passive balancing is its simplicity and low cost. With fewer components, it is generally very reliable. However, it has significant drawbacks. The primary one is inefficiency; energy is intentionally wasted as heat instead of being used. The balancing process is also quite slow, as the balancing current is typically very low (often between 50-200mA). This makes it unsuitable for correcting large imbalances or for applications with rapid charge and discharge cycles.
Active Balancing: The High-Efficiency Method
Active balancing represents a more advanced and efficient approach to maintaining cell health. Instead of wasting excess energy, it actively redistributes it to where it's needed most.
How It Works: Redistributing Energy
An active balancer acts like a tiny, intelligent power-shuttling system. It takes energy from the cells with the highest charge and transfers it to the cells with the lowest charge. This is accomplished using components like capacitors or inductors to store and move small packets of energy. A key benefit is that this process can happen at any time—during charging, discharging, or even when the battery is idle. This continuous balancing helps keep the entire pack in a much tighter state of equilibrium.
Pros and Cons of Active Balancing
Efficiency is the standout feature of active balancing, with many systems operating at over 90% efficiency. They can also work with much higher currents (often 1A, 2A, or even more), allowing them to correct imbalances much faster than passive systems. This can lead to an increase in the battery's usable capacity, as all cells are able to contribute their full potential. The main disadvantages are higher cost and increased complexity, which introduces more potential points of failure compared to a simple passive system.
Head-to-Head Comparison: Active vs. Passive
Choosing the right balancing method depends on your specific application, budget, and performance expectations. A direct comparison highlights the distinct advantages of each approach.
Key Performance Metrics
The differences become clear when you look at the data. Active balancing provides tangible benefits in efficiency and speed, which can translate into better long-term value.
| Feature | Passive Balancing | Active Balancing |
|---|---|---|
| Mechanism | Dissipates energy as heat | Transfers energy between cells |
| Efficiency | Low (Wastes energy) | High (Typically >90%) |
| Balancing Speed | Slow (mA range) | Fast (A range) |
| Usable Capacity Impact | Standard | Potentially Increased |
| Cost | Low | High |
| Complexity | Simple | Complex |
When to Choose Which
Passive balancing is a suitable choice for smaller, cost-sensitive projects with high-quality, well-matched cells where only minor corrections are anticipated. For large residential energy storage systems, off-grid applications, or any system where maximizing performance and lifespan is paramount, active balancing is the superior option. The upfront cost is often justified by the gains in usable capacity and extended battery life. Maximizing usable capacity is a key factor in system performance. You can learn more about how to assess these key figures in our ultimate reference for solar storage performance.
The Influence of BMS Firmware
Regardless of the hardware, the effectiveness of any balancing system relies heavily on its BMS firmware. The algorithms within the firmware dictate when balancing starts, how aggressively it operates, and when it stops. High-quality firmware makes smarter decisions, protecting the battery more effectively. Regular firmware updates for BMS can introduce improved balancing strategies and enhanced safety protocols, further optimizing battery health over its lifetime.
A Holistic View of Battery Health
Ultimately, the choice between active and passive balancing is not about one being universally 'better'. It is about selecting the right tool for the job. For a robust home energy storage system designed for decades of service, the precision and efficiency of an active balancer provide significant long-term advantages. It ensures you get the most out of every cell in your pack, day after day.
This level of component optimization is crucial as batteries play a larger role in energy systems. As noted in the IEA's report, China Power System Transformation, distributed resources like battery storage are becoming essential for grid services. An actively balanced battery can respond faster and more reliably, contributing to a more stable power grid.
Furthermore, the demands on batteries are growing. The Innovation Outlook: Smart charging for electric vehicles by IRENA shows how applications like smart charging involve complex charge/discharge patterns. Active balancing helps maintain pack health under these stressful conditions. The global push for electrification, detailed in the IEA's Energy Technology Perspectives 2024, also highlights the need for durable and efficient battery components. Choosing the right LiFePO4 battery balancing strategy is a fundamental step toward building a reliable and long-lasting energy solution.
Frequently Asked Questions
Can you add an active balancer to a BMS that only has passive balancing?
Yes, it is possible to add an external, standalone active balancer to a battery pack that is managed by a BMS with only passive balancing. However, it is crucial to ensure the active balancer is compatible with your cell chemistry and voltage. Proper installation is critical to avoid conflicts between the two systems.
Does active balancing use a lot of energy?
No, active balancers are highly efficient. While they do consume a very small amount of power to operate their own electronics, they primarily move energy from one cell to another rather than consuming it. The energy saved by not wasting it as heat far outweighs the balancer's own operational consumption.
How do I know if my battery cells are balanced?
You can check the state of balance through your BMS interface, which should display the individual voltage of each cell in the pack. In a well-balanced pack, the voltage difference between the highest and lowest cell will be very small (typically under 0.01V or 10mV), especially when the pack is fully charged or nearly empty.
Is active balancing worth the extra cost for a home solar battery?
For most modern home solar and energy storage systems, yes. The initial higher cost of an active balancing system can be justified over the battery's lifespan. It can lead to more usable capacity on a daily basis and may extend the overall life of the battery pack, protecting your investment and delivering better performance in the long run.
Disclaimer: This information is for educational purposes only. Consult with a qualified professional before making decisions about your electrical system. Battery work involves risks, and safety precautions are essential.
