A Lithium Iron Phosphate (LiFePO4) battery is the heart of a modern energy backup system, prized for its safety and long life. But to keep that heart beating strong, it needs a brain: the Battery Management System (BMS). Proper BMS calibration and balancing are not just technical tweaks; they are fundamental practices that safeguard your investment, ensure reliability, and maximize the performance of your entire system. Neglecting them can lead to reduced capacity and a shorter operational life.
This text explains the procedures for BMS calibration and firmware updates. You will gain practical knowledge to maintain your LiFePO4 battery, ensuring it operates safely and efficiently for years to come.
Understanding the BMS and Cell Imbalance
Before adjusting any settings, it's important to grasp what the BMS does and why even minor imbalances between battery cells can cause significant issues over time.
What is a BMS and Why is Balancing Crucial?

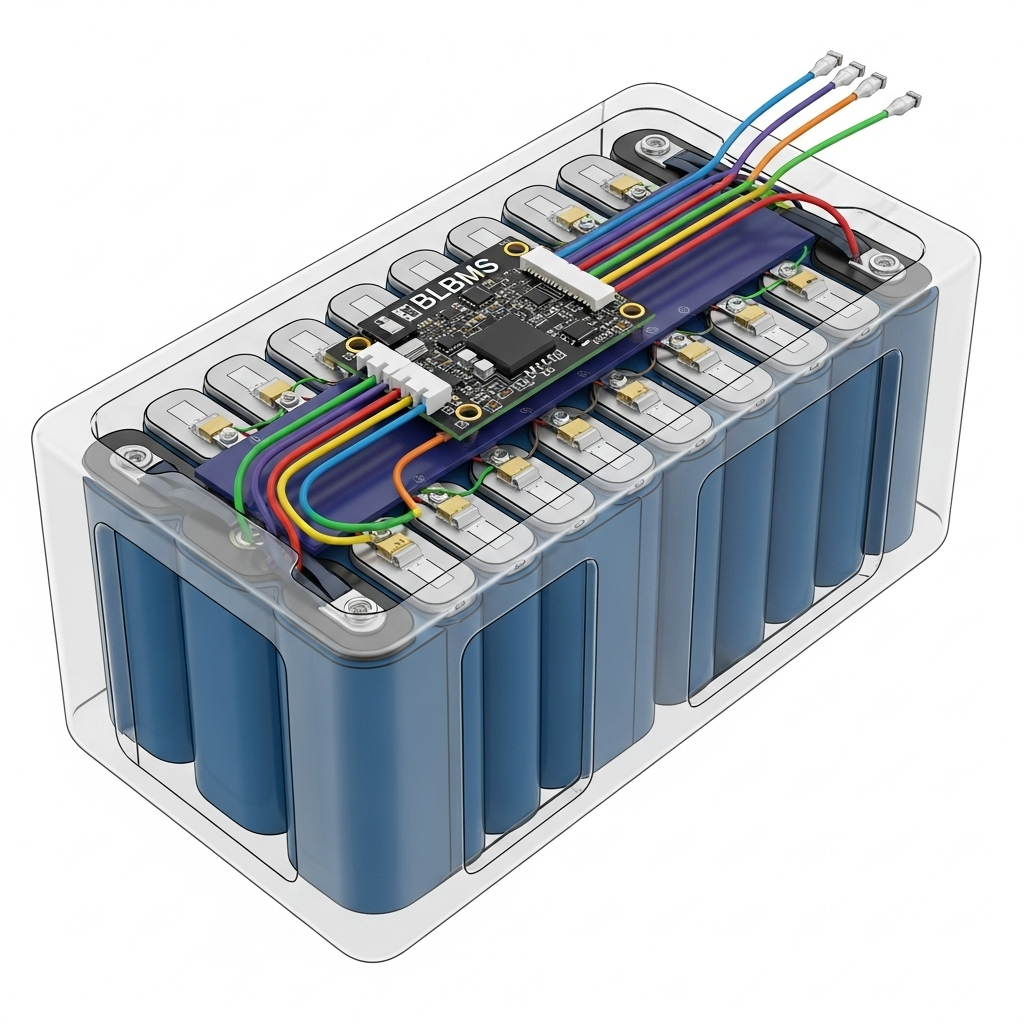

A Battery Management System is an electronic circuit board that acts as the guardian of your battery pack. Its primary duties include:
- Monitoring: It tracks critical data like voltage, current, and temperature for individual cells and the entire pack.
- Protection: It prevents dangerous conditions such as over-charging, over-discharging, overheating, and short circuits.
- Balancing: It ensures all cells within the battery pack maintain an equal state of charge (SoC).
Cell balancing is perhaps its most proactive function. A LiFePO4 battery pack is made of many individual cells connected in series. Due to tiny manufacturing variations, no two cells are perfectly identical. During charging and discharging, these small differences cause some cells to hold slightly more or less voltage than others. Without balancing, this gap widens with every cycle, leading to problems.
The Dangers of Unbalanced Cells
When cells are imbalanced, the entire battery pack suffers. The BMS bases its protective actions on the first cell to hit the high or low voltage limit.
- During Charging: The highest-voltage cell reaches its limit first, causing the BMS to stop the charge, even if other cells are not yet full. The pack's total capacity is not utilized.
- During Discharging: The lowest-voltage cell hits its minimum threshold first, prompting the BMS to cut power to your appliances, even though other cells still have energy to give.
This constant under-utilization effectively reduces your battery's usable capacity. Over time, chronic overcharging of some cells and over-discharging of others accelerates degradation, permanently damaging your battery and shortening its lifespan. The goal of balancing is to make the entire pack operate as a single, cohesive unit.
The Core of Maintenance: BMS Calibration
Calibration is the process of resetting and fine-tuning the BMS so its readings are accurate. It's a foundational step for effective balancing and reliable SoC reporting.
What is BMS Calibration?
BMS calibration involves establishing accurate reference points for the battery's state. It synchronizes the BMS's internal counters and algorithms with the actual physical state of the cells. This process typically resets the top (100% SoC) and sometimes the bottom (0% SoC) limits of the battery's capacity. Without an accurate baseline, even the most advanced balancing algorithm will be ineffective.
When Should You Calibrate Your BMS?
Calibration is not a one-time event. It's a key part of a preventive maintenance schedule, much like the integrity monitoring performed on large-scale energy assets. A report on offshore wind infrastructure, Floating offshore wind outlook, highlights how preventive maintenance is crucial to avoid costly failures. The same principle applies to your battery. Consider performing a LiFePO4 BMS calibration procedure in these situations:
- Initial Installation: Always calibrate a new battery before putting it into regular service.
- Inaccurate SoC Readings: If the battery monitor shows 30% but the system shuts down, it's a clear sign the BMS is out of sync.
- Noticeable Capacity Loss: If your backup power doesn't last as long as it used to, imbalance and poor calibration are likely culprits.
- After a Firmware Update: New firmware can alter algorithms, making recalibration a good practice.
- Annually: As part of a regular maintenance check-up to account for natural cell aging and component drift.
A Step-by-Step Guide to LiFePO4 BMS Calibration
The most common method for LiFePO4 batteries is 'top-balancing', which ensures all cells reach a full charge together. The following is a general guide; always consult your specific battery manufacturer's documentation for precise instructions.
Disclaimer: Working with battery systems involves electrical risks. If you are not confident in your technical skills, please consult a qualified professional. This information is for educational purposes and is not a substitute for professional advice.
Preparation and Safety
Before you begin, gather your tools and prepare your workspace. You will likely need a quality digital multimeter. Ensure you are working in a dry, well-ventilated area. Disconnect all loads (appliances) and charging sources (solar panels, grid charger) from the battery.
The Top-Balancing Calibration Procedure
- Initiate a Full Charge: Connect a compatible LiFePO4 charger and charge the battery until the charger automatically shuts off. This indicates the first cell has reached its maximum voltage.
- Let the BMS Work: Keep the charger connected or the battery at rest. The BMS will now enter its balancing phase. It identifies the fully charged cells and uses small resistors to 'bleed' a tiny amount of energy from them, converting it to heat. This allows the lower-charged cells to continue charging and catch up.
- Allow Time for Balancing: This process can take several hours, sometimes even up to 24 hours for severely imbalanced packs. Most modern BMS systems have an indicator light or an app interface to show when balancing is active.
- Confirm Completion: Once all cells have reached the same top voltage, the balancing process is complete. The BMS has now successfully re-learned the 100% SoC point.
Verifying the Calibration
After calibration, use your multimeter to measure the voltage of each individual cell (if accessible). The readings should be extremely close. A well-balanced pack will have minimal deviation between cells.
| Cell Voltage Deviation | Status | Recommended Action |
|---|---|---|
| < 0.01V (10mV) | Excellent | No action needed. |
| 0.01V - 0.05V (10-50mV) | Acceptable | Monitor during next cycle. |
| > 0.05V (50mV) | Poor | Repeat calibration or investigate for a faulty cell. |
The Role of BMS Firmware Updates
Firmware is the embedded software that runs the BMS. Just like your computer or phone, this software can be updated to improve performance and add features.
Why Firmware Updates Are Important
A BMS firmware update is more than just a bug fix. It can deliver significant improvements to the core logic of your battery system. Updates may include:
- More Efficient Balancing Algorithms: Faster and more precise balancing reduces energy waste and cycle time.
- Enhanced Safety Protocols: Improved responses to temperature fluctuations or voltage spikes.
- Better Communication: Improved compatibility with inverters, chargers, and monitoring software.
- Support for Grid Services: As noted in an IEA report on power system transformation, battery storage is increasingly used for local grid balancing. Updated firmware can enable your system to participate in such programs, providing ancillary services that support grid stability.
How to Safely Update Your BMS Firmware
The update process is manufacturer-specific but generally follows these steps:
- Check for Updates: Visit your battery manufacturer’s official website to see if a new firmware version is available for your model.
- Download the Correct File: Ensure you download the exact file for your BMS. Using the wrong firmware can render the BMS inoperable.
- Connect to the BMS: This is typically done via a USB cable, Bluetooth, or a CAN bus interface.
- Run the Update Utility: Follow the manufacturer's instructions carefully. Do not disconnect power or the communication link during the update process, as this can corrupt the BMS.
- Recalibrate: After a successful firmware update, it is highly recommended to perform a full BMS calibration.
Balancing for Peak System Performance
A well-calibrated and balanced battery is a cornerstone of a high-performing energy system. Its ability to charge and discharge efficiently impacts everything connected to it. The capability of batteries to provide grid services relies on their ability to respond quickly. According to an IRENA innovation outlook, electrochemical storage has comparable values for production and charging, making it highly flexible for real-time grid balancing.
This efficiency is not achieved in isolation. As detailed in this ultimate reference on solar storage performance, the interplay between your battery, inverter, and solar array determines your overall energy independence. A calibrated BMS ensures your battery is not the weak link, allowing it to work seamlessly with other components to deliver reliable power when you need it most.
Your Path to a More Reliable Backup System
Mastering BMS calibration and staying current with firmware updates are not optional tasks for the serious energy user. They are foundational maintenance practices that directly impact the safety, longevity, and performance of your LiFePO4 backup system. By investing a small amount of time in these procedures, you ensure your system remains a reliable and efficient source of power, protecting you from outages and helping you achieve greater energy independence.
Frequently Asked Questions
How often should I calibrate my LiFePO4 BMS?
It is recommended to perform a full calibration upon initial setup, annually as part of preventive maintenance, and anytime you notice inaccurate State of Charge (SoC) readings or a significant drop in performance. A recalibration is also wise after any major firmware update.
What is the difference between passive and active balancing?
Passive balancing, the more common type, bleeds excess energy from fully charged cells as heat to allow weaker cells to catch up. Active balancing is more complex and efficient; it uses small converters to transfer energy from higher-voltage cells to lower-voltage cells, wasting very little energy in the process.
Can I calibrate the BMS myself, or do I need a professional?
For most high-quality, user-focused battery systems, the top-balancing calibration process is designed to be performed by the owner and is often automated by the BMS itself. However, you must follow the manufacturer's instructions precisely. If your system requires specialized software or you are uncomfortable with the process, consulting a professional is the safest option.
What happens if I never update my BMS firmware?
If your system is working perfectly, you may not notice an immediate issue. However, you could be missing out on improved balancing algorithms, better safety protections, and enhanced compatibility with other system components. Over time, running outdated firmware may lead to less efficient operation and could expose your system to known bugs that have since been fixed.
