5 Factors Hurting Your Deep Cycle Lithium Battery Efficiency

A deep cycle lithium battery, particularly a Lithium Iron Phosphate (LiFePO4) battery, is a cornerstone of modern solar energy storage systems. Its ability to deliver sustained power over long periods makes it ideal for achieving energy independence. However, simply installing a battery is not enough. To maximize your investment, you need to understand its efficiency. Round Trip Efficiency (RTE) measures how much energy you get out versus how much you put in. A higher RTE means less wasted energy and lower costs. Several factors can negatively affect this crucial metric, reducing your system’s overall performance.

The Impact of Temperature Extremes

Temperature is one of the most significant environmental factors affecting the performance and lifespan of a deep cycle lithium battery. Operating outside the optimal temperature range can lead to a noticeable drop in efficiency and even cause permanent damage.

High Temperatures and Degradation

Excessive heat accelerates the chemical reactions inside a battery. While this might sound beneficial, it leads to faster degradation of internal components, such as the electrolyte and electrodes. High temperatures, generally above 45°C (113°F), can cause a permanent loss of capacity and shorten the battery's cycle life. For every 10°C increase above its ideal range, a battery's lifespan can be cut significantly. Proper ventilation and, in some cases, active cooling systems are essential to mitigate these effects, especially in warmer climates.

Cold Weather Performance Slump

Low temperatures present a different set of challenges. As temperatures drop below freezing (0°C or 32°F), the electrochemical processes within the battery slow down considerably. This increases the battery's internal resistance, making it harder to both charge and discharge efficiently. The result is a temporary reduction in available capacity and a lower voltage output. According to some studies, a LiFePO4 battery can lose up to 40% of its capacity at -20°C (-4°F). It is crucial to avoid charging a lithium battery in freezing conditions without a proper thermal management system, as this can cause irreversible damage.

Charging and Discharging Practices

How you charge and discharge your battery directly influences its round trip efficiency and longevity. Aggressive usage patterns can put unnecessary stress on the battery, leading to premature aging and reduced performance.

The Problem with High C-Rates

The C-rate defines the speed at which a battery is charged or discharged relative to its capacity. For example, a 1C rate on a 100Ah battery means charging or discharging at 100 amps. While lithium batteries can handle higher C-rates than other chemistries, consistently fast charging or discharging generates excess heat due to internal resistance. This heat not only represents wasted energy, lowering RTE, but also accelerates battery degradation. For optimal efficiency and lifespan, operating at lower C-rates, such as 0.2C to 0.5C, is recommended.

Depth of Discharge (DoD) and Cycle Life

Depth of Discharge refers to the percentage of the battery's capacity that has been used. LiFePO4 batteries are known for their ability to handle deep discharges, often up to 100%, without significant immediate damage. However, consistently cycling the battery to its maximum DoD can still impact its long-term health. Shallower discharge cycles, for instance, to 80% DoD, can substantially increase the number of cycles the battery can perform before its capacity fades, thereby preserving its efficiency over a longer period.

The Role of the Battery Management System (BMS)

The Battery Management System is the brain of your battery pack. It protects the cells from operating outside their safe limits, but its quality and calibration also play a direct role in the battery's overall efficiency.

Inefficient Cell Balancing

A battery pack consists of many individual cells connected in series. Over time, slight differences can cause these cells to have varying states of charge. The BMS's job is to balance these cells, ensuring they all charge and discharge uniformly. A low-quality or poorly calibrated BMS may perform this task inefficiently, leading to some cells being consistently undercharged while others are overcharged. This imbalance prevents the full capacity of the pack from being utilized and reduces overall round trip efficiency.

Parasitic Drain from the BMS

The BMS itself requires a small amount of power to operate, monitoring cell voltages and temperature. This constant, low-level power consumption is known as parasitic drain. While the drain is minimal, over long periods of inactivity, it can slowly deplete the battery's charge. This is a minor but real factor that contributes to energy loss and slightly lowers the net energy you can retrieve from your storage system.

Internal Resistance: The Silent Efficiency Killer

Every battery has internal resistance, which is an inherent opposition to the flow of current. While it cannot be eliminated, understanding its impact is key to managing battery efficiency, as it is a primary source of energy loss.

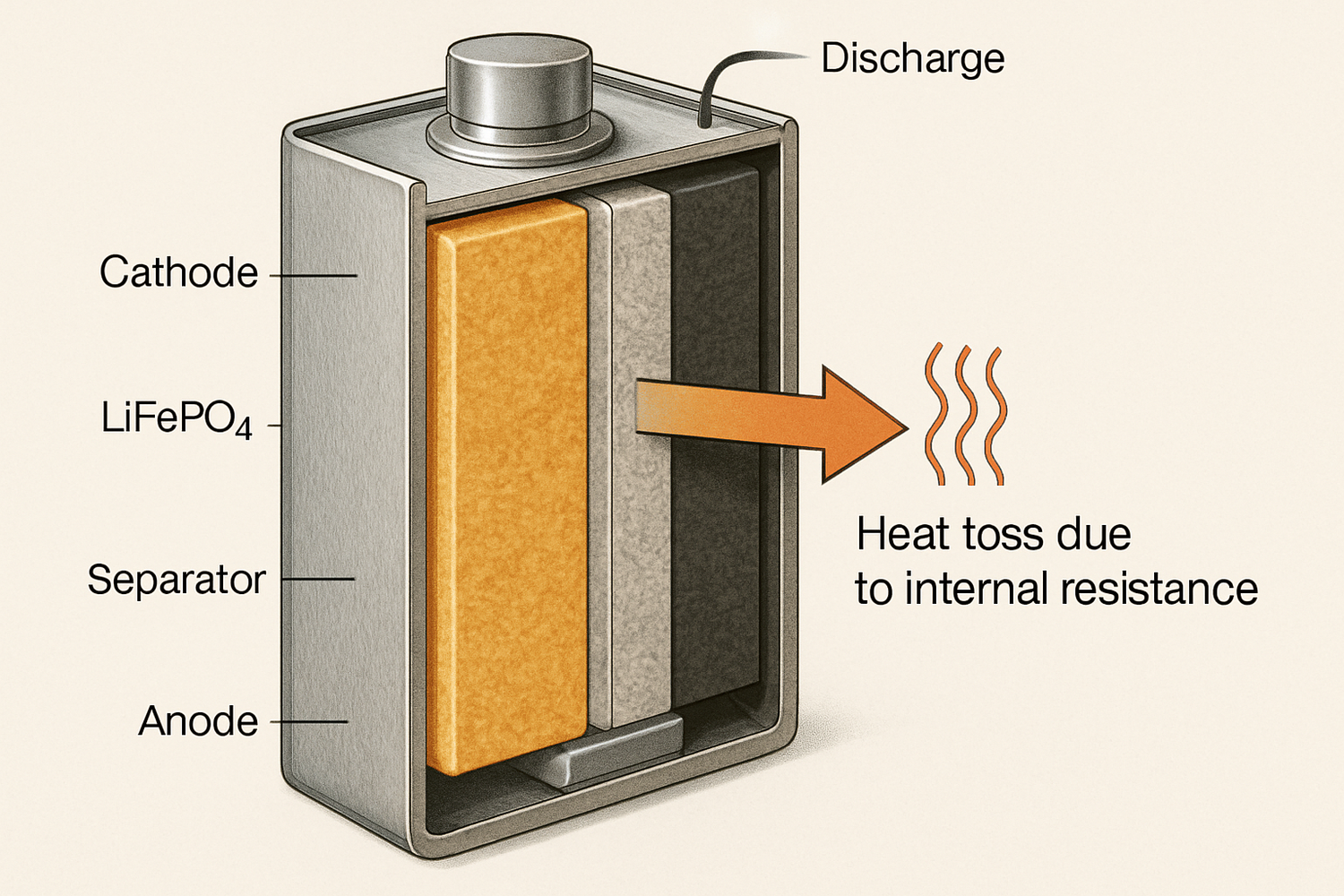

What is Internal Resistance?

Internal resistance causes a portion of the battery's energy to be converted into heat during both charging and discharging. This phenomenon, known as Joule heating, directly reduces the battery's round trip efficiency. The higher the internal resistance, the more energy is lost as heat for a given current. High-quality LiFePO4 batteries are designed with low internal resistance, but this value is not static throughout the battery's life.

How Aging Increases Resistance

As a battery ages and undergoes charge-discharge cycles, its internal chemistry changes. The materials within the electrodes degrade, and layers can form that impede the flow of ions. These natural degradation processes cause the internal resistance to gradually increase over time. This is why an older battery not only holds less charge but also becomes less efficient, generating more heat during operation.

System Integration and Component Mismatch

A battery does not operate in isolation. It is part of a larger energy storage system, and the efficiency of other components can significantly impact the overall performance. A weak link in the chain can undermine the high efficiency of the battery itself.

Inverter Inefficiency

The solar inverter converts the DC electricity from your battery into AC electricity for your home. This conversion process is not 100% efficient; some energy is always lost as heat. A high-quality inverter might have an efficiency of 95-98%, while a lower-quality or improperly sized one could be significantly less efficient. This inverter loss is a major factor in the system's total round trip efficiency. According to the U.S. Department of Energy, research into advanced battery and system components is crucial for improving overall performance. As detailed in the ultimate reference for solar storage performance, evaluating the efficiency of each component is vital for designing an effective system.

Cable Sizing and Connection Quality

An often-overlooked factor is the wiring used to connect the system components. Cables that are too small for the current they need to carry will have higher resistance, leading to significant voltage drop and energy loss as heat. Similarly, loose or corroded connections create points of high resistance. Proper cable sizing and secure, clean connections are fundamental for ensuring that the power generated and stored is delivered with minimal loss.

Optimizing Your Energy Storage

Achieving maximum efficiency from your deep cycle lithium battery is not about a single solution but a holistic approach. By managing operating temperatures, adopting smart charging habits, using a high-quality BMS, and ensuring proper system integration, you can significantly reduce energy waste. This attention to detail ensures your solar energy storage system delivers reliable, cost-effective power for years to come, moving you closer to true energy independence.

Frequently Asked Questions

What is the ideal temperature for a deep cycle lithium battery?

The optimal operating temperature for most LiFePO4 batteries is between 15°C and 35°C (59°F and 95°F). Operating within this range helps maintain both high efficiency and a long service life.

How much does round trip efficiency drop over the battery's lifespan?

The drop is gradual. As a battery ages, its internal resistance increases, which lowers efficiency. Over thousands of cycles, you might expect the round trip efficiency to decrease by a few percentage points from its initial rating, depending heavily on the operating conditions and usage patterns.

Can I mix old and new lithium batteries in the same bank?

It is strongly advised not to mix old and new batteries. Different ages mean different capacities and internal resistances, which will lead to a severe imbalance in the battery bank. The BMS will struggle to manage the cells, leading to chronic undercharging of the new cells and over-stressing of the old ones, resulting in poor performance and safety risks.
