5 Hidden Culprits Killing Your Deep Cycle Lithium Battery.

Deep cycle lithium batteries, particularly Lithium Iron Phosphate (LiFePO4) models, are known for their impressive longevity and resilience. They are a cornerstone of modern off-grid solar and home energy storage solutions. Yet, even these robust power sources can suffer from premature degradation if not managed correctly. Beyond the obvious factors like cycle count, several subtle issues can silently shorten your battery’s life. Understanding these hidden culprits is key to maximizing your energy investment.

Culprit 1: The Silent Threat of Parasitic Loads

Often overlooked, parasitic loads are small, continuous drains on your battery even when the main appliances are turned off. These 'silent killers' can have a significant cumulative effect on your battery's health.

What Are Parasitic Loads?

Think of the standby light on your television, the digital clock on a microwave, or the memory function of a stereo system. In an energy storage system, these can be sensors, monitoring equipment, or inverter standby consumption. While each draw is minuscule, they add up over hours and days, slowly depleting your battery's state of charge.

The Cumulative Effect on Battery Health

The primary danger of parasitic loads is that they can lead to a slow, deep discharge without you realizing it. This forces the battery to operate at a lower state of charge for extended periods, which increases stress on the cells. Over time, this can contribute to a gradual but irreversible loss of capacity. In extreme cases, a persistent parasitic load can completely drain a battery, potentially causing damage.

Mitigation Strategies

To combat parasitic loads, you can install a battery disconnect switch to completely isolate the battery when the system is not in use for long periods. Regularly auditing your system with a multimeter can help identify and eliminate unnecessary draws. Choosing components like inverters with ultra-low standby power consumption is also a crucial design consideration.

Culprit 2: Extreme Temperatures – Both Hot and Cold

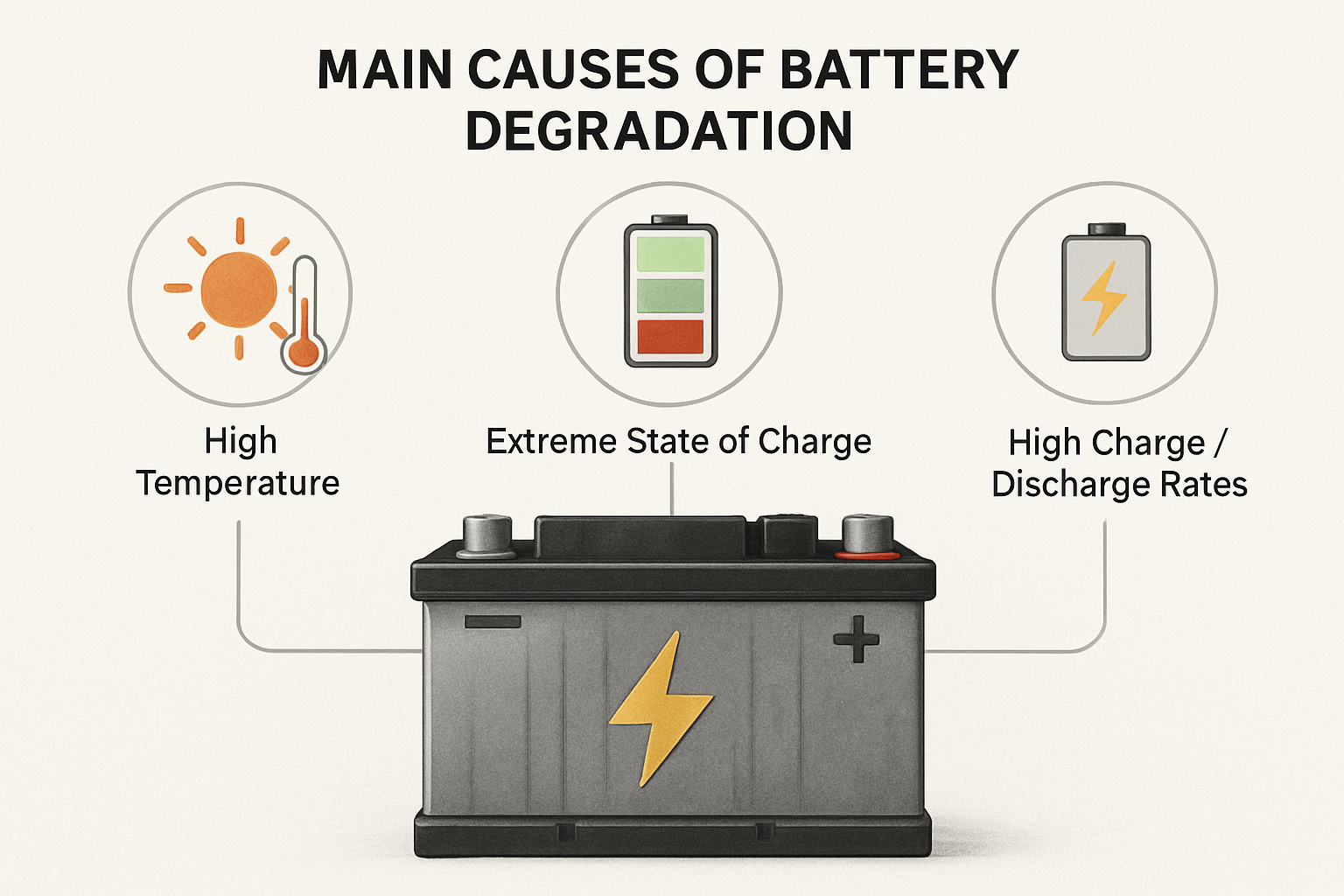

Temperature is one of the most significant factors affecting the health and lifespan of a LiFePO4 battery. Both excessive heat and freezing cold present unique challenges that can lead to permanent battery degradation.

The Impact of High Temperatures

Elevated temperatures accelerate the chemical reactions inside a battery, which speeds up degradation processes like electrolyte breakdown. Operating a LiFePO4 battery consistently above 45°C (113°F) can significantly shorten its cycle life. According to a report from the Innovation Outlook: Smart charging for electric vehicles, battery degradation is heavily influenced by the temperature of operation. Proper ventilation and ensuring adequate airflow around the battery bank are essential to dissipate heat effectively.

The Dangers of Cold Weather Charging

While LiFePO4 batteries can discharge in temperatures as low as -20°C (-4°F), charging them below 0°C (32°F) is extremely harmful. Attempting to charge a frozen battery can cause lithium plating, an irreversible process where metallic lithium forms on the anode. This permanently reduces capacity and can create internal short circuits, posing a safety risk. A quality Battery Management System (BMS) should have low-temperature charging protection to prevent this.

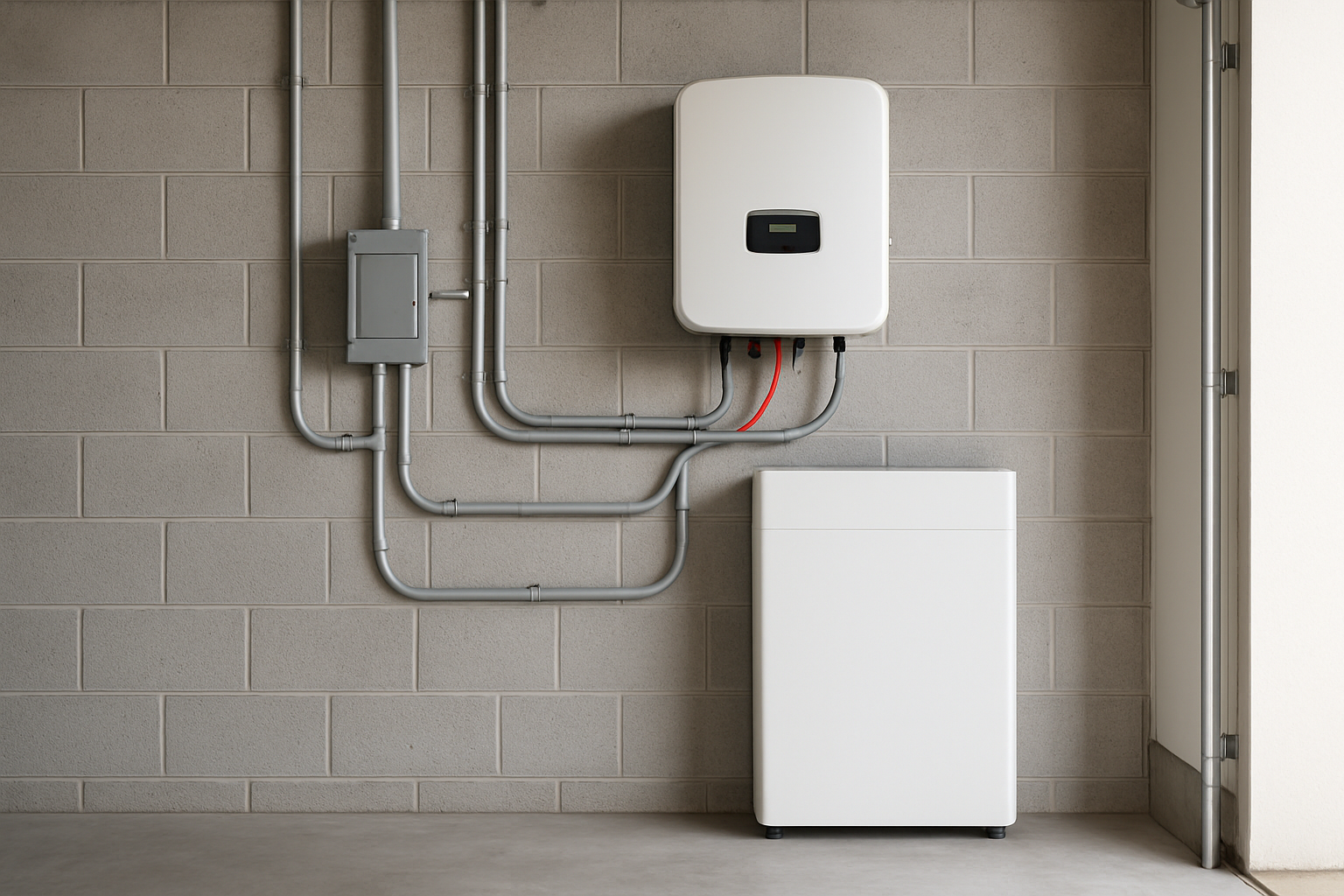

Creating a Stable Thermal Environment

The ideal operating temperature for LiFePO4 batteries is typically between 15°C and 35°C (59°F to 95°F). To maintain this, consider installing your battery bank in an insulated compartment or a climate-controlled space. For installations in cold climates, using batteries with built-in heating elements can be a worthwhile investment to ensure safe charging and optimal performance.

Culprit 3: Incorrect System Integration and Sizing

A battery is only as good as the system it's part of. Mismatched components or an improperly sized battery bank can place undue stress on your deep cycle lithium battery, leading to premature failure.

Mismatched Inverters and Chargers

Every component in your solar energy system must be compatible. Using a charger that isn’t specifically designed for LiFePO4 chemistry can lead to improper charging voltages and algorithms, which can damage the cells. It is crucial to use a charger with the correct profile—for a 12V LiFePO4 battery, this typically involves charging up to 14.2V-14.6V and then stopping or switching to a float stage.

Under-Sizing Your Battery Bank

If your battery bank is too small for your energy needs, it will be subjected to higher rates of discharge and more frequent deep cycles. Forcing a battery to consistently deliver high currents (a high C-rate) and pushing it to a low depth of discharge (DoD) will accelerate aging. It's better to oversize your battery bank slightly to ensure it operates comfortably within its specifications.

The Importance of Proper Configuration

Properly configuring your charge controller and inverter settings is non-negotiable. This includes setting the correct bulk, absorption, and float voltages. Understanding the relationship between these settings and overall performance is critical. For an in-depth analysis of key metrics, you can review this ultimate reference on solar storage performance, which details how to optimize your system for longevity.

Culprit 4: The Overlooked Factor of Cell Imbalance

A lithium battery pack is made of many individual cells connected in series. Cell imbalance occurs when these cells have different states of charge or capacities, which can severely limit the performance and lifespan of the entire pack.

How Cell Imbalance Occurs

No two battery cells are perfectly identical due to tiny variations in manufacturing. Over many cycles, these small differences can cause some cells to charge and discharge faster than others. This leads to a voltage drift, where some cells are at a higher voltage than their neighbors. This imbalance can be worsened by temperature gradients across the pack or uneven aging.

The Role of the BMS in Balancing

A Battery Management System (BMS) is designed to monitor and protect the cells. One of its key functions is cell balancing. It does this by either draining a small amount of energy from the highest-voltage cells (passive balancing) or shuffling energy to the lowest-voltage cells (active balancing). However, if the imbalance becomes too severe, it can overwhelm the BMS's ability to correct it, leading to reduced usable capacity and accelerated degradation of the entire pack.

Periodic Maintenance and Checks

To help the BMS maintain balance, it's good practice to periodically perform a full 'top balance' charge. This involves charging the battery to 100% and holding it at the absorption voltage for a short period. This gives the BMS time to equalize the voltage across all cells. Regular monitoring of cell voltages, if your system allows, can also provide early warning of developing issues.

Culprit 5: Inconsistent Charging and 'Micro-Cycling'

While LiFePO4 batteries are resilient to various charging patterns, certain habits can still contribute to long-term degradation. Inconsistent and erratic charging can introduce unnecessary stress on the battery cells.

Beyond Full Cycles

LiFePO4 batteries do not have the 'memory effect' of older chemistries, but the way they are cycled still matters. Frequent, very shallow charge-discharge cycles, sometimes called 'micro-cycling,' can still contribute to the aging process over thousands of repetitions. This is often seen in systems with unstable power sources or poorly configured solar charge controllers that constantly start and stop charging.

The Impact of Partial State of Charge (SoC)

Consistently operating the battery in a very low or very high state of charge can accelerate calendar aging. For example, leaving a battery at 100% charge for weeks at a time, especially in high temperatures, can degrade the electrolyte. Similarly, frequent deep discharges below 20% SoC put more strain on the electrodes. The The State of Energy Innovation report notes that research is ongoing to improve material stability during ion insertion, a process affected by charging behavior.

Best Practices for Charging

For optimal health, aim for a stable charging routine. If the battery will not be used for an extended period, it's best to store it at around a 50% state of charge in a cool, dry place. Using a smart charger that is specifically designed for LiFePO4 and allowing it to complete its full charge algorithm periodically helps maintain both cell balance and overall battery health.

A Proactive Approach to Battery Longevity

Protecting your investment in a deep cycle lithium battery goes beyond simply using it. By being mindful of silent killers like parasitic loads, extreme temperatures, system mismatches, cell imbalance, and erratic charging, you can significantly extend its service life. A well-designed system, combined with proactive monitoring and maintenance, ensures you achieve the maximum performance and value from your energy storage solution for years to come.

Frequently Asked Questions

Can a high-quality BMS prevent all these issues?

A high-quality Battery Management System (BMS) is your battery's first line of defense. It actively protects against over-charging, over-discharging, high and low temperatures, and works to balance the cells. However, it cannot eliminate the root causes. For instance, a BMS can disconnect the battery to prevent damage from a parasitic load, but it cannot remove the load itself. It serves as a crucial safety and management tool, but proper system design and user habits are equally important for long-term health.

How often should I check for parasitic loads?

For a new system, it's wise to perform a parasitic load test after installation to establish a baseline. After that, an annual check is usually sufficient unless you notice unexplained battery drain. If you add or change any components in your electrical system, you should perform a new test to ensure no new parasitic draws have been introduced.

Is it better to keep my lithium battery fully charged or at a partial state of charge?

For daily use, cycling the battery between 20% and 80% State of Charge (SoC) is generally considered ideal for maximizing its lifespan. While charging to 100% is necessary for occasional cell balancing, consistently keeping it at a full charge, especially in warm conditions, can accelerate degradation. For long-term storage (more than a month), storing the battery at approximately 50% SoC is the recommended practice.
