LiFePO4 vs Lead-Acid: A Battery Efficiency Comparison

Choosing the right battery technology is a pivotal decision for the performance and financial return of an energy storage system. Among the various options, lithium iron phosphate (LiFePO4) and traditional lead-acid batteries are two of the most common choices. While both can store energy, their operational efficiency differs significantly. This comparison examines the key efficiency metrics between LiFePO4 and lead-acid batteries, clarifying how these differences impact real-world applications, especially in solar energy systems.

Understanding Battery Efficiency: More Than Just a Number

Battery efficiency is not a single metric but a combination of factors that determine how much of the stored energy is actually available for use. For any home or business relying on stored power, understanding these details is crucial for optimizing the system.

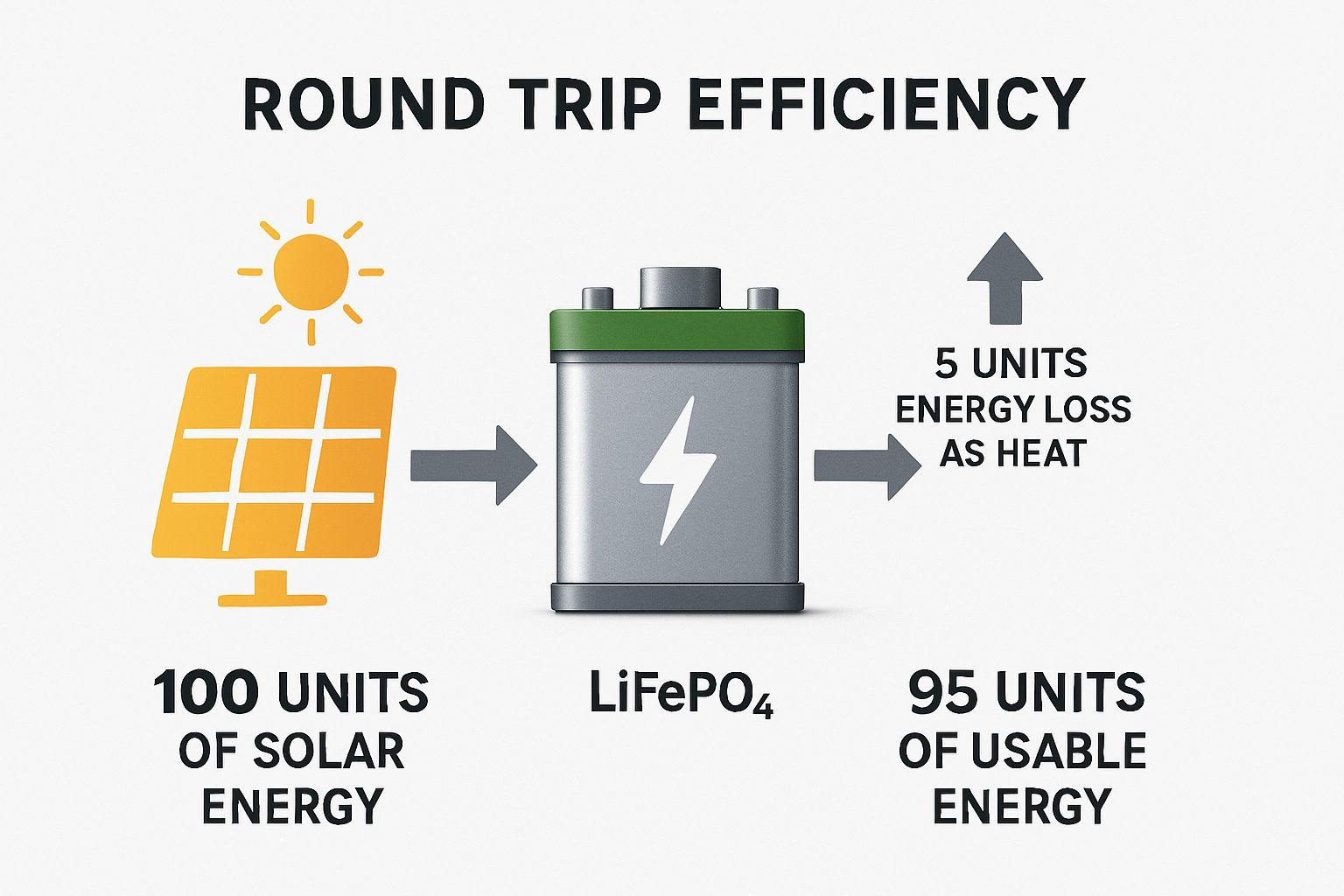

What is Round Trip Efficiency (RTE)?

Round Trip Efficiency, or RTE, measures the amount of usable energy you get out of a battery compared to the amount of energy you put into it. Think of it like a bucket with a small leak; you can never take out quite as much water as you put in. For batteries, this 'leak' is energy lost as heat. LiFePO4 batteries typically feature an RTE of 92% or higher, while lead-acid batteries generally range from 75% to 85%. This means for every 100 watt-hours of energy used to charge a LiFePO4 battery, at least 92 are available for use. In contrast, a lead-acid battery might only provide 75 watt-hours.

Why RTE is a Critical Metric for Solar Storage

In a solar energy system, every watt-hour is valuable. Higher RTE translates directly into less wasted energy. This means more of the solar power generated by your panels is stored and available for use later, reducing reliance on the grid. Over the lifespan of the system, a higher RTE can lead to significant savings and a faster return on your investment. The growing adoption of battery storage, as noted by the U.S. Energy Information Administration (EIA), underscores the importance of efficient technology in modern energy grids.

The Technical Divide: Why LiFePO4 Outperforms Lead-Acid

The efficiency gap between LiFePO4 and lead-acid technologies stems from fundamental differences in their chemistry and construction. These differences affect everything from heat generation to how they handle heavy loads.

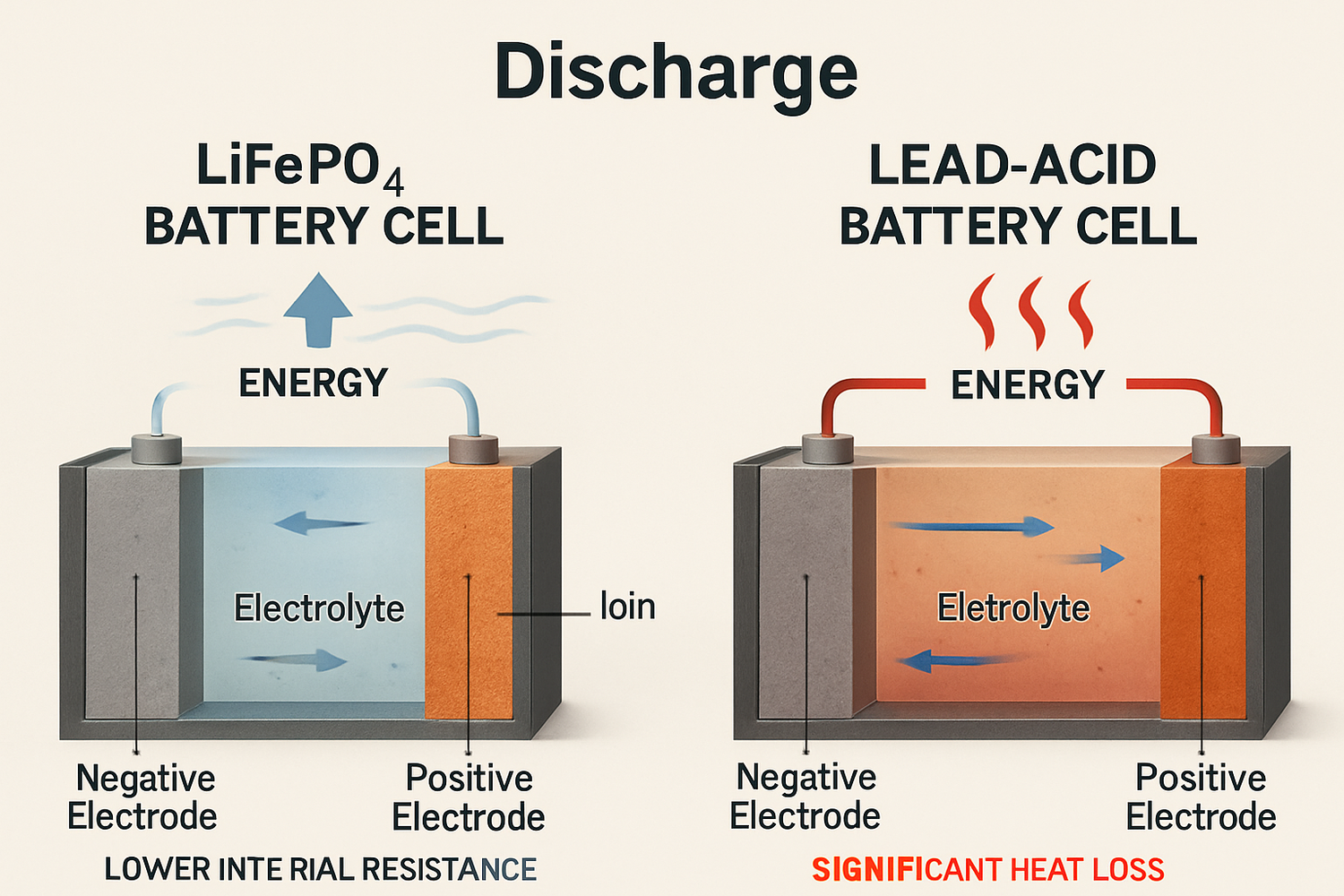

Internal Resistance and Heat Generation

Internal resistance is the opposition to current flow within a battery. LiFePO4 batteries have a very low internal resistance, which means less energy is converted into waste heat during charging and discharging. Lead-acid batteries, conversely, have higher internal resistance that increases as the battery discharges. This not only reduces efficiency but can also accelerate the degradation of the battery's internal components over time.

Charging Efficiency and Speed

The way these batteries charge also contributes to the efficiency difference. LiFePO4 batteries can maintain a high charging efficiency across the entire charging cycle. This allows them to absorb power much faster; a full charge can often be achieved in 2-4 hours. Lead-acid batteries require a multi-stage charging process. The final 'absorption' stage is notoriously inefficient, significantly slowing down the process. A full charge for a lead-acid battery can take 8-10 hours or more. This speed difference is critical for solar applications, where the goal is to capture as much energy as possible during peak sunlight hours.

The Peukert Effect and Depth of Discharge

The Peukert effect describes how a lead-acid battery's available capacity decreases as the rate of discharge increases. If you power high-wattage appliances, a lead-acid battery will deliver significantly less than its rated capacity. LiFePO4 batteries are largely immune to this effect, providing consistent capacity even under heavy loads. This means with a LiFePO4 battery, you have more usable energy when you need it most. Furthermore, LiFePO4 batteries can be regularly discharged to 100% of their capacity without significant degradation, whereas lead-acid batteries are typically limited to a 50% depth of discharge to preserve their lifespan.

Quantifying the Difference: A Practical Comparison

To illustrate the real-world impact of these efficiency differences, consider a practical scenario and the long-term financial implications.

A Scenario: Storing 10 kWh of Solar Energy

Imagine your solar panels generate an extra 10 kilowatt-hours (kWh) of energy that you want to store for overnight use.

In this example, the lead-acid battery wastes four times more energy than the LiFePO4 battery. This lost energy represents solar power that was generated but never used, effectively reducing the output of your entire system.

Lifetime Energy Throughput and Cost

While lead-acid batteries often have a lower upfront cost, their lower efficiency and shorter cycle life can make them more expensive over time. A LiFePO4 battery can endure thousands of charge cycles, while a comparable lead-acid battery may only last for several hundred. When you factor in the wasted energy and more frequent replacements, the total cost per kWh delivered by a LiFePO4 battery is often substantially lower. As detailed in the ultimate reference for solar storage performance, evaluating the Levelized Cost of Storage (LCOS) provides a more accurate picture of the long-term value.

Making the Right Choice for Your System

The evidence clearly shows that LiFePO4 batteries offer superior efficiency. Their higher RTE, faster charging, and consistent performance under load make them a more effective technology for energy storage, particularly in solar systems. As organizations like the International Renewable Energy Agency (IRENA) highlight, advancements in battery storage are crucial for the transition to renewable energy. While lead-acid batteries may seem attractive due to their initial price, a LiFePO4 battery provides better long-term performance and value by ensuring that more of your generated energy is put to good use.

Frequently Asked Questions

Is the efficiency difference between LiFePO4 and lead-acid noticeable in a small off-grid system?

Yes, absolutely. In a small system, every watt-hour counts. A 10-15% efficiency gain from using LiFePO4 means you can power your loads for longer or require a smaller solar array to achieve the same level of charge, which is a significant practical advantage.

How does temperature impact the efficiency of these two battery types?

Both chemistries are affected by temperature, but lead-acid is more sensitive. Its capacity and efficiency drop sharply in cold weather. LiFePO4 batteries also see reduced performance in extreme cold but generally have a wider optimal operating temperature range, making them more reliable in varied climates.

Does a higher round trip efficiency translate to a longer battery lifespan?

Indirectly, yes. Higher efficiency means less energy is wasted as heat. Excessive heat is a primary factor in battery degradation and aging. By operating more efficiently and generating less internal heat, LiFePO4 batteries experience less stress, which contributes to their longer overall service life.
